| Place of Origin: | CHINA |
| Brand Name: | YUHONG |
| Model Number: | ASTM A269 TP316L |
| Minimum Order Quantity: | 100 KGS |
|---|---|
| Price: | NEGOTIABLE |
| Packaging Details: | Ply-wooden Case /Iron Case/ Bundle with plastic Cap |
| Delivery Time: | 20-80 days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 1500 Tons Per Month |
| Certification: | ISO, SGS, BV, ISO & SGS, ISO/CE/SGS | Steel Grade: | 300 Series, Stainless Steel 304/316L, 400 Series, X5CrNi18-20, 200 Series |
|---|---|---|---|
| Type: | Seamless Tube | Standard: | ASTM, DIN, JIS, Etc. |
| Length: | Customized | Thickness: | 0.4-30mm, 1.0mm, 0.6mm-2500mm, 1mm-60mm, 0.6-25 Mm |
| Technique: | Cold Rolled Hot Rolled, Cold Drawn, Extrusion, Cold Drawn/Cold Rolling Or Both Of Them | Product Name: | Stainless Steel Pipe, 304 304L 316 316L 321 310S Stainless Steel Welded/Seamless Tube, Factory Direct Sales Stainless Steel Pipe For Electric Heating Element, Seamless Stainless Steel Pipe/Tube |
| Outer Diameter: | 6-630mm, Customized, 6-762mm, 6-860mm;, 6mm-630mm | Surface: | Annealing, 8K, Polishing Or Unpolishing, Morror/Satin |
| Finish: | Brush Polish, Cold Drawn, Pickled, Bright Annealed Or Un Annealed, Bright | Application: | Construction, Machinery, Automobile, Etc. |
| MOQ: | 1 Ton | Material: | Stainless Steel |
| Package: | Standard Export Package | Processing Method: | Cold Drawn, Cold Rolled, Hot Rolled, Etc. |
| Size: | Customized | Surface Treatment: | Polishing, Annealing, Pickling, Etc. |
| Wall Thickness: | Customized | ||
| High Light: | ASTM A269 TP316L Coil Tube,Bright Annealed ASTM A269 Tube,TP316L ASTM A269 Tube |
||
Yuhong Special Steel has been engaged in austenitic stainless steel, nickel alloy steel (Hastelloy, Monel, Inconel, Inconel) seamless welded pipes and pipes
for more than 25 years, with annual sales of more than 80,000 tons of steel pipes and pipes. pipeline. Our customers are located in more than 45 countries
including USA, Canada, UK, Germany, Italy, Chile, Colombia, Saudi Arabia, South Korea, Singapore, Australia, Poland and France.

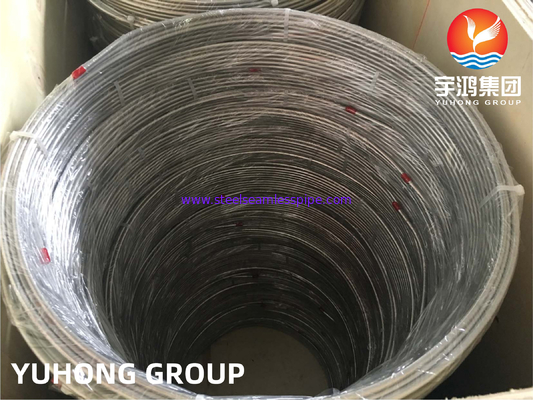

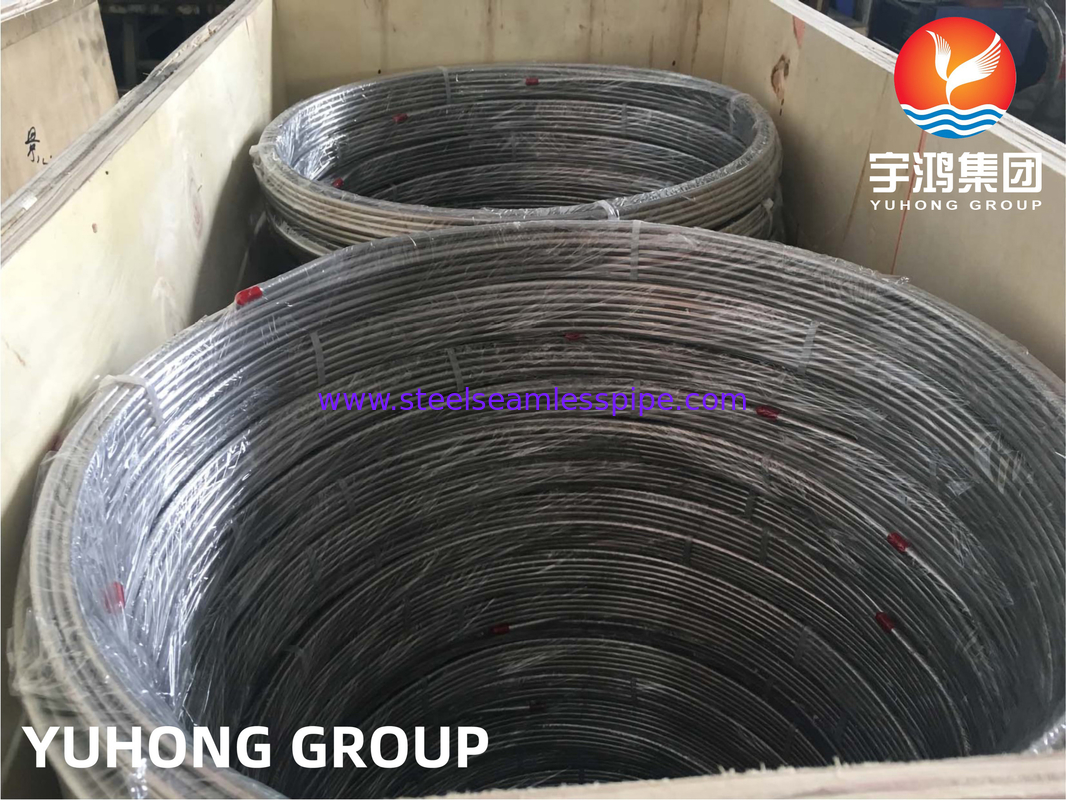

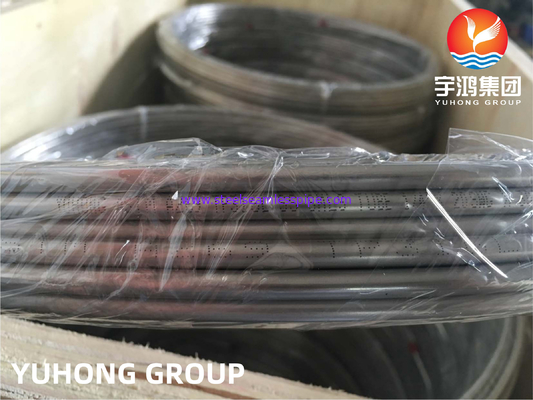

Stainless steel coils are ideal for use in potentially corrosive environments, as well as for conveying liquids and gases for cooling, heating and other uses.
From gas manifolds and piping to solar and medical equipment, YUHONG's stainless steel coils are effective in a wide range of applications.
Standard Specification:
ASTM A269/A269M: Standard Specification for General Seamless and Welded Austenitic Stainless Steel Pipe
ASTM A312 / A312M-12: Standard Specification for Seamless, Welded, and Re-cold Worked Austenitic Stainless Steel Pipe
ASTM A511 / A511M-12: Standard Specification for Seamless Stainless Steel Mechanical Pipe
ASTM A789/A789M-10a: Standard Specification for General Seamless and Welded Ferritic/Austenitic Stainless Steel Pipe
ASTM A790/A790M-11: Standard Specification for Seamless and Welded Ferritic/Austenitic Stainless Steel Pipe
DIN 17456-2010: Universal seamless round stainless steel pipe.
DIN 17458-2010: Seamless round austenitic stainless steel tube
EN10216-5 CT 1/2: Stainless steel seamless pipes and tubes
GOST 9941-81: Seamless cold-worked and warm-worked tubes made of corrosion-resistant steel.
Other standards such as BS and JIS can be supplied
| ASTM |
A312, A376, A358, A269, A249, A403, A182, A351 |
| ASME |
SA312, SA376, SA358, SA269, SA249,SA403, SA182, SA351 |
Material Grade:
| American Standard |
Austenitic Steel: TP304, TP304L, TP304H, TP304N, TP310S, TP316, TP316L, TP316Ti, TP316H, TP317, TP317L, TP321, TP321H, TP347, TP347H, 904L… Duplex Steel : S31803, S32101, S32205, S32304, S32750, S32760 Others: TP405, TP409, TP410, TP430, TP439,... |
| Europen Standard | 1.4162, 1.4301, 1.4307,1.4362, 1.4401, 1.4404, 1.4410, 1.4438, 1.4462, 1.4501, 1.4539, 1.4541, 1.4550, 1.4571, 1.4841, 1.4845,1.4878, 1.4948, |
| GOST Standard | 08Х17Т, 08Х13, 12Х13, 12Х17, 15Х25Т, 04Х18Н10, 08Х20Н14С2, 08Х18Н12Б, 10Х17Н13М2Т, 10Х23Н18, 08Х18Н10, 08Х18Н10Т, 08Х18Н12Т, 08Х17Н15М3Т, 12Х18Н10Т, 12Х18Н12Т, 12Х18Н9, 17Х18Н9, 08Х22Н6Т, 06ХН28МДТ |
Size Range:
| Production | Outside Diameter | Wall Thickness |
| Seamless Pipe | 6.00mm-830mm | 0.5mm-48mm |
Specifications: ASTM A/ASME SA213/A249/A269/A312/A358 Pipes and Tubes Sizes (Seamless): 1/2" NB - 16" NB
Pipes and Tubes Sizes (ERW): 1/2" NB - 24" NB
Pipes and Tubes Sizes (EFW): 6" NB - 100" NB
Pipes and Tubes Wall Thickness available: Schedule 5S - Schedule XXS (heavier on request)
Pipe and Tubes Other Materials Testing: NACE MR0175, H2 SERVICE, OXYGEN SERVICE, CRYO SERVICE, etc.
Dimensions: All Pipe is manufactured and inspected/tested to the relevant standards including ASTM, ASME and API etc.
| C | Cr | Mn | Mo | Ni | P | S | Si |
| Max | Max | Max | Max | Max | |||
| 0.035% | 16% - 20% | 2.0% | 2% - 3% | 10% - 15% | 0.040% | 0.030% | 0.75% |
A269 TP304 Stainless Steel Seamless Tube Mechanical Properties
| Density | 8.0 g/cm3 |
| Melting Point | 1400 °C (2550 °F) |
| Tensile Strength | Psi – 70000 , MPa – 515 |
| Yield Strength (0.2%Offset) | Psi – 25000 , MPa – 205 |
| Elongation | 35% |
316 is more resistant to atmospheric and other mild environments than 304. It is resistant to dilute sulfuric acid solutions (i.e. 1-5%) up to 120°F.
But in some oxidizing acids, 316 is not as resistant as 304. 316 is susceptible to carbide precipitation when exposed to temperatures in the
800° - 1500°F temperature range, and therefore susceptible to intergranular corrosion in the as-welded condition. Post-weld annealing will restore
corrosion resistance. 316L has the same composition as 316 except that the carbon content is kept below 0.03%. As expected, its general corrosion
resistance and other properties are very similar to Type 316. However, it does provide resistance to intergranular corrosion in the as-welded condition or
when exposed for short periods of time in the temperature range of 800° - 1500°F. When carbide precipitation ranges are unavoidable and post-weld
annealing is not feasible, 316L is recommended. However, prolonged exposure in this range may make the material brittle and make it susceptible to
intergranular attack. The maximum temperature for scaling resistance is approximately 1650°F in continuous use and 1500°F in intermittent use.
May be susceptible to chloride stress corrosion cracking. Non-hardenable; non-magnetic in the annealed state, slightly magnetic when cold-worked.
Improves corrosion resistance to chlorides.
