Yuhong Holding Group Co.,LTD
 |
| Place of Origin: | China |
| Brand Name: | Yuhong |
| Certification: | API, PED , ABS, DNV, BV |
| Model Number: | A403 WP304L |
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | PLY-WOODEN CASE OR PALLET |
| Delivery Time: | 7days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 1000ton/month |
| Standard: | ASTM A403 | Material Grade: | WP304L |
|---|---|---|---|
| Technics: | Butt Weld | Third Party Inspection: | BV,SGS,ASP |
| High Light: | Seamless 45 Degree Elbow,ASTM A403 WP304L 45 Degree Elbow,ASTM A403 WP304L 45 Elbow |
||

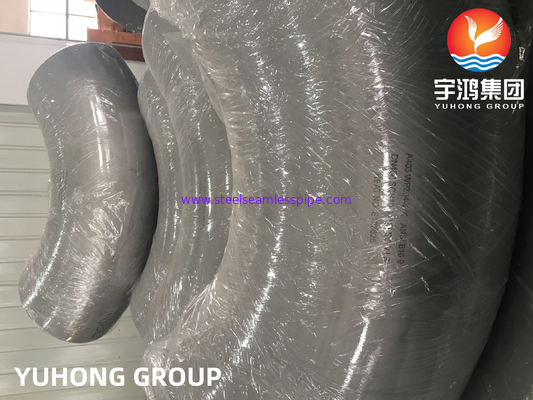

ASTM A403 WP304L-W WELDED 45 DGE LR ELBOW B16.9 FOR STEEL TUBE
YUHONG SPECIAL STEEL deal with Austenitic Stainless Steel, Nickel Alloy Steel(Hastelloy , Monel, Inconel, Incoloy ) seamless and welded pipe and tube already more than 25 years, every year sell more than 80000 tons of steel pipe and tube. Our client already cover more than 45 countries, Like Italy, UK, Gernmany, USA, Canada, Chile, Colombia, Saudi Arabia, Korea, Singapore, Austrial, Poland, France , ....And our group branch company and factory have been already approved by :ABS, DNV, GL, BV, PED 97/23/EC, AD2000-WO, GOST9941-81, CCS, TS, CNNC, ISO9001-2008, ISO 14001-2004.
ASTM A403 WP304L pipe fittings mean the pipe fittings which material is wrought austenitic stainless grade WP304L,they are used for the pressure piping systems of moderate and high temperature services.ASTM A403 is the standard of pipe fittings material,it indicates the materials properties of different kinds of stainless steel,WP304L is one of the steel grade in this standard.The corrosion resistance of 304L and 304 are similar.But after eliminate stress or welding,corrosion resistance of 304L will be more excellent.ASTM A403 WP304L is the most common stainless steel pipe fittings material.
ASTM A403 WP304L pipe fittings are butt welding ends,commonly used to be welded with the steel pipes of A312 TP304L material.
The regular products of ASTM A403 WP304L pipe fittings are elbows,tees,reducers,caps,cross.There are seamless and ERW A403 WP304L pipe fittings,the seamless A403 WP304L pipe fittings means the fittings are made from the seamless steel pipes,ERW means the fittings are made from ERW steel pipes.Welded A403 WP304L pipe fittings mean the large sizes fittings which are pieces welded from steel plates.
The process of A403 WP304L pipe fittings manufacturing is called “wrought” which means it could be casted or forged.Usually the ASTM A403 WP304L elbows,tees,reducers are made from steel pipes,the caps are made from plates.But the large sizes pipe fittings are commonly manufactured in pieces and welded together.(How to use ASTM A403 WP304L pipe fittings?)
| Grade | C | Mn | P | S | Si |
| WP304 | 0.03 | 2.00 | 0.045 | 0.03 | 0.75 |
| Grade | Cr | Mo | Ni | ||
| WP304 | 18.00-20.00 | 8.25-10.50 | 8.00-12 |
Other Grades for Steel Fittings:
Nickel Alloy
ASTM / ASME SB 336 UNS 2200 (NICKEL 200), UNS 2201 (NICKEL 201 ), UNS 4400 (MONEL 400), UNS 8020 (ALLOY 20 / 20 CB 3, UNS 8825 INCONEL (825), UNS 6600 (INCONEL 600), UNS 6601 (INCONEL 601), UNS 6625 (INCONEL 625), UNS 10276 (HASTELLOY C 276)
Stainless Steel
ASTM / ASME SA 403 GR WP "S" / "W" / " WX" 304 , 304L, 304H, 304N, 304LN, 309, 310H, 316, 316H, 317, 317L, 321, 321H, 347, 347 H.
Duplex Steel
ASTM / ASME SA 815 UNS NO.S 31803, S 32205, S 32550, S 32750, S 32760.
Carbon Steel
ASTM / ASME A 234 WPB, WPC
ASTM / ASME A 860 WPHY 42, WPHY 46, WPHY 52, WPH 60, WPHY 65 & WPHY 70.
Alloy Steel
ASTM / ASME A 234 WP 1, WP 5, WP 9, WP 11, WP 12, WP 22, WP 23, WP 91
Product range :
Size : 1/8"NB TO 48"NB IN
Schedule : SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS
Type : Seamless / ERW / Welded / Fabricated /Forged
Form : Eccentric Reducer, Concentric Reducer
| KS : KOREAN INDUSTRIAL STANDARDS |
|
||
| JIS : JAPANESE INDUSTRIAL STANDARDS |
|
||
| Standard | ASTM A403 /ASME SA403 | WP-W | ANSI B16.9/MSS SP-43 | ||
