Yuhong Holding Group Co.,LTD
 |
| Place of Origin: | CHINA |
| Brand Name: | YUHONG |
| Certification: | ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008 |
| Model Number: | ASTM A403 WP317L Stainless Steel Reducer |
| Minimum Order Quantity: | 1PC |
|---|---|
| Packaging Details: | PLYWOOD CASE,PALLET |
| Delivery Time: | 7 DAYS |
| Payment Terms: | L/C,T/T |
| Product Name: | Reducer | Dimension: | ASTM, AISI, ASME, JIS, DIN, EN, GB, BS, SUS |
|---|---|---|---|
| Standard: | ASTM A403, ASME SA403 | Grade: | SS304, 304L, 316L, 317L, 321, Etc |
| O.D.: | 1/2" TO 48" | WT..: | Sch10S To XXS |
| Type: | Seamless, Welded | Shape: | Con. Reducer, Ecc. Reducer |
| Application: | Petroleum, Power, Chemical, Construction, Gas, Metallurgy, Shipbuilding Etc | ||
| High Light: | stainless steel pipe fitting,stainless pipe fittings |
||

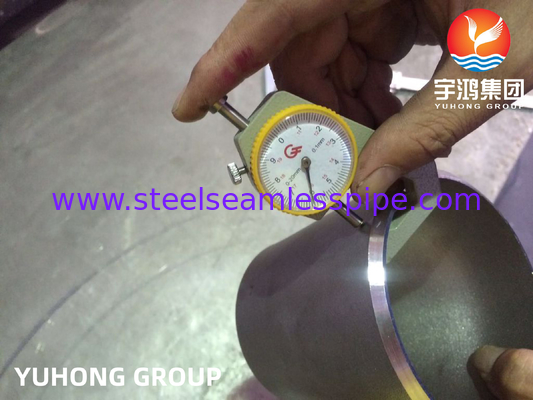

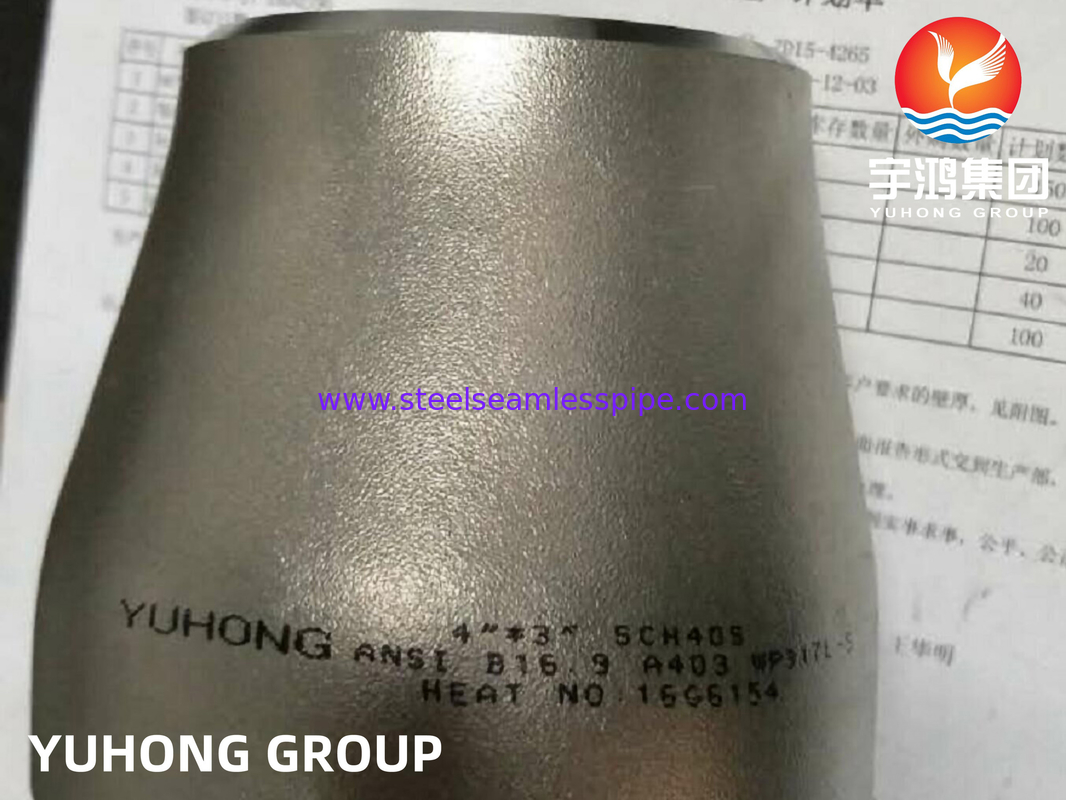

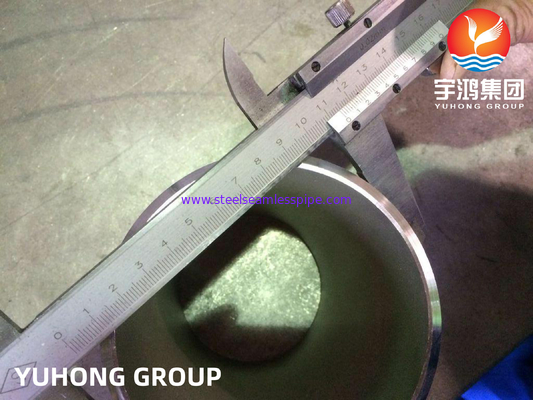

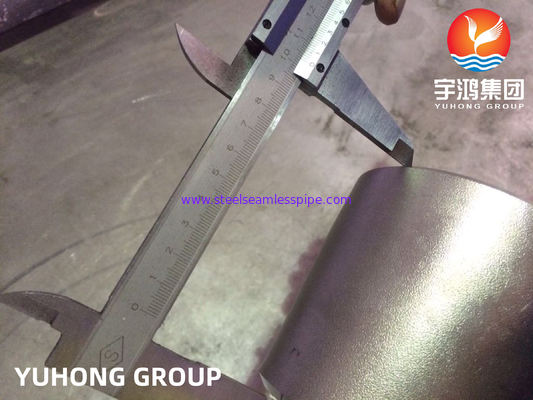

ANSI / ASME B16.9 Buttweld Pipe Fitting, ASTM A403 WP317L Stainless Steel Reducer
Stainless steel 317L contains low carbon and high alloy. It is specifically designed to be highly resistant to corrosion and oxidation in high-temperature environments. Reducer is a type of pipe fitting that is used to connect two pipes with different diameters. It is designed to reduce the size of the pipe and facilitate a smooth flow of fluids or substances, which is specifically used in applications where corrosion resistance and high-temperature strength are required.
EQUIVALENT GRADES FOR STAINLESS STEEL WP317L REDUCERS
| STANDARD | WERKSTOFF NR. | UNS | JIS | EN |
| SS 317L | 1.4438 | S31703 | SUS 317L | X2CrNiMo18-15-4 |
STAINLESS STEEL 317L REDUCERS CHEMICAL COMPOSITION
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | Fe |
| SS 317L | 0.035 max | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 18.00 - 20.00 | 3.00 - 4.00 | 11.00 - 15.00 | 57.89 min |
MECHANICAL PROPERTIES OF STAINLESS STEEL WP317L REDUCERS
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 7.9 g/cm3 | 1400 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
Specification Of Stainless Steel 317L Buttweld Fittings
| Specifications | ASTM A403 / ASME SA403 |
| Pipe Fittings size | Seamless Stainless Steel Butt Weld Fittings: 1/2" - 10" Welded Stainless Steel Butt Weld Fittings: 1/2" - 48" |
| Pipe Fittings Dimensions | ASME/ANSI B16.9, ASME B16.28, MSS-SP-43, BS4504, BS4504, BS1560, BS10 ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799 |
| Pipe Fittings Thickness | SCH10, SCH20, SCH30, STD SCH40, SCH60, XS, SCH 80, SCH 100, SCH 120, SCH 140, SCH 160, XXS available with NACE MR 01-75 |
| Pipe fittings Types | Seamless / ERW / Welded / Fabricated |
| Manufacturing Standards | ASME/ANSI B16.9, ASME B16.28, MSS-SP-43 DIN : DIN2605, DIN2615, DIN2616, DIN2617, DIN28011, DN15-DN1200 BS : BS4504, BS4504, BS1560, BS10 JIS : JIS B2311, JIS B2312, JIS B2313, JIS B2316 GOST : GOST 17375, GOST 17376, GOST 30753, GOST 17378, GOST 17379, GOST 17380 EN: EN10253-1, EN10253-2 |
| Bending Radius | R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom |
| Connection | Welding |
| Pipe Fittings Elbow | Angle : 22.5 deg, 30deg, 45 deg, 90 deg, 180 deg, 1.0D, 1.5D, 2.0D, 2.5D, 3D, 4D, 5D, 6D, 7D-40D. Standard: ASME B16.9, ASME B16.28, ASME B16.25, MSS SP-75 DIN2605 JISB2311 JISB2312 JISB2313, BS, GB, ISO |
| Pipe Fittings Size Range | 1/2" NB to 24" NB in Sch 10s, 40s, 80s, 160s, XXS. (DN6~DN100) |
| Pipe Fittings Manufacturing process | Push, Press, Forge, Cast, etc. |
| Buttweld Fittings Test Certificates |
|
| Specialized manufacturer of | 90º Elbows, Couplings, Reducers, Inserts, Caps, Nipples, 45º Elbows, Tees, Crosses, Equal Tees & Reducing Tees |
| Pipe Fittings uses & application |
|
