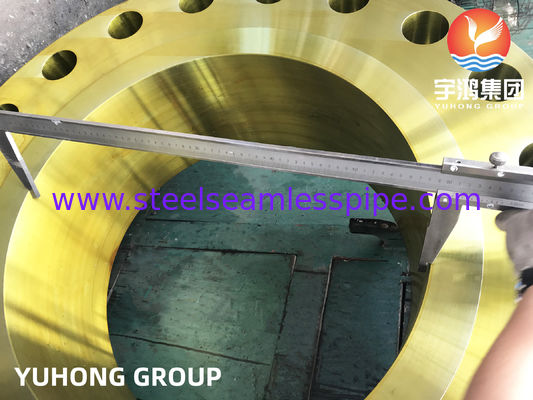

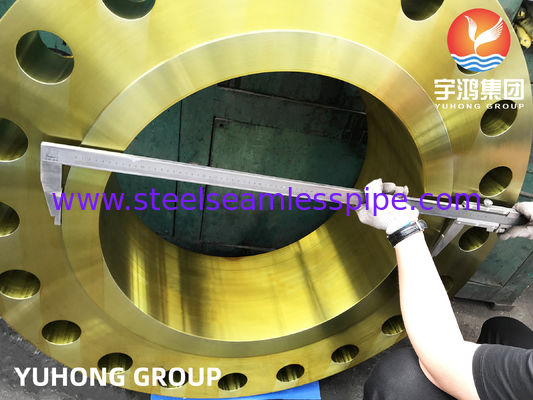

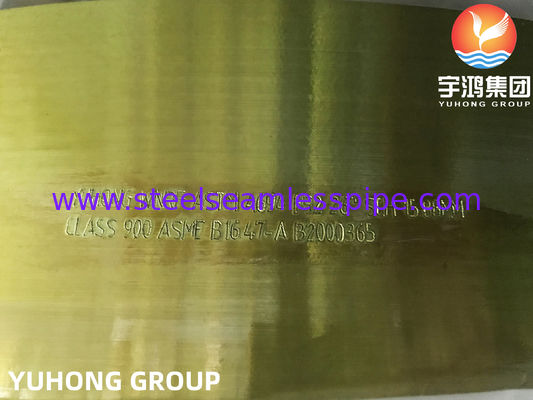

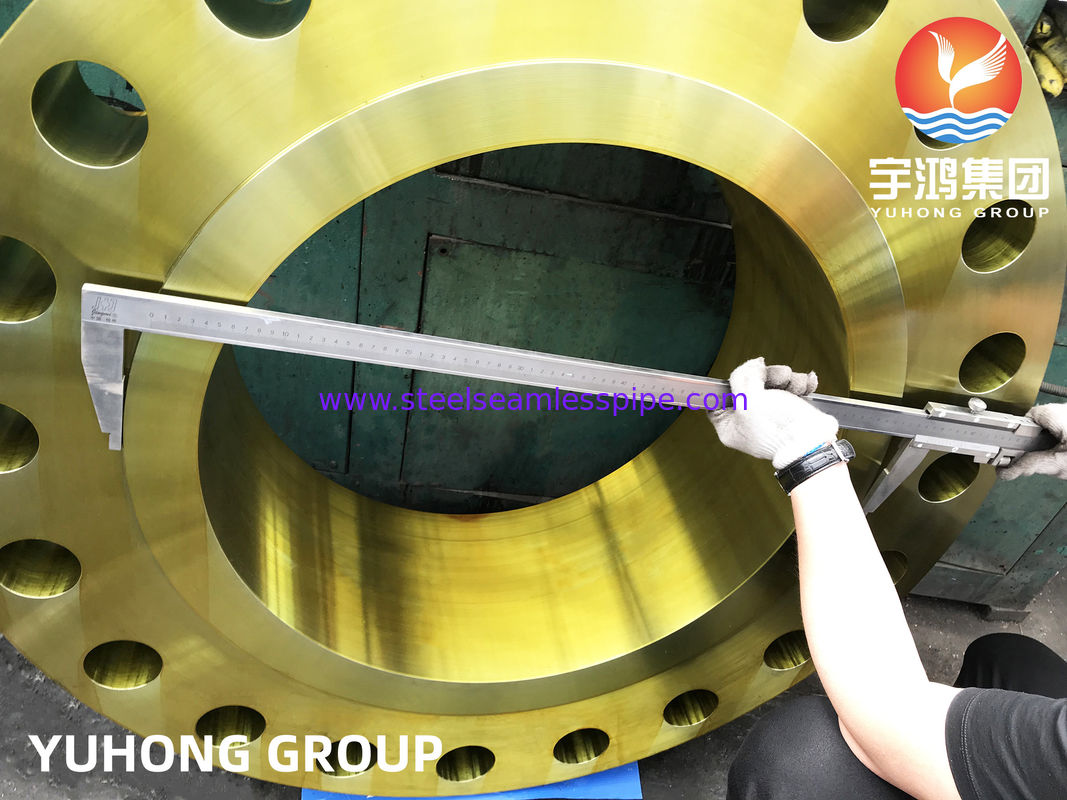

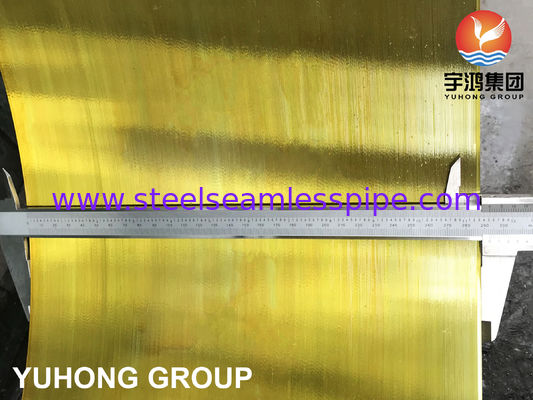

A694 F52 Weld-Neck Flange With Rust Protection, Carbon And Alloy Steel B16.47 Forgings, Resistant To Hydrogen Sulfide

Product Details:

Place of Origin:	CHINA
Brand Name:	YUHONG
Certification:	NACE MR0175/ISO 15156, ISO 9001, PED, AD2000
Model Number:	ASTM, JIS, DIN, EN

Payment & Shipping Terms:

Minimum Order Quantity:	1 PC
Price:	Negotiable
Packaging Details:	Ply-wooden Case /Iron Case/ Bundle with plastic Cap
Delivery Time:	Depends on quantity
Payment Terms:	L/C, T/T at sight
Supply Ability:	10000 pcs per month

Contact Now

All Products

Stainless Steel Seamless Pipe (324)

Stainless Steel Seamless Tube (318)

Duplex Stainless Steel Pipe (134)

Duplex Stainless Steel Tube (36)

Needle Tube (149)

Fin Tube (692)

Heat Exchanger (23)

Heat Exchanger Tube (456)

Heat Exchanger Tube Bundle (46)

Heat Exchanger Tubesheet (122)

Heat Exchanger Baffle (39)

Air Cooler (10)

Pressure Vessel (4)

Stainless Steel Welded Pipe (59)

Stainless Steel Welded Tube (127)

Nickel Alloy Pipe (270)

Nickel Alloy Tube (95)

Copper Alloy Tube (247)

Alloy Steel Tube (208)

Titanium Tube (18)

Bright Annealed Tube (171)

Boiler Tube (151)

Steel Fitting (852)

Steel Flange (650)

Others (404)

Cladding Parts (8)

Detailed Product Description

Name:	A694 F52 Weld-Neck Flange	Material:	Carbon Steel, Low Alloy Steel, Alloy Steel
Manufacture:	Forging Processing, Heat Treatment, Mechanical Processing	Face Type:	RF/RTJ/FF
Pressure Rating:	#150 - #2500	Size Standard:	B16.5, B16.47, API 6A, API 5L, NACE MR0175 / ISO 15156
Rust Prevention Treatment:	Rust Preventive Oil, Blackening, Galvanizing / Chromium Plating	Application:	Oil, Gas And Power Industries, High Pressure Transmission Pipelines, Offshore Platforms
Highlight:	forged flange , stainless steel flange

A694 F52 Weld-Neck Flange With Rust Protection, Carbon And Alloy Steel B16.47 Forgings, Resistant To Hydrogen Sulfide

Name: A694 F52 Weld-Neck Flange With Rust Protection, Carbon And Alloy Steel B16.47 Forgings, Resistant To Hydrogen Sulfide
Brand: Yuhong Group Co.,Ltd
SKU: ASTM, JIS, DIN, EN
Price: 150000.00 USD
Availability: InStock

What is A694 F52 Weld-Neck Flange

ASTM A694 Grade F52 weld-neck flange is a high-strength forged steel flange made to the A694 specification and designed to be butt-welded to pipe using a long, tapered hub. Grade F52 indicates a minimum yield strength of ~52 ksi, making it suitable for high-pressure, high-temperature oil & gas, refinery, and pipeline applications. Typically manufactured to ASME/ANSI flange dimensions (B16.5/B16.47), these flanges are chosen when higher strength and improved fatigue resistance are required; order with size, pressure class, face type, and required heat treatment/testing specified.

Grade F52 has the following characteristics:

This alloy is composed of 25% chromium, 4% molybdenum, and 7% nickel. It has strong strength and corrosion resistance, mainly used for chemical processing, petrochemical industry, and underwater equipment. It has strong chloride corrosion resistance, high thermal conductivity and low coefficient of thermal expansion. It has high resistance to spot corrosion, crack corrosion, and general corrosion due to its high chromium, molybdenum, and nitrogen content.

ASTM A694 F52 Flanges Definition

ASTM A694 F52 Flanges is a method of connecting pipes, valves, pumps and other equipment to form a piping system. It also provides easy access for cleaning, inspection or modification. Flanges are usually welded or screwed. Flanged joints are made by bolting together two flanges with a gasket between them to provide a seal.
ASTM A694 F52 Flanges (Standard Specification for Carbon and Alloy Steel Forgings for Pipe Flanges, Fittings, Valves, and Parts for High-Pressure Transmission Service)
ASTM A694 F52 Flanges Standard Specification for Carbon and Alloy Steel Forgings for Pipe Flanges, Fittings, Valves, and Parts for High-Pressure Transmission Service. Several grades of material, based on minimum yield strength requirements, are covered Materials adhere to testing and tensile property requirements as well.

ASME Standards:

ASME B 16.5 Steel Pipe Flanges and Flanged Fittings
ASME B 16.9 Steel Butt-Welding Fittings
ASME B 16.10 Face-to-Face and End-to-End Dimensions of Ferrous Valves
ASME B 16.11 Forged Steel Fittings, Socket Welding and Threaded
ASME B 16.28 Wrought Steel Butt-Welding Short Radius Elbows
ASME B 16.47 Large Diameter Steel Flanges

MSS Standards:

MSS SP-44 Standard for Steel Pipe Line Flange
MSS SP-75 Specification for High-Test Welding Fittings
MSS SP-95 Swage (d) Nipples and Bull Plugs
MSS SP-97 Integrally Reinforced Forged Branch Outlet Fittings

Mechanical Properties of ASTM A694 Flanges

ASTM A694 have several grades from F42 to F70, and each grade is specified based on the minimum yield strength as below table 1.

Grade	Yield Strength (0.2% offset),min, ksi [MPa]	Tensile Strength, min, ksi [MPa]	Elongation in 2 in, or 50 mm, min %
F42	42 [290]	60 [415]	20
F46	46 [315]	60 [415]	20
F48	48 [330]	62 [420]	20
F50	50 [345]	64 [440]	20
F52	52 [360]	66 [455]	20
F56	56 [385]	68 [470]	20
F60	60 [415]	75 [515]	20
F65	65 [450]	77 [530]	20
F70	70 [485]	82 [565]	18

ASTM A694 F52 Flanges Range

ASTM A694 F52 Flanges Specification	ASTM A694 / ASME SA694
ASTM A694 F52 Flanges Manufacturing Process	Hot Forging / Rolling / Machining
ASTM A694 F52 Flanges Other Grades	ASTM A694 F42 / ASTM A694 F46 / ASTM A694 F52 / ASTM A694 F56 / ASTM A694 F60 / ASTM A694 F65 / ASTM A694 F70 / ASME SA694 F42 / ASME SA694 F46 / ASME SA694 F52 / ASME SA694 F56 / ASME SA694 F60 / ASME SA694 F65 / ASME SA694 F70
ASTM A694 F52 Flanges Outer Diameter	1/2" NB TO 64" NB
ASTM A694 F52 Flanges Pressure Class	Class 150#, Class 300#, Class 400#, Class 600#, Class 900#, Class 1500#, Class 2500# or As Per Custom Requirement PN 6, PN 10, PN 16, PN 25 and PN 40 etc
ASTM A694 F52 Flanges Schedule	Sch 10s TO Sch XXS or As Per Custom Requirement
ASTM A694 F52 Flanges Facing	Flate Face (FF), Raised Face (RF), Ring Type Joint (RTJ)
ASTM A694 F52 Flanges Dimension	ASME B16.5, ASME B16.47 SERIES A, ASME B16.47 SERIES B, ASME B16.36, BS10, EN1092-1:2013, MSS SP44, ASA, API-605, ISO 7005, ISO 15590-3, DIN 2631--2638, DIN 2573-2576, DIN 2527, DIn 2641-2642, DIN 2565-2566, DIN2502, AWWA, AS2129 TABLE C, D, E, F, J etc..
ASTM A694 F52 Flanges Types	Welding Neck Flange, Slip On Flange, Socket Weld Flange, Lap Joint Flange, Threaded Flange, Blind Flange, Orifice Flanges, Plate Flange, Long Welding Neck Flanges, Weldoflange, Nipoflange, Expander Flange, Reducing Flange, WNRF Flange, SORF Flange, SWRF Flange, Custom Flange as per Drawing etc.
ASTM A694 F52 Flanges Other Testing	NACE MR0175, Ultrasounic Test, Charpy Impact Test, Macro, Grain Size, Hardness, HIC, SSC, Sour Service, A for annealed, N for normalized, NT for Normalized and Tempered, or QT for Quenched and Tempered, Carbon Equivalent etc.
ASTM A694 F52 Flanges Value Added Services	Rolling, Drill, Punch, CNC Machining, Sand Blasting, Shot Blasting, Heat Treatment, Anti-rust Paint, Oil Black Paint, Yellow Transparent, Zinc Plated, Cold and Hot Dip Galvanized
ASTM A694 F52 Flanges Packaging	Loose / Carrate / Wooden Pallet / Wooden Box / Plastic Cloth Wraps
Country of Origin	Made in China
ASTM A694 F52 Flanges Material Test Certificate	Manufacturer Test Certificate As Per EN10204 3.1, 3.2 / Laboratory Test Certificate From NABL Approved Lab. / Under Third Party Inspection Agency Like SGS, TUV, DNV, LLOYDS, ABS, Bureau of Indian Standards BIS Approved etc.

ASTM A694 F52 Flanges Chemical Compostion

Chemical Composition of ASTM A694, Heat Analysis, %
Carbon [C]	≤0.30
Manganese [Mn]	≤1.60
Phosphorus [P]	≤0.025
Sulfur [S]	≤0.025
Silicon [Si]	0.15-0.35

Application of A694 F52 Weld-Neck Flanges

Equipment for the petroleum and natural gas industry
Offshore platforms, heat exchangers, underwater equipment, firefighting equipment
Chemical processing industry, vessel and pipeline industry
Desalination plants, high-pressure RO plants, and subsea pipelines
Mechanical components (high-strength, corrosion-resistant components)
