ASTM B564 UNS N10276 Slip on Flange Hastelloy C276 Flange Nickel Alloy SORF Flange

Product Details:

Place of Origin:	CHINA
Brand Name:	YUHONG
Certification:	ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008
Model Number:	ASTM B564 Hastelloy C276 Slip On Flange

Payment & Shipping Terms:

Minimum Order Quantity:	1PC
Packaging Details:	PLYWOODEN CASE
Delivery Time:	7 DAYS
Payment Terms:	L/C,T/T

Contact Now

All Products

Stainless Steel Seamless Pipe (342)

Stainless Steel Seamless Tube (334)

Duplex Stainless Steel Pipe (134)

Duplex Stainless Steel Tube (39)

Needle Tube (170)

Fin Tube (732)

Heat Exchanger (34)

Heat Exchanger Tube (472)

Heat Exchanger Tube Bundle (52)

Heat Exchanger Tubesheet (128)

Heat Exchanger Baffle (39)

Air Cooler (14)

Pressure Vessel (4)

Stainless Steel Welded Pipe (61)

Stainless Steel Welded Tube (134)

Nickel Alloy Pipe (276)

Nickel Alloy Tube (104)

Copper Alloy Tube (256)

Alloy Steel Tube (214)

Titanium Tube (21)

Bright Annealed Tube (174)

Boiler Tube (155)

Steel Fitting (873)

Steel Flange (671)

Others (409)

Cladding Parts (9)

Detailed Product Description

Product Name:	Nickel Alloy Flange	Standard:	ASTM B564 / ASME SB564
Material Grade:	Hastelloy C276 Flange, UNS (N10276), DIN (2.4819)	Dimensions:	ANSI/ASTM B16.5, B16.7 SERIES A&B, B16.48
Size:	1/2" NB To 48" NB	Flange Type:	Weld Neck, Slip On, Long Weldneck, Blind
Flange Face:	Plate Face (FF), Rasied Face (RF), Ring Type Joint (RTJ)	Class/Pressure:	150#,300#,600#,900#,1500#,2500#,PN6,PN10,PN16,PN25,PN40,PN64,etc.
Application:	Chemical Processing, Petrochemical Industry, Oil And Gas Industry
Highlight:	forged flange , stainless steel flange

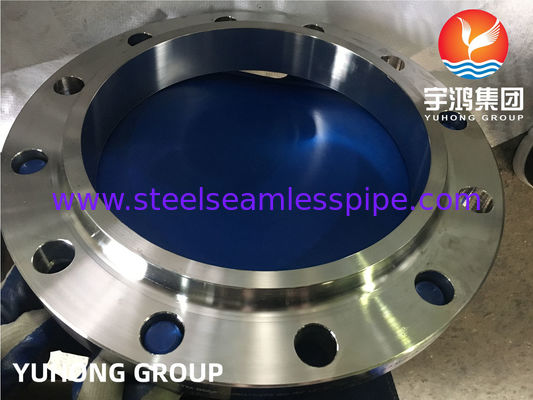

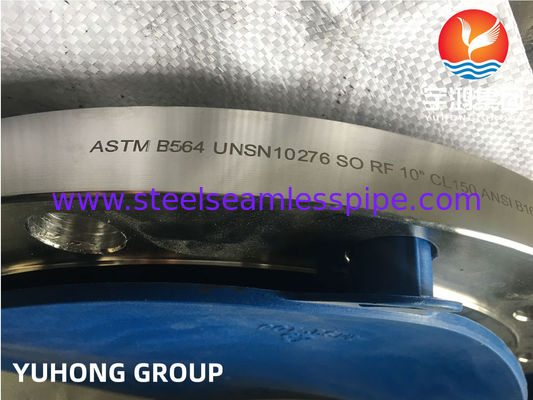

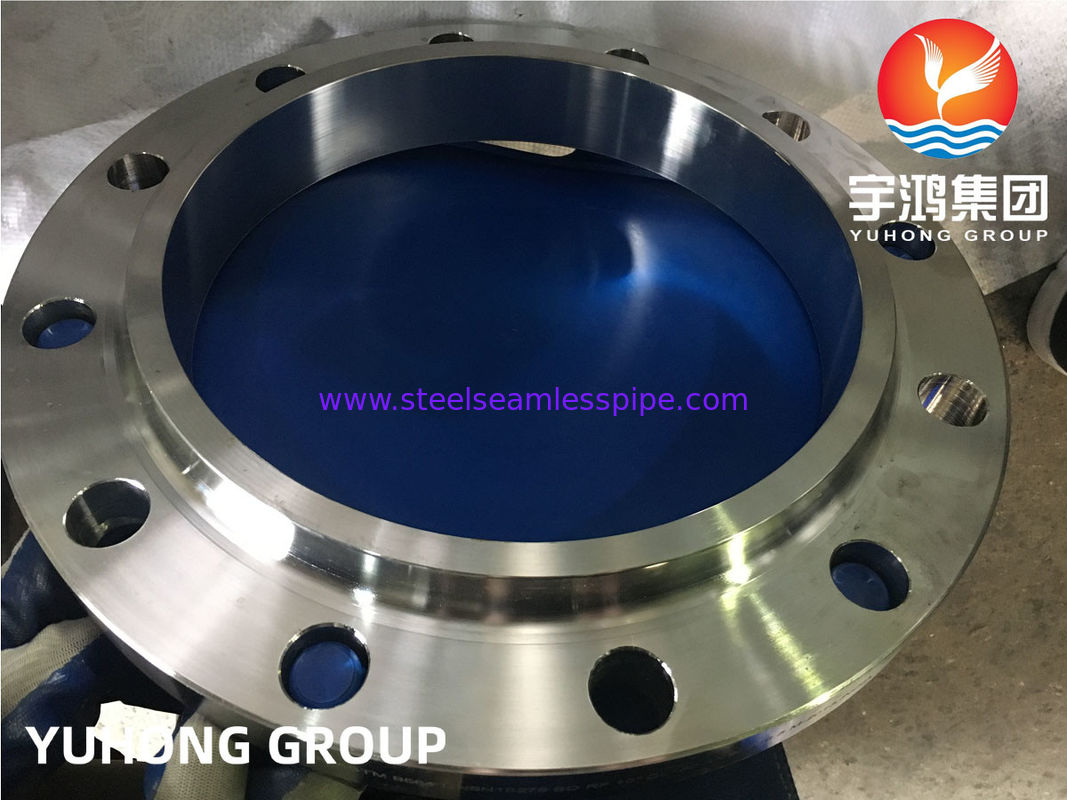

ASTM B564 UNS N10276 / Hastelloy C276 Flange Nickel Alloy Slip-on Flange

ASTM B564 UNS N10276 Slip-On Raised Face Flange is a forged nickel-alloy (Hastelloy C276) pipe-connecting component, designed to slide over the pipe end and be fillet-welded in place, featuring a raised-face sealing surface, and specified for extreme corrosive services involving wet chlorides, reducing acids, and high temperatures where standard stainless steels are inadequate.

Engineers specify this material for its unmatched corrosion resistance in extremely aggressive environments. Its key capabilities include: Outstanding resistance to pitting, crevice corrosion, and stress-corrosion cracking (SCC) – far superior to 316L, 904L, or Inconel 625 in many reducing acids. Resistance to wet chlorine gas, hypochlorites, chlorine dioxide, and oxidizing chlorides (which would rapidly destroy stainless steels).

Equivalent Grades for ASTM B564 Hastelloy C276 Nickel Alloy Forged Flange

STANDARD	UNS	WNR.	AFNOR	EN	JIS	OR	GOST
Hastelloy C276	N10276	2.4819	-	NiMo16Cr15W	NW 0276	ЭП760	ХН65МВУ

ASTM B564 Hastelloy C276 Nickel Alloy Forged Flange Chemical Composition

Hastelloy C276	Ni	C	Mo	Mn	Si	Fe	P	S	Co	Cr
Hastelloy C276	Balance	0.010 max	15.00 – 17.00	1.00 max	0.08 max	4.00 – 7.00	0.04 max	0.03 max	2.5 max	14.50 – 16.50

ASTM B564 Hastelloy C276 Nickel Alloy Forged Flange Mechanical Properties

Density	Melting Point	Yield Strength (0.2%Offset)	Tensile Strength	Elongation
8.89 g/cm3	1370 °C (2500 °F)	Psi – 52,000 , MPa – 355	Psi – 1,15,000 , MPa – 790	40 %

What are the characteristics of Hastelloy C276?

1. Excellent corrosion resistance in reducing environments

2. Exceptional resistance to strong solutions of oxidizing salts, such as ferric and cupric chlorides

3. High nickel and molybdenum contents providing good corrosion resistance in reducing environments

4. Low carbon content which minimizes grain-boundary carbide precipitation during welding to maintain resistance to corrosion in heat-affected zones of welded joints

5. Resistance to localized corrosion such as pitting and stress-corrosion cracking

6. One of few materials to withstand the corrosive effects of wet chlorine gas, hypochlorite and chlorine dioxide

Applications

You will find this exact flange specified in:

Chemical processing plants – handling HCl, H₂SO₄, wet chlorine, acetic acid, and mixed acid streams.
Flue gas desulfurization (FGD) systems in coal-fired power plants (highly corrosive chloride/sulfate scrubbers).
Pharmaceutical / Fine chemical reactors where high-purity and zero metallic contamination are critical.
Offshore oil & gas – for seawater injection systems or severe sour gas (H₂S + CO₂ + chlorides) at elevated temps.
Nuclear fuel processing and radioactive waste treatment.
