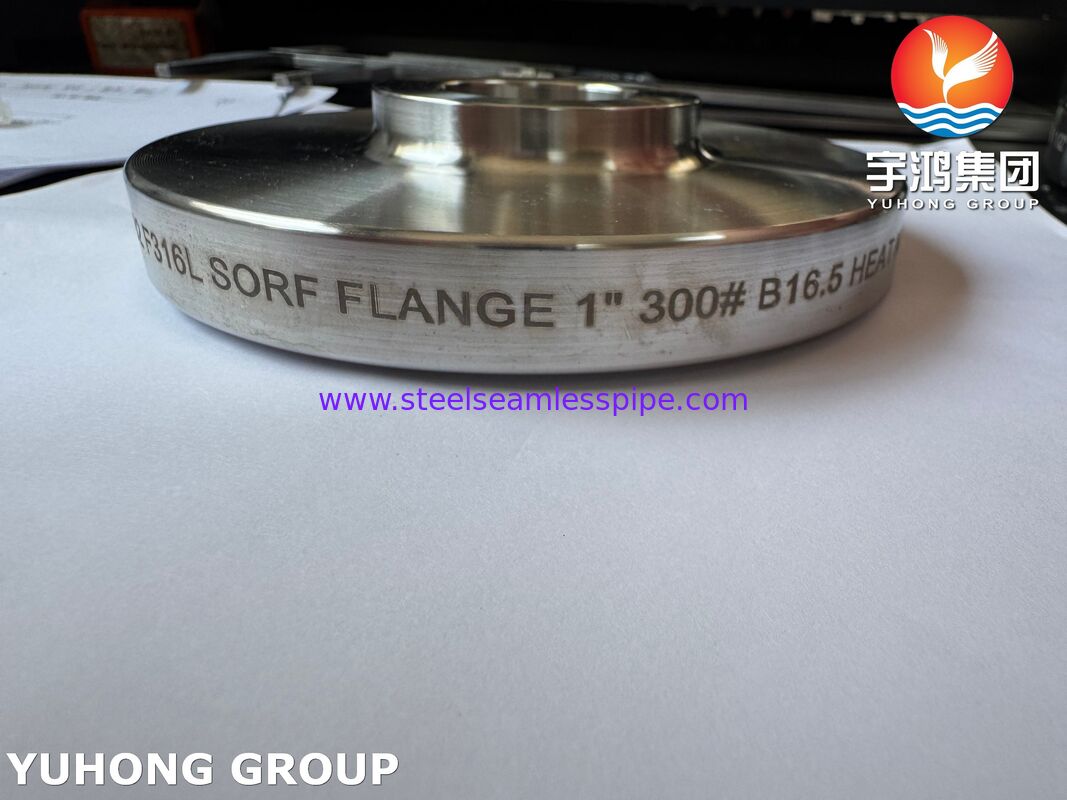

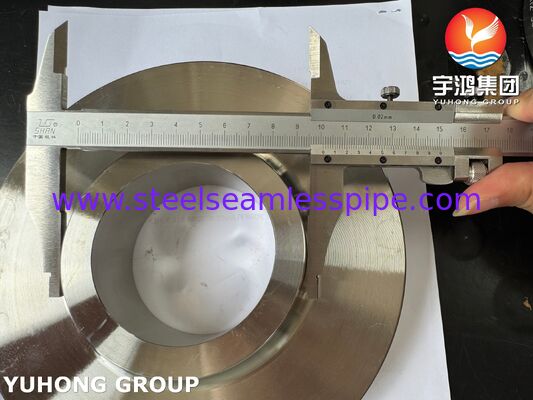

ASTM A182 F316L Stainless Steel Flange Low Carbon Corrosion Resistant for Chemical Marine

Product Details:

Place of Origin:	CHINA
Brand Name:	YUHONG
Certification:	API , ABS, DNV, GL , LR, NK.
Model Number:	ASTM A182 F11 CL2

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	NEGOTIABLE
Packaging Details:	Ply-wooden Case /Iron Case/ Bundle with plastic Cap
Delivery Time:	20-80
Payment Terms:	L/C, T/T

Contact Now

All Products

Stainless Steel Seamless Pipe (342)

Stainless Steel Seamless Tube (334)

Duplex Stainless Steel Pipe (134)

Duplex Stainless Steel Tube (39)

Needle Tube (170)

Fin Tube (732)

Heat Exchanger (34)

Heat Exchanger Tube (472)

Heat Exchanger Tube Bundle (52)

Heat Exchanger Tubesheet (128)

Heat Exchanger Baffle (39)

Air Cooler (14)

Pressure Vessel (4)

Stainless Steel Welded Pipe (61)

Stainless Steel Welded Tube (134)

Nickel Alloy Pipe (276)

Nickel Alloy Tube (104)

Copper Alloy Tube (256)

Alloy Steel Tube (214)

Titanium Tube (21)

Bright Annealed Tube (174)

Boiler Tube (155)

Steel Fitting (873)

Steel Flange (671)

Others (409)

Cladding Parts (9)

Detailed Product Description

Material:	F51	Product Name:	Duplex Steel Flange
Pressure:	150lb,300lb,600lb,900lb,1500lb	Standard:	ANSI B16.5 ASME B16.47 SERIES A(MSS SP44)
Type:	Threaded Flange,Slip On Flange,socket Weld Flange,weld Neck Flange,LAP Joint Flange	Process:	Forged,Drilling/Bending/Stamping,Casting,sand Casting&CNC Machining,Forging+machining+heating Treatment
Surface Treatment:	Heat Treatment,Galvanized,Black Oxidation,customize,pickeling	Inspection:	Mechinical Property Inspection,Factory Or Third Party Assigned,100% Inspection
Highlight:	ASTM A182 F316L stainless steel flange , low carbon corrosion resistant flange , chemical marine stainless steel flange

ASTM A182 F316L Stainless Steel Flange Low Carbon Corrosion Resistant for Chemical Marine

ASTM A182 F316L flanges are austenitic stainless steel forged flanges manufactured according to ASTM A182/A182M standards, belonging to the American standard material standard for high-pressure forged flanges. This standard covers various grades including alloy materials, stainless steel, and duplex stainless steel, with F316L being one of the most widely used austenitic stainless steel grades.

As a low-carbon version of F316, F316L reduces the carbon content from 0.08% to below 0.030%. This design makes it less prone to sensitization after welding.

It is designed for environments in industries such as chemical engineering, marine engineering, and food processing that involve chloride ion corrosive media, require extensive welding, and demand resistance to intergranular corrosion.

Chemical Composition
Element	Content Range (%)	Metallurgical Function
C (Carbon)	≤ 0.030	Critical feature – extra-low carbon design prevents welding sensitization
Mn (Manganese)	≤ 2.00	Deoxidation; improves hardenability
P (Phosphorus)	≤ 0.045	Cold brittleness control
S (Sulfur)	≤ 0.030	Hot brittleness control
Si (Silicon)	≤ 1.00	Oxidation resistance improvement
Cr (Chromium)	16.0 – 18.0	Improves oxidation resistance and corrosion resistance
Ni (Nickel)	10.0 – 14.0	Stabilizes austenitic structure
Mo (Molybdenum)	2.0 – 3.0	Improves pitting resistance and crevice corrosion resistance
N (Nitrogen)	≤ 0.10	Solid solution strengthening

Core Difference Between F316 and F316L:
Comparison Item	F316	F316L
Carbon Content (C)	≤ 0.08%	≤ 0.030%
Welding Sensitization Risk	Present (Cr₂₃C₆ precipitates in HAZ)	None (extra-low carbon design)
Post-Weld Heat Treatment (PWHT)	Sometimes required	Rarely required
Yield Strength (min)	205 MPa	170 MPa
Tensile Strength (min)	515 MPa	485 MPa
Most Common Applications	Non-welded components or components requiring PWHT after welding	Default choice for welded piping systems

Mechanical Properties
Parameter	F316L Standard Requirement (Min.)	F316L Typical Value
Tensile Strength (Rm)	≥ 485 MPa (70 ksi)	485 – 777 MPa
Yield Strength (Rp0.2)	≥ 170 MPa (25 ksi)	170 – 889 MPa
Elongation (50 mm gage length)	≥ 30%	30 – 42%
Hardness (HBW)	≤ 217 HBW	≤ 217 HBW
Reduction of Area	—	≥ 22%

Physical Properties (Reference Values)
Parameter	Value	Unit
Density	~7.9 – 8.0	g/cm³
Applicable Temperature Range	-196°C to 538°C	—
Magnetic Properties	Non-magnetic (austenitic structure)	—
ASME B16.5 Material Group	Group 1.10	—

Application

Chemical and Petrochemical Industries: Pipeline flange connections resistant to acid and chloride media
Marine and Offshore Engineering: Seawater contact piping systems
Food Safety: Sanitary piping systems
Cryogenic Applications: LNG pipelines (low-temperature toughness maintained up to -196°C)
High-Temperature Applications: Continuous operation up to 538°C
