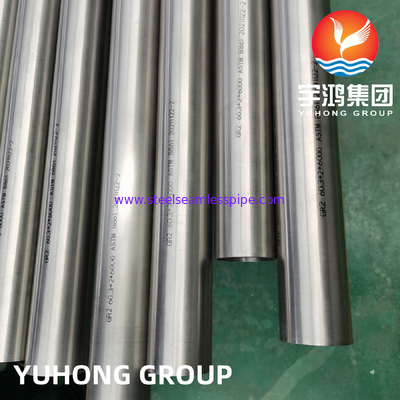

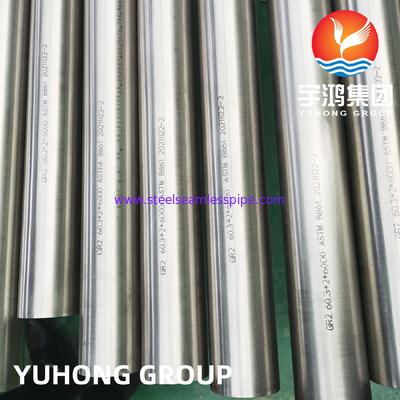

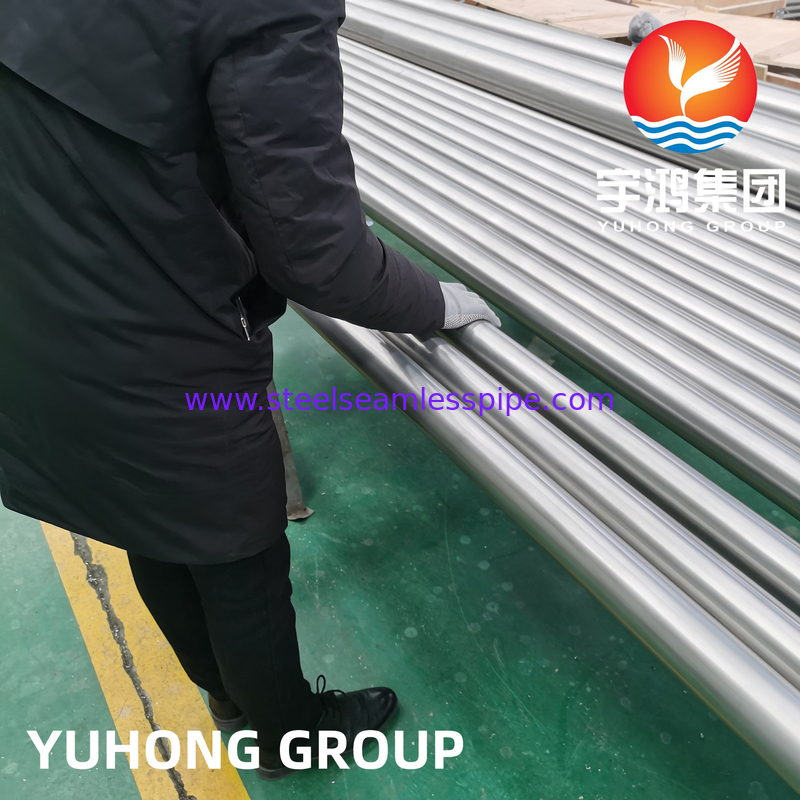

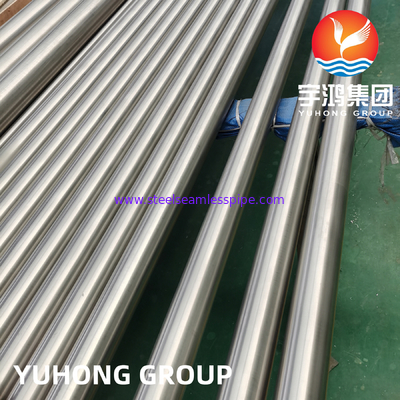

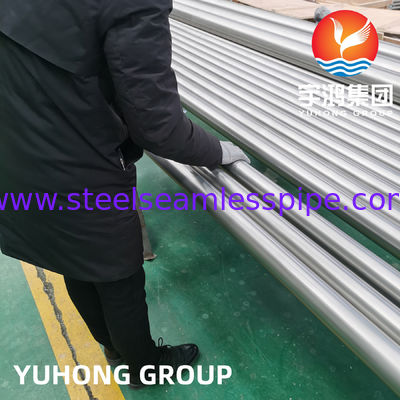

ASTM B861 Gr.2 Titanium Welded Tube High Precision For Boiler And Heat Exchanger

ASTM B861 Gr.2 Titanium Welded Tube High Precision For Boiler And Heat Exchanger

  • ASTM B861 Gr.2 Titanium Welded Tube High Precision For Boiler And Heat Exchanger
  • ASTM B861 Gr.2 Titanium Welded Tube High Precision For Boiler And Heat Exchanger
  • ASTM B861 Gr.2 Titanium Welded Tube High Precision For Boiler And Heat Exchanger
  • ASTM B861 Gr.2 Titanium Welded Tube High Precision For Boiler And Heat Exchanger
ASTM B861 Gr.2 Titanium Welded Tube High Precision For Boiler And Heat Exchanger
Product Details:
Place of Origin: China
Brand Name: Yuhong
Certification: ABS, BV, ISO, ASTM, SGS
Model Number: B861 Gr.2
Payment & Shipping Terms:
Minimum Order Quantity: 100 KGS
Price: Negotiable
Packaging Details: Ply-wooden Case /Iron Case/ Bundle with plastic Cap
Delivery Time: 7 Days
Payment Terms: L/C, T/T
Contact Now
Detailed Product Description
Product Name: Titanium Or Titanium Alloy Tube Material: ASTM B861 Gr.2
Testing: ET, HT, Flattening Test; Expansion Test, Mercurous Nitrate Test; Ammonia Vapor Test; Chemical Analysis; Microscopical Examination; Tension Testing. Application: Condensers / Heat Exchangers /Boiler
High Light:

ASTM B861 Titanium Welded Tube

,

Titanium Welded Tube High Precision



ASTM B861 Gr.2 Titanium Welded Tube High Precision For Boiler And Heat Exchanger



ASTM B861 GR.2 TITANIUM WELDED PIPE HIGH PRECISION FOR BOILER / HEAT EXCHANGER



ASTM B861 GR.2 TITANIUM WELDED PIPE, high-quality commercially pure grade 2 seamless and welded titanium pipe (ASTM B861) in a wide range of shapes and sizes. Our seamless pipe is available in 1/8″ to 6″ sizes and welded pipe can be purchased in 1″ through 24″ sizes. We’re focused on providing the exact specifications you need with a fast turnaround and delivery. Furthermore, we work with many different industries, from automotive to marine, and we can work closely with you to determine the needs of your unique project.



Our extensive selection includes seamless aircraft quality titanium tube, welded titanium tube, drawn titanium tube. Browse our selection of aircraft quality titanium tube here or get in touch with a Future Metals professional for a personalized quote on aircraft quality titanium Tube.


Typical Applications:

  • Shell and tube heat exchanger, condenser, evaporator, pipeline, etc
  • Seawater desalination equipment
  • Bike rack
  • Marine pressure tube


Quality Assurance:

Spezilla's Titanium tubes are produced acc. to the following process and inspection to assure our quality:

  1. Chemical Composition Analysis Test With 100% PMI.
  2. Solution Annealing / Bright Annealed.
  3. 100% Hydrostatic Test and 100% Eddy Current Test
  4. Mechanical Tests includes Tension Test, Flattening Test, Flaring Test, Hardness Test.
  5. Impact Test subject to Standard request.
  6. Grain Size Test and Intergranular Corrosion Test.
  7. Visual Test and Endoscope Test for Surface Quality Test
Alloy UNSNumber C Mn Max Ni Min Ni Max Cr Min Cr Max Mo Min Mo Max Density g/cm3 Density lb/in3 UTS KSI UTS MPA YS KSI YS MPA % El in 2"
Ti CP (Grade 2) R50400 0.1 0.15             4.5 0.162 80 552 40/60 276/414 20




Description:



Item Code: SPW-G-GR.2
Tube OD.: 6.00MM - 38.10MM
Wall: 0.50MM - 2.0MM
Length: 6000MM - 12000MM
Material: Titanium Gr.2
Standard: ASTM B338, ASME SB338
Finish: Welded
Type: Welded
Certification: ISO9001:2015
Mill Test Certificate: EN10204 3.1
Packing: Wooden Boxed



Chemical composition reference analysis (as weight %)



ASTM Grade Nominal
Composition
Forms
Cold-Reduced Hot-Rolled Hot-Extruded
Grade 1 Ti x x x
Grade 2 Ti x x x
Grade 4 Ti x x x
Grade 7 Ti (Gr2) 0.2 Pd x x
Grade 12 Ti- 0.3Mo-0.8Ni x x x
Grade 16 Ti (Gr2) 0.07 Pd x x x




Products Processing Standard Grade Size
Titanium Welded Tube, Pipe ASME SB338, ASME SB862 GR1, GR2, GR7, GR12

OD: (0.315”-48”) WT: (0.0197”-0.5”)

Length: at random length
