Yuhong Holding Group Co.,LTD
 |
| Place of Origin: | China |
| Brand Name: | Yuhong |
| Certification: | ABS, BV, LR, DNV-GL , CCS, KR, NK , PED, AD2000, TUVE, ASME , API , ISO |
| Model Number: | ASTM A269 TP316L |
| Minimum Order Quantity: | 100 kgs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden box or In bundles |
| Delivery Time: | 7 days |
| Payment Terms: | L/C, T/T |
| Material Grade: | TP304 , TP304L , TP316, TP316L , 1.4301, 1.4306, 1.4307, 1.4401, 1.4404 , SUS304, SUS304L , SUS316 , SUS316L | Size: | OD: 4mm To 76mm , Thickness :0.5mm To 20mm |
|---|---|---|---|
| Packing: | Ply Wooden Case | Surface: | 180 Grit, 240 Grit, 320 Grit, 400 Grit , 600 Grit |
| High Light: | ASTM A269 TP316L Seamless Pipe,Bright Annealed Stainless Steel Pipe |
||

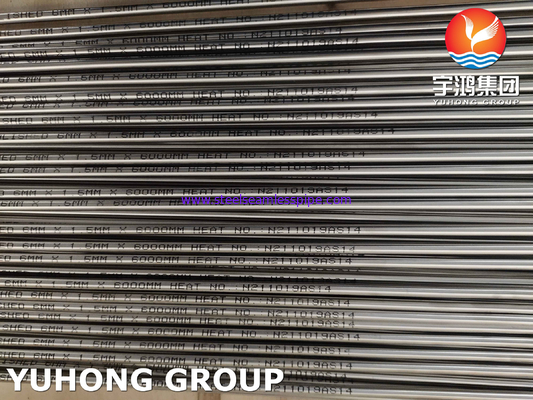

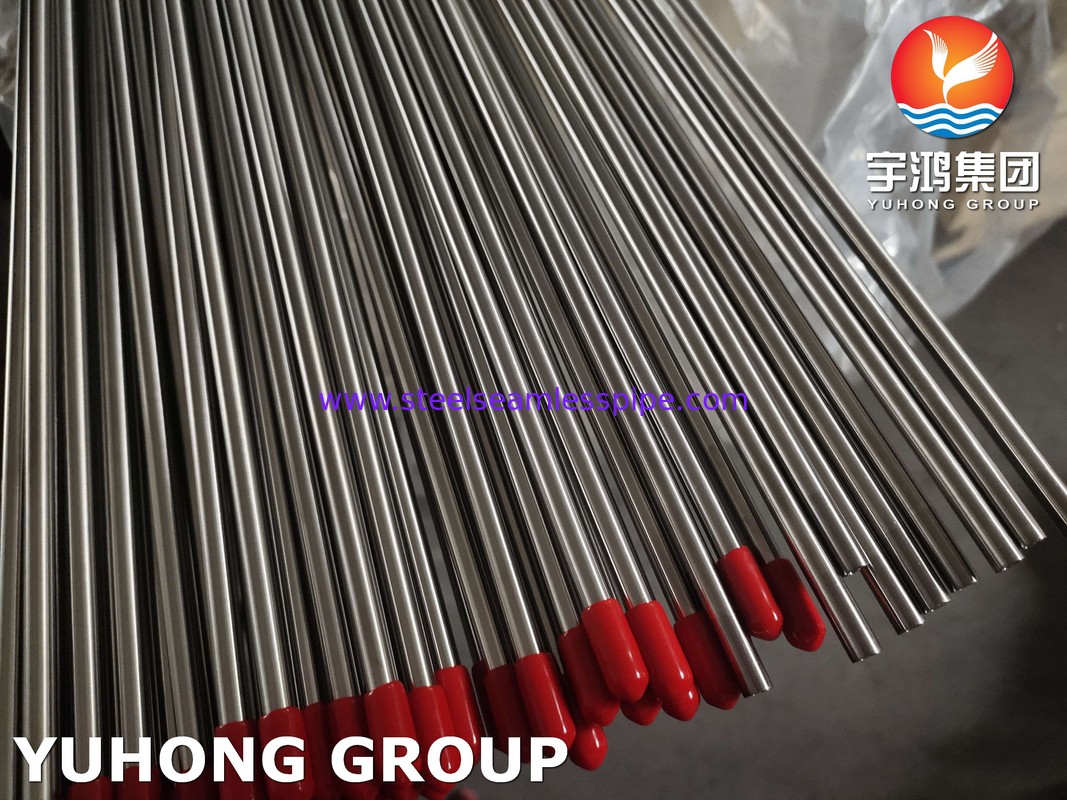

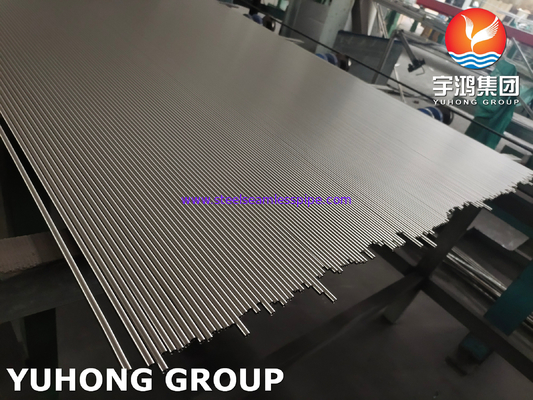

ASTM A269 TP316L Stainless Steel Seamless Tube Bright Annealed
ASTM A269 TP316L Stainless Steel Bright Annealed Tube with High Precision
Yuhong Group supply Boiler tube , Heat Exchange Tube, Air Cooling Tube , Condenser Tube more than 32 years , and our material grade contain Stainless Steel , Duplex Steel , Super Duplex Steel , Hastelloy , Monel , Inconel , Incoloy , Cr-Mo alloy , Copper alloy steel , and very year sell more than 80000 tons pipes and tubes to our client projects. And up to now we already export more than 55 countries, Like Italy, UK, Gernmany, USA, Canada, Chile, Colombia, Saudi Arabia, Korea, Singapore, Austrial, Poland, France , .... The pipe and tube was width used in Mining, Energy, Petrochemical, Chemical Industry, Food plant, Paper plant, Gas and Fluid Industry etc.And our group branch company and factory have been already approved by :ABS, DNV, GL, BV, PED 97/23/EC, AD2000-WO, GOST9941-81, CCS, TS, CNNC, ISO9001-2008, ISO 14001-2004.
Bright Annealing is a process in which the stainless steel surface is made reflective like a mirror. This type of Annealing is produced by heat-treating steel with a controlled atmosphere furnace. ASTM A269 can be buffed to attain a better reflective finish and is used in reflective surface requiring applications. It should be taken into consideration that during Bright Annealing it is necessary for the metal surfaces to be clean and free from foreign contamination for maximum effect.
316L is a less carbon variant of 316. Alloy 316L is generally used when welding is required to ensure maximum corrosion resistance. As 316L consists of lower carbon content it results in lesser carbide precipitation which is a result of welding. Our products are renowned for the amazing quality and finishing that they have on offer. Moreover, our products are known to offer maximum utility even under harsh usage, as we put our products through various quality control measures.
| Standard | JIS, ASTM, GB, DIN, EN, AISI |
| Specifications | ASTM A312, A249, A269, A270, DIN 11850 Series 1 and Series 2, 3A |
| Thickness Range | 0.25-2mm |
| Outer Diameter | 3-165.2mm |
| Material | 300 & 400 series |
| Type | Seamless, Welded, ERW |
| Finish | Bright Annealed finish inside and outside |
SS 316L Bright Annealed Pipe and Tube Equivalent Grades:
| STANDARD | UNS | WERKSTOFF NR. | AFNOR | EN | JIS | BS | GOST |
| SS 316L | S31603 | 1.4404 1.4435 | Z3CND17‐11‐02 Z3CND18‐14‐03 | X2CrNiMo17-12-2 X2CrNiMo18-14-3 | SUS 316L | 316S11 / 316S13 | 03X17N14M3 03X17N14M2 |
Stainless Steel 316L BA Pipes and Tubes Chemical Composition:
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | Fe |
| SS 316L | 0.035 max | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 16.00 - 18.00 | 2.00 - 3.00 | 10.00 - 14.00 | 68.89 min |
Bright Annealed SS 316L Pipe and Tubing Mechanical Properties:
| Tensile Strength | Yield Strength (0.2%Offset) | Elongation | Hardness | |
| Rockwell B (HR B) max | Brinell (HB) max | |||
| Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % | 95 | 217 |
