B16.5 ASTM A182 F304 Slip On Flange Austenitic Stainless Steel Flanges

B16.5 ASTM A182 F304 Slip-On Flange Austenitic Stainless Steel Flanges

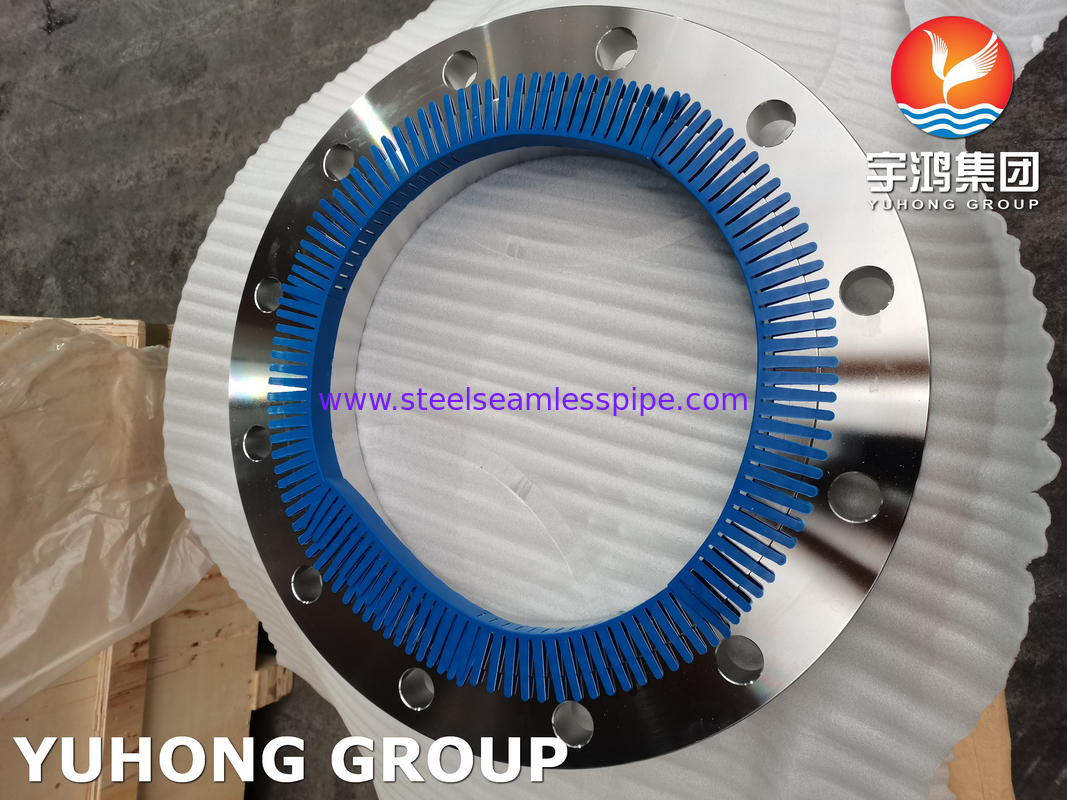

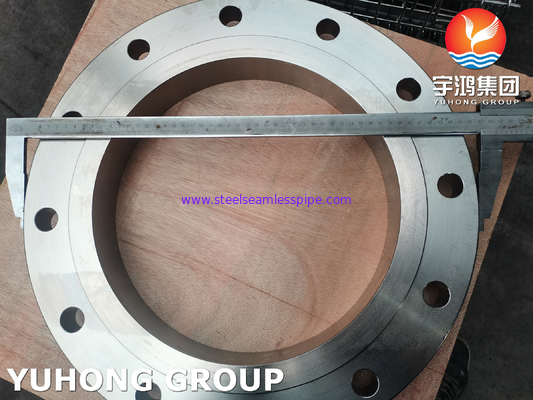

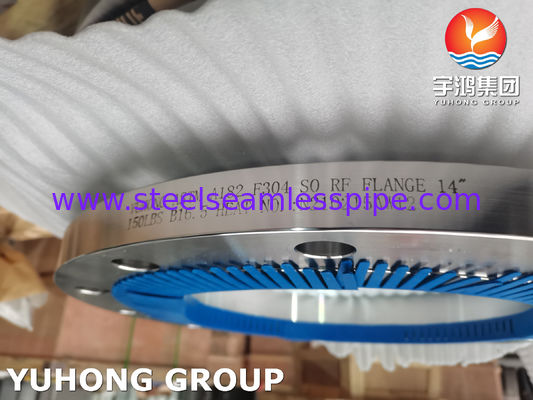

ASTM A182 / ASME SA182 F304 SO RF​ Austenitic Stainless Steel Flanges

ASTM A182 F304 flanges are made up of the basic austenitic stainless steel grade. These flanges belong to ASTM A182 specification for high temperature, high pressure applications. The flange material is 18% chromium with 8% nickel and carbon, manganese, phosphorus, silicon and sulfur.

This composition makes the stainless steel 304 flanges to be stronger and to have good general corrosion resistance. The minimum yield strength of these flanges is at 205MPa and the minimum tensile strength is 515MPa. There are different types of flanges in this grade. The ss 304 blind flange is used to close or end a pipeline. The blind flange can be permanently welded onto the pipe or be fitted with bolts for temporary closures. The ss 304 slip on flange is easy to install on seamless pipes. The slip on flanges can also be adjusted for the connection location as they allow the pipes to slip onto them.

Equivalent Grades

Flanges Types

Other types flanges: Threaded Flanges; Weld Neck Flanges; Blind Flanges; Socket Weld Flanges;

                                  Lap Joint Flanges as well as some special types flanges for customers.

Flanges Grades

Stainless Steel Flange: F304, F304L, F304H, F316, F316L, F316Ti, F310, F310S, F321, F321H, F317, F317L, F347, F347H, F904L etc

Duplex Steel Flange: UNS S31803, 2205, S31254 (254SMO)

Super Duplex Steel Flange : UNS S32750, UNS S32760, UNS S32304, S31500

Carbon Steel Flange: ASTM A105, A105N etc.

Alloy Steel Flange: F1, F11, F22, F5, F9, F91 etc.

Nickel Alloy Flange as below

Monel 400 & K500,

Inconel 600, 601, 617, 625, 690, 718, X-750.

Incolloy 800, 800H, 800HT, 825, 925.

Hastelloy C22, C4, C276, S, C2000, G-30, G-35, X, N, B, B-2, B-3.

Copper Alloys Flanges: Copper, Brass & Gunmetal

Flanges Standards

ANSI : ANSI B16.5, ANSI B16.47, MSS SP44, ANSI B16.36, ANSI B16.48
DIN : DIN2527, DIN2566, DIN2573, DIN2576, DIN2641, DIN2642, DIN2655, DIN2656, DIN2627, DIN2628, DIN2629, DIN 2631, DIN2632, DIN2633, DIN2634, DIN2635, DIN2636, DIN2637, DIN2638, DIN2673

B.S : BS4504 , BS4504, BS1560, BS10

Besides, we also can supply JIS and Gost standards according to clients' requirements.

Yuhong Group deal with Austenitic Stainless Steel, Nickel Alloy Steel (Hastelloy , Monel, Inconel, Incoloy) Forged Flanges already more than 15 years, every year sell more than 4000 tons of flanges. Our client already cover more than 45 countries, Like Italy, UK, Gernmany, USA, Canada, Chile, Colombia, Saudi Arabia, Korea, Singapore, Austrial, Poland, France , ....And our group branch company and factory have been already approved by : ABS, DNV, GL, BV, PED 97/23/EC, AD2000-WO, GOST9941-81, CCS, TS, CNNC, ISO9001-2008, ISO 14001-2004. Yuhong Group as the professional manufacturer of various kinds of forged flanges, we can provide below common types as well as some special flanges according to clients' drawings. Especially now we have good advantages of various kinds of Duplex steel flange and Super Duplex Steel Flange as well as Nickel alloy flanges, like: Inconel Flange, Incoloy Flange, Hastelloy Flange and Monel Flange. Regarding more details, please read below products description.

If customer has any firm inquires and requirements, please do not hesitate to contact us. We will provide you our best offer, shorest delivery time and excellent quality.

We will do Nondestructive tests on Each piece flange, especially for Duplex Steel Flange and Super Duplex Steel Flange, Nickel Alloy Flanges we all will do PMI Test and Penetrant Testing (PT) etc... Besides, before each shipment we will strictly do all the dimension tests on each flange, in order to ensure all the flanges we export with the exllente quality.

Various Kinds of Flanges we can supply as below

1. Slip-on Flanges.

Slip-on Flanges have a lower initial cost than welding neck flanges because they require less accuracy in cutting pipe to length, and they provide a greater ease of alignment in assembly. However, their calculated strength under internal pressure is approximately 2/3's the strength of welding neck flanges, and their life under fatigue is 1/3 shorter. Slip-on Flanges are limited to 1/2" to 2½" sizes in 1500lbs standard.

2. Threaded Flanges

Threaded Flanges are used for special applications. They can be assembled without welding and can be used in extremely high pressure services--at or near atmospheric pressure--where alloy steel is essential for strength. Threaded flanges are not suited for conditions involving temperature or bending stresses, or under cyclic conditions where leakage through the threads may occur.

3. Weld Neck Flanges

Weld Neck Flanges have a long tapered hub and gradual transition of thickness in the region of the butt weld joining them to the pipe. The tapered hub provides important reinforcement to the flange and resistance to dishing. This type of flange is preferred for severe service conditions resulting from high pressure, sub-zero or high temperatures.

4. Blind Flanges

Blind Flanges are used to blank off the ends of piping, valves and pressure vessel openings. Blind Flanges can handle high stress from internal pressure and bolt loading since the maximum stresses in the blind flange are bending stresses at the center.

5. Socket Weld Flanges

Socket Weld Flanges were developed for use on small size high pressure piping. With an internal weld, socket weld flanges are stronger and have greater fatigue strength than double welding a slip-on flange. Smooth bore conditions can be easily attained by grinding the internal weld. This flange is commonly used in chemical process piping.

6. Lap Joint Flanges

Lap Joint Flanges are used with lap joint stubs. Lap joint flanges are commonly used in carbon or low alloy steel piping systems that need to be frequently dismantled for inspection and cleaning. They should not be used at any points where severe bending stresses occur.

Flanges Size Range & Pressure Class & Flange Facing

Flanges Size Range : 1/8" NB to 48"NB.

Flanges Class : 150#, 300#, 400 #, 600#, 900#, 1500# & 2500#.

Flanges Facings : FF,RF,M,F,T,G,RJ,MF,TG

Applications of pipe flanges
Pipe flanges are widely used in pipe fittings of various industrial, commercial and residential applications. Pipe flanges can be customized to suit your application with various machining details. These pipe flanges have been used extensively in:

UHV applications

A. Hydraulic control systems for turbine generators

B. High pressure ground support missile systems

C. Nuclear and conventional power plant applications etc.
