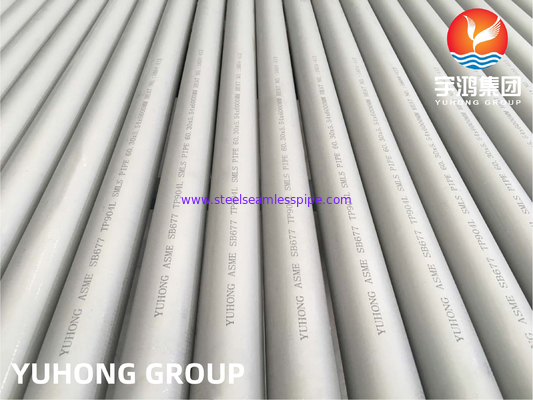

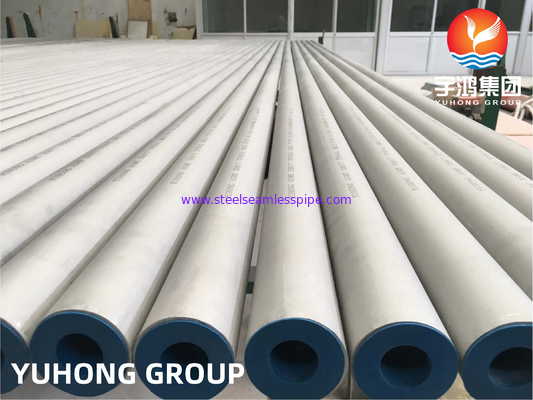

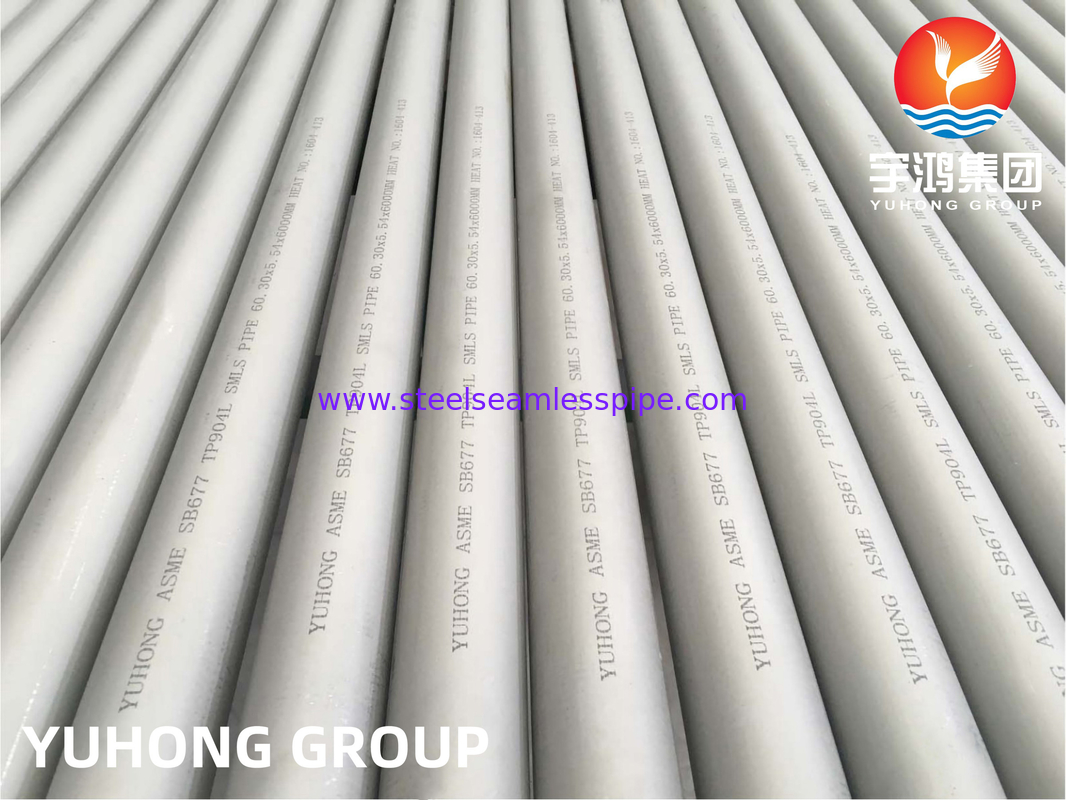

ASME SB677 / ASTM B677 TP904L UNS N08904 Stainless Steel Seamless Pipe

ASME SB677 / ASTM B677 TP904L UNS N08904 Stainless Steel Seamless Pipe

  • ASME SB677 / ASTM B677 TP904L UNS N08904 Stainless Steel Seamless Pipe
  • ASME SB677 / ASTM B677 TP904L UNS N08904 Stainless Steel Seamless Pipe
  • ASME SB677 / ASTM B677 TP904L UNS N08904 Stainless Steel Seamless Pipe
  • ASME SB677 / ASTM B677 TP904L UNS N08904 Stainless Steel Seamless Pipe
ASME SB677 / ASTM B677 TP904L UNS N08904 Stainless Steel Seamless Pipe
Product Details:
Place of Origin: CHINA
Brand Name: YUHONG
Certification: ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008
Model Number: ASME SB677/ ASTM B677 TP904L UNS N08904
Payment & Shipping Terms:
Minimum Order Quantity: 100KGS
Price: Negotiable
Packaging Details: According to Client Requirements/ Ply-wooden Case/ Iron Case/ Bundle with plastic Cap
Delivery Time: 15-75 DAYS
Payment Terms: T/T, L/C
Supply Ability: According to Client Requirements
Contact Now
Detailed Product Description
Standard: ASME SB677 / ASTM B677 Technique: Cold Drawn
Application: Petroleum, Petrochemical Equipment, Petroleum, Petrochemi Type: Seamless,Welded
High Light:

ASME SB 677 Stainless Steel Pipe

,

Stainless Steel Pipe UNS N08904

,

ASTM B677 Stainless Steel Tubes

ASME SB677 / ASTM B677 TP904L UNS N08904 STAINLESS STEEL SEAMLESS PIPE



904L is a non-stabilised low carbon high alloy austenitic stainless steel. The addition of copper to this grade gives it greatly improved resistance to strong reducing acids, particularly sulphuric acid. It is also highly resistant to chloride attack - both pitting / crevice corrosion and stress corrosion cracking. This grade is non-magnetic in all conditions and has excellent weldability and formability. The austenitic structure also gives this grade excellent toughness, even down to cryogenic temperatures. 904L does have very substantial contents of the high cost ingredients nickel and molybdenum. Many of the applications in which this grade has previously performed well can now be fulfilled at lower cost by duplex stainless steel 2205 (S31803 or S32205), so it is used less commonly than in the past.



Composition ranges for 904L grade of stainless steels.


Grade
C Mn Si P S Cr Mo Ni Cu
904L min.
max.
-
0.020
-
2.00
-
1.00
-
0.045
-
0.035
19.0
23.0
4.0
5.0
23.0
28.0
1.0
2.0




Mechanical properties of 904L grade stainless steels.


Grade
Tensile Strength (MPa) min Yield Strength 0.2% Proof (MPa) min Elongation (% in 50mm) min Hardness
Rockwell B (HR B) Brinell (HB)
904L 490 220 35 70-90 typical -
Rockwell Hardness value range is typical only; other values are specified limits.



Typical physical properties for 904L grade stainless steels.


Grade
Density
(kg/m3)
Elastic Modulus
(GPa)
Mean Co-eff of Thermal Expansion (m/m/C) Thermal Conductivity
(W/m.K)
Specific Heat 0-100C
(J/kg.K)
Elec Resistivity
(n.m)
0-100C 0-315C 0-538C At 20C At 500C
904L 8000 200 15 - - 13 - 500 850



Grade specifications for 904L grade stainless steels.


Grade
UNS No Old British Euronorm Swedish SS Japanese JIS
BS En No Name
904L N08904 904S13 - 1.4539 X1NiCrMoCuN25-20-5 2562 -
These comparisons are approximate only. The list is intended as a comparison of functionally similar materials not as a schedule of contractual equivalents. If exact equivalents are needed original specifications must be consulted.



Possible alternative grades to 904L stainless steel.

Grade Why it might be chosen instead of 904L
316L A lower cost alternative, but with much lower corrosion resistance.
6Mo A higher resistance to pitting and crevice corrosion resistance is needed.
2205 A very similar corrosion resistance, with the 2205 having higher mechanical strength, and at a lower cost to 904L. (2205 not suitable for temperatures above 300C.)
Super duplex Higher corrosion resistance is needed, together with a higher strength than 904L.



Applications

  • Typical applications include
  • Processing plant for sulphuric, phosphoric and acetic acids
  • Pulp and paper processing
  • Components in gas scrubbing plants
  • Seawater cooling equipment
  • Oil refinery components
  • Wires in electrostatic precipitators

Supplementary Testing:

  • Eddy Current Testing
  • O.P Testing
  • Radiography Testing
  • Corrosion Testing
  • Micro Testing
  • Macro Testing
  • IGC Testing
  • Ultrasonic testing
  • Liquid Penetrate testing
