Yuhong Holding Group Co.,LTD
 |
| Place of Origin: | China |
| Brand Name: | Yuhong Group |
| Certification: | ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008 |
| Model Number: | ASTM B622 Hastelloy C-276 |
| Minimum Order Quantity: | 100 kgs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Ply-wooden Case /Iron Case/ Bundle |
| Delivery Time: | 7 days |
| Payment Terms: | T/T, L/C |
| Standard: | ASTM B622 | Material: | C-276/N10276/2.4819 |
|---|---|---|---|
| NDT: | ET, UT, HT, PT | Type: | Seamless Pipe, Seamless Tube , Welded Pipe, Welded Tube |
| High Light: | Nickel Steel Seamless Tube,Plain End Nickel Alloy Pipes,Hastelloy C276 Nickel Alloy Tube |
||

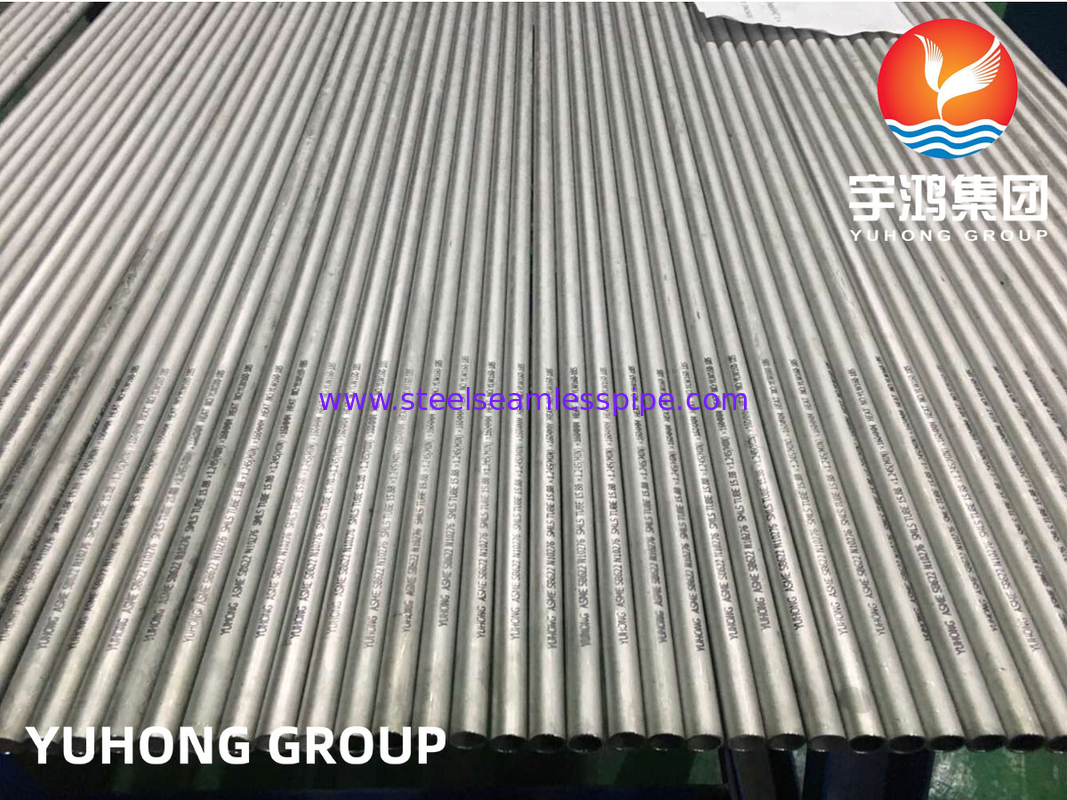

Alloy UNS N10276 Hastelloy C Pipe , B574 / B575 / B619 / B622 Hastelloy C 276 Tube
Yuoong Holding group is supplier of tubes of heat exchager, condenser, air cooler. We have exported to over 80 countries during last 10 years.
Other common names: Alloy C276, Hastelloy C
Hastelloy C276 is a nickel-molybdenum-Chromium superalloy with an addition of tungsten designed to have excellent corrosion resistance in a wide
range of severe environments. The high nickel and molybdenum contents make the nickel steel alloy
especially resistant to pitting and crevice corrosion in reducing environments while chromium conveys
resistance to oxidizing media. The low carbon content minimizes carbide precipitation during welding to
maintain corrosion resistance in as-welded structures. This nickel alloy is resistant to the formation of grain
boundary precipitates in the weld heat-affected zone, thus making it suitable for most chemical process
application in an as welded condition.
Although there are several variations of the Hastelloy nickel alloy, Hastelloy C-276 is by far the most widely
used.
Alloy C-276 is widely used in the most severe environments such as chemical processing, pollution control,
pulp and paper production, industrial and municipal waste treatment, and recovery of sour natural gas.
In what forms is Hastelloy C276 Available at YUHONG HOLDING GROUP?
Corrosion Resistant Hastelloy C276
Considered one of the most versatile corrosion resistant alloys available, Hastelloy C-276 exhibits
excellent resistance in a wide variety of chemical process environments including those with ferric and
cupric chlorides, hot contaminated organic and inorganic media, chlorine, formic and acetic acids, acetic
anhydride, seawater, brine and hypochlorite and chlorine dioxide solutions. In addition, alloy C-276 resists
formation of grain boundary precipitates in the weld heat affected zone making it useful for most chemical
processes in the as-welded condition. This alloy has excellent resistance to pitting and stress corrosion
cracking.
What are the characteristics of Hastelloy C276?
Chemical Composition, %
| Ni | Mo | Cr | Fe | W | Co | Mn | C |
| Remainder | 15.0-17.0 | 14.5-16.5 | 4.0-7.0 | 3.0-4.5 | 2.5 max | 1.0 max | .01 max |
| V | P | S | Si | / | / | / | / |
| .35 max | .04 max | .03 max | .08 max | / | / | / | / |
In what applications is Hastelloy C-276 used?
Pollution control stack liners, ducts, dampers, scrubbers, stack-gas reheaters, fans and fan housings
Flue gas desulfurization systems
Chemical processing components like heat exchangers, reaction vessels, evaporators, and transfer piping
Sour gas wells
Pulp and paper production
Waste treatment
Pharmaceutical and food processing equipment
Fabrication with Hastelloy C-276
Hastelloy C-276 alloy can be forged, hot-upset and impact extruded. Although the alloy tends to
work-harden, you can have it successfully spun, deep-drawn, press formed or punched. All of the common
methods of welding can be used, although the oxyacetylene and submerged arc processes are not
recommended when the fabricated item is for use in corrosion service.
Hastelloy C-276 Welding Material
Alloy C276 welding products are used as matching composition filler material for welding C276 alloy
wrought and cast products, for dissimilar welding applications including other nickel-chromium-molybdenum alloys and stainless steels, and for weld overlay or cladding of steels.
Specifiacations: ASME-SFA-5.14 ERNiCrMo-4
Forms of C276 Filler Metal Available at YUHONG:
Filler metals are available in spools and in cut lengths from the above diameters. Straight lengths are
available in 36" lengths.
ASTM Specifications
| Pipe Smls | Pipe Welded | Tube Smls | Tube Welded | Sheet/Plate | Bar | Forging | Fitting | Wire |
| B622 | B619 | B622 | B626 | B575 | B574 | B564 | B366 |
Mechanical Properties
Typical Room Temperature Tensile Properties of Annealed Material
| Product Form | Tensile (ksi) | .2% Yield (ksi) | Elongation % |
| Bar | 110.0 | 52.6 | 62 |
| Plate | 107.4 | 50.3 | 67 |
| Sheet | 115.5 | 54.6 | 60 |
| Tube & Pipe | 105.4 | 45.4 | 70 |
