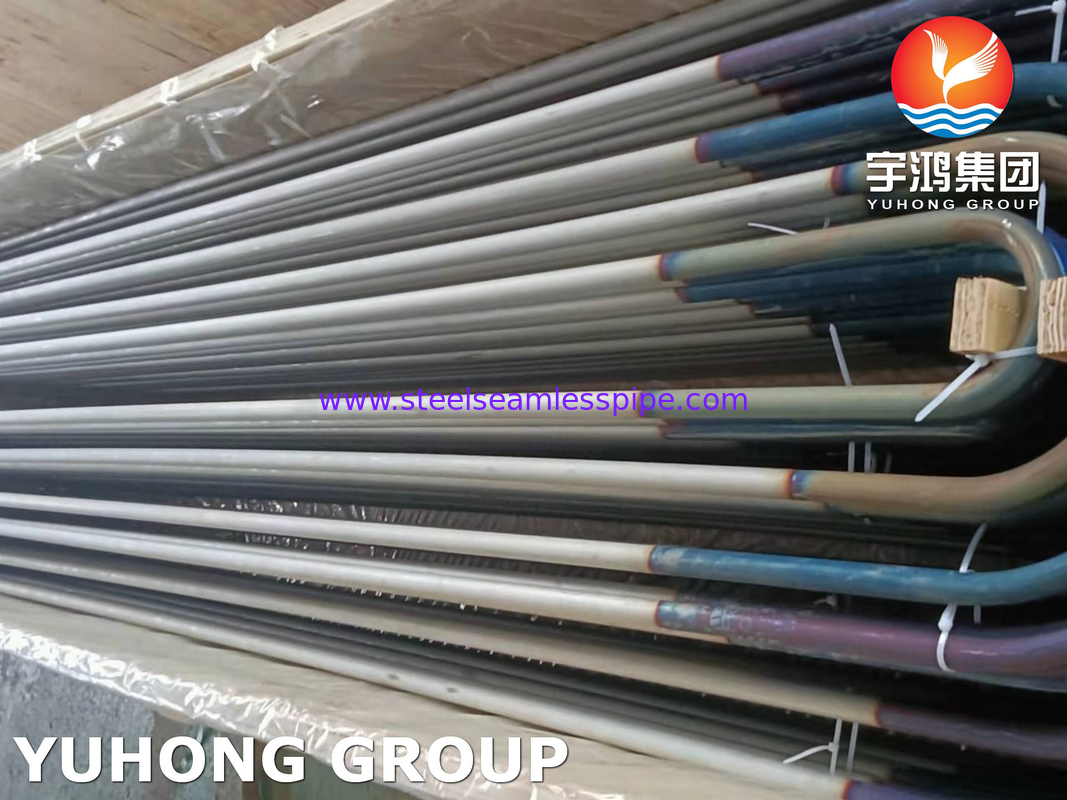

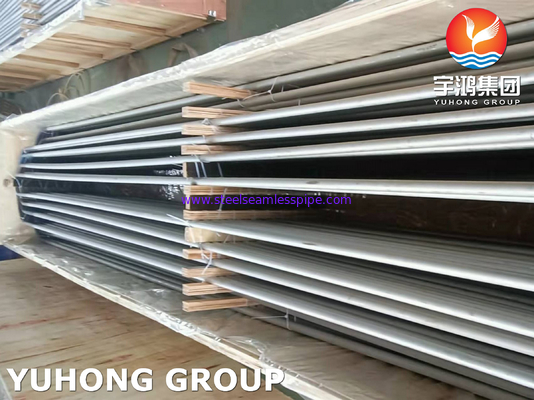

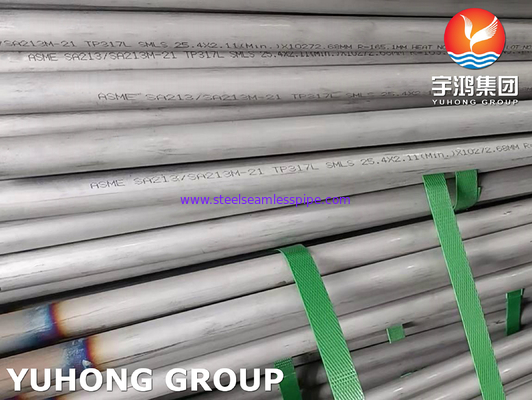

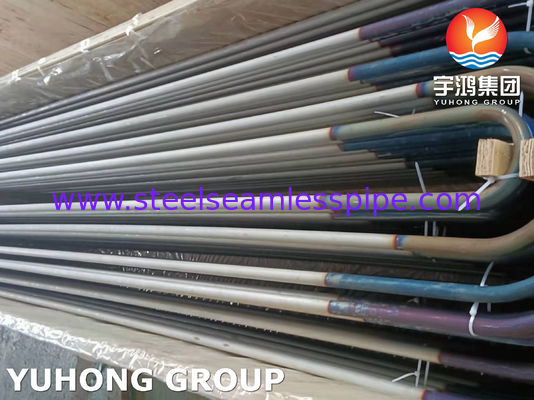

ASTM A213 TP317L Seamless Stainless Steel U Tube For Heat Exchanger

ASTM A213 TP317L Seamless Stainless Steel U Tube For Heat Exchanger

  • ASTM A213 TP317L Seamless Stainless Steel U Tube For Heat Exchanger
  • ASTM A213 TP317L Seamless Stainless Steel U Tube For Heat Exchanger
  • ASTM A213 TP317L Seamless Stainless Steel U Tube For Heat Exchanger
  • ASTM A213 TP317L Seamless Stainless Steel U Tube For Heat Exchanger
ASTM A213 TP317L Seamless Stainless Steel U Tube For Heat Exchanger
Product Details:
Place of Origin: CHINA
Brand Name: YUHONG
Certification: ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008
Model Number: A213 TP317L
Payment & Shipping Terms:
Minimum Order Quantity: 100 KGS
Price: NEGOTIABLE
Packaging Details: Ply-wooden Case/Iron Case/Bundle with plastic Cap
Delivery Time: 20-80 days
Payment Terms: T/T, L/C
Supply Ability: 1500 Tons Per Month
Contact Now
Detailed Product Description
Type: Seamless, Welded, Heat Exchanger Application: Heat Exchanger , Boiler , Cooling, Industry
Certification: ISO Standard: ASTM, JIS, AISI, DIN, EN
Welding Line Type: Seamless, Welded Steel Grade: 300 Series, 304 316 316L 321, Etc.
Thickness: 1mm-40mm, 1-95mm, 0.2-30mm, 0.5mm, Sch10 Sch40 Sch80 STD Product Name: Seamless SUS304 316L Stainless Steel Pipe Coil Rolled, Stainless Steel Coil Tube, Tubing, Stainless Steel Seamless Pipe 304 304L 316 316L, Copper Tube Aluminum Fin Air Heat Exchanger
Outer Diameter: 6-630mm,6-1200mm, 1-406mm, 3/8*, 1/2"-3" Technique: Cold Rolled Hot Rolled, Cold Drawn
Material: AISI 304, Aluminum, 300, Stainless Steel 200, SS304/SS316 Condition: New
Weight: 100--5000KG,5-500KG Customized, 2.7KG, 3KG, 5-100KG Dimension(l*w*h): Custimized Made, 1200*1500*1000, 266mm* 144mm*242mm
High Light:

Heat Exchanger U Shape Tube Seamless

,

Stainless Steel U Tube TP317L

,

SMLS Heat Exchanger Tube

ASTM A213 TP317L Seamless Stainless Steel U Tube For Heat Exchanger

Yuhong Group has been operating stainless steel/duplex/nickel seamless steel pipes for more than 32 years, with annual sales of more than 80,000 tons of stainless steel/duplex/nickel seamless steel pipes.

Our customers have covered more than 65 countries around the world. Our stainless steel seamless pipes are widely used in petrochemical, chemical, mining, energy, food mills, paper mills, gas and fluid industries, etc.



Tubing Size: 1/8″NB to 30″NB IN
Specialty: Large Diameter Sizes
Tubing schedule: SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS
Tube Type: Seamless / ERW / Welded / Fabricated / LSAW Tube
Form: round, square, rectangular, hydraulic, etc.
Lengths: single random, double random and cut length.
Tubing end: flat end, beveled end,



Stainless steel is often referred to as corrosion resistant steel - it does not stain, corrode or rust as easily as regular carbon steel. However, it would be misleading to say that it is corrosion resistant. It differs significantly from standard carbon steel due to its chromium content, which limits surface corrosion, which can rust when exposed to air and any moisture in the atmosphere. Stainless steel is often a popular solution due to its antioxidant properties.



Stainless Steel Seamless (SMLS) pipe is formed by drawing a solid billet over a perforated rod to form a hollow shell. Since the manufacturing process does not include any welding, seamless pipes are considered stronger and more reliable. Historically, seamless pipe has been considered to withstand pressure better than other types and is generally more readily available than welded pipe.



317L stainless steel is a low carbon version of 317 stainless steel. It has the same high strength and corrosion resistance as 317 steel, but produces stronger welds due to its low carbon content.

Alloy 317L (UNS S31703) is a molybdenum-containing austenitic stainless steel with significantly improved chemical resistance compared to conventional chromium-nickel austenitic stainless steels such as alloy 304. Additionally, Alloy 317L has higher creep, stress-fracture and tensile strength at elevated temperatures than conventional stainless steels. It is a low carbon or "L" grade that provides resistance to sensitization during welding and other thermal processes.



317L is a molybdenum-containing, low carbon content "L" grade austenitic stainless steel that offers increased corrosion resistance compared to 304L and 316L stainless steels. Low carbon provides sensitization resistance during welding and other thermal processing.



317L is non-magnetic in the annealed condition, but may become slightly magnetic by welding.



317L has excellent corrosion resistance in a variety of chemicals, especially in acidic chloride environments such as those encountered in pulp and paper mills. The increased chromium, nickel and molybdenum content increases resistance to chloride pitting and general corrosion compared to 316L stainless steel. The resistance increases with the molybdenum alloy content. The 317L can tolerate sulfuric acid concentrations up to 5% at temperatures up to 120°F (49°C). This alloy has excellent resistance to highly concentrated solutions at temperatures below 100°F (38°C). However, service testing is recommended to take into account the effects of specific operating conditions that may affect corrosion behavior. 317L is more resistant to corrosion than traditional alloy 316 at the condensation point during the condensation of sulfur-containing gases. Acid concentration has a significant effect on corrosion rates in such environments and testing should be carefully determined based on service.





Chemical Composition of 317L

Element Content (%)
Iron, Fe Balance
Chromium, Cr 18-20
Nickel, Ni 11-15
Molybdenum, Mo 3-4
Manganese, Mn 2
Silicon, Si 1
Phosphorous, P 0.045
Carbon, C 0.03
Sulfur, S 0.03
Properties Metric Imperial
Tensile strength 595 MPa 86300 psi
Yield strength 260 MPa 37700 psi
Modulus of elasticity 200 GPa 29000 ksi
Poisson’s ratio 0.27-0.30 0.27-0.30
Elongation at break (in 50 mm) 55% 55%
Hardness, Rockwell B 85 85



ASTM A213 TP317L Seamless Stainless Steel U Tube For Heat Exchanger 0
