Yuhong Holding Group Co.,LTD
 |
| Place of Origin: | China |
| Brand Name: | YUHONG |
| Certification: | ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2015 |
| Model Number: | ASTM A234 WPB |
| Minimum Order Quantity: | 10 PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | According to Client Requirements / Ply-wooden Case / Pallet |
| Delivery Time: | 15-35 Days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | According to Client Requirements |
| Standard: | ASTM A234, ASME SA234 | Material: | WPB , WPC |
|---|---|---|---|
| Size: | 1/8" To 48" | Wall Thickness: | SCH 5S - SCH XXS |
| Surface: | Black Painting Or As Customized | Applications: | Construction,Gas And Oil Pipes,Air,Steam,Petroleum Gas Water |
| High Light: | Butt Weld Carbon Steel Pipe Cap,WPB Carbon Steel Pipe Cap,Carbon Steel Buttweld Caps |
||

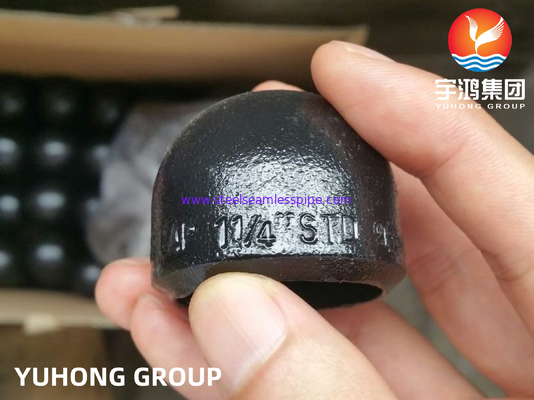

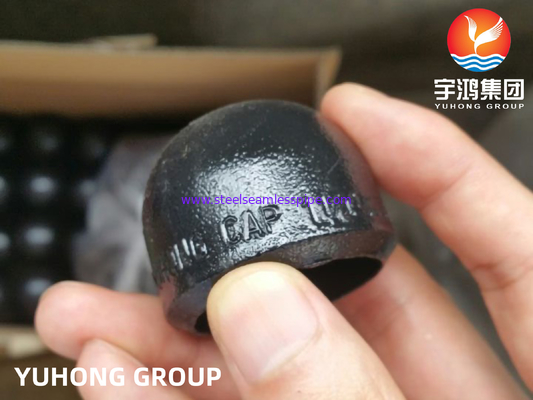

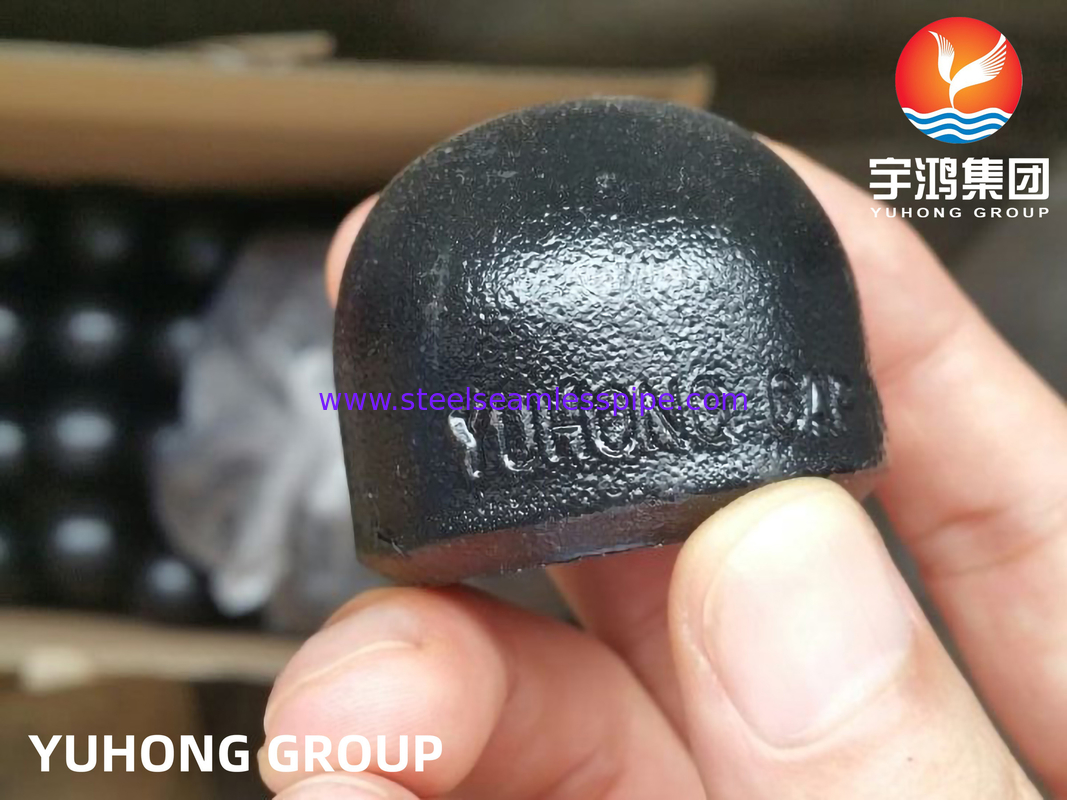

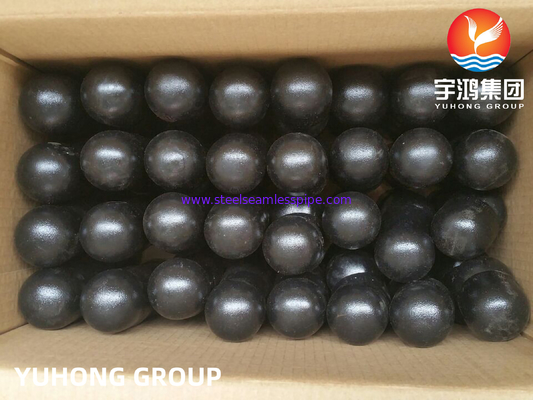

ASTM A234 WPB Butt Weld Carbon Steel Pipe Fittings Black Painting End Cap
ASTM A234 WPB Carbon Steel Buttweld fittings are widely used in many applications, like chemical industry, petrochemical industry, oil and gas plant, shipbuilding equipments and so on. We have manufactured steel fittings for more than 30 years and our fittings have been sold to more than 80 countries up to now.
Products information:
Size : 1/8"NB To 48"NB
Schedule : SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, SCH XXS
Type : Seamless / ERW / Welded / Fabricated /Forged
Form : Cap, Elbow, Equal Tee, Reducing Tee, Eccentric Reducer, Concentric Reducer
Materials
Stainless Steel:
ASTM A403 WP Gr. 304, 304H, 309, 310, 316, 316L, 317L, 321, 347, 904L
Carbon Steel:
ASTM A234 WPB, WPBW, WPHY 42, WPHY 46, WPHY 52, WPH 60, WPHY 65, WPHY 70.
Low Temperature Carbon Steel:
ASTM A420 WPL3 / A420 WPL6
Alloy Steel:
ASTM A234 / ASME SA234 Gr. WP 1, WP 5, WP 9, WP 11, WP 12, WP 22, WP 91
Duplex Steel:
ASTM A815 UNS NO S 31803 , S 32205.
Nickel Alloy:
Standard
ASTM / ASME SB 336.
UNS 10276 (HASTELLOY C276)
UNS 2200 (NICKEL 200),
UNS 2201 (NICKEL 201),
UNS 4400 (MONEL 400),
UNS 8020 (ALLOY 20),
UNS 8825 (INCONEL 825),
UNS 6600 (INCONEL 600),
UNS 6601 (INCONEL 601),
UNS 6625 (INCONEL 625),
Value Added Services
Hot Dip Galvanizing
Epoxy Coating
Test Certificate
Mill Test Certificate as per EN 10204 / 3.1B
Carbon Steel Pipe Fitting - Cap
Standard
| Nominal Pipe Size |
Outside Diameter |
Inside Diameter |
Wall Thickness |
Length | Pipe Schedule |
Weight Pounds |
| 1/2 | 0.84 | 0.622 | 0.109 | 1 | 40 | 0.08 |
| 3/4 | 1.05 | 0.824 | 0.113 | 1.25 | 40 | 0.14 |
| 1 | 1.32 | 1.049 | 0.133 | 1.5 | 40 | 0.21 |
| 1 1/4 | 1.66 | 1.38 | 0.14 | 1.5 | 40 | 0.33 |
| 1 1/2 | 1.9 | 1.61 | 0.145 | 1.5 | 40 | 0.54 |
| 2 | 2.38 | 2.067 | 0.154 | 1.5 | 40 | 0.8 |
| 2 1/2 | 2.88 | 2.469 | 0.203 | 1.5 | 40 | 1 |
| 3 | 3.5 | 3.068 | 0.216 | 2 | 40 | 1.7 |
| 3 1/2 | 4 | 3.548 | 0.226 | 2.5 | 40 | 2.3 |
| 4 | 4.5 | 4.026 | 0.237 | 2.5 | 40 | 2.8 |
| 5 | 5.56 | 5.047 | 0.258 | 3 | 40 | 4.6 |
| 6 | 6.62 | 6.065 | 0.28 | 3.5 | 40 | 6.9 |
| 8 | 8.62 | 7.981 | 0.322 | 4 | 40 | 11.8 |
| 10 | 10.75 | 10.02 | 0.365 | 5 | 40 | 20.8 |
| 12 | 12.75 | 12 | 0.375 | 6 | * | 30.3 |
| 14 | 14 | 13.25 | 0.375 | 6.5 | 30 | 36.5 |
| 16 | 16 | 15.25 | 0.375 | 7 | 30 | 43.5 |
| 18 | 18 | 17.25 | 0.375 | 8 | * | 57 |
| 20 | 20 | 19.25 | 0.375 | 9 | 20 | 75.7 |
| 24 | 24 | 23.25 | 0.375 | 10.5 | 20 | 101 |
| 30 | 30 | 29.24 | 0.38 | 10.5 | * | 137 |
| 36 | 36 | 35.24 | 0.38 | 10.5 | * | 175 |
| 42 | 42 | 41.24 | 0.38 | 12 | * | 229 |
| 48 | 48 | 47.24 | 0.38 | 13.5 | * | 350 |
Extra Strong
|
Nominal |
Outside |
Inside |
Wall |
Length |
Pipe |
Weight |
|
1/2 |
0.84 |
0.546 |
0.147 |
1 |
80 |
0.1 |
|
3/4 |
1.05 |
0.742 |
0.154 |
1.25 |
80 |
0.16 |
|
1 |
1.315 |
0.957 |
0.179 |
1.5 |
80 |
0.28 |
|
1 1/4 |
1.66 |
1.278 |
0.191 |
1.5 |
80 |
0.48 |
|
1 1/2 |
1.9 |
1.5 |
0.2 |
1.5 |
80 |
0.67 |
|
2 |
2.375 |
1.939 |
0.218 |
1.5 |
80 |
0.92 |
|
2 1/2 |
2.875 |
2.323 |
0.276 |
1.5 |
80 |
1.3 |
|
3 |
3.5 |
2.9 |
0.3 |
2 |
80 |
2.1 |
|
3 1/2 |
4 |
3.364 |
0.318 |
2.5 |
80 |
3 |
|
4 |
4.5 |
3.826 |
0.337 |
2.5 |
80 |
3.5 |
|
5 |
5.563 |
4.813 |
0.375 |
3 |
80 |
5.8 |
|
6 |
6.625 |
5.761 |
0.432 |
3.5 |
80 |
9.3 |
|
8 |
8.625 |
7.625 |
0.5 |
4 |
80 |
16 |
|
10 |
10.75 |
9.75 |
0.5 |
5 |
60 |
26 |
|
12 |
12.75 |
11.75 |
0.5 |
6 |
* |
38 |
|
14 |
14 |
13 |
0.5 |
6.5 |
* |
47 |
|
16 |
16 |
15 |
0.5 |
7 |
40 |
57 |
|
18 |
18 |
17 |
0.5 |
8 |
* |
78 |
|
20 |
20 |
19 |
0.5 |
9 |
30 |
100 |
|
24 |
24 |
23 |
0.5 |
10.5 |
* |
145 |
|
30 |
30 |
29 |
0.5 |
10.5 |
20 |
634 |
|
36 |
36 |
35 |
0.5 |
10.5 |
20 |
913 |
|
42 |
42 |
41 |
0.5 |
12 |
* |
1,300 |
|
48 |
48 |
47 |
0.5 |
13.5 |
* |
1,675 |
|
|
