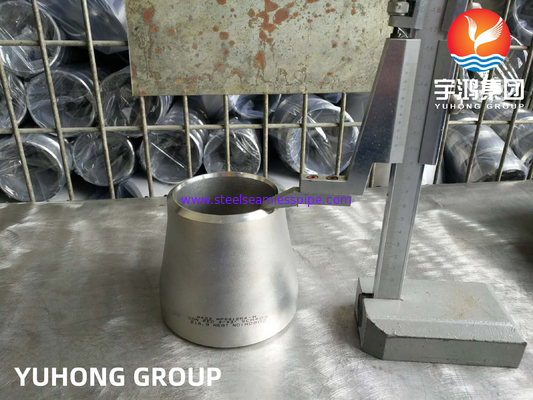

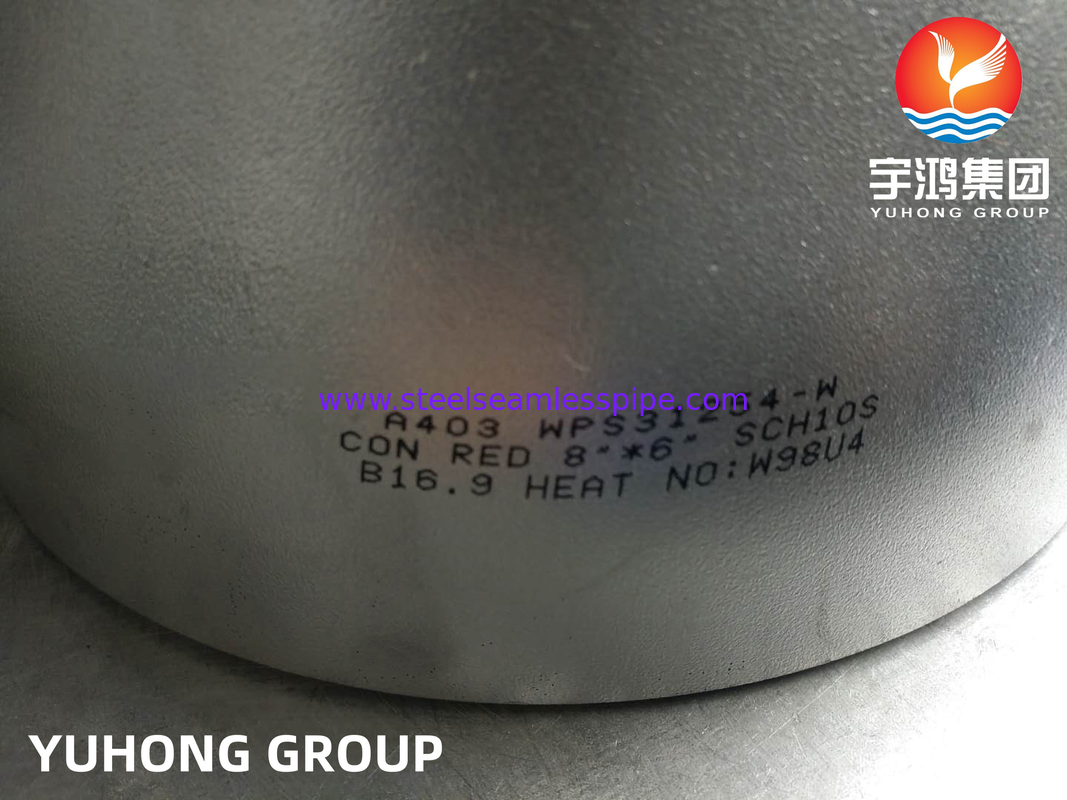

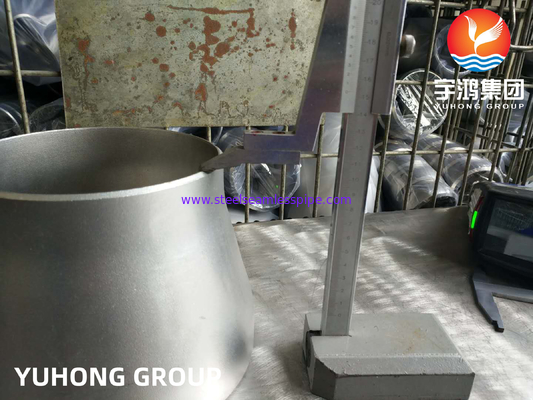

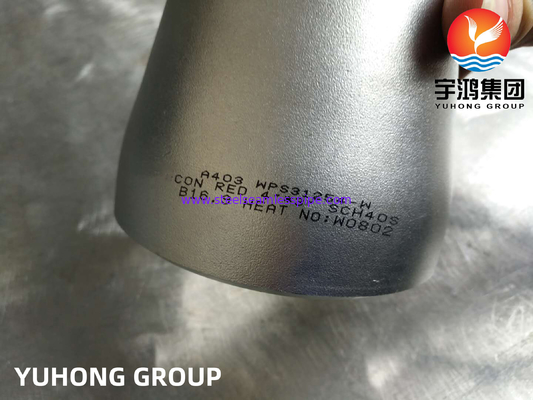

ASTM A403 WPS31254-W, 254SMO Stainless Steel Butt Weld Fittings Concentric Reducer B16.9

ASTM A403 WPS31254-W, 254SMO Stainless Steel Butt Weld Fittings Concentric Reducer B16.9

Butt Weld Fittings
We are engaged in manufacturing of a wide range of Butt Weld Fitting that is available in varied types such as L/R & S/R elbow, tee, concentric and eccentric reducers, reducing elbow & tee, cross and caps. Sourced from reliable vendors, these fittings are highly acknowledged for their high tensile strength, durability and accurate alloy composition. These find application in several industries such oil & gas, automobile, acid & chemical, pharmaceutical and cement industries. We are known for our butt welding fitting pieces.

Sizes : 1/2" NB - 48" NB
Wall Thickness Available : Schedule 10s - Schedule XXS
Dimension Standard: ANSI B16.9, MSS SP 43

Seamless, ERW, Fabricated

FORM:

• Elbows in Long & Short Radius in 45 deg, 90 deg, 180 deg.
• Return Bend, U Bend, Long Radius Bend.
• Equal, Unequal Tee & Barred Tee.
• Eccentric Reducer & Concentric Reducer.
• Caps & Crosses.
• Long & Short Stub End.
• Swage Nipple & Barrel Nipple
• Laterals

VALUE ADDED SERVICES

• Hot Dipped Galvanizing
• Epoxy & FBE Coating
• Electro Polish

TEST CERTIFICATE
Manufacturer Test Certificate as per EN 10204 / 3.1B

Stainless Steel Butt Weld Fittings We offer wide gamut of stainless steel butt weld fittings that are widely used in diverse industries. Our gamut of products conform various standards such as the varied grades of stainless steel butt weld fittings that we supply are.
Standard: ASTM / ASME A/SA 403 GR WP "S" / "W" / " WX"
Grade: 304, 304L, 304H, 309S, 309H, 310S, 310H, 316, 316TI, 316H, 316L, 316LN, 317, 317L, 321, 321H, 347, 347H, 904L.

Carbon Steel & Alloy Steel Butt Weld Fittings
We offer a wide array of carbon steel & alloy steel butt weld fittings that are widely appreciated for their exclusive features. Our entire gamut conform various international standards.
Carbon Steel Butt Weld Fittings Standard:
ASTM / ASME A/SA 234 / 860
Grade: WPB, WPC, WPBW, WPHY 42, WPHY 46, WPHY 52, WPH 60, WPHY 65 & WPHY 70.

Alloy Steel Butt Weld Fittings Standard:
ASTM / ASME A/SA 234
Grade: WP 1, WP 5, WP 9, WP 11, WP 12, WP 22, WP 23, WP 91.

Nickel Alloy Butt Weld Fittings
Our traded products include nickel alloy butt weld fittings that are extensively used in diverse industries. These butt weld fittings conform to rds. Various grades of nickel alloy butt weld fittings are.
Standard: ASTM / ASME SB 336
Grade: UNS 2200 (NICKEL 200), UNS 2201 (NICKEL 201), UNS 4400 (MONEL 400), UNS 8020 (ALLOY 20 / 20) CB 3, UNS 8825 INCONEL (825), UNS 6600 (INCONEL 600), UNS 6601 (INCONEL 601), UNS 6625 (INCONEL 625), UNS 10276 (HASTELLOY C 276).

Butt Weld Elbow (90°)
Pipe elbow fittings is a very important pipe fitting. When we talk about a pipe elbow, it means a length of pipe with a sharp bend in it. Pipe elbows are fitting accessories which are used widely in various industrial sectors in pipe fitting. A pipe elbow is frequently used in pressurized applications and is available in various shapes and sizes for use in different applications. A pipe elbow is a fitting installed between two lengths of pipe or tube allowing a change of direction, usually in the 90° or 45° direction.
° Prosaic Steel & Alloys manufactures pipe fitting devices which are bent in such a way to produce some degree (90, 45, 180 degree) changes in the direction of flow of the content in the pipe. Elbows are manufactured to meet different specifications, in terms of size and diameter. Prosaic Steel & Alloys manufactures & supplies high quality elbows that can be used for various applications. Our elbows are tested and verified for durability, accuracy and precision.
Prosaic Steel & Alloys manufactures forged, seamless & welded elbows (pipe fitting) of types 90° Elbows, 90° Elbow, 45° Elbows, 180° Elbow of socket weld, threaded type to ANSI B 16.9 from classes 2000 to 9000 and Schedules from 10 to 160 .
Prosaic Steel & Alloys manufactures elbow (pipefitting) accordance with BS standard from classes 2000 to 9000 lbs, Schedule 10 to 160.
Prosaic Steel & Alloys designs & manufactures elbows (pipe fittings) of special type made according to drawing on request.


Grades:
Nickel Alloy
ASTM / ASME SB 336 UNS 2200 ( NICKEL 200 ), UNS 2201 (NICKEL 201 ), UNS 4400 (MONEL 400 ), UNS 8020 ( ALLOY 20 / 20 CB 3, UNS 8825 INCONEL (825), UNS 6600 (INCONEL 600 ), UNS 6601 ( INCONEL 601 ), UNS 6625 (INCONEL 625), UNS 10276 ( HASTELLOY C 276 )
Stainless Steel
ASTM / ASME SA 403 GR WP "S" / "W" / " WX" 304 , 304L, 304H, 304N, 304LN, 309, 310H, 316, 316H, 317, 317L, 321, 321H, 347, 347 H.
Duplex Steel
ASTM / ASME SA 815 UNS NO.S 31803, S 32205, S 32550, S 32750, S 32760.
Carbon Steel
ASTM / ASME A 234 WPB, WPC
ASTM / ASME A 860 WPHY 42, WPHY 46, WPHY 52, WPH 60, WPHY 65 & WPHY 70.
Alloy Steel
ASTM / ASME A 234 WP 1, WP 5, WP 9, WP 11, WP 12, WP 22, WP 23, WP 91


Sizes:
Outer Diameter (D): D<=1220mm
Wall Thickness (T): T<=120mm
L/R Elbow( 90deg & 45deg & 180deg.),
S/R Elbow (90deg & 180deg.)
Pressure: SCH5 to SCH160
Manufacturing standard: ANSI, JIS, DIN, EN, API 5L, etc.
Bending Angle: Degree 15, 30, 45, 60, 90, 135, 180 and also could manufacture according the angles given by the clients.
End Bevel: According to the bevel of welding pipe fittings construction
Surface treatment: Shot blasted, rust-proof black oil

Butt Weld Elbow (45°)
Owing to offer quality products, we are involved in making of elbow 45 degree for our customers. These pipe fittings offer amazing functionality. Stainless steel, alloy steel, nickel alloys are used for crafting these pipe fittings. Our Elbow (45°) pipe fitting is offered at market leading rates.
