| Place of Origin: | CHINA |
| Brand Name: | YUHONG |
| Certification: | ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008 |
| Model Number: | ASTM A790 S31803 |
| Minimum Order Quantity: | 100 KGS |
|---|---|
| Price: | NEGOTIABLE |
| Packaging Details: | Ply-wooden Case /Iron Case/ Bundle with plastic Cap |
| Delivery Time: | 20-80 days |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 1500 Tons Per Month |
| Standard: | ASTM,DIN,AISI,EN,JIS | Application: | Industry,boiler,oil And Gas |
|---|---|---|---|
| Welding Line Type: | Seamless | Steel Grade: | 300 Series,duplex Stainless Steel |
| Type: | Seamless,Welded | Thickness: | 0.1mm-60mm |
| Technique: | Cold Rolled Hot Rolled,Cold Drawn | Length: | 3000~12000MM |
| Surface: | Bright Mirror 2b Ba Pickled White Matte 8k Polished | Ndt: | ET, UT, HT , PT |
| Applications: | Chemical Industry,Shipping Military | Section Shape: | Round |
| Condition: | Solid, Pickled | Payment Term: | T/T, L/C, Western Union, Etc |
| Wall Thickness: | SCH 5S - XXS | Pressure Rating: | High |
| Inner Diameter: | Customized | Color: | Silver |
| Schedule: | SCH 10 -SCH XXS | Production Capacity: | Up To 60 Kegs/h |
| Package: | Standard Seaworthy Package | Mositure: | 3-4% After Separation |
| Outer Diameter: | 1.5mm-2000mm | Usage: | Chemical Industry |
| High Light: | Stainless Steel SMLS Pipe,Corrosion Resistance SMLS Pipe,Stainless Steel Pipe S31803 |
||

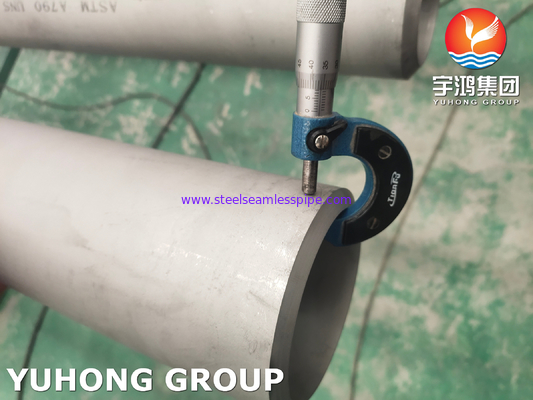

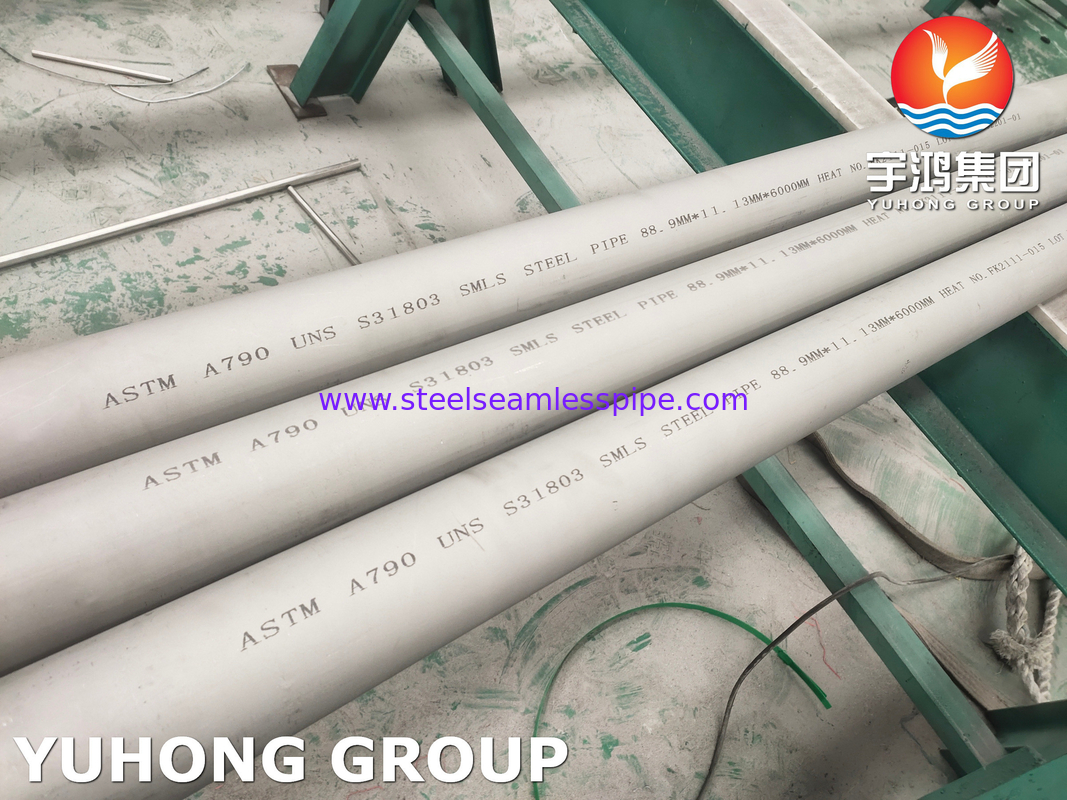

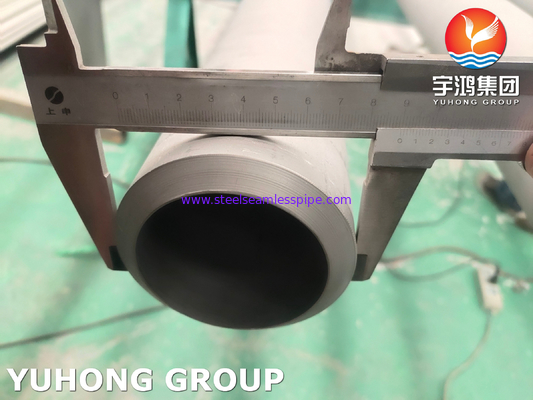

ASTM A790 S31803 Duplex Stainless Steel Seamless Pipe Chloride corrosion Resistance
Duplex stainless steels are called "duplex" because they have a two-phase microstructure consisting of ferritic and austenitic stainless steel grains. The picture shows the yellow austenite phase as "islands" surrounded by the blue ferrite phase. When duplex stainless steel melts, it solidifies from the liquid phase to a fully ferritic structure. As the material cools to room temperature, about half of the ferrite grains transform into austenite grains. The result is a microstructure of approximately 50% austenite and 50% ferrite.
While duplex stainless steels are considered resistant to stress corrosion cracking, they are not as resistant to this form of erosion as ferritic stainless steels. However, the least corrosion resistant duplex stainless steels have greater corrosion resistance than the most commonly used stainless grades, 304 and 316.
Duplex stainless steels are also magnetic, a property that can be used to easily distinguish them from common austenitic grades.
| ASTM A790 UNS S31803 Duplex Stainless Steel Seamless Pipes Specification | ASTM A789, ASTM A790, ASTM A928, ASME SA789, ASME SA790, ASME SA928 |
| ASTM A790 UNS S31803 Duplex Stainless Steel Seamless Pipes Grades | UNS S32205, UNS S31803, UNS S32750, UNS S32760, SAF® 2205, SAF® 2507, FERRINOX® 225, AMINOX® 225, ZERON® 100 |
| ASTM A790 UNS S31803 Duplex Stainless Steel Seamless Pipes Type | Seamless / Welded / ERW / EFW / Cold Draw / Hot Finish / Cold Finish |
| ASTM A790 UNS S31803 Duplex Stainless Steel Seamless Pipes Outer Diameter Size | Seamless - 1/2" NB TO 18" NB Welded / ERW- 1" NB TO 16" NB EFW - 8" NB TO 110" NB |
| ASTM A790 UNS S31803 Duplex Stainless Steel Seamless Pipes Wall Thickness | Schedule 10 to Schedule 160 (3 mm to 100 mm Thickness) |
| ASTM A790 UNS S31803 Duplex Stainless Steel Seamless Pipes Length | 01 Meter to 12.5 Meters, Single Random Length, Double Random Length And Customize Size. |
| ASTM A790 UNS S31803 Duplex Stainless Steel Seamless Pipes Ends | Plain Ends / Beveled Ends |
| ASTM A790 UNS S31803 Duplex Stainless Steel Seamless Pipes Delivery Conditions | As Rolled, Formed, Stress Relieved, Annealed, Hardened, Tempered, Cold Draw, Bright Annealed |
| ASTM A790 UNS S31803 Duplex Stainless Steel Seamless Pipes Coating | Electropolish, Mechanical Polish, Satin Finish, Passivated |
| ASTM A790 UNS S31803 Duplex Stainless Steel Seamless Pipes Other Testing | Product Analysis, Transverse Tension Test, Flattening Test, Etching Test, Radiograph HIC Examination, Stabilizing Heat Treatment, Intergranular Corrosion Test, Weld Decay Test, Magnetic Particle Detection, Grain Size Test, NACE 0175, Dual Grade, PWHT (POST WELD HEAT TREATMENT), Flare Test, Bend Test, Hardness Test, Tensile Test etc |
| ASTM A790 UNS S31803 Duplex Stainless Steel Seamless Pipes Dimension | All Pipes Is Manufactured and Inspected / Tested to the Relevant standards including ASTM And ASME |
| ASTM A790 UNS S31803 Duplex Stainless Steel Seamless Pipes Value Added Services | Draw / Expansion / Machining / Sand Blasting / Shot Blasting / Heat Treatment |
| ASTM A790 UNS S31803 Duplex Stainless Steel Seamless Pipes Packaging | Loose / Bundle / Wooden Pallet / Wooden box-a / Plastic Cloth Wraps / Plastic End Caps / Beveled Protector |
| ASTM A790 UNS S31803 Duplex Stainless Steel Seamless Pipes Shipment & Transportation | By Road - Truck / Train, By Sea - Break-bulk Conventional Vessel / FCL (Full Container Load) / LCL (Less Container Load) / 20 Feet Container / 40 Feet Container / 45 Feet Container / High Cube Container / Open Top Container, By Air - Freighter Civil Passenger and Cargo Planes |
| ASTM A790 UNS S31803 Duplex Stainless Steel Seamless Pipes Material Test Certificate | Manufacturer Test Certificate As Per EN10204 3.1, 3.2 / Laboratory Test Certificate From NABL Approved Lab. / Under Third Party Inspection Agency Like SGS, TUV, DNV, LLOYDS, ABS ETC |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N | |
| 2205 (UNS S31803) | Min Max | - 0.030 | - 2.00 | - 1.00 | - 0.030 | - 0.020 | 21.0 - 23.0 | 2.5 - 3.5 | 4.5 - 6.5 | 0.08 - 0.20 |
| Grade | Tensile Strength (MPa) min |
Yield Strength 0.2% Proof (MPa) min |
Elongation (% in 50mm) min |
Hardness | |
| Rockwell C (HR C) | Brinell (HB) | ||||
| UNS S31803 / 2205 | 621 | 448 | 25 | 31 max | 293 max |
