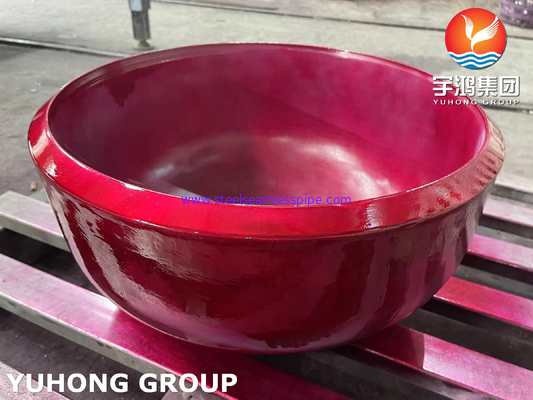

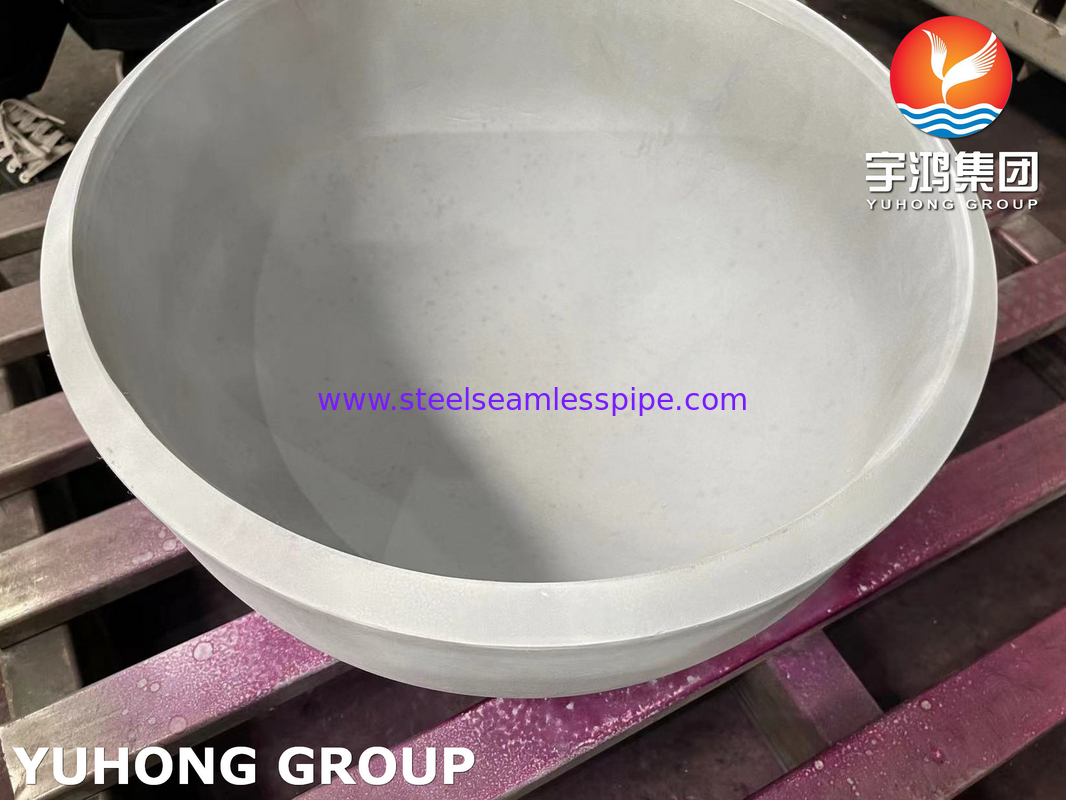

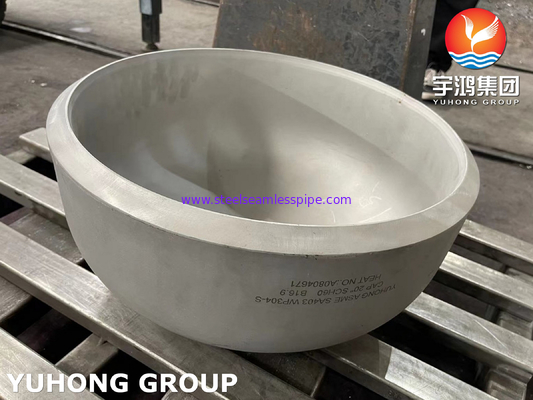

ASME SA403 WP304-S Stainless Steel Cap Large Size 40 inch Butt Weld Pipe Fitting PT

Product Details:

Place of Origin:	CHINA
Brand Name:	YUHONG
Certification:	ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008
Model Number:	ASME SA403 WP304-S

Payment & Shipping Terms:

Minimum Order Quantity:	100 KGS
Price:	NEGOTIABLE

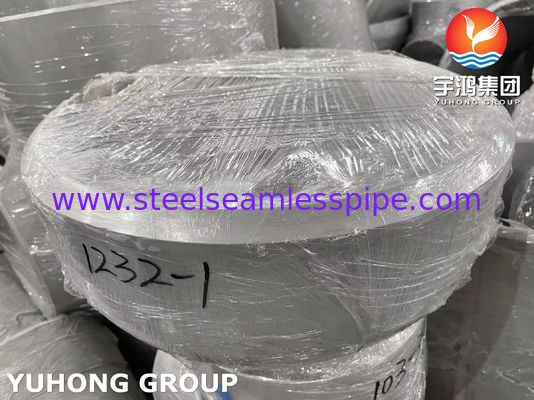

Packaging Details:	Ply-wooden Case /Iron Case/ Bundle with plastic Cap
Delivery Time:	20-80 days
Payment Terms:	T/T, L/C, Western Union
Supply Ability:	1500 Tons Per Month

Contact Now

Material:

Stainless Steel

Product Name:

Крышки для труб из нержавеющей стали；Tapones De Acero Inoxidable；أغطية أنابيب الفولاذ المقاوم للصدأ；Capuchons De Tuyaux En Acier Inoxydable

Shape:

Equal, Reducing, Round

Connection:

Welding, Female, Male

Technics:

Forged, Casting, Pushing, Butt Weld, Welding

Size:

Customized Size, 1/8"-2", 1/2"-48", 1/2"-6", DN15-DN1200

Standard:

ANSI, DIN, ASME, JIS, GB, Etc.

Application:

Gas And Oil Pipes, Petroleum Gas, Joining Pipe Lines

Thickness:

STD, DIN, SCH40, SGP, SCH10-XXS(2-60mm)

Highlight:

Pipe Fitting Stainless Steel Cap

Butt Weld Stainless Steel Cap

ASME SA403 WP304-S Stainless Steel Cap Large Size Butt Weld Pipe Fitting PT

ASME SA403 WP304-S fittings are available in a wide range of sizes, configurations, and thread types. Our comprehensive product range includes pipes, reducers, tees, elbows, caps, and more, providing versatile and leak-free connections for various applications across major industrial markets. These fittings, made from stainless steel 304, exhibit exceptional resistance to corrosion and oxidation in both man-made and natural environments. They are designed to withstand the challenges of demanding industrial settings while ensuring reliable performance and durability. Our extensive range also includes a variety of accessories such as tees, unions, elbows, caps, reducers, and more, offering comprehensive solutions for diverse piping requirements.

Dimensions	ASME B16.28, MSS-SP-43, ASME/ANSI B16.9, BS4504, BS10, BS4504, BS1560,
Thickness	SCH10, SCH 80, SCH 100, SCH20, SCH30, STD SCH40, SCH 160, XXS, SCH60, XS, SCH 120, SCH 140, available with NACE MR 01-75
Type	DN15-DN1200
Connection	Welding
Bending Radius	R=2D, 3D, 5D, 6D, 8D, 1D, 10D or Custom
Manufacturing process	Press, Forge, Push, Cast, etc.
Specialized manufacturer of	Tees, Crosses, Reducers, 90º Elbows, Stub End, Pipe Bend, 45º Elbows, Pipe Cap

Stainless Steel 304 Pipe Fittings Dimension Chart

Nominal Pipe Size	Outside Diameter		90° Elbows		45° Elbows		180° Returns
(inches)			Long Radius	Short Radius	Long Radius		Long Radius
	(mm)	(inches)	Center to Face (inches)	Center to Face (inches)	Center to Face (inches)	Radius (inches)	Center to Center (inches)	Back to face (inches)
1/2	21.3	0.840	1 1/2	–	5/8		2	1 7/8
3/4	26.7	1.050	1 1/8	–	7/16		2 1/4	1 11/16
1	33.4	1.315	1 1/2	1	7/8		3	2 3/16
1 1/4	42.2	1.660	1 7/8	1 1/4	1		3 3/4	2 3/4
1 1/2	48.3	1.900	2 1/4	1 1/2	1 1/8	3	4 1/2	3 1/4
2	60.3	2.375	3	2	1 3/8	4	6	4 3/16
2 1/2	73.0	2.875	3 3/4	2 1/2	1 3/4	5	7 1/2	5 3/16
3	88.9	3.500	4 1/2	3	2	6	9	6 1/4
3 1/2	101.6	4.000	5 1/4	3 1/2	2 1/4	7	10 1/2	7 1/4
4	114.3	4.500	6	4	2 1/2	8	12	8 1/4
5	141.3	5.563	7 1/2	5	3 1/8	10	15	10 5/16
6	168.3	6.625	9	6	3 3/4	12	18	12 5/16
8	219.1	8.625	12	8	5	12	24	16 5/16
10	273.1	10.750	15	10	6 1/4	15	30	20 3/8
12	323.9	12.750	18	12	7 1/2	18	36	24 3/8

ASTM A403 Wp 304 Pipe Fittings Composition Chart

Grade	C	Mn	Si	P	S	Cr	Cb	Ni	N
SS 304	0.08 max	2.0 max	1.0 max	0.045 max	0.030 max	18.00 – 20.00	-	8.00 – 11.00	0.1

304 stainless steel pipe fittings Mechanical Properties Table

Grade	Tensile Strength (MPa) min	Yield Strength 0.2% Proof (MPa) min	Elongation (% in 50mm) min	Hardness
				Rockwell B (HR B) max	Brinell (HB) max
304	515	205	30	50	-
