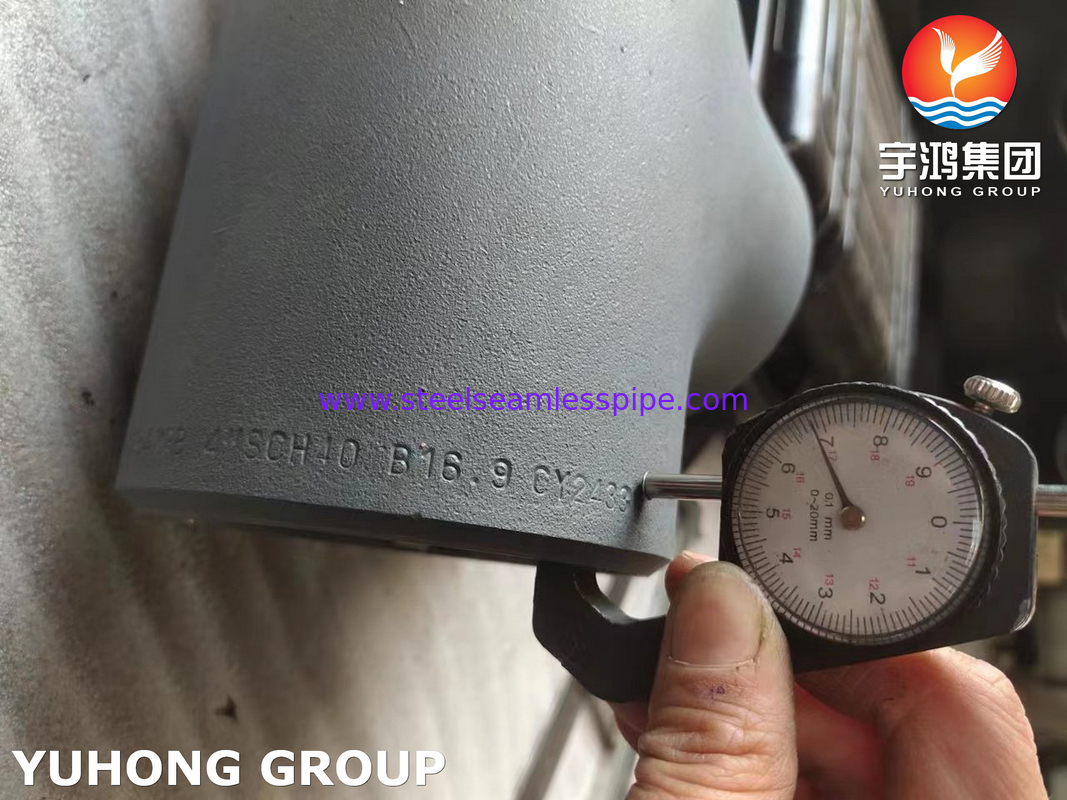

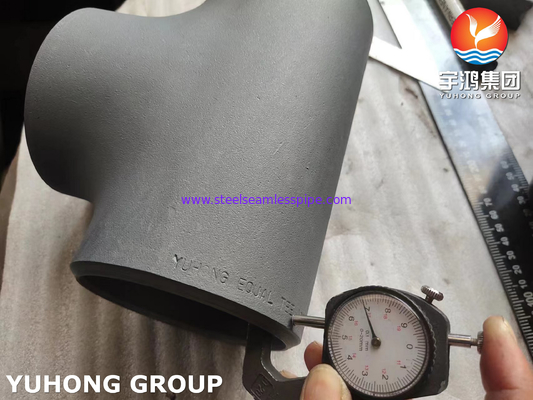

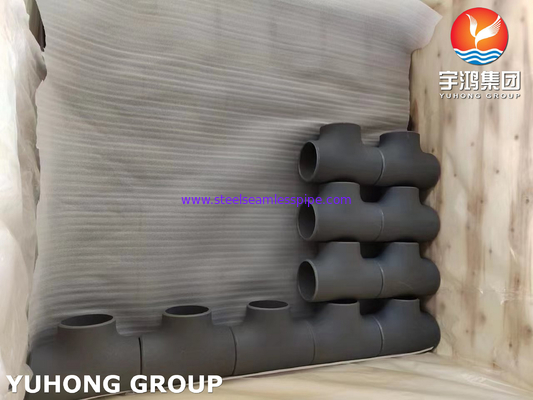

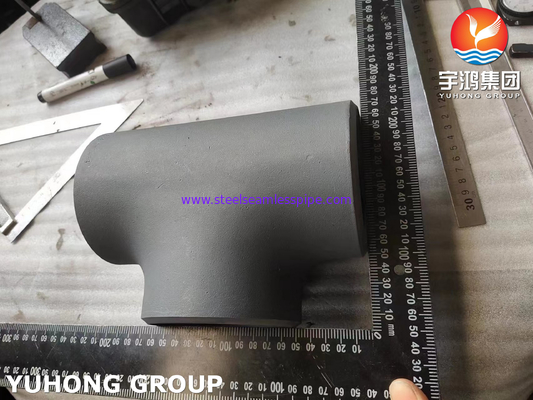

ASTM A234 WPB Carbon Steel Equal Tee SCH40 Butt Weld Pipe Fitting

ASTM A234 WPB Carbon Steel Equal Tee SCH40 Butt Weld Pipe Fitting

  • ASTM A234 WPB Carbon Steel Equal Tee SCH40 Butt Weld Pipe Fitting
  • ASTM A234 WPB Carbon Steel Equal Tee SCH40 Butt Weld Pipe Fitting
  • ASTM A234 WPB Carbon Steel Equal Tee SCH40 Butt Weld Pipe Fitting
  • ASTM A234 WPB Carbon Steel Equal Tee SCH40 Butt Weld Pipe Fitting
ASTM A234 WPB Carbon Steel Equal Tee SCH40 Butt Weld Pipe Fitting
Product Details:
Place of Origin: CHINA
Brand Name: YUHONG
Certification: ABS, GL, DNV, NK, PED, AD2000, CCS, ISO 9001-2008
Model Number: ASTM A234 WPB
Payment & Shipping Terms:
Minimum Order Quantity: 100 KGS
Price: NEGOTIABLE
Packaging Details: Ply-wooden Case /Iron Case/ Bundle with plastic Cap
Delivery Time: 20-80 days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 1500 Tons Per Month
Contact Now
Detailed Product Description
Type: Pipe Fittings Material: Carbon Steel
Shape: Equal, Reducing Connection: Threaded, Socket Weld, Butt Weld
Technics: Forged, Casting, Pushing, Butt Weld, Welding Size: Customized Size, 1/8"-2", 1/2"-48", 1/2"-6", DN15-DN1200
Standard: ASME, ANSI, API, Etc. Product Name: Black Painting Fittings, Press Fitting, Vaccum Pipe, Butt Welding Pipe Fitting, Stainless Steel Pipe Fittings
Application: Oil, Gas, Water, Chemical, Petrochemical, Power Plant, Etc. Thickness: STD, DIN, SCH40, SGP, SCH10-XXS(2-60mm)
Package: Carton, Wooden Case, Pallet Surface Treatment: Galvanized, Black, Coated
Pressure Rating: 150#, 300#, 600#, 900#, 1500#, 2500# Standards: ASME, ANSI, ASTM, DIN, JIS, ISO, BS, API, EN
Temperature Rating: Up To 600°F
Highlight:

Butt Weld Pipe Fitting WPB

,

Butt Weld Carbon Steel Equal Tee

,

Pipe FittingCarbon Steel Equal Tee

ASTM A234 WPB Carbon Steel Equal Tee SCH40 Butt Weld Pipe Fitting



Yuhong is a licensed manufacturer and distributor of high-quality A234 grade WPB fittings. These fittings are known for their exceptional strength and compatibility with the right equipment. They are commonly used in unpainted shapes, as the formation of weathered oxides on the surface demonstrates their impressive corrosion resistance. However, it's important to note that soldering and handling can be challenging due to their robustness. Carbon steel ASTM A234 grade WPB fittings are extensively utilized in various applications where high strength-to-weight ratio materials are required to enhance product performance and reduce operating costs. They find applications in transfer equipment, bridge and building structures, truck bodies, and more. Additionally, Mild Steel ASME SA 234 Grade WPB Unequal Tee Fittings are utilized in the transportation of automotive bodies, storage containers, and tanks, including auxiliary frames and missile launchers. These fittings are widely used in the mining industry for applications requiring high impact resistance and precise machining. It is crucial to protect and maintain the smooth surface of these fittings during storage, handling, and transportation. With their excellent corrosion resistance, carbon steel ASTM A234 grade WPB fittings can be easily cut, machined, welded, and drilled, allowing for efficient fabrication.





Carbon Steel ASTM A234 Pipe Fittings Chemical Composition

Grade C Mn Si P S Cr Mo Ni N
Carbon Steel A234 0.3 max 0.29-1.06 0.1 min 0.05 0.058 0.4 0.15 0.4



Carbon Steel ASTM A234 Piping & Tubing Mechanical Properties

Grade Tensile Strenght, Min, Ksi[Mpa] Yield Strenght, Min, Ksi[Mpa]
Carbon Steel A234 60-85[415-585] 32 [240]

Specification Of Carbon Steel ASTM A234 WPB Pipe Fittings

WPB Pipe Fittings Specifications ASTM A234/ ASME SA234
CS WPB Pipe Fittings Dimensions ASME/ANSI B16.9, ASME B16.28, MSS-SP-43, BS4504, BS4504, BS1800, BS10
WPB Carbon Steel Pipe Fittings size WPB Seamless Butt Weld Fittings : 1/2″ – 10″
WPB Welded Butt Weld Fittings : 1/2″ – 48″
WPB Buttweld Pipe FittingsType DN15-DN1200
WPB Buttweld Fittings Thickness SCH10, SCH20, SCH30, STD SCH40, SCH60, XS, SCH 80, SCH 100, SCH 120, SCH 140, SCH 160, XXS available with NACE MR 01-75
ASTM A234 WPB Buttweld Fitting Connection Welding
Bending Radius R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom ASTM A234 Gr WPB Pipe Fitting
Size Range ½” NB to 24″ NB in Sch 10s, 40s, 80s, 160s, XXS. (DN6~DN100) ASTM A234 WPB Buttweld Fitting
ASTM A234 WPB Buttweld Fittings Manufacturing process Push, Press, Forge, Cast, etc.
WPB Carbon Steel Buttweld Pipe Fittings Test Certificates EN 10204/3.1B
Raw Materials Certificate
100% Radiography Test Report
Third Party Inspection Report, etc
SA 234 WPB Pipe Fittings Origin & Mills Japanese, Indian, USA, Korean, European, Ukraine, Russian
Specialized manufacturer of CS 90º Elbows, 45º Elbows, Tees, Cross, Reducer, Pipe Cap, Stub End, Pipe Bend
