Yuhong Holding Group Co.,LTD
 |
| Place of Origin: | CHINA |
| Brand Name: | YUHONG |
| Certification: | ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008 |
| Model Number: | ASTM A182 F53 |
| Minimum Order Quantity: | 100 KGS |
|---|---|
| Price: | NEGOTIABLE |
| Packaging Details: | Ply-wooden Case /Iron Case/ Bundle with plastic Cap |
| Delivery Time: | 20-80 days |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 1500 Tons Per Month |
| Material: | Steel | Shape: | Equal, Reducing, Round |
|---|---|---|---|
| Connection: | Welding, Female, Male | Technics: | Forged, Casting, Pushing, Butt Weld, Welding |
| Size: | Customized Size, 1/8"-2", 1/2"-48", 1/2"-6", DN15-DN1200 | Standard: | ANSI, DIN, ASME, JIS, GB, Etc. |
| Product Name: | Black Painting Fittings, Press Fitting, Vaccum Pipe, Butt Welding Pipe Fitting, Stainless Steel Pipe Fittings | Application: | Pipeline, Petroleum, Chemical, Etc. |
| Thickness: | STD, DIN, SCH40, SGP, SCH10-XXS(2-60mm) | Connection Type: | Threaded, Socket Weld, Butt Weld |
| Package: | Carton, Wooden Case, Pallet, Etc. | Standards: | ASME, ANSI, ASTM, DIN, JIS, BS, Etc. |
| Surface Treatment: | Galvanized, Black, Etc. | ||

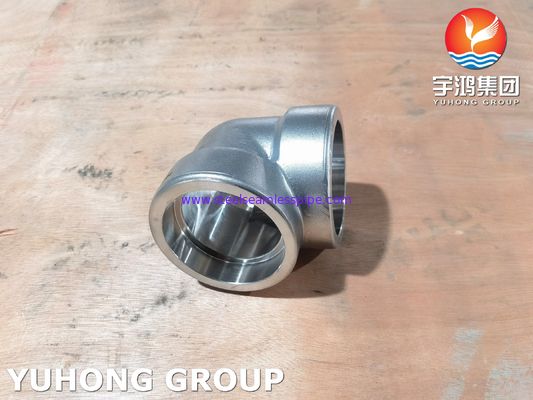

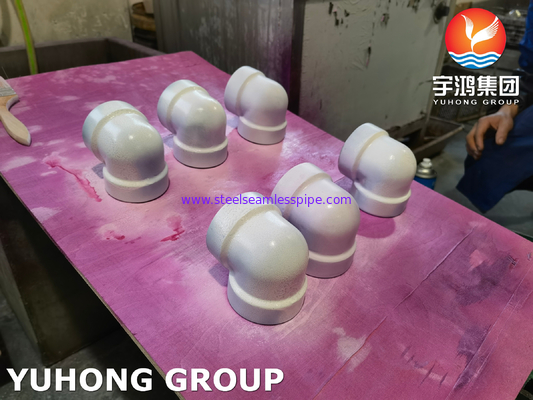

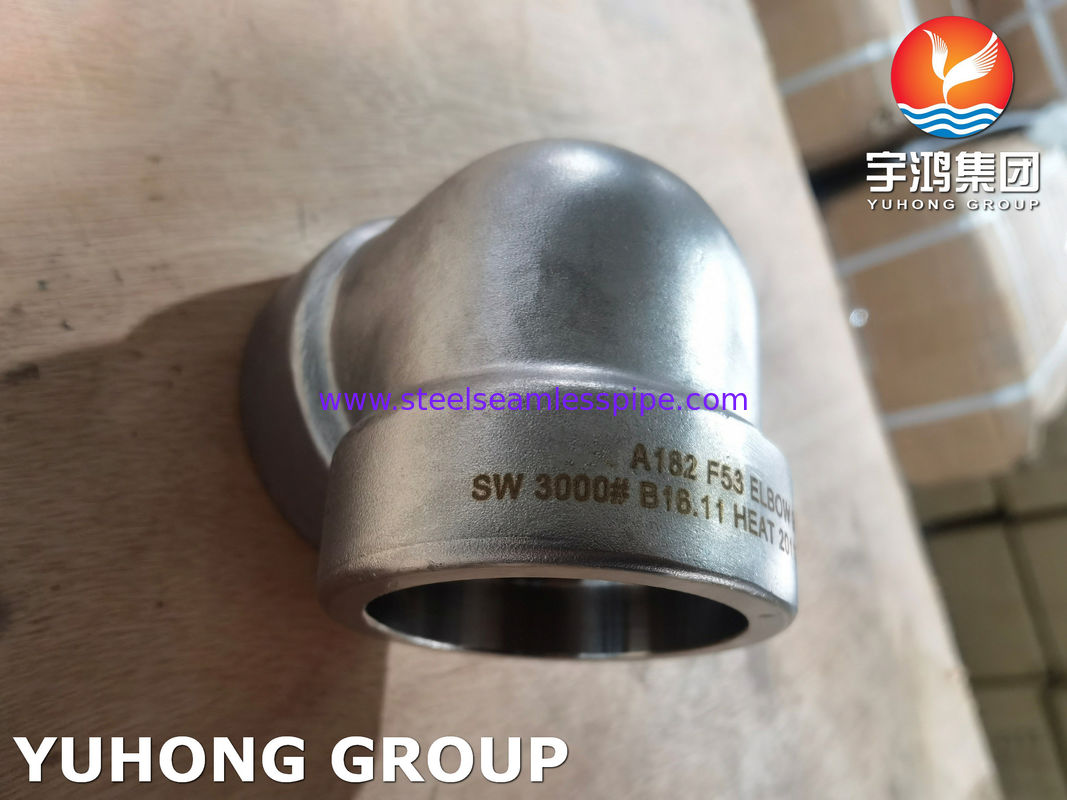

| High Light: | Duplex Steel Socket Welded Elbow,Forged Socket Welded Elbow,Forged Pipe Fitting Elbow |
||
ASTM A182 Grade F53 is a super duplex stainless steel with a 50% austenitic and 50% ferritic microstructure. This combination provides optimum properties and advantages such as high mechanical strength, good flexibility and excellent corrosion resistance. Its corrosion resistance in a wide range of environmental conditions makes it an asset for industries that place high demands on these qualities. All these properties make it suitable and capable of many operations at high temperature and pressure.
Yuhong is a Manufacturer, Supplier, Stockist and Exporter of ASTM A182 F53 Pipe Fittings. We offer internationally recognized quality standards for many critical applications. The mechanical properties of ASTM 182 F53 include all necessary properties such as high tensile strength, robustness and durability. We manufacture it using high quality materials and provide high quality pipe fittings to meet the needs of our customers. Has good weldability and machinability.
We provide quality service at low price with best price door to door service. ASTM A182 F53 fittings are of high quality and fully meet customer requirements. In addition to inventory, we also produce ASTM A182 F53 fittings in sizes and shapes according to customers' design and dimensional requirements.
We specialize in ASTM A182 F53 fittings for a variety of engineering applications.
We use high-standard machines with the latest technology and are capable of mass production of pipe fittings. With all the required specifications, configurations, dimensions, we are manufacturing perfectly matched and perfectly fitted fittings to meet our needs and meet the application requirements. We are a highly recognized professional manufacturer with a high level of industry expertise and the latest technology.
Our team has skilled and experienced experts who are constantly updating and implementing modern methods to improve quality and quantity. We provide door-to-door service with proper packaging and shipping to avoid any damage in transit. Our professionals oversee fittings at every stage of manufacture to ensure quality and prevent defects. With the best quality, best finish, accurate specifications and on-time delivery, we provide our customers with exceptional service.
| ASTM A182 F53 Duplex Steel Socket Weld Fitting Specification | ASTM A182 / ASTM SA182, ASTM A105 / ASME SA105, ASTM A350 / ASME SA350, ASTM A694 / ASME SA694, ASTM B462 / ASME SB462 / ASTM B564 / ASME SB564, ASTM B366 / ASME SB366, ASTM B381 / ASME SB381 |
| ASTM A182 F53 Duplex Steel Socket Weld Fittings Manufacturing Process | Forging / Socket / Threaded / Screwed |
| ASTM A182 F53 Duplex Steel Socket Weld Fittings Other Grades | Stainless Steel - F304, F304L, F304H, F310s, F316, F316L, F317L, F321, F347, F904L, F410, F446 etc. Carbon Steel - 105N, LF2, F42, F46, F52, F56, F60, F65 etc. Alloy Steel - F5, F9, F11, F22, F91, 4140, Class 1, 2, 3 etc. Duplex and Super Duplex - F51, F53, F55, UNS N031803, UNS N032750, UNS N032760 etc. Inconel - 600, 601, 625, 718, UNS N06600, UNS N06601, UNS N06625, UNS N07718 etc. Incoloy - 800, 800H, 800HT, 825, UNS N08800, UNS N08810, UNS N08811, UNS N08825 etc. Monel - 400, UNS N04400 etc. Hastelloy - C276, C22, UNS N010276, UNS N06022 etc. Titanium - Grade 2, Grade 3, UNS R50400, UNS R56200 etc. Copper Nickel - 90/10, 70/30, UNS C71500, UNS C70600 etc. Other - Alloy 20, SMO 254, F44, 6 Moly, UNS N08020, UNS N031254 etc. |
| ASTM A182 F53 Duplex Steel Socket Weld Fittings Outer Diameter | 1/8" NB TO 4" NB (DN6 to DN100) |
| ASTM A182 F53 Duplex Steel Socket Weld Fittings Pressure Class | 2000 LBS, 3000 LBS, 6000 LBS ,9000 LBS or As Per Custom Requirement |
| ASTM A182 F53 Duplex Steel Socket Weld Fittings Types | 45 Degree Elbow, 90 Degree Elbow, Lateral, Tee, Reducer Insert, Full Coupling, Half Coupling, Reducing Coupling, Cap, Union, Cross, Boss, Plug, Bushing etc. |
| ASTM A182 F53 Duplex Steel Socket Weld Fittings Dimension | ASME 16.11 - Socket Welding and Threaded Forged Fittings MSS SP-79 - Socket Welding Reducer Inserts MSS SP-83 - Socket Weld Union MSS SP-95 - Swage(d) Nipples and Bull Plugs BS 3799 - Specification for Steel Pipe Fittings, Screwed and Socket-welding for the petroleum industry. |
| ASTM A182 F53 Duplex Steel Socket Weld Fittings Other Testing | Tensile, Hardness Test, Chemical Analysis – Spectro Analysis, Positive Material Identification – PMI Testing, Flattening Test, Micro and Macro Test, Pitting Resistance Test, Flaring Test, Intergranular Corrosion (IGC) Test, NACE MR0175, Ultrasound Test, ASTM A262 Practice E, Charpy Impact Test, Grain Size, Dye Penetrant Test etc. |
| ASTM A182 F53 Duplex Steel Socket Weld Fittings Packaging | Carrate / Wooden Pallet / Wooden box-a |
| ASTM A182 F53 Duplex Steel Socket Weld Fittings Shipment & Transportation | By Road - Truck / Train Partial Load, Full Load, By Sea - Break-bulk Conventional Vessel / FCL (Full Container Load) / LCL (Less Container Load) / 20 Feet Container / 40 Feet Container / 45 Feet Container / High Cube Container / Open Top Container, By Air - Freighter Civil Passenger and Cargo Planes |
| ASTM A182 F53 Duplex Steel Socket Weld Fittings Material Test Certificate | Manufacturer Test Certificate As Per EN10204 3.1, 3.2 / Laboratory Test Certificate From NABL Approved Lab. / Under Third Party Inspection Agency Like SGS, TUV, DNV, LLOYDS, ABS, Bureau of Indian Standards BIS Approved ETC |
| UNS N0 | Spec | Common Name | C | Mn | P | S | Si | Ni | Cr | Mo | Others |
| UNS N031803 | ASTM A182 / ASME SA182 | F51 | 0.030 | 2.00 | 0.030 | 0.020 | 1.00 | 4.5 - 6.5 | 21.0 - 23.0 | 2.5 - 3.5 | N 0.08 - 0.20 |
| UNS N032205 | ASTM A182 / ASME SA182 | F60 / 2205 | 0.030 | 2.00 | 0.030 | 0.020 | 1.00 | 4.5 - 6.5 | 22.0 - 23.0 | 3 - 3.5 | N 0.14 - 0.20 |
| UNS N032750 | ASTM A182 / ASME SA182 | F53 / SAF® 2507 | 0.030 | 1.20 | 0.035 | 0.020 | 0.80 | 6.0 - 8.0 | 24.0 - 26.0 | 3.0 - 5.0 | N 0.24 - 0.32, Cu 0.50 |
| UNS N032760 | ASTM A182 / ASME SA182 | F55 / Zeron® 100 | 0.030 | 1.00 | 0.030 | 0.010 | 1.00 | 6.0 - 8.0 | 24.0 - 26.0 | 3.0 - 4.0 | N 0.20 - 0.30, Cu 0.50 - 0.10, W 0.50 - 1.00 |
| UNS N0 | Spec | Common Name | Tensile Strength, min, ksi [MPa] |
Yield Strength, min, ksi [MPa]A |
Elongation in 2 in., [50 mm] or 4D, min, % |
Reduction of Area, min, % |
Brinell Hardness Number |
| UNS N031803 | ASTM A / SA182 | F51 | 90 [620] | 65 [450] | 25 | 45 | ... |
| UNS N032205 | ASTM A / SA182 | F60 / 2205 | 95 [655] | 65 [450] | 25 | 45 | ... |
| UNS N032750 | ASTM A / SA182 | F53 / SAF® 2507 | 116 [800] | 80 [550] | 15 | ... | 310 max |
| UNS N032760 | ASTM A / SA182 | F55 / Zeron® 100 | 109-130 [750-895] |
80 [550] | 25 | 45 | ... |
