Yuhong Holding Group Co.,LTD
 |
| Place of Origin: | CHINA |
| Brand Name: | YUHONG |
| Certification: | ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008 |

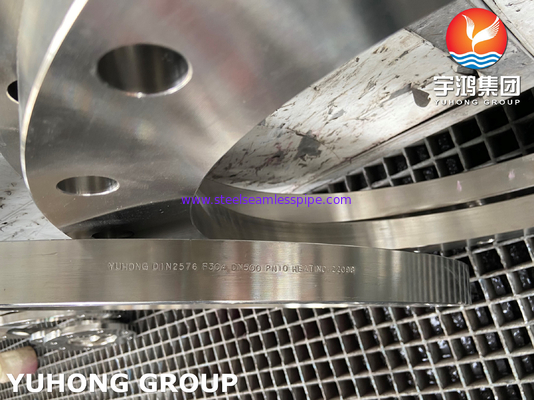

| Model Number: | DIN2576 F304 |
| Minimum Order Quantity: | 100 KGS |
|---|---|
| Price: | NEGOTIABLE |
| Packaging Details: | Ply-wooden Case /Iron Case/ Bundle with plastic Cap |
| Delivery Time: | 20-80 days |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 1500 Tons Per Month |
| Standard: | ANSI, DIN, JIS, BS, Etc. | Size: | Customized |
|---|---|---|---|
| Material: | Steel | Product Name: | Long Welding Neck Flange, Pipe Flange, Hydraulic Flange, Stainless Steel Flange |
| Application: | Petroleum, Chemical, Power, Gas, Metallurgy, Shipbuilding, Construction, Etc. | Pressure: | 150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, Etc. |
| Type: | Treaded Flange, Slip On Flange, Socket Weld Flange, Weld Neck Flange, Lap Joint Flange | Name: | DIN 2573 2543 GOST Stainless Steel Pipe Slip On Flange PN16, ANSI B16.5 150LB Weld Neck Carbon Steel Pipe Flanges, ANSI B16.5 2 Inch Pipe Carbon Steel Flange Class125, Stainless Steel Pipe Fittings |
| Process: | Forged, Drilling/Bending/Stamping, Casting, Heating Treament | Surface Treatment: | Heat Treament, Pickeling, Galvanized, Customize |
| Inspection: | Mechinical Property Inspection, Factory Or Third Party Assigned, 100% Inspection | Connection: | Welding, Threaded, Slip-on, Socket Welding, Lap Joint, Blind, Etc. |
| Certificate: | ISO, CE, API, Etc. | MOQ: | 1 Piece |
| Origin: | China | Package: | Wooden Cases, Wooden Pallet, Etc. |
| Port: | Shanghai, Ningbo, Etc. | Surface Treatment: | Polishing, Galvanizing, Sand Blasting, Etc. |
| High Light: | Stainless Steel Forged Flange F304,Petroleum Socket Weld Flange |
||
YUHONG is a professional supplier and manufacturer of high quality ASME/ANSI/DIN standard 304 stainless steel flanges in China. We offer immediate delivery programs for standard size UNS S30400 Stainless Steel Butt Weld Flanges and SS DIN 1.4301 Threaded Flanges.
Stainless Steel ASTM A182 F304/F304L Pipe Flanges are widely used in low pressure piping systems because no welding is involved when connecting flanges to pipes or other equipment. However, flanges can be welded around the joint after assembly, but this is not a satisfactory way to increase its application. Class 304L Threaded Flanges, also known as 304 Stainless Steel Threaded Flanges, are similar to ss 304 Slip Flanges, but the holes are threaded and can be assembled without welding. Stainless steel 304H pipe flanges are typically used with pipes that have external threads.
We offer a variety of ASME B16.48 F304 Butt Weld Flanges, ANSI B16.5 304 Socket Weld Flanges, 304L Stainless Steel Blind Flanges, SS 304 Orifice Plate Flanges, SS 304 Blind Hole Flanges, B16.47 F304L Thread/Thread Flanges, ASME B16.48 F304L Reducing Flanges, EN 1092-1 SS 304 Ring Joint Flanges (RTJ), etc. are manufactured in our factory for shipbuilding, oil refineries, paper mills, power generation, pharmaceutical plants, petrochemical plants , waste treatment and other companies in various industries, water treatment plants and turnkey projects, etc.
Werkstoff No 1.4301 Stainless Steel Industrial Flanges Specification
|
||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
| SS 304 | 1.4301 | S30400 | SUS 304 | 304S31 | 08Х18Н10 | Z7CN18‐09 | X5CrNi18-10 |
| SS 304L | 1.4306 / 1.4307 | S30403 | SUS 304L | 3304S11 | 03Х18Н11 | Z3CN18‐10 | X2CrNi18-9 / X2CrNi19-11 |
| SS 304H | 1.4301 | S30409 | – | – | – | – | – |
| Stainless Steel 304/304L Flanges Type | Size | |
| ASTM A182 F304 Slip-On Flanges | ASTM A182 F304 Threaded Flanges | Sizes 1/8″ – 36″ Raised Face or Flat Face |
| ASTM A182 F304L Weld Neck Flanges | ASTM A182 F304L Socket Weld Flanges | |
| ASTM A182 F304H Blind Flanges | ASTM A182 F304H Reducing Flanges | |
| ASTM A182 F304 Lap Joint Flanges | SS 304 Flanges | |
| ASTM A182 F304 Orifice Flanges | ASTM A182 F304L Forged Flanges | |
| ASTM A182 F304 Ring Type Joint Flanges | ASTM A182 F304H Square Flanges | |
| Tensile Strength | Yield Strength (0.2%Offset) | Melting Point | Density |
Elongation | |
| SS 304 | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 1400 °C (2550 °F) | 8.0 g/cm3 | 35 % |
| SS 304L | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 1400 °C (2550 °F) | 8.0 g/cm3 | 35 % |
| SS 304H | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 1400 °C (2550 °F) | 8.0 g/cm3 | 40 % |
