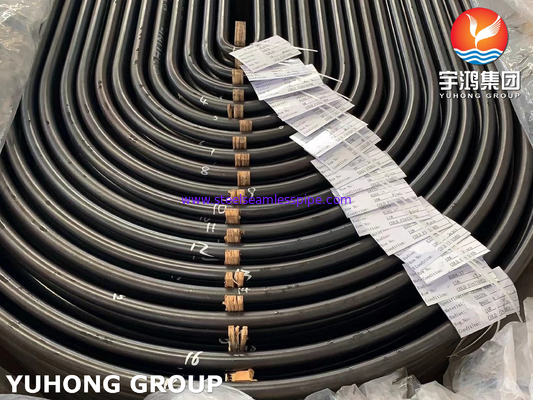

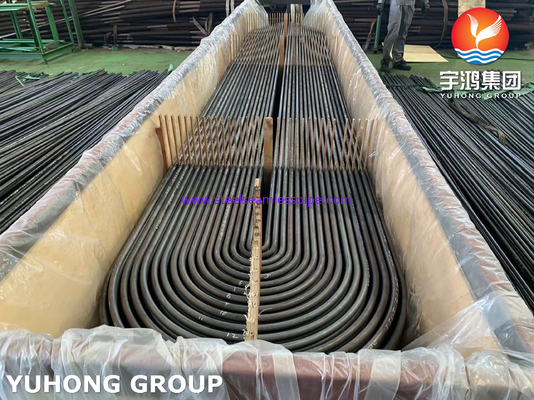

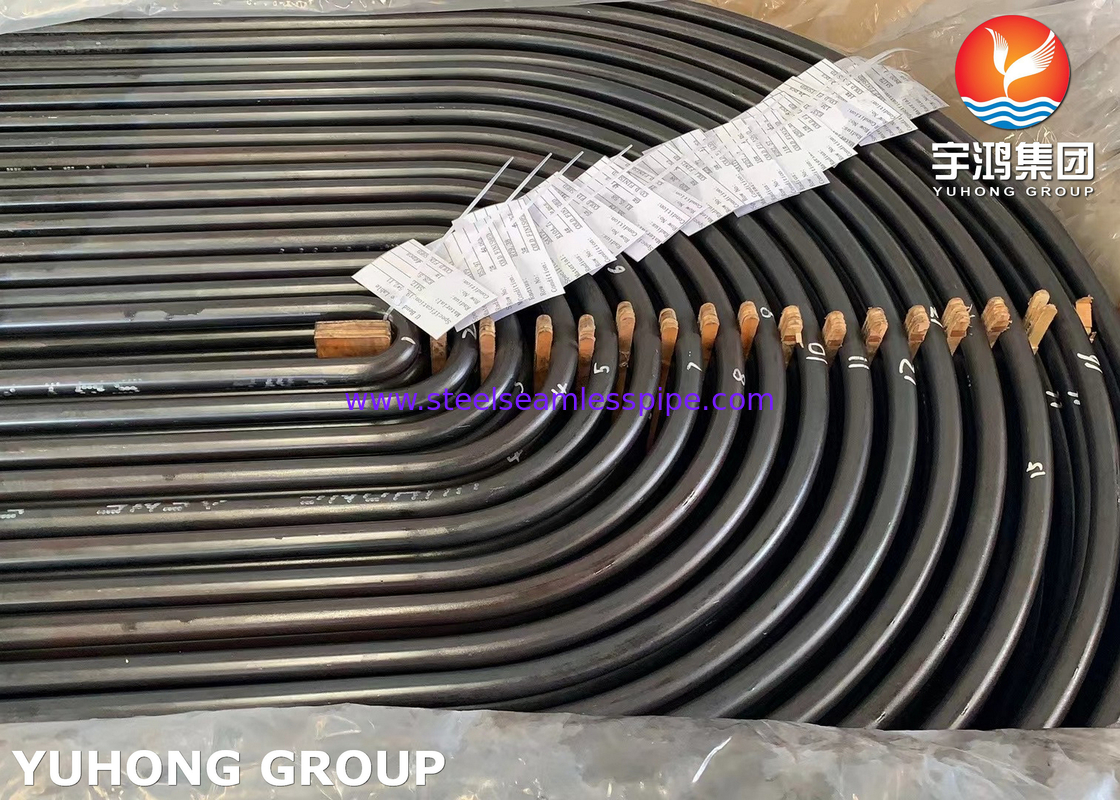

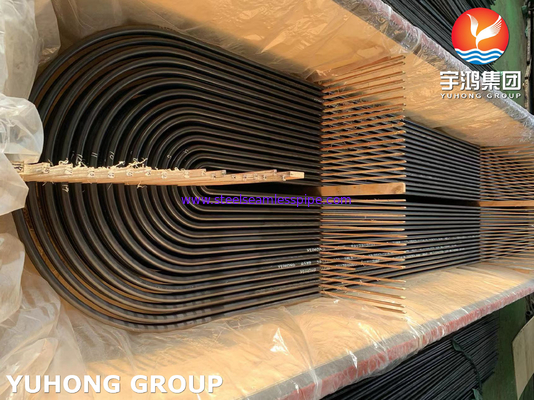

ASTM A179/ASME SA179-2021 Low Carbon Steel U Bending Tube Cold Drawn For Heat Exchanger

ASTM A179/ASME SA179-2021 Low Carbon Steel U Bending Tube Cold Drawn For Heat Exchanger

  • ASTM A179/ASME SA179-2021 Low Carbon Steel U Bending Tube Cold Drawn For Heat Exchanger
  • ASTM A179/ASME SA179-2021 Low Carbon Steel U Bending Tube Cold Drawn For Heat Exchanger
  • ASTM A179/ASME SA179-2021 Low Carbon Steel U Bending Tube Cold Drawn For Heat Exchanger
  • ASTM A179/ASME SA179-2021 Low Carbon Steel U Bending Tube Cold Drawn For Heat Exchanger
  • ASTM A179/ASME SA179-2021 Low Carbon Steel U Bending Tube Cold Drawn For Heat Exchanger
ASTM A179/ASME SA179-2021 Low Carbon Steel U Bending Tube Cold Drawn For Heat Exchanger
Product Details:
Place of Origin: China
Brand Name: YuHong
Certification: ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2015
Model Number: ASME SA179-2021
Payment & Shipping Terms:
Minimum Order Quantity: 1000KGS
Price: Negotiable

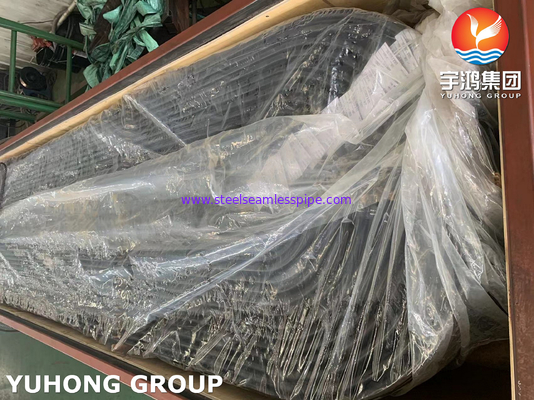

Packaging Details: Ply Wooden Case with Plastic Cap
Delivery Time: 20-70DAYS
Payment Terms: L/C, T/T
Supply Ability: ACCORDING TO CUSTOMER'S REQUEST
Contact Now
Detailed Product Description
Application: Heat Exchanger, Boiler, Evaporator Surface: Black Printed Or Oil Surface
Type: Seamless Carbon Steel Tube Bending Radius: From 1.5 OD-1250MM
High Light:

Cold Drawn Stainless Steel U Bend

,

Low Carbon Stainless U Bends

,

ASTM Heat Exchanger U Bend Tube

ASTM A179/ASME SA179-2021 Low Carbon Steel U Bending Tube Cold Drawn For Heat Exchanger



Yuhong Group has more than 10 years experience on exporting the SA179 smls tube. We can meet all kinds of Tecnical and Quality requirements. If you are looking for the quailty A179/SA179 seamless U bending Tube, welcome to YUHONG!



About ASME SA179/ASTM A179 Seamless Tube



ASTM A179 (SA 179) standard specification covers seamless cold drawn low carbon steel pipe, for tubular heat exchanger, condensers and other similar heat transfer equipment.



The ASTM A179 tube covers the OD from 1/8” to 3”, which is 3.2m m to 76.2 mm. Other diameters and thickness smaller than the specified sizes also applicable to this standard, but mechanical properties is not applicable for the size smaller than 1/8” and 3.2 mm, or thickness smaller than 0.015 inch 0.4 mm.



Outside Diameter & Tolerance



Outside Diameter, mm
Tolerance, mm
3.2≤OD<25.4
±0.10
25.4≤OD≤38.1
±0.15
38.1<OD<50.8
±0.20
50.8≤OD<63.5
±0.25
63.5≤OD<76.2
±0.30
76.2
±0.38

Wall thickness & Tolerance

Outside Diamter, mm
Tolerance, %
3.2≤OD<38.1
+20/-0
38.1≤OD≤76.2
+22/-0

Length: 5800mm; 6000mm; 6096mm; 7315mm; 11800mm; ...
Max length: 27000mm, also U bending can be offered...


ASME SA179/ ASTM A179 Chemical Composition

C 0.06-0.18%
Mn 0.27-0.63%
P 0.035% Max
S 0.035% Max





Test Methods

Hardness Test

Flattening Test

Flaring Test

Flange Test

Hydrostatic Test

....



ASTM A179/ASME SA179-2021 Low Carbon Steel U Bending Tube Cold Drawn For Heat Exchanger 0
