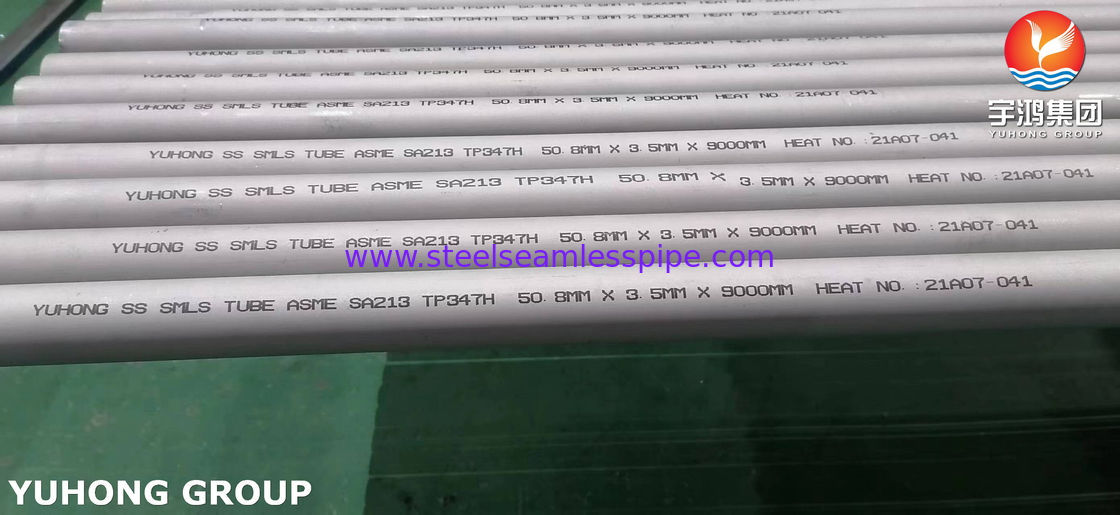

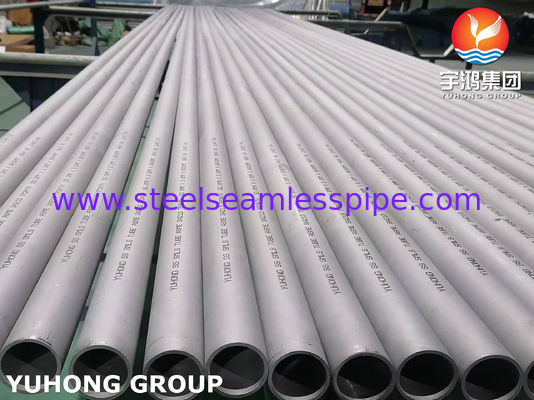

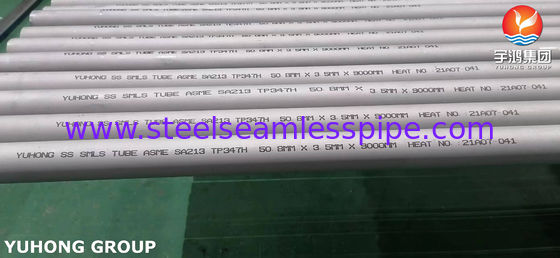

ASTM A213 TP347H Stainless Steel Seamless Tube for High Temperature Applications with Corrosion Resistance

ASTM A213 TP347H Stainless Steel Seamless Tube for High Temperature Applications with Corrosion Resistance

ASTM A213 TP347H Stainless Steel Seamless Tube for High Temperature Applications with Corrosion Resistance
video
ASTM A213 TP347H Stainless Steel Seamless Tube for High Temperature Applications with Corrosion Resistance
Product Details:
Place of Origin: CHINA
Brand Name: YUHONG
Certification: ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008
Model Number: ASTM A213 TP347H
Payment & Shipping Terms:
Minimum Order Quantity: 100 KGS
Price: NEGOTIABLE
Packaging Details: Ply-wooden Case /Iron Case/ Bundle with plastic Cap
Delivery Time: 20-80 days
Payment Terms: T/T,L/C,Western Union
Supply Ability: 1500 Tons Per Month
Contact Now
All Products
Stainless Steel Seamless Pipe (308)
Stainless Steel Seamless Tube (297)
Duplex Stainless Steel Pipe (132)
Duplex Stainless Steel Tube (33)
Needle Tube (134)
Fin Tube (672)
Heat Exchanger (20)
Heat Exchanger Tube (443)
Heat Exchanger Tube Bundle (40)
Heat Exchanger Tubesheet (117)
Heat Exchanger Baffle (37)
Air Cooler (9)
Pressure Vessel (4)
Stainless Steel Welded Pipe (58)
Stainless Steel Welded Tube (120)
Nickel Alloy Pipe (266)
Nickel Alloy Tube (92)
Copper Alloy Tube (240)
Alloy Steel Tube (204)
Titanium Tube (15)
Bright Annealed Tube (155)
Boiler Tube (151)
Steel Fitting (826)
Steel Flange (615)
Others (401)
Cladding Parts (7)
Detailed Product Description
Product Name: трубка теплообменника; Tubo Intercambiador De Calor; Tube D'échangeur De Chaleur;أنبوب المبادل الحراري Steel Grade: 300 Series, Stainless Steel 304/316L, 400 Series, X5CrNi18-20, 200 Series
Type: Seamless Tube Standard: ASTM, AISI, GB, DIN, JIS
Certification: ISO, SGS, BV, ISO & SGS, ISO/CE/SGS Length: 3000mm-6000mm, 6 Meters Or Customized, 18000max., 11.8m Or As Required., 8m
Thickness: 0.4-30mm, 1.0mm, 0.6mm-2500mm, 1mm-60mm, 0.6-25 Mm Technique: Cold Rolled Hot Rolled, Cold Drawn, Extrusion, Cold Drawn/Cold Rolling Or Both Of Them
Product Name: Stainless Steel Pipe, 304 304L 316 316L 321 310S Stainless Steel Welded/Seamless Tube, Factory Direct Sales Stainless Steel Pipe For Electric Heating Element, Seamless Stainless Steel Pipe/Tube Outer Diameter: 6-630mm, Customized, 6-762mm, 6-860mm;, 6mm-630mm
Surface: Annealing, 8K, Polishing Or Unpolishing, Morror/Satin Finish: Brush Polish, Cold Drawn, Pickled, Bright Annealed Or Un Annealed, Bright
Material: Stainless Steel Processing Service: Cutting, Bending, Welding, Etc.
Shape: Round
Highlight:

Stainless Steel Seamless Tube High Temperature

,

TP347H Steel Seamless Pipe

,

Annealing Stainless Steel Round Tube

ASTM A213 TP347H Stainless Steel Seamless Tube
Alloy 347 (UNS S34700) is an austenitic stainless steel stabilized with columbium, offering excellent corrosion resistance in strongly oxidizing conditions. This alloy provides superior resistance to intergranular corrosion after exposure to temperatures between 800-1500°F (427-816°C) and maintains good oxidation resistance, creep strength at 1500°F (816°C), and low-temperature toughness.
Alloy 347H (UNS S3409) is the high-carbon version (0.04-0.10) designed for enhanced creep resistance and strength at temperatures exceeding 1000°F (537°C). Both alloys can be double certified for carbon content and are easily welded and machined using standard fabrication practices.
Product Specifications
Specification ASTM A269, ASTM A213, ASTM A312, ASME SA269, ASME SA213, ASME SA312
Available Grades 202, 304, 304L, 304H, 304LN, 309S, 310S, 316, 316L, 316H, 316Ti, 316LN, 317L, 321, 321H, 347, 347H, 904L, SMO 254, ALLOY 254, 6MO, 6MOLY, UNS S31254
Types Seamless / Welded / ERW / EFW / Cold Draw / Hot Finish / Cold Finish
Outer Diameter Seamless: 1/2" NB to 18" NB
Welded/ERW: 1" NB to 16" NB
EFW: 8" NB to 110" NB
Wall Thickness Schedule 10 to Schedule 160 (3mm to 100mm)
Length 1 Meter to 12.5 Meters, Single/Double Random Length, Custom Sizes
Ends Plain Ends / Beveled Ends
Delivery Conditions As Rolled, Formed, Stress Relieved, Annealed, Hardened, Tempered, Cold Draw
Surface Finishes Electropolish, Mechanical Polish, Satin Finish, Passivated
Chemical Composition
Element 347 347H
Chromium 17.00-19.00% 17.00-19.00%
Nickel 9.00-13.00% 9.00-13.00%
Carbon 0.08% 0.04-0.10%
Manganese 2.00% 2.00%
Phosphorus 0.045% 0.045%
Sulfur 0.03% 0.03%
Silicon 0.75% 0.75%
Columbium & Tantalum 10*(C+N) min.-1.00 max. 8*(C+N) min.-1.00 max.
Iron Balance Balance
Mechanical Properties
Property Minimum Value Units
Yield Strength (0.2% Offset) 30,000 psi / 205 MPa Minimum
Ultimate Tensile Strength 75,000 psi / 515 MPa Minimum
Elongation in 2 inches 40% Minimum
Hardness 201 Brinell Maximum
Physical Properties
Property Value
Density 7.96 g/cm³
Industry Applications
  • Food processing equipment (beer brewing, milk processing, winemaking)
  • Kitchen equipment, sinks, and appliances
  • Architectural panels, railings, and trim
  • Chemical containers and shipping tanks
  • Heat exchangers
  • Mining, quarrying, and water filtration screens
  • Threaded fasteners and springs
  • Various industrial components
ASTM A213 TP347H Stainless Steel Seamless Tube for High Temperature Applications with Corrosion Resistance 0
