| Place of Origin: | CHINA |
| Brand Name: | YUHONG |
| Certification: | ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008 |
| Model Number: | ASTM A105 |
| Minimum Order Quantity: | 100 KGS |
|---|---|
| Price: | NEGOTIABLE |
| Packaging Details: | Ply-wooden Case /Iron Case/ Bundle with plastic Cap |
| Delivery Time: | 20-80 days |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 1500 Tons Per Month |
| Standard: | ANSI, DIN, JIS, BS, UNI, ASME, API, MSS, AWWA, Etc. | Size: | 1/2” To 48” |
|---|---|---|---|
| Material: | Carbon Steel, Stainless Steel, Alloy Steel | Product Name: | Long Welding Neck Flange, Pipe Flange, Hydraulic Flange, Stainless Steel Flange |
| Application: | Petroleum, Chemical, Power, Gas, Metallurgy, Shipbuilding, Construction, Etc. | Pressure: | 150#, 300#, 400#, 600#, 900#, 1500#, 2500# |
| Type: | Steel Flanges | Name: | DIN 2573 2543 GOST Stainless Steel Pipe Slip On Flange PN16, ANSI B16.5 150LB Weld Neck Carbon Steel Pipe Flanges, ANSI B16.5 2 Inch Pipe Carbon Steel Flange Class125, Stainless Steel Pipe Fittings |
| Process: | Forged, Drilling/Bending/Stamping, Casting, Heating Treament | Surface Treatment: | Heat Treament, Pickeling, Galvanized, Customize |
| Inspection: | Mechinical Property Inspection, Factory Or Third Party Assigned, 100% Inspection | Connection: | Welding, Threaded, Slip-on, Socket Weld, Lap Joint |
| Certificate: | ISO, CE, API, Etc. | Class: | 150#, 300#, 400#, 600#, 900#, 1500#, 2500# |
| Coating: | Black Paint, Anti-rust Paint, Yellow Transparent | Face Type: | Flat Face, Raised Face, Ring Type Joint |
| Packing: | Wooden Cases, Wooden Pallet, Etc. | Payment Term: | T/T, L/C, Western Union, Etc. |

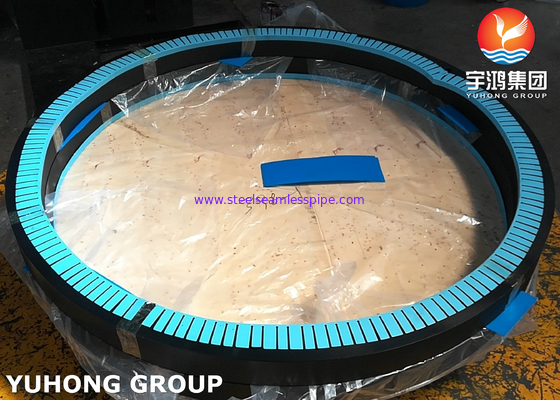

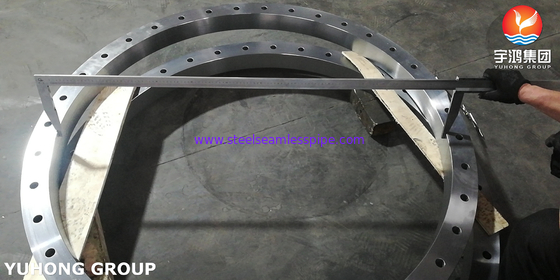

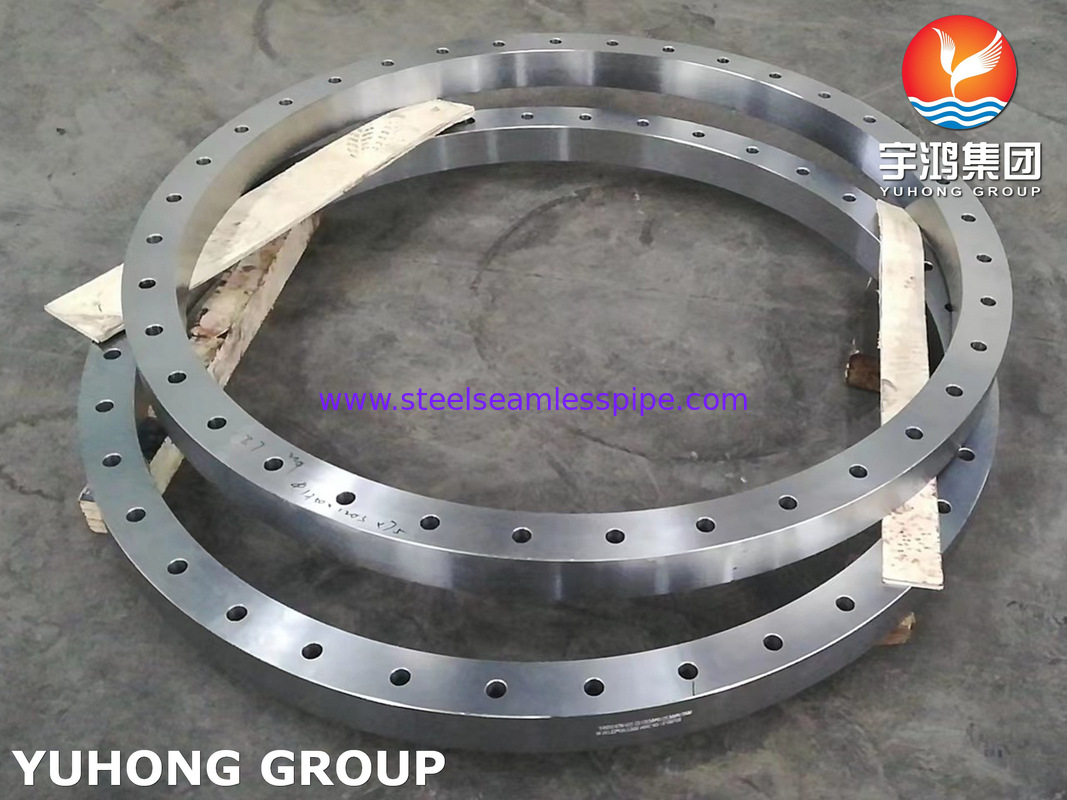

| High Light: | Carbon Steel Flat Face Flange,Flat Face Forged Flange,Painted Slip On Flange ASTM A105 |
||
Carbon Steel ASTM A105 flanges are made of carbon or mild steel material. Carbon, manganese, phosphorus, sulfur and iron may be included in the material composition. A flange is a type of pipe connection used to join pipes together. The flange size made of carbon steel material is Asme Sa105N. Depending on the function, there are different types of flanges, such as blind flanges, sliding flanges and hole flanges.
There are also different types depending on the shape. A carbon steel a105 blind flange is a very special type because it closes the connection instead of extending it. Blind flanges are also available in different varieties. Butterfly flanges are an example. According to its face type, there are flat face, raised face and ring type connecting flanges. cl.150 a105 lap joint flange ansi 16.5 is another type with a lap joint on it for better connectivity. Flanges range in size from ½" to 48". Standards governing dimensions can be ANSI, ASME, DIN, EN, and other international standards.
The astm a105n weld neck flange has a weld neck for better welding or securing the pipe into the flange. There are also different pressure levels. astm a105 flange slips are suitable for most applications, it can have different pressure classes from 150 to 1500 and pressure numbers from PN6 to PN64. Please feel free to contact us for more information on different types such as flange astm a105 asme b16.5 and other pricing.
| Element | Composition %, Note C |
|---|---|
| Carbon | .35 max |
| Manganese | .60-1.05 |
| Phosphorus | .035 max |
| Sulfur | .040 max |
| Silicon | .10-35 |
| Copper | .40 max, note A |
| Nickel | .40 max, note A |
| Chromium | .30 max, note A,B |
| Molybdenum | .12 max, note A,B |
| Vanadium | .08 max, note A |
Forged and Plate Flanges
| Products | Size | |
| ASTM A105 Carbon Steel Slip-On Flanges | ASTM A105 Carbon Steel Threaded Flanges | Sizes 1/2″ – 48″ Raised Face or Flat Face |
| ASTM A105 Carbon Steel Weld Neck Flanges | ASTM A105 Carbon Steel Socket Weld Flanges | |
| ASTM A105 Carbon Steel Blind Flanges | ASTM A105 Carbon Steel Reducing Flanges | |
| ASTM A105 Carbon Steel Lap Joint Flanges | ASTM A105 Carbon Steel Plate Flanges | |
| ASTM A105 Carbon Steel Orifice Flanges | ASTM A105 Carbon Steel Forged Flanges | |
| ASTM A105 Carbon Steel Ring Type Joint Flanges | ASTM A105 Carbon Steel Square Flanges |
|
Carbon Steel Flange Standards / Types And Pressure Class :
| ASME/ANSI B 16.5 | Welding Neck Flange, Slip on Flange, Blind Flange, High Hub Blind Flange, Socket Weld Flange, Lap Joint Flange, Threaded Flange, Ring Type Joint Flange |
| PRESSURE CLASS | 150, 300, 400, 600, 900, 1500, 2500 |
| ASME/ANSI B 16.47 | Welding Neck Flange, Blind Flange [Series A & B] |
| PRESSURE CLASS | 75, 150, 300, 400, 600, 900 |
| ASME/ANSI B 16.36 | Welding Neck Flange, Slip on Flange, Threaded Flange |
| PRESSURE CLASS | 300, 400, 600, 900, 1500, 2500 |
| BS 4504 SEC 3.1 | Welding Neck Flange, Hubbed Slip on Flange, Hubbed Threaded Flange, Lapped Pipe End Flange, Plate Flange, Loose Plate Flange, Loose Plate With Weld Neck Flange, Blank Flange |
| PRESSURE CLASS | PN 2.5 TO PN 40 |
| BS 4504[PART 1] | Welding Neck Flange, Hubbed Slip-On Hubbed Threaded, Plate Flange, Loose Plate With Weld On Plate Collar, Blank Flange |
| PRESSURE CLASS | PN 2.5 TO PN 400 |
| BS 1560 BOSS | Welding Neck Flange, Socket Welding Flange, Slip-On Flange, Blind Flange, Screwed Boss Flange, Lapped Flange |
| PRESSURE CLASS | 150, 300, 400, 600, 900, 1500, 2500 |
| BS10 | Welding Neck Flange, Plate Slip-On Flange, Screwed Boss Flange, Slip-On Boss Flange, Blind Flange |
| TABLE | D, E, F, H |
| DIN FLANGES | DIN 2527, 2566, 2573, 2576, 2641,2642, 2655, 2656, 2627, 2628, 2629, 2631, 2632, 2633, 2634, 2635, 2636, 2637,2638, 2673 |
| PRESSURE CLASS |
PN 6 TO PN 100 |
