Yuhong Holding Group Co.,LTD
 |
| Place of Origin: | CHINA |
| Brand Name: | YUHONG SPECIAL STEEL |
| Certification: | ABS, BV, ISO, ASTM, SGS |
| Model Number: | ASME SB861 Gr.2 (UNS R50400) |
| Minimum Order Quantity: | 300KGS |
|---|---|
| Price: | NEGOTIABLE |
| Packaging Details: | Ply-wooden Case /Iron Case/ Bundle with plastic Cap |
| Delivery Time: | Depends on quantity |
| Payment Terms: | L/C, T/T |
| Supply Ability: | ACCORDING TO CLIENT'S REQUIREMENT |
| Product Name: | Titanium Tube | Specification: | ASME SB861 |
|---|---|---|---|
| Material: | Gr.2(UNS R50400) | Type: | Seamless/Welded |
| Application: | Condensers / Heat Exchangers /Boiler | Testing: | ET, HT, Flattening Test; Expansion Test, Mercurous Nitrate Test; Ammonia Vapor Test; Chemical Analysis; Microscopical Examination; Tension Testing. |
| High Light: | UNS R50400 Titanium Seamless Tube,Alloy Steel Titanium Seamless Tube,Titanium Seamless Heat Exchanger Tube |
||

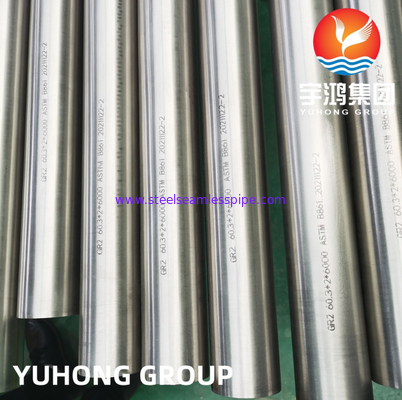

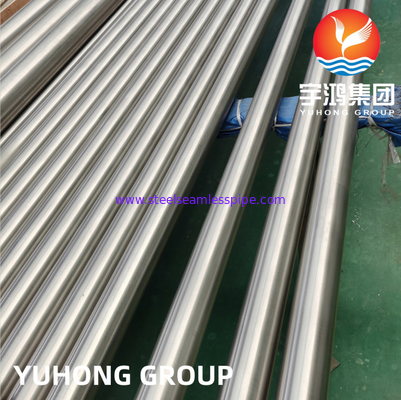

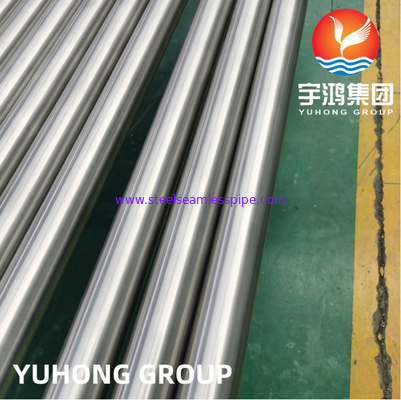

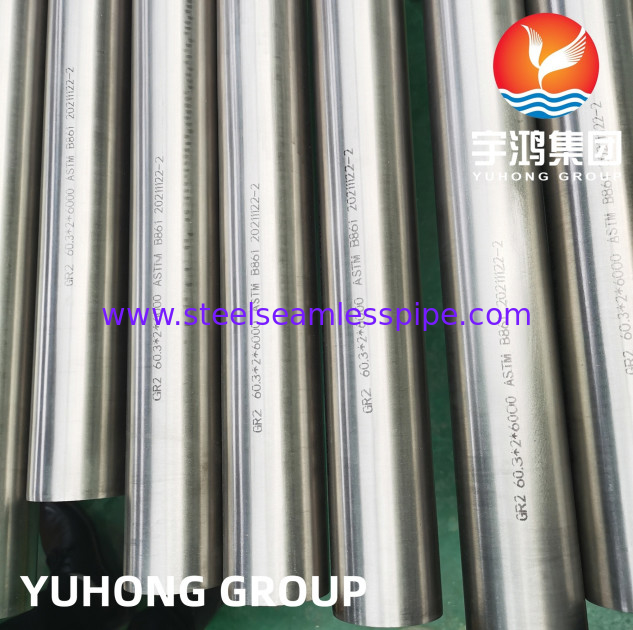

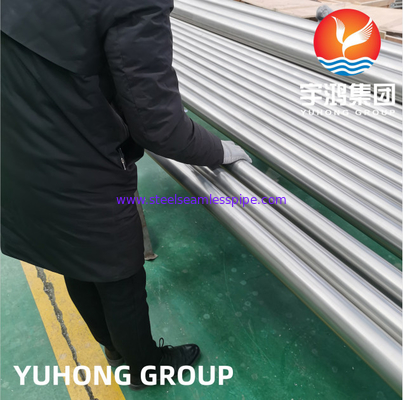

ASME SB861 Gr.2 (UNS R50400) Unalloyed Titanium Seamless Tube Applied for Hear Exchanger
ASTM B861 Grade 2 Titanium Alloy Seamless Pipe products are choose owing to its superior corrosion resistance and strength-to-weight ratio. The development of many different alloys has extended the application of titanium in industries ranging from industrial and chemical processing to power generation.
Our extensive selection includes seamless aircraft quality titanium tube, welded titanium tube, drawn titanium tube. Browse our selection of aircraft quality titanium tube here or get in touch with a Future Metals professional for a personalized quote on aircraft quality titanium Tube.
Typical Applications:
Quality Assurance:
Spezilla's Titanium tubes are produced acc. to the following process and inspection to assure our quality:
ASTM B861 / ASME SB861 Gr.1 Gr.2 Gr12 Chemical Composition:
| Element | N | C | H | Fe | O | Al | V | Mo | Ni | Pd | Ti |
| Type | |||||||||||
| GR.1 | ≤0.03 | ≤0.08 | ≤0.015 | ≤0.2 | ≤0.18 | Residual | |||||
| GR.2 | ≤0.03 | ≤0.08 | ≤0.015 | ≤0.3 | ≤0.25 | Residual | |||||
| GR.3 | ≤0.05 | ≤0.08 | ≤0.015 | ≤0.3 | ≤0.35 | Residual | |||||
| GR.7 | ≤0.03 | ≤0.08 | ≤0.015 | ≤0.3 | ≤0.25 | 0.12-0.25 | Residual | ||||
| GR.9 | ≤0.02 | ≤0.08 | ≤0.015 | ≤0.25 | ≤0.15 | 2.5-3.3 | 2.0-3.0 | Residual | |||
| GR.12 | ≤0.03 | ≤0.08 | ≤0.015 | ≤0.3 | ≤0.25 | 0.2-0.4 | 0.6-0.9 | Residual | |||
| GR.16 | ≤0.03 | ≤0.08 | ≤0.015 | ≤0.3 | ≤0.25 | 0.04-0.08 |
ASTM B861 / ASME SB861 Gr.1 Gr.2 Gr12 Tensile Requirements
| Type | Tensile Testing | ||
| GR.1 | σb≥240Mp a | 138Mpa≤σ0.2≤310Mp a | δ≥24% |
| GR.2 | σb≥345Mp a | 275Mp a≤σ0.2≤450Mp a | δ≥20% |
| GR.3 | σb≥450Mp a | 380Mp a≤σ0.2≤550Mp a | δ≥18% |
| GR.7 | σb≥345Mp a | 275Mp a≤σ0.2≤450Mp a | δ≥20% |
| GR.9A | σb≥620Mp a | 483Mp a≤σ0.2 | δ≥15% |
| GR.9B | σb≥860Mp a | 725Mp a≤σ0.2 | δ≥10% |
| GR.12 | σb≥483Mp a | 345Mp a≤σ0.2 | δ≥18% |
| GR.16 | σb≥345Mp a | 275Mp a≤σ0.2≤450Mp a | δ≥20% |
