Yuhong Holding Group Co.,LTD
 |
| Place of Origin: | China |
| Brand Name: | Yuhong Group |
| Certification: | ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008 |
| Model Number: | ASTM A213 TP316L/TP3064/304L |
| Minimum Order Quantity: | 100 kgs |
|---|---|
| Packaging Details: | Ply-wooden Case /Iron Case/ Bundle |
| Delivery Time: | 7 days |
| Payment Terms: | L/C, T/T |
| Steel Grade: | 300 Series, Stainless Steel 304/316L, 400 Series, X5CrNi18-20, 200 Series | Type: | Seamless, Welded, Round Pipe/Tube |
|---|---|---|---|
| Technique: | Cold Rolled Hot Rolled, Cold Drawn, Extrusion, Cold Drawn/Cold Rolling Or Both Of Them | Surface: | Annealing, 8K, Polishing Or Unpolishing, Morror/Satin |
| High Light: | TP316L Stainless Steel Seamless Tubes,Seamless Bright Annealed Pipe,0.5mm Annealed Stainless Steel Tube |
||

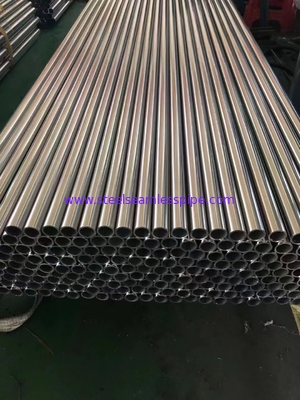

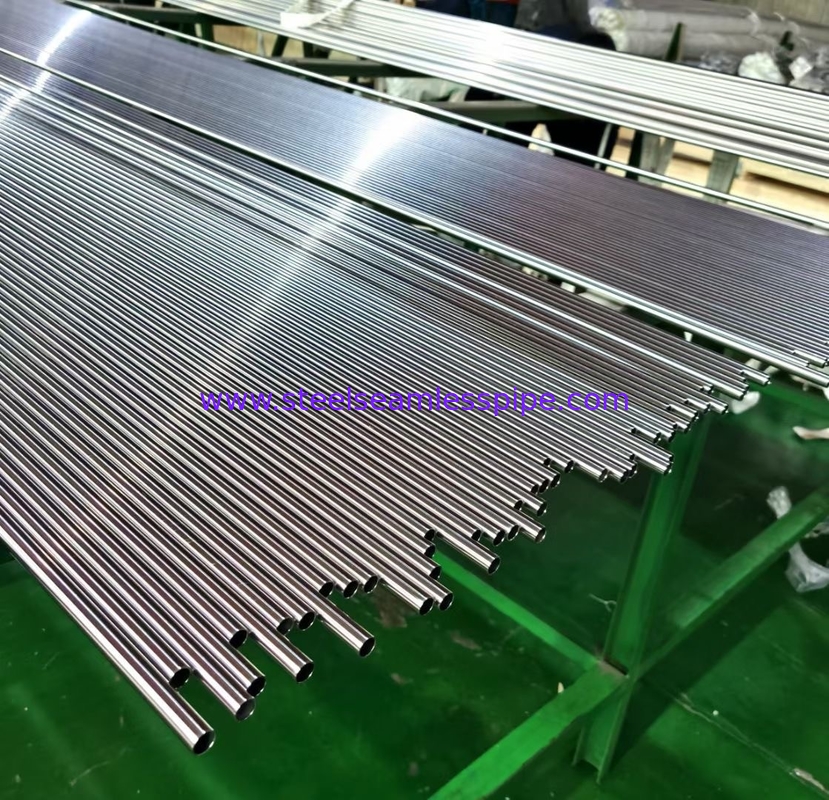

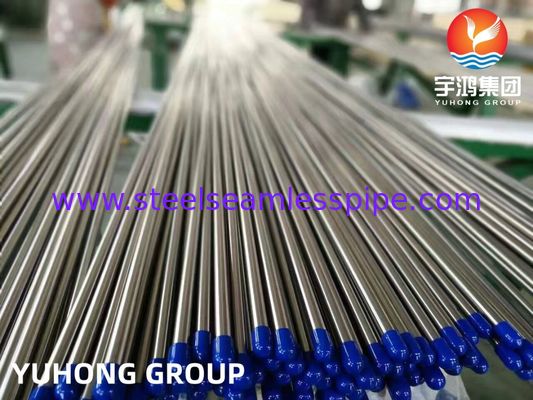

BA Tube is Bright Annealed Tubing available in a wide range of stainless steel tubing, are characterized by tight tolerances, and the inside surface of the tubes is free of oil, grease and other particles. This ensures, for example, an optimized and even flow of liquids and gases from the sensor to the measuring instrument.
ASTM A213 TP316L is a heat exchanger tube specification made of 316L austenitic stainless steel. YUHONG GROUP is a large supplier and manufacturer of all kinds of stainless steel pipes. The A 213 standard covers ferritic and austenitic steel heat exchanger tubes. A213 316L is a low carbon version of the 316 material. Therefore, A213 TP 316lL has higher toughness but lower strength compared to 316 grade pipe. A 213 TP 316L pipes can be produced under resistance welding, electrofusion welding or cold drawing.
Standard Specification:
ASTM A213 / A213M-11a: Standard Specification for Seamless Ferritic and Austenitic Alloy Steel Boiler, Superheater and Heat Exchanger Tubes
ASTM A269-10: Standard Specification for General Seamless and Welded Austenitic Stainless Steel Pipe
ASTM A312 / A312M-12: Standard Specification for Seamless, Welded, and Re-cold Worked Austenitic Stainless Steel Pipe
ASTM A511 / A511M-12: Standard Specification for Seamless Stainless Steel Mechanical Pipe
ASTM A789/A789M-10a: Standard Specification for General Seamless and Welded Ferritic/Austenitic Stainless Steel Pipe
ASTM A790/A790M-11: Standard Specification for Seamless and Welded Ferritic/Austenitic Stainless Steel Pipe
DIN 17456-2010: Universal seamless round stainless steel pipe.
DIN 17458-2010: Seamless round austenitic stainless steel tube
EN10216-5 CT 1/2: Stainless steel seamless pipes and tubes
GOST 9941-81: Seamless cold-worked and warm-worked tubes made of corrosion-resistant steel.
Other standards such as BS and JIS can be supplied
Material Grade:
| Grade | UNS Designation | Carbon | Manganese | Phosphorus | Sulfur | Silicon | Chromium | Nickel | Molybdenum | Nitrogen | Niobium | Titanium | Other Elements |
| TP316L | S31603 | 0.035 | 2.00 | 0.045 | 0.030 | 1.00 | 16.0-18.0 | 10.0-14.0 | 2.00-3.00 | -- | -- | -- | -- |
| American Standard |
Austenitic Steel: TP304, TP304L, TP304H, TP304N, TP310S, TP316, TP316L, TP316Ti, TP316H, TP317, TP317L, TP321, TP321H, TP347, TP347H, 904L… Duplex Steel : S31803, S32101, S32205, S32304, S32750, S32760 Others: TP405, TP409, TP410, TP430, TP439,... |
| Europen Standard | 1.4162, 1.4301, 1.4307,1.4362, 1.4401, 1.4404, 1.4410, 1.4438, 1.4462, 1.4501, 1.4539, 1.4541, 1.4550, 1.4571, 1.4841, 1.4845,1.4878, 1.4948, |
| GOST | 08Х17Т, 08Х13, 12Х13, 12Х17, 15Х25Т, 04Х18Н10, 08Х20Н14С2, 08Х18Н12Б, 10Х17Н13М2Т, 10Х23Н18, 08Х18Н10, 08Х18Н10Т, 08Х18Н12Т, 08Х17Н15М3Т, 12Х18Н10Т, 12Х18Н12Т, 12Х18Н9, 17Х18Н9, 08Х22Н6Т, 06ХН28МДТ |
Size Range:
| Production | Outside Diameter | Wall Thickness |
| Seamless Pipe | 6.00mm-830mm | 0.5mm-48mm |
The tubing sizes and thicknesses usually furnished to this specification are 1⁄8 in. [3.2 mm] in inside diameter to 5 in. [127 mm] in outside diameter and 0.015 to 0.500 in. [0.4 to 12.7 mm], inclusive, in minimum wall thickness or, if specified in the order, average wall thickness. Tubing having other diameters may be furnished, provided such tubes comply with all other requirements of this specification.
Application:
