Yuhong Holding Group Co.,LTD
Place of Origin: | China |
Brand Name: | YUHONG |
Certification: | ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008 |
Model Number: | ASTM B564 INCOLOY 800HT REDUCER |
Minimum Order Quantity: | 1PC |
---|---|
Price: | Negotiable |
Packaging Details: | Ply-wooden Case /Iron Case/ Bundle with plastic Cap |
Delivery Time: | Depends on quantity |
Payment Terms: | T/T, L/C AT SIGHT |
Supply Ability: | 500 pcs per month |
Specification: | ASTM B564 | Material: | INCOLOY 800HT / UNS NO8811 |
---|---|---|---|
Product Name: | Concentric Reducer | Standard: | AISI B16.5 |

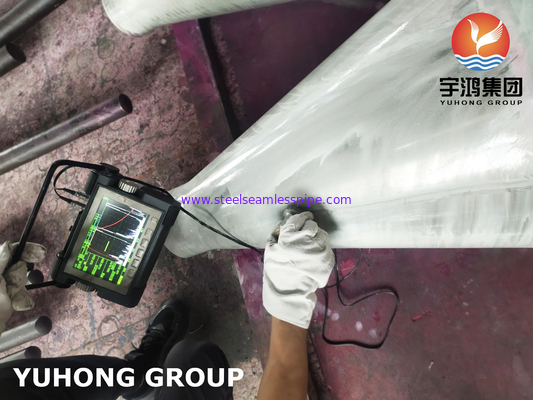

Test Required: | Ultrasonic Test&Penetrant Test | Process: | Forging Type |
High Light: | UNS NO8811 Forged Reducer,Incoloy 800HT Forged Reducer,Forged Steel Pipe Reducer |
Overview

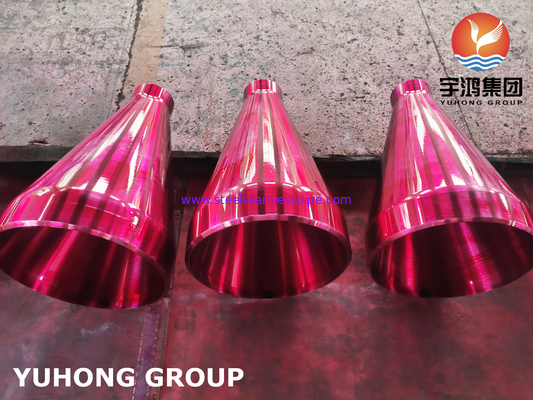

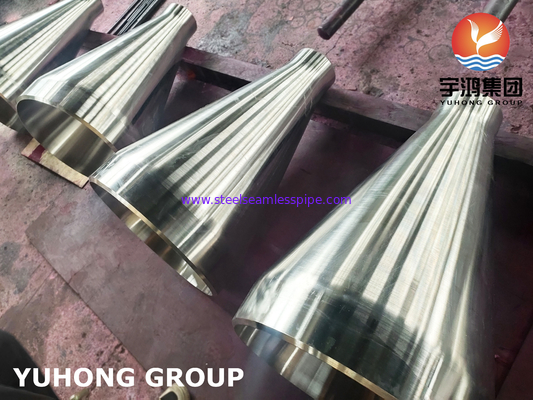

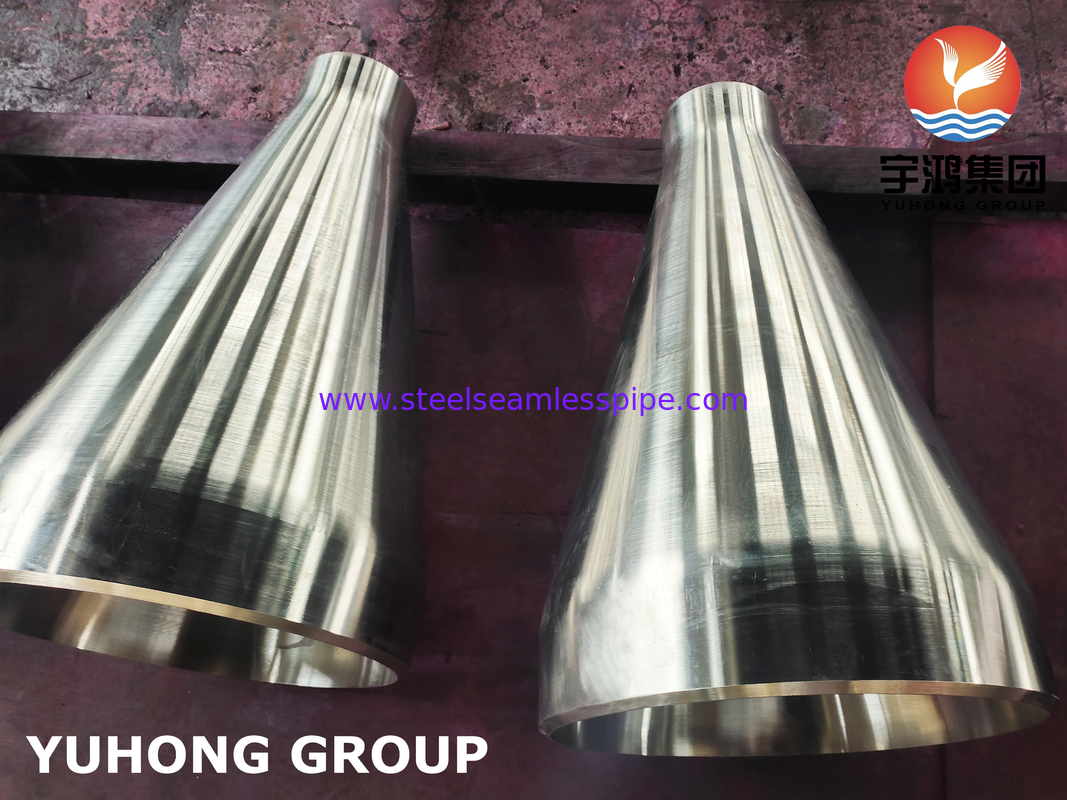

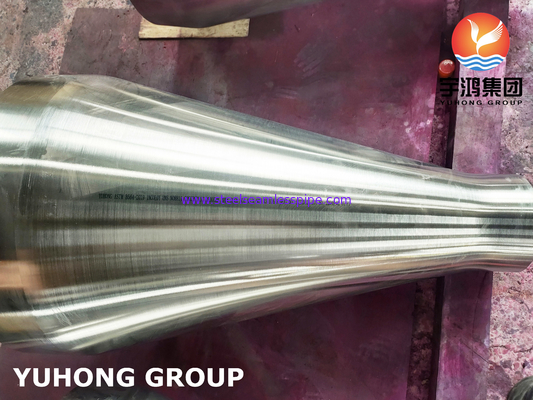

An Incoloy 800HT concentric reducer is a type of pipe fitting used to connect two pipes of different diameters in a piping system.
Incoloy 800HT concentric reducers provide a reliable and corrosion-resistant solution for connecting pipes of different diameters in high-temperature applications. Their use of Incoloy 800HT alloy ensures excellent resistance to oxidation, carburization, and corrosion, making them suitable for demanding environments. Proper selection, fabrication, and adherence to industry standards are essential to ensure the optimal performance and longevity of the concentric reducers in a piping system.
Why forged fitting is better than butt-weld fitting?
Equivalent grades
STANDARD | UNS | WNR. | AFNOR | EN | JIS | BS | GOST |
Incoloy 800 | N08800 | 1.4876 | Z8NC32-21 | X10NiCrAlTi32-20 | NCF 800 | NA 15 | ЭИ670 |
Incoloy 800H | N08810 | 1.4958 | Z8NC32-21 | X10NiCrAlTi32-20 | NCF 800H | NA 15(H) | ЭИ670 |
Incoloy 800HT | N08811 | 1.4959 | - | X8NiCrAlTi32-21 | NCF 800HT | NA 15(HT) | ЭИ670 |
Chemical Composition
Grade | Ni | Fe | Cr | Cu | Ti | Al | C | Mn | S | Si |
Incoloy 800 | 30.0-35.0 | 39.5 min | 19.0-23.0 | .75 max | .15-.60 | .15-.60 | .1 max | 1.5 max | .015 max | 1.0 max |
Incoloy 800H | 30.0-35.0 | 39.5 min | 19.0-23.0 | .75 max | .15-.60 | .15-.60 | .05-.10 max | 1.5 max | .015 max | 1.0 max |
Incoloy 800HT | 30.0-35.0 | 39.5 min | 19.0-23.0 | .75 max | .25-.60 | .85-1.20 | .06-.10 max | 1.5 max | .015 max | 1.0 max |
Mechanical Properties
Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
7.94 g/cm3 | 1350-1400 ℃ | Psi - 75,000 , MPa -520 | Psi - 30,000 , MPa - 205 | 30 - 35 % |
Application
Petrochemical Equipment
