ASTM A213 TP316L Stainless Steel Seamless Tube with High Corrosion Resistance for Heat Exchanger ET HT

Product Details:

Place of Origin:	CHINA
Brand Name:	YUHONG
Certification:	ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008
Model Number:	ASTM A213 TP316L

Payment & Shipping Terms:

Minimum Order Quantity:	100 KGS
Price:	NEGOTIABLE
Packaging Details:	Ply-wooden Case /Iron Case/ Bundle with plastic Cap
Delivery Time:	20-80 days
Payment Terms:	T/T,L/C,Western Union
Supply Ability:	1500 Tons Per Month

Contact Now

All Products

Stainless Steel Seamless Pipe (315)

Stainless Steel Seamless Tube (308)

Duplex Stainless Steel Pipe (134)

Duplex Stainless Steel Tube (35)

Needle Tube (143)

Fin Tube (680)

Heat Exchanger (22)

Heat Exchanger Tube (451)

Heat Exchanger Tube Bundle (45)

Heat Exchanger Tubesheet (119)

Heat Exchanger Baffle (38)

Air Cooler (9)

Pressure Vessel (4)

Stainless Steel Welded Pipe (58)

Stainless Steel Welded Tube (120)

Nickel Alloy Pipe (269)

Nickel Alloy Tube (93)

Copper Alloy Tube (243)

Alloy Steel Tube (206)

Titanium Tube (17)

Bright Annealed Tube (160)

Boiler Tube (151)

Steel Fitting (834)

Steel Flange (625)

Others (404)

Cladding Parts (8)

Detailed Product Description

Steel Grade:	300 Series, Stainless Steel 304/316L, 400 Series, X5CrNi18-20, 200 Series	Product Name:	трубка теплообменника; Tubo Intercambiador De Calor; Tube D'échangeur De Chaleur;أنبوب المبادل الحراري
Type:	Seamless, Welded, Round Pipe/Tube	Standard:	ASTM, AISI, GB, DIN, JIS
Certification:	ISO, SGS, BV, ISO & SGS, ISO/CE/SGS	Length:	3000mm-6000mm, 6 Meters Or Customized, 18000max., 11.8m Or As Required., 8m
Thickness:	0.4-30mm, 1.0mm, 0.6mm-2500mm, 1mm-60mm, 0.6-25 Mm	Technique:	Cold Rolled Hot Rolled, Cold Drawn, Extrusion, Cold Drawn/Cold Rolling Or Both Of Them
Product Name:	Stainless Steel Pipe, 304 304L 316 316L 321 310S Stainless Steel Welded/Seamless Tube, Factory Direct Sales Stainless Steel Pipe For Electric Heating Element, Seamless Stainless Steel Pipe/Tube	Outer Diameter:	6-630mm, Customized, 6-762mm, 6-860mm;, 6mm-630mm
Surface:	Annealing, 8K, Polishing Or Unpolishing, Morror/Satin	Finish:	Brush Polish, Cold Drawn, Pickled, Bright Annealed Or Un Annealed, Bright
Material:	Stainless Steel	Shape:	Seamless Tube
Highlight:	Seamless Steel Tube Corrosion Resistance , ET HT Stainless Steel Seamless Pipe , Seamless Stainless Steel Tube Pipe

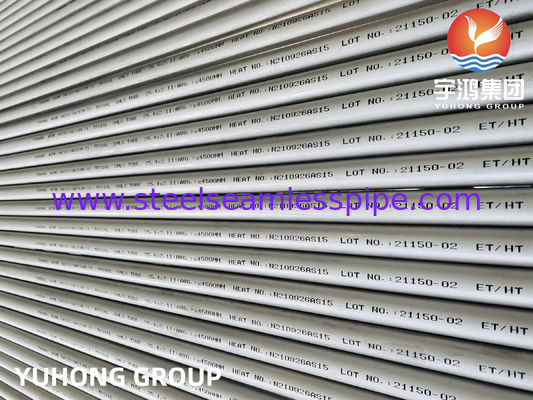

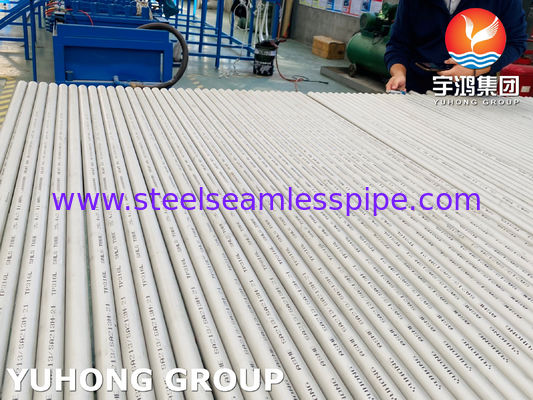

ASTM A213 TP316L Stainless Steel Seamless Tube

ASTM A312 TP 316/316L pipes are premium stainless steel pipes known for their exceptional corrosion resistance, high temperature strength, and superior pitting resistance. These grade 316 pipes feature non-magnetic properties, with 316L variants offering lower carbon content for enhanced performance.

Manufactured using advanced technology and high-quality raw materials, these pipes deliver reliability, durability, and superior finishing at competitive market prices. Our production process ensures consistent quality for both domestic and international applications.

Quality Assurance & Testing

All ASTM A312 TP 316/316L tubing undergoes comprehensive material testing by industry professionals. Our quality verification includes:

Hardness and mechanical testing
Positive Material Identification (PMI)
Intergranular Corrosion Testing (IGC)
Flaring and flattening testing
Radiographic testing

We provide complete certification packages including Manufacturer's TC (EN 10204), Raw Material Test Certificates, and Third-Party Inspection Reports, along with fumigation certificates, quality assurance plans, and detailed packing documentation.

Mechanical Properties

Grade	Tensile Stress (MPa) Min	Yield Strength 0.2% Proof (MPa) Min	Elongation (% in 50mm) Min	Hardness Rockwell B (HR B) Max	Hardness Brinell (HB) Max
SS 316L Tube	485	170	40	95	217
SS 316H Tube	515	205	40	95	217

Chemical Composition

Material	C	Mn	Si	P	S	Cr	Mo	Ni	N
SA213 TP 316L Tube Min	-	-	-	-	-	16.0	2.00	10.0	-
SA213 TP 316L Tube Max	0.03	2.0	0.75	0.045	0.03	18.0	3.00	14.0	0.10
SA213 TP 316H Tube Min	0.04	0.04	0	-	-	16.0	2.00	10.0	-
SA213 TP 316H Tube Max	0.10	0.10	0.75	0.045	0.03	18.0	3.00	14.0	-
