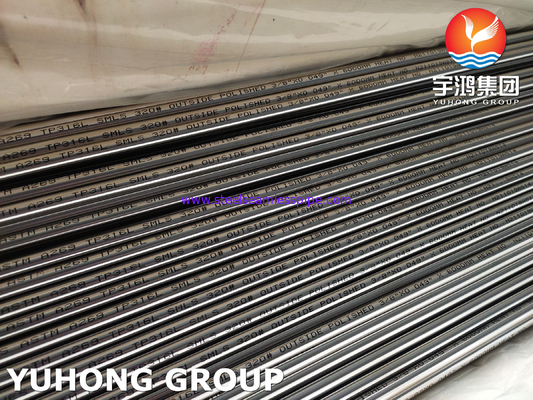

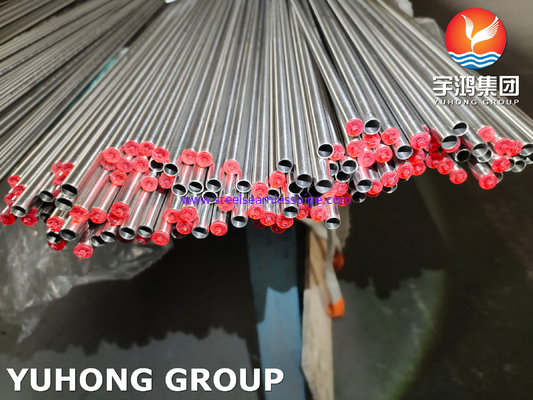

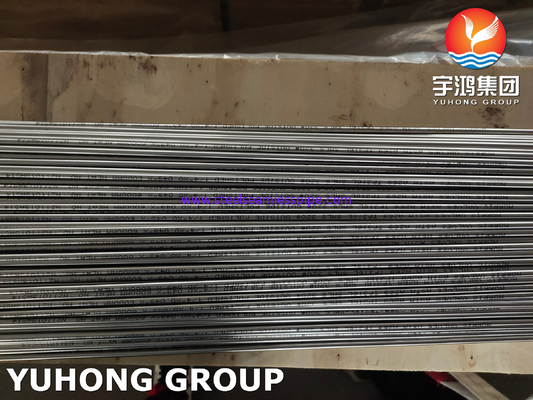

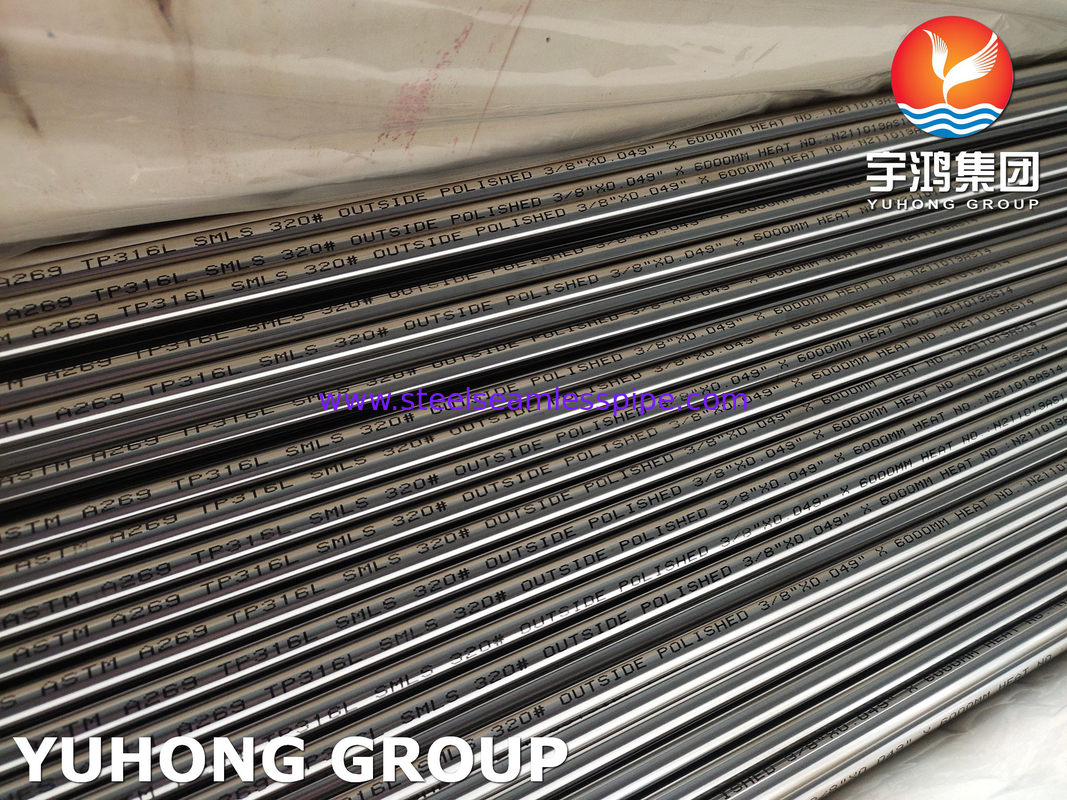

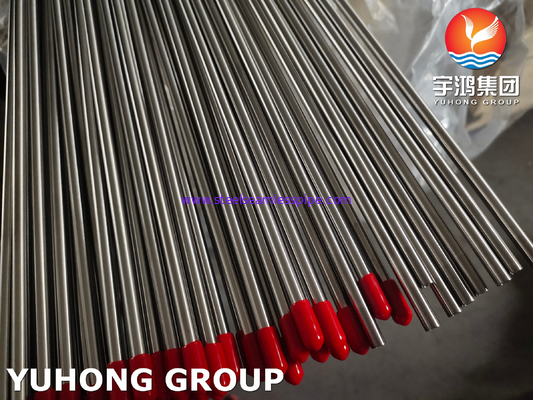

ASTM A269 TP316L 320# Polished Bright Annealed Tube Seamless For General Industry

ASTM A269 TP316L 320# Polished Bright Annealed Tube Seamless For General Industry

  • ASTM A269 TP316L 320# Polished Bright Annealed Tube Seamless For General Industry
  • ASTM A269 TP316L 320# Polished Bright Annealed Tube Seamless For General Industry
  • ASTM A269 TP316L 320# Polished Bright Annealed Tube Seamless For General Industry
  • ASTM A269 TP316L 320# Polished Bright Annealed Tube Seamless For General Industry
ASTM A269 TP316L 320# Polished Bright Annealed Tube Seamless For General Industry
Product Details:
Place of Origin: China
Brand Name: YUHONG
Certification: ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008
Model Number: ASTM A269 TP316L
Payment & Shipping Terms:
Minimum Order Quantity: 1PC
Price: NEGOTIABLE
Packaging Details: Ply- Wooden Case/Plastic Bag / Plastic Cap
Delivery Time: 10-75DAYS
Payment Terms: L/C, T/T
Supply Ability: ACCORDING TO CUSTOMER'S REQUEST
Contact Now
Detailed Product Description
Material: TP316L/1.4404/X2CrNiMo17132 Standard: ASTM A269 BA Seamless Tube
Surface: Bright Annealled 320# Surface Polished WT Tolerance: +/-15%(OD<12.7mm) , +/-10%(12.7mm< O.D.<203.2)
High Light:

Seamless Polished Bright Annealed Tube

,

Industry Bright Annealed Tube

,

ASTM A269 Annealed Stainless Steel Tube

Stainless Steel Tubes Bright Annealed ASTM A213 / ASTM A269 TP304 TP316L BA HYDRAULIC TEST



YUHONG GROUP deal with stainless steel seamless pipe and tube already more than 10 years, every year sell more than 80000 tons of stainless steel seamless pipe and tube. Our client already cover more than 45 countries. Our stainless steel seamless pipe and tube was width used in Mining, Energy, Petrochemical, Chemical Industry, Food plant, Paper plant, Gas and Fluid Industry etc. ANSI B16.10: B16.19 SCH 5S, SCH 10S, SCH 20, SCH 30, SCH 40S, SCH 60, SCH80S, XS, SCH 100, SCH 120, SCH160, XXS



Characteristic: With cold press (mainly cold rolling), the gas protects heat treatment, with high precision:

ID:Ra≤0.4μm,OD:Ra≤0.8μm;Mainly for precision instrument, Hydraulic pressure system, exhaust gas

system etc.


Standard: ASTM/ASME A/SA213, A/SA269, DIN17458/17457, EN10216-5/10217-7. After negotiation, we can

supply pipe with customers’ requirement.

Material Grade: TP304, TP304L, TP316, TP316L, TP316Ti, and TP321 etc also DIN/EN grades available,

other grade can also be provided after consulting with customers.

ASTM A269 Standard Tubing Chemical Composition

SS GRADE ASTM A269/SA 269 CHEMICAL COMPOSITION % MAXIMUM
C MN P S SI CR NI MO N B NB TI
TP304 0.08 2.00 0.045 0.030 1.00 18.0-20.0 8.0-11.0 --- --- --- ---
TP304L 0.035 2.00 0.045 0.030 1.00 18.0-20.0 8.0-12.0 --- --- --- ---
TP316 0.08 2.00 0.045 0.030 1.00 16.0-18.0 10.0-14.0 2.00-3.00 --- --- ---
TP316L 0.035 D 2.00 0.045 0.030 1.00 16.0-18.0 10.0-15.0 2.00-3.00 --- --- ---
TP321 0.08 2.00 0.045 0.030 1.00 17.0-19.0 9.0-12.0 --- --- --- 5C -0.70
TP347 0.08 2.00 0.045 0.030 1.00 17.0-19.0 9.0-12.0     10C -1.10 ---



Size Range:Seamless Tube(OD: Φ6mm-Φ76mm WT: 0.15mm-4.0mm, Length:Max. 500M/pc)





Supplementary Testing : Apart from the above mentioned tests, we also carry out on the manufactured products supplementary testing. The tests conducted under this include:

· Eddy Current Testing

· O.P Testing

· Radiography Testing

· Corrosion Testing

· Micro Testing

· Macro Testing

· IGC Testing

· Ultrasonic testing

· Liquid Penetrate testing



Application:
Bright annealed stainless steel welded pipe is widely used in making military products, semiconductor, biological medicine, precision instruments and meters, hydraulic parts and many other industrial products.
