Yuhong Holding Group Co.,LTD
 |
| Place of Origin: | China |
| Brand Name: | Yuhong Group |
| Certification: | ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008 |

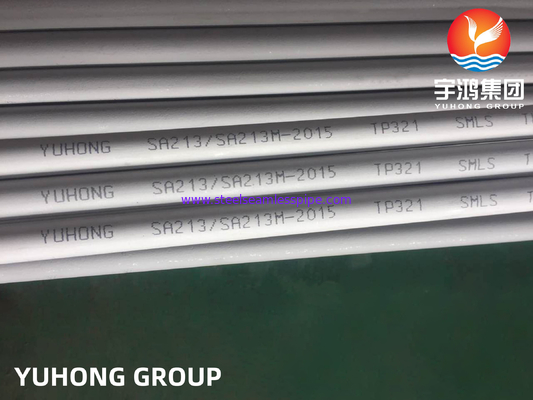

| Model Number: | A213 TP321 |
| Minimum Order Quantity: | 100 kgs |
|---|---|

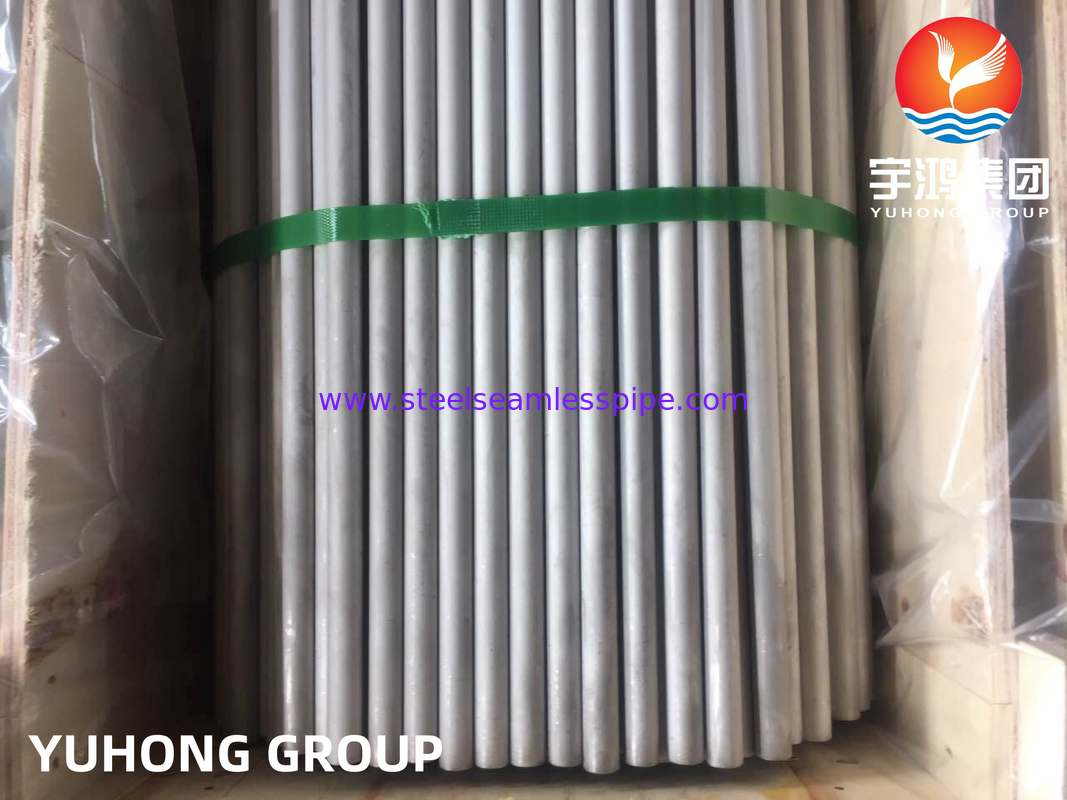

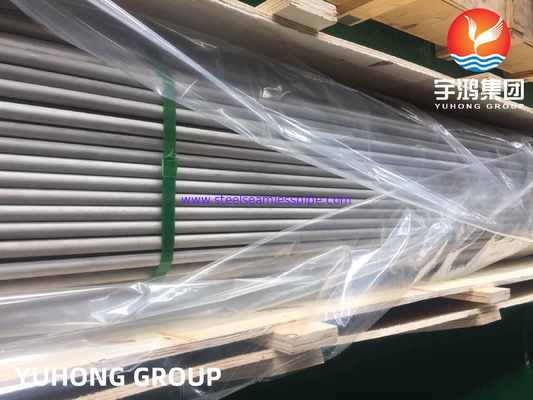

| Packaging Details: | Ply-wooden Case /Iron Case/ Bundle |
| Payment Terms: | L/C, T/T |
| Material: | TP321/S32100/1.4541 | NDT: | HT/UT/ET |
|---|---|---|---|
| Application: | Heat Exchangers/Boiler/Condenser | Packing: | Ply Wooden Case |
| High Light: | NDT Seamless Boiler Tube,S32100 Stainless Steel Boiler Tubes,Boiler Seamless Steel Tube |
||
Overview:
SA213 Tp321 is a specification of heat exchanger tubes that are made from the 321 austenitic stainless steel. The SA 213 specifies pipe products for heat exchangers in different material grades, both the ferritic and austenitic steels.
The SA213 TP321 Stainless Steel Tube is made of 321 austenitic steel and they are mainly used as heat exchanger tubes. The 321 Stainless Steel Tube is ideal for high-temperature applications, and thus they are used for heat exchangers in different material grades. The specification of 1.4541 Seamless Tubes is for both ferritic and austenitic stainless steel.
The Stainless Steel 321 Heat Exchanger Tubes are known for their heat-resisting properties. They are titanium stabilized and used for various services within a temperature range of 1000 to 1600 degrees F. The Stainless Steel 321 Boiler Tubes generally have good weldable properties, and the addition of titanium in the alloy reduces the formation of carbide precipitation during the welding process. We design the 321 stainless steel exhaust tubing according to the national and international standards of raw material. We follow the set guidelines in the manufacturing process, making the Stainless Steel 321 Fin Tube more durable and safe. The SS 321 Tube also has oxidation resistance to 1600 degrees F. Due to all these properties; the 321 SS Tube has a wide range of applications in exhaust stacks and aircraft piston engine manifolds.
ASTM A213 Stainless Steel 321 Seamless Tube is generally considered to have comparable weldability to 304 and 304L stainless with the main difference being the titanium addition which reduces or prevents carbide precipitation during welding. ASTM A213 Stainless Steel 321 Cold Drawn Tube and ASTM A213 Stainless Steel 321 Heat Exchanger Tube primarily used in applications that involve continuous and intermittent service temperatures within the carbide precipitation range of 800°-1500°F.
We supply ASTM A213 SS 321 Tubing that are being designed as per the national and international standard quality of raw materials.ASTM A213 Grade 321 stainless steel tube is the most widely used commercial grade of stainless steel supplied into numerous industry sectors which also referred as WNR 1.4541 Seamless Tube. ASTM A213 321 Seamless Condenser Tubes has oxidation resistant to 1600°F.
Specification:
| Specification | ASTM A-213 & Its equivalent ASME, DIN & EN Standard. |
| Grades | 321, 321H |
| Type | Seamless Ferritic and Austenitic Boiler, Superheater, and Heat-Exchanger Tubes |
| Outer Diameter Size | 1/4” OD, NB to 3” OD, NB sizes |
| Thickness | 1mm to 12mm, SCH 5/5S, 10/10S, 20/20S, 40/40S, 80/80S, 120/120S, 160/160S as per ANSI B36.19/36.10 |
| Length | Up to 6 meters, custom cut lengths |
| Ends | No.1 Pickled Finish, No.4 finish, BA Finish, Electropolished Seamless Tubes |
| Delivery Conditions | As Rolled, Formed, Stress Relieved, Annealed, Hardened, Tempered, Cold Draw |
| Other Testing | Product Analysis, Transverse Tension Test, Flattening Test, Etching Test, Radiographic Examination, Stabilizing Heat Treatment, Intergranular Corrosion Test, Weld Decay Test, Magnetic Particle Detection, Grain Size Test, NACE 0175, Dual Grade, PWHT (POST WELD HEAT TREATMENT), Flare Test, Bend Test, Hardness Test, Tensile Test etc |
| Dimension | All Pipes & Tube Is Manufactured and Inspected / Tested to the Relevant standards including ASTM and ASME |
| Packaging | Loose / Bundle / Wooden Pallet / Wooden Box / Plastic Cloth Wraps / Plastic End Caps / Beveled Protector |
Chemical Composition:
| Grade | UNS | C | Mn | P | S | Si | Cr | Ni | Ti |
| 321 | S32100 | 0.08 max | 2.00 max | 0.045 max | 0.03 max | 1.00 max | 17.0-19.0 | 9.0-12.0 | 5(C+N)-0.07 |
| 321H | S32109 | 0.04-0.10 | 2.00 max | 0.045 max | 0.03 max | 1.00 max | 17.0-19.0 | 9.0-12.0 | 4(C+N)-0.07 |
Mechanical Properties:
| Grade | Tensile Strength, min, ksi (MPa) |
Yield Strength, min, ksi (MPa) |
Elongation in 2 in. or 50mm, min (%) |
Hardness |
Solutioning Temperature, min, °F(°C) |
|
| Rockwell | Brinell/Vickers | |||||
| 321 | 75(515) | 30(205) | 35 | 90HRB | 192HBW/200HV | 1900(1040) |
| 321H | 75(515) | 30(205) | 35 | 90HRB | 192HBW/200HV | 2000(1090) |
Equivalent Grades:
| Standard | WERKSTOFF NR. | Unified Numbering System | European Standards | AFNOR | British Standards | GOST | Japanese Standards |
| 321 | 1.4541 | S32100 | X6CrNiTi18-10 | - | 321S31 | 08KH18N10T | SUS 321 |
| 321H | 1.4878 | S32109 | X8CrNiTi18-10 | - | 321S51 | 12KH18N10T | SUS 321H |
Applications:
1.Food preparation equipment particularly in chloride environments.
2.Laboratory benches & equipment.
3.Coastal architectural panelling, railings & trim.
4.Boat fittings.
5.Chemical containers, including for transport.
6.Heat Exchangers.
7.Woven or welded screens for mining, quarrying & water filtration.
8.Threaded fasteners.
9.Springs.
