Yuhong Holding Group Co.,LTD
 |
| Place of Origin: | CHINA |
| Brand Name: | YUHONG |
| Model Number: | ASTM A213 TP321 |
| Minimum Order Quantity: | 100 KGS |
|---|---|
| Price: | NEGOTIABLE |
| Packaging Details: | Ply-wooden Case /Iron Case/ Bundle with plastic Cap |
| Delivery Time: | 20-80 days |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 1500 Tons Per Month |
| Certification: | ISO, SGS, BV, ISO & SGS, ISO/CE/SGS | Steel Grade: | 300 Series, Stainless Steel 304/316L, 400 Series, X5CrNi18-20, 200 Series |
|---|---|---|---|
| Type: | Seamless, Welded, Round Pipe/Tube | Standard: | ASTM, AISI, DIN, EN, GB, JIS, Etc |
| Length: | Customized | Thickness: | 0.4-30mm, 1.0mm, 0.6mm-2500mm, 1mm-60mm, 0.6-25 Mm |
| Technique: | Cold Rolled Hot Rolled, Cold Drawn, Extrusion, Cold Drawn/Cold Rolling Or Both Of Them | Product Name: | Stainless Steel Pipe, 304 304L 316 316L 321 310S Stainless Steel Welded/Seamless Tube, Factory Direct Sales Stainless Steel Pipe For Electric Heating Element, Seamless Stainless Steel Pipe/Tube |
| Outer Diameter: | 6-630mm, Customized, 6-762mm, 6-860mm;, 6mm-630mm | Surface: | Annealing, 8K, Polishing Or Unpolishing, Morror/Satin |
| Finish: | Brush Polish, Cold Drawn, Pickled, Bright Annealed Or Un Annealed, Bright | Application: | Industry, Construction, Decoration, Etc |
| Certificate: | ISO, SGS, BV, Etc | MOQ: | 1 Ton |
| Material: | Stainless Steel | Package: | Wooden Case, Pallet, Etc |
| Shape: | Seamless Tube | Size: | Customized |
| Surface Treatment: | Polished | Wall Thickness: | Customized |
| High Light: | Low Temperature Stainless Steel Seamless Tube,Corrosion Resistance Stainless Steel Seamless Tube |
||
Stainless steel is often referred to as corrosion resistant steel - it does not stain, corrode or rust as easily as regular carbon steel. However, it would be misleading to say that it is corrosion resistant. It differs significantly from standard carbon steel due to its chromium content, the presence of which limits surface corrosion, whereas carbon steel rusts when exposed to air and any moisture in the atmosphere. Stainless steel is often a popular solution due to its antioxidant properties.
Stainless steel sheets are a natural choice where low maintenance and corrosion resistance are required and are used in a variety of applications from the cladding or fascia of modern buildings to the food hygiene industry due to their antimicrobial qualities.
Stainless Steel Seamless (SMLS) pipe is formed by drawing a solid billet over a perforated rod to form a hollow shell. Since the manufacturing process does not include any welding, seamless pipes are considered stronger and more reliable. Historically, seamless pipe has been considered more pressure-resistant than other types and is generally more readily available than welded pipe.
Grades 321 and 347 are basic austenitic 18/8 steels (grade 304) stabilized by the addition of titanium (321) or niobium (347). These grades are used because they are not susceptible to intergranular corrosion upon heating in the carbide precipitation range of 425-850°C. Grade 321 is the grade of choice for applications in the temperature range up to approximately 900°C, combining high strength, resistance to scaling and phase stability, and resistance to subsequent water corrosion.
Grade 321H is an improved version of 321 with a higher carbon content for higher high temperature strength.
One limitation of 321 is that titanium does not transfer well in high temperature arcs and is therefore not recommended as a welding material. In this case, the preferred grade 347 - Niobium performs the same carbide stabilization task but can be transferred by the welding arc. Therefore, Grade 347 is the standard consumable for welding 321. Grade 347 is only occasionally used as a motherboard material.
Like other austenitic grades, 321 and 347 have excellent forming and welding characteristics, are easy to brake or roll form, and have excellent welding characteristics. Post-weld annealing is not required. They also have excellent toughness, even at low temperatures. Grade 321 does not polish well and is therefore not recommended for decorative applications.
304L grade is more readily available in most product forms, so if post-weld intergranular corrosion resistance is only required, 321 is generally preferred. However, the thermal strength of 304L is lower than that of 321, so it is not the best choice if you need to withstand operating environments above about 500°C.
| NOMINAL OD | NOMINAL WALL | ULTIMATE KSI | YIELD KSI | ELONGATION |
|---|---|---|---|---|
| .188 and less | .016 and less | 75-120 maximum | 35% | |
| 75-105 maximum | 30 min | |||
| Over .016 | 35% | |||
| Over .188 | .010 and | 75-115 maximum | 30 min | 35% |
| Thru .500 | Less | |||
| incl | Over .010 | 75-105 maximum | 35% | |
| Over .500 | All | 75-100 maximum | 30 min | 35% |
| WEIGHT % | NI | CR | MN | C | SI | S | P |
|---|---|---|---|---|---|---|---|
| MIN | 9.00 | 17.00 | |||||
| MAX | 12.00 | 19.00 | 2.00 | .080 | 1.00 | .030 | .045 |
| ASME SA213 TP321 Exhaust Tubing | 321 Stainless Steel Dom Tubing |
| SS 321 Rectangular Tubing | SA 213 TP 321 Stainless Steel Hydraulic Tubing |
| ASTM A 213 321 Stainless Steel Seamless Tubing | ASME SA213 TP321 Round Tubing |
| ASTM A213 TP 321 EFW Tube | JIS SUS321 UNS S32100 High Precision Tubes |
| SA 213 Gr 321 ERW Tube | SA213 TP321 Coil Tubing |
| Stainless Steel 321 Electropolished Tubing | SS 321 12mm Tubing |
| SA213 321 SS Small Diameter Tubing | ASTM A 213 321 Stainless Steel Elliptical and Oval Tubes |
| JIS SUS321 UNS S32100 High Pressure Tubing | Stainless Steel 321 Heat exchanger Tubes |
| Grade SA213 TP321 Cold Drawn Seamless Tubing | SA213 321 SS Condenser Tubes |
| 321 Stainless Steel Instrument Tubing | SS UNS S32100 Sanitary Tube |
| SA 213 TP 321 Stainless Steel Square Tubing | DIN 1.4541 Stainless Steel 321 1 inch Tube |
| 321 | AMS 5557, 5570, 5576, 5645 |
| 321 | MIL-T-8606, 8808, 8973 |
| Standard Specification | AMS 5557, 5559, AMS 5570, MI-L-T 8808, MIL-T-8606 |
| ASTM A213 / ASME SA 213 | Standard Specification for 321 Stainless Steel Seamless Superheater, Condenser, Hydraulic, Boiler and Heat-Exchanger Tubes |
| Shapes | SA 213 TP 321 Stainless Steel Round, Rectangular, Square, Hydraulic, Straight, "U" Shape, Coiled, Honed Tubes, Pan Cake Coils |
| Manufacturing Type | Seamless / ERW / Welded / Fabricated / CDW / CDS / DOM / CEW / 100% X Ray Welded |
| Delivery Condition | Annealed and Pickled (AP), Polished, Bright Annealed (BA), Cold Drawn, MF |
| Surface Finish | BA, 2B, No.4, No.1, No.3, No.8, 8K, HL, 2D, 1D, Mirror Polished, 180G, 320G, 400G Satin/ Hairline, 400G, 500G, 600G or 800G Mirror finish ASME SA213 TP321 Tubing or Custom Finish as per customer's specification |
| Thickness Range | SCH 5, SCH10, SCH 40, SCH 80, SCH 80S, SCH 160, SCH XXH, SCH XXS, SCH XS |
| Standard | SUS, JIS, AISI, ASTM, GB, DIN, EN |
| Relevant Standard | ASTM A213, ASTM A312, ASTM A269, ASTM A778, ASTM A554, ASTM A249, ASTM A269, ASTM A270, ASTM A789, DIN 17456, DIN17457, DIN 17459, JIS G3459, JIS G3463, GOST9941, EN10216, BS3605, GB13296 |
| Value Added Services |
|
| Swg & Bwg | 10 Swg., 12 Swg., 14 Swg., 16 Swg., 18 Swg., 20 Swg. |
| END | Plain End, Beveled End, Treaded SS 321 Tube |
| Processing Service | Bending, Welding, Decoiling, Punching, Cutting, Moulding |
| Technique | ASTM A 213 321 Stainless Steel Cold drawn, Cold rolled, Hot rolled, Extrusion Tube |
| Tolerance |
|
| Marking |
Marked Pipe Sample: 321 Stainless Steel 12" NB SCH 40S SEAMLESS HEAT NO. XXXX |
| Test Certificate |
|

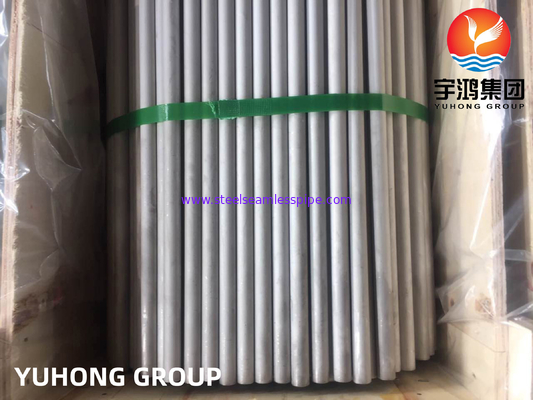

| Stainless Steel 321 Tubing Packaging | Packed in PE Fabric Bundles or ply wooden box wrapped in plastic or Standard seaworthy export packing or as per customers' request |
| Uses & Application |
|
Application:
