ASTM A213 TP347H Stainless Steel Seamless Tube for Heat Exchanger and Boiler Applications with Corrosion Resistance and High Temperature Stability

Product Details:

Place of Origin:	CHINA
Brand Name:	YUHONG
Certification:	ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008
Model Number:	ASTM A213 TP347H

Payment & Shipping Terms:

Minimum Order Quantity:	100 KGS
Price:	NEGOTIABLE
Packaging Details:	Ply-wooden Case /Iron Case/ Bundle with plastic Cap
Delivery Time:	20-80 days
Payment Terms:	T/T,L/C,Western Union
Supply Ability:	1500 Tons Per Month

Contact Now

All Products

Stainless Steel Seamless Pipe (308)

Stainless Steel Seamless Tube (297)

Duplex Stainless Steel Pipe (132)

Duplex Stainless Steel Tube (33)

Needle Tube (134)

Fin Tube (672)

Heat Exchanger (20)

Heat Exchanger Tube (443)

Heat Exchanger Tube Bundle (40)

Heat Exchanger Tubesheet (117)

Heat Exchanger Baffle (37)

Air Cooler (9)

Pressure Vessel (4)

Stainless Steel Welded Pipe (58)

Stainless Steel Welded Tube (120)

Nickel Alloy Pipe (266)

Nickel Alloy Tube (92)

Copper Alloy Tube (240)

Alloy Steel Tube (204)

Titanium Tube (15)

Bright Annealed Tube (155)

Boiler Tube (151)

Steel Fitting (826)

Steel Flange (615)

Others (401)

Cladding Parts (7)

Detailed Product Description

Product Name:	трубка теплообменника; Tubo Intercambiador De Calor; Tube D'échangeur De Chaleur;أنبوب المبادل الحراري	Product Name:	Stainless Steel Pipe, 304 304L 316 316L 321 310S Stainless Steel Welded/Seamless Tube, Factory Direct Sales Stainless Steel Pipe For Electric Heating Element, Seamless Stainless Steel Pipe/Tube
Steel Grade:	300 Series, Stainless Steel 304/316L, 400 Series, X5CrNi18-20, 200 Series	Type:	Seamless, Welded, Round Pipe/Tube
Standard:	ASTM, AISI, GB, DIN, JIS	Certification:	ISO, SGS, BV, ISO & SGS, ISO/CE/SGS
Length:	3000mm-6000mm, 6 Meters Or Customized, 18000max., 11.8m Or As Required., 8m	Thickness:	0.4-30mm, 1.0mm, 0.6mm-2500mm, 1mm-60mm, 0.6-25 Mm
Technique:	Cold Rolled Hot Rolled, Cold Drawn, Extrusion, Cold Drawn/Cold Rolling Or Both Of Them	Outer Diameter:	6-630mm, Customized, 6-762mm, 6-860mm;, 6mm-630mm
Surface:	Annealing, 8K, Polishing Or Unpolishing, Morror/Satin	Finish:	Brush Polish, Cold Drawn, Pickled, Bright Annealed Or Un Annealed, Bright
Material:	Stainless Steel	Shape:	Seamless Tube
Highlight:	Seamless Heat Exchanger Tube TP347H , 30mm Stainless Steel Seamless Tube , Annealing Stainless Steel Heat Exchanger Tube

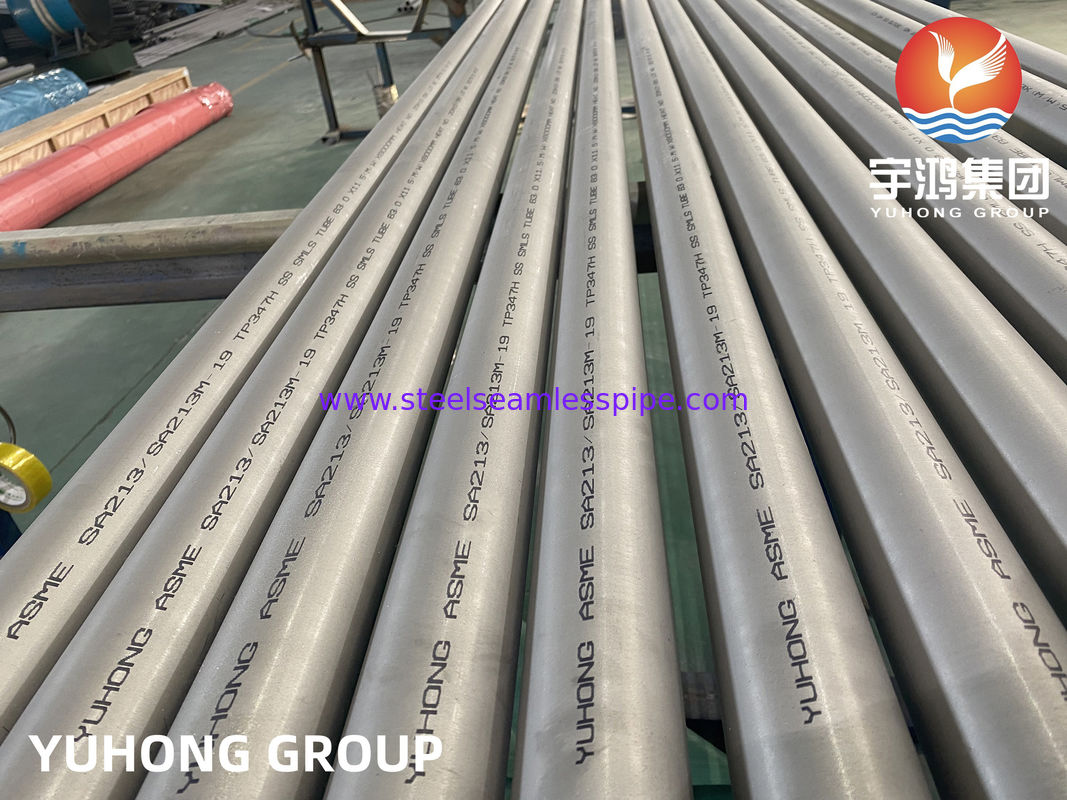

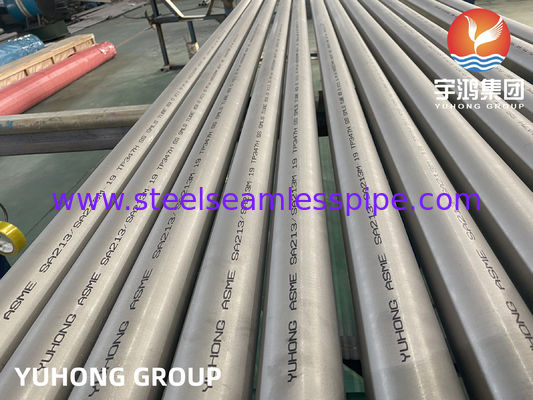

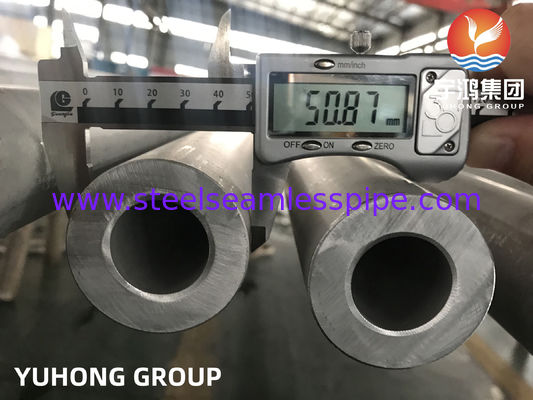

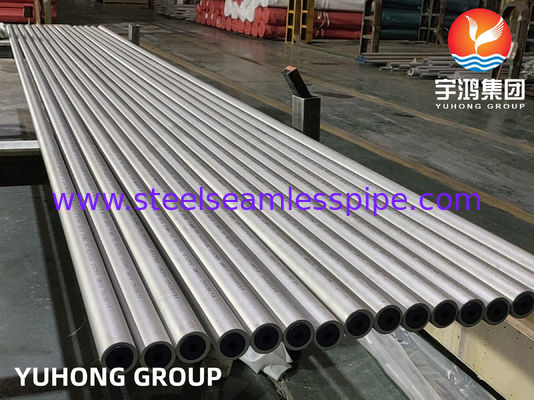

ASTM A213 TP347H Stainless Steel Seamless Tube Heat Exchanger Tube

Product Overview

Yuhong Group is a leading supplier, manufacturer, distributor, and exporter of SS 347H Pipes. We provide ASTM A213 Stainless Steel 347H Seamless Pipes manufactured in compliance with national and international quality standards for raw materials.

ASTM A213 grade 347H stainless steel pipe, also designated as WNR 1.4961 seamless pipe, serves diverse industrial applications. Our ASTM A213 347H Seamless Condenser Pipes deliver exceptional value through cost-effectiveness. We offer customizable sizes, grades, and thicknesses to meet specific customer requirements.

Key Applications

Chemical processing equipment
Food processing equipment and storage systems
Petroleum refining fluid catalytic cracking units
Polythionate service applications
Pharmaceutical production facilities
Waste heat recovery heat exchangers
Food and beverage processing industry

Material Properties

Alloy 347 (UNS S34700) is a columbium-stabilized austenitic stainless steel that provides excellent general corrosion resistance with enhanced performance in strongly oxidizing conditions. It demonstrates superior resistance to intergranular corrosion after exposure to temperatures between 800-1500°F (427-816°C) and offers good oxidation resistance, creep strength at 1500°F (816°C), and low-temperature toughness.

Alloy 347H (UNS S3409) is the high-carbon variant (0.04-0.10) developed to improve creep resistance and strength at temperatures above 1000°F (537°C). The carbon content can often be double certified.

This alloy cannot be hardened through heat treatment but responds well to cold working methods. It offers excellent weldability and machinability using standard fabrication practices.

Product Specifications

Specification	ASTM A269, ASTM A213, ASTM A312, ASME SA269, ASME SA213, ASME SA312
Available Grades	202, 304, 304L, 304H, 304LN, 309S, 310S, 316, 316L, 316H, 316Ti, 316LN, 317L, 321, 321H, 347, 347H, 904L, SMO 254, ALLOY 254, 6MO, 6MOLY, UNS S31254 ETC.
Types	Seamless / Welded / ERW / EFW / Cold Draw / Hot Finish / Cold Finish
Outer Diameter	Seamless - 1/2" NB TO 18" NB Welded / ERW- 1" NB TO 16" NB EFW - 8" NB TO 110" NB
Wall Thickness	Schedule 10 to Schedule 160 (3 mm to 100 mm Thickness)
Length	01 Meter to 12.5 Meters, Single Random Length, Double Random Length And Customize Size
Ends	Plain Ends / Beveled Ends
Delivery Conditions	As Rolled, Formed, Stress Relieved, Annealed, Hardened, Tempered, Cold Draw
Coating	Electropolish, Mechanical Polish, Satin Finish, Passivated
Testing	Product Analysis, Transverse Tension Test, Flattening Test, Etching Test, Radiograph HIC Examination, Stabilizing Heat Treatment, Intergranular Corrosion Test, Weld Decay Test, Magnetic Particle Detection, NACE 0175, Dual Grade, PWHT, Flare Test, Bend Test, Hardness Test, Tensile Test etc
Value Added Services	Draw / Expansion / Machining / Sand Blasting / Shot Blasting / Heat Treatment / Annealed / Bright Annealed
Packaging	Loose / Bundle / Wooden Pallet / Wooden box / Plastic Cloth Wraps / Plastic End Caps / Beveled Protector
Shipment & Transportation	By Road - Truck / Train, By Sea - Break-bulk Conventional Vessel / FCL / LCL / 20-45 Feet Containers, By Air - Freighter Civil Passenger and Cargo Planes
Material Test Certificate	Manufacturer Test Certificate As Per EN10204 3.1, 3.2 / Laboratory Test Certificate From NABL Approved Lab / Third Party Inspection (SGS, TUV, DNV, LLOYDS, ABS)

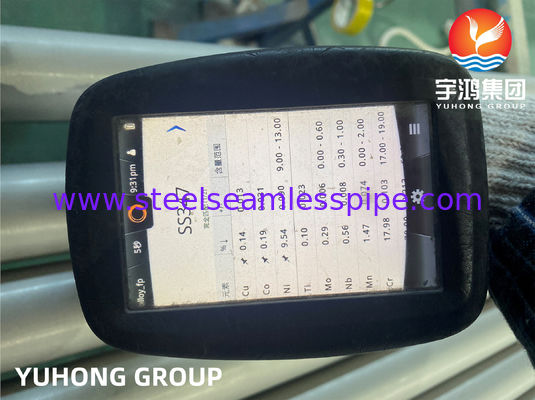

Chemical Composition

Element	347	347H
Chromium	17.00 min.-19.00 max.	17.00 min.-19.00 max.
Nickel	9.00 min.-13.00 max.	9.00 min.-13.00 max.
Carbon	0.08	0.04 min.-0.10 max.
Manganese	2.00	2.00
Phosphorus	0.045	0.045
Sulfur	0.03	0.03
Silicon	0.75	0.75
Columbium & Tantalum	10 x (C + N) min.-1.00 max.	8 x (C + N) min.-1.00 max.
Iron	Balance	Balance

Mechanical Properties

Property	Value
Yield Strength (0.2% Offset)	30,000 psi (min.) / 205 MPa
Ultimate Tensile Strength	75,000 psi (min.) / 515 MPa
Elongation in 2 in.	40% (min.)
Hardness	201 Brinell (max.)

Physical Properties

Property	Value
Density	7.96 g/cm³

Grade Specification Comparison

Grade	UNS No	British BS	Euronorm No	Japanese JIS
321	S32100	321S31	1.4541	SUS 321
321H	S32109	321S51	1.4878	SUS 321H
347	S34700	347S31	1.4550	SUS 347

Additional Applications

Food processing equipment, especially beer brewing, milk processing and winemaking
Kitchen benches, sinks, appliances
Architectural panels, railings and trim
Chemical containers and shipping containers
Heat exchangers
Woven or welded screens for mining, quarrying and water filtration
Threaded fasteners
Springs
Various other industrial applications
