Yuhong Holding Group Co.,LTD
Place of Origin: | China |
Brand Name: | YUHONG |
Certification: | ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008 |
Model Number: | ASTM A312 TP347H |
Minimum Order Quantity: | 1000KGS |
---|---|
Price: | Negotiable |

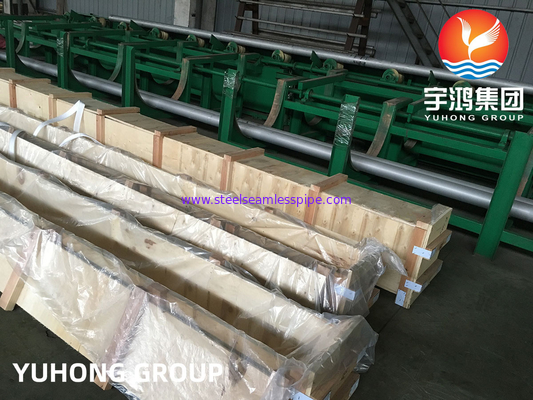

Packaging Details: | Ply-wooden Case /Iron Case/ Bundle with plastic Cap/Woven Case |
Delivery Time: | Depends on quantity |
Payment Terms: | T/T, L/C |
Supply Ability: | 1000 tons per month |
Specification: | ASTM A312 | Grade: | TP347H |
---|---|---|---|
Type: | Seamless | Surface: | Pickled And Annealed, Polished, Bright Annealed |
Non Destructive Test: | Eddy Current Test -ASTM E426, Hystostatic Test-ASTM A999, Ultrsonic Test -ASTM E213 | Size Standard: | ASTM B16.10 & B16.19 & Customized |
High Light: | S34709 Stainless Steel Seamless Pipe,High Temperature Stainless Steel Seamless Pipe,ASTM A312 Seamless Stainless Steel Tubing |
ASTM A312 TP347H Stainless Steel Seamless Pipe For High Temperature
What is material TP347H?
ASTM A312 Gr Tp347h is an austenitic stainless steel. It has chromium and nickel content which give it the corrosion resistant properties. For extra toughness, the A312 347h material has higher carbon content.
We are the professional exporter and supplier of ASTM A312 TP347H Seamless Stainless Steel Pipe,SA 312 TP347H pipe,ASTM A312 TP347 Seamless Stainless Steel Pipe.
A312 TP347H pipe is mainly used where corrosion resistance and sustained operations at temperatures between 800°F and 1500°F (427°C ~ 816°C) is of the utmost importance. It is also a superior grade for use on heavy welded objects, which cannot be re-annealed.
As a higher grade from AISI 321H, the intergranular corrosion of 347H is achieved through the use of niobium (Nb) as a stabilizing element to maximize this feature. SS 347 has a good mechanical properties welding performance, excellent resistance to intergranular corrosion.
Chemical Composition:
Grade | UNS | C | Mn | P | S | Si | Cr | Ni | |
TP347H | S34709 | 0.04-0.10 | ≤2.00 | ≤0.045 | ≤0.030 | ≤1.00 | 17.0-19.0 | 9.00-13.00 |
Mechanical Properties:
Grade | Tensile Strengtd ksi (MPa) min | Yield Strengtd 0.2% ksi offset ksi (MPa) min | Elongation (% in 50mm) min | Hardness (Brinell) MAX | Hardness (Rockwell B) MAX |
347/347H | 75 (515) |
30 (205) |
40 | 201 | 95 |
Physical Properties:
Density lbm/in3 |
Coefficient of Thermal Expansion (min/in)-°F |
Thermal Conductivity BTU/hr-ft-°F | Specific Heat BTU/lbm -°F | Modules of Elasticity (annealed)2-psi | |
at 68 °F | at 68 – 212°F | at 68 – 1832°F | 68-932°F | at 32 – 212°F | in tension (E) |
0.288 | 9.2 | 11.4 | 14.7 | 0.12 | 28 x 106 |
ASTM A312 TP347H Stainless Steel Equivalent Material:
ASTM |
UNS NO. |
KOREA/JAPAN | GERMAN | BRITISH | |||||||
STAND ARD |
KS/JIS Symbol |
KS/JIS Numbe |
Remarks |
DIN Type |
DIN Number |
Materiral Number |
Remarks |
B.S Number |
B.S Grade |
Remarks |
|
TP 347H | S34709 | 316HTP | D3576 / G3459 | -16 | X5 CrNiNb 18 9 | 1.4543 | (3b) | 3605 | 347HS18 |
Applications:
-Food processing equipment, particularly in beer brewing, milk processing & wine making
-Kitchen benches, sinks, troughs, equipment and appliancesArchitectural panelling, railings & trim
-Chemical containers, including for transport
-Heat Exchangers
-Woven or welded screens for mining, quarrying & water filtration
-Threaded fasteners
-Springs
