| Place of Origin: | China |
| Brand Name: | YUHONG |
| Certification: | ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008 |
| Model Number: | JIS H3300 C6872T |
| Minimum Order Quantity: | 1PC |
|---|---|
| Price: | NEGOTIABLE |
| Packaging Details: | Ply- Wooden Case/Plastic Bag / Plastic Cap |
| Delivery Time: | 10-30 DAYS |
| Payment Terms: | L/C, T/T |
| Supply Ability: | ACCORDING TO CUSTOMER'S REQUEST |
| Material: | C6872T/C6872T-O | Application: | Heat Exchanger/Condenser/Boiler |
|---|---|---|---|
| NDT: | ET/HT | Similar Material: | ASTM B111 C67800. DIN 17660 CuZn20Al |
| High Light: | C6872T-O Aluminum Brass Tube,Seamless Copper Alloy Tube,C6872T Boiler Copper Alloy Tube |
||

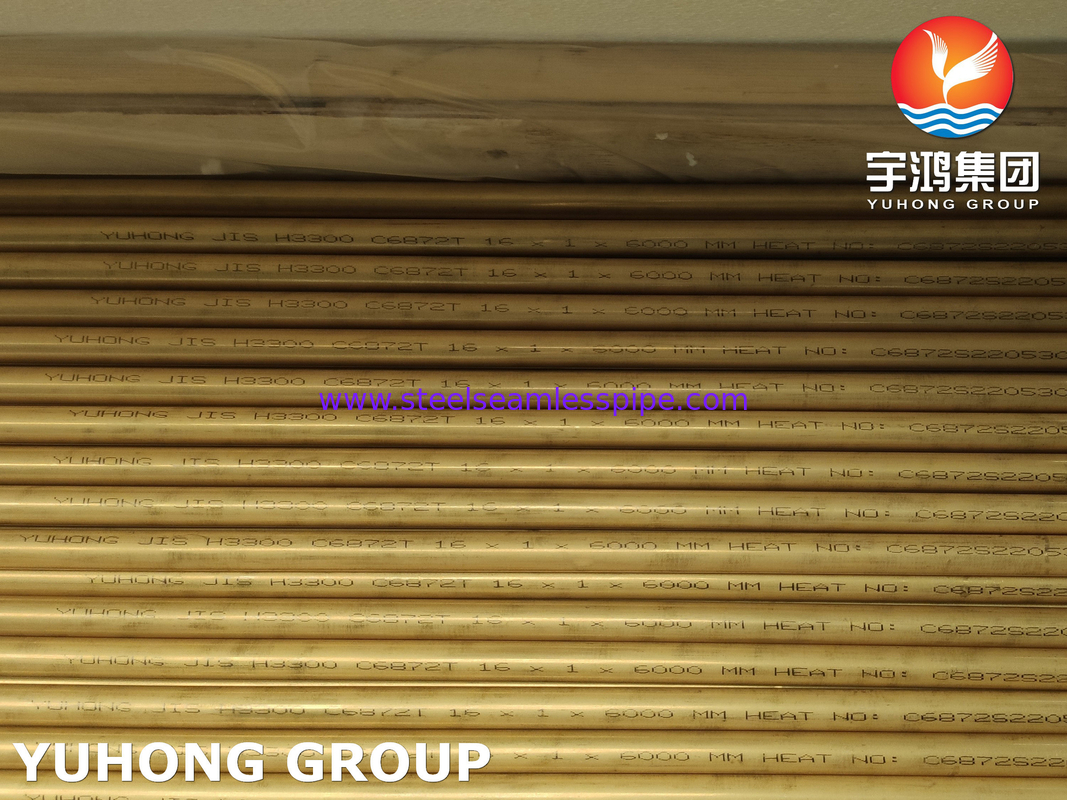

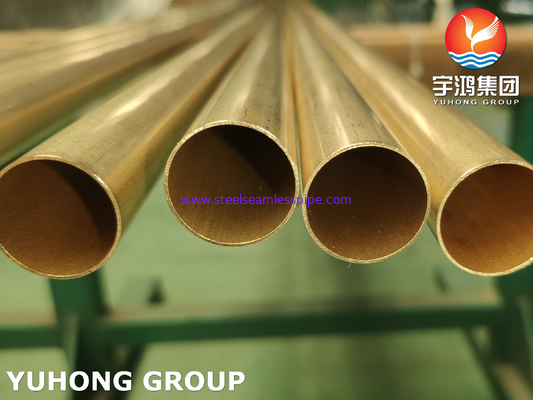

JIS H3300 C6872T/C6872T-O Aluminum Brass Tube/Copper Alloy Seamless Tube for Boiler
Chemical Composition
| Al(%) | Mn(%) | Pb(%) | Fe(%) | Ni(%) | Zn(%) | Cu(%) |
| 1.8-2.5 | ≦0.2 | ≦0.05 | ≦0.06 | 0.2-1.0 | ≧15 | 76.0-79.0 |
Similar Material
| Steel Type | Standard | Al(%) | Mn(%) | Pb(%) | Fe(%) | Ni(%) | Zn(%) |
| C6872T | CNS 5127 | 1.8-2.5 | ≦0.2 | ≦0.05 | ≦0.05 | 0.2-1.0 | ≧15 |
| C6872T | JIS H3300 | 1.8-2.5 | ≦0.2 | ≦0.05 | ≦0.06 | 0.2-1.0 | ≧15 |
| C68700 | ASTM B111 | 1.8-2.5 | ≦0.07 | ≦0.06 | ≧15 | ||
| CuZn20Al | DIN 17660 | 1.8-2.3 | 0.020-0.035 | ≦0.07 | ≦0.07 | ≧15 |
Product Range
• Outside diameter : 5.0 mm(min) ~ 65 mm(max)
• Wall thickness : 0.5mm(Min.)
• Length : 27,000mm(Max.)
• Product capacity per month : 500 M.T.
• U-bend tube (smallest bending radius ≥ 2 x tube O.D.)
Application
• Heat Exchanger
• Condenser
• Evaporator
• Boiler
