Yuhong Holding Group Co.,LTD
 |
| Place of Origin: | CHINA |
| Brand Name: | YUHONG |
| Certification: | ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008 |
| Model Number: | ASTM A182 F316L Stainless Steel Socket Weld Union |
| Minimum Order Quantity: | 100pcs |
|---|---|
| Packaging Details: | PLYWOOD CASE, PALLET |
| Delivery Time: | 5days |
| Payment Terms: | L/C, T/T |
| Product Name: | Socket Weld Pipe Union | Standard: | ASTM A182, ASME SA182 |
|---|---|---|---|
| Dimension: | ASME/ANSI B16.11, BS3799, MSS-SP-83 | Material: | A182 F304, F304L, F316L, F321, F347H, F310S, F904L, F51, F53, F55, F44, F60 |
| Size: | 1/8" To 4" | Classs: | 3000#,6000#,9000# |
| Application: | Industry, Natural Gas , Petroleum, Gas And Oil Pipes, Chemical | ||
| High Light: | Forged Stainless Steel Pipe Union,MSS SP-83 Stainless Steel Pipe Union,F316L Socket Weld Pipe Union |
||
MSS SP-83 ASTM A182 F316L Socket Weld Pipe Union Stainless Steel Forged Fittings
A stainless steel socket weld pipe union is a type of pipe fitting used for connecting and disconnecting two sections of pipes or tubes together. It consists of three components: a male end, a female end, and a nut. The male and female ends have socket weld connections, which means they are inserted into the pipes and welded to create a strong and leak-proof joint. The nut is used to secure and tighten the union.
This type of pipe union is commonly made of stainless steel to provide excellent corrosion resistance and durability. It is often used in applications where disassembly and reassembly of the piping system may be necessary, such as maintenance and repair work.
|
No. |
Material |
Size |
Sch. & Class |
Specification |
Item |
|
1. |
Forged Stainless Steel |
15 NB |
3000, 6000 |
A-182 |
|
|
2. |
Forged Alloy Steel |
15 NB |
3000, 6000 |
A-182 |
|
|
3. |
Forged Carbon Steel |
15 NB |
3000, 6000 |
A-105 |
|
Stainless Steel in Grade |
ASTM A 182 F |
304, 304L, 304H, 316, 316L, 316LN, 316Ti, 309, 310S, 317L, 321, 347, 410, 420, 440C Etc |
|
Alloy Steel in Grade |
ASTM A 182 |
F5, F9, F11, F12, F21, F22 & F91. |
|
Othe rGrade Available |
A-350 LF2 |
|
|
Other Forms |
Compression Fitting / Instrumentation / Hydraulic Fitting & Also As Per Drawing |
|
|
Other Material like Non Ferrous Metals & Nickel Base Alloys |
Fittings are also available in Copper (Dow), Brass, Aluminium, Cupro Nickel (90/10, 70/30), Hastelloy (C-276), Nickel (200, 201, 205), Monel (K400, K500), Inconel (600, 800), Alloy 20, Duplex, Phosphorus Bronze (90/10, PB2) Etc. as per ASTM, ASME, BS, IS & DIN Standard |
|
|
Test Certificate |
|
|
|

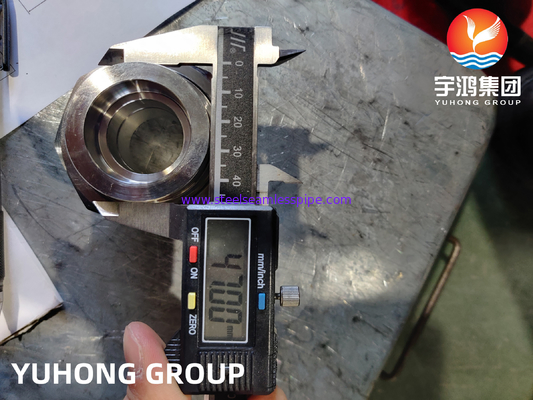

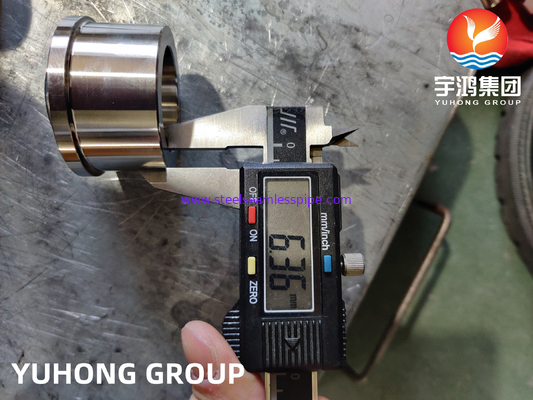

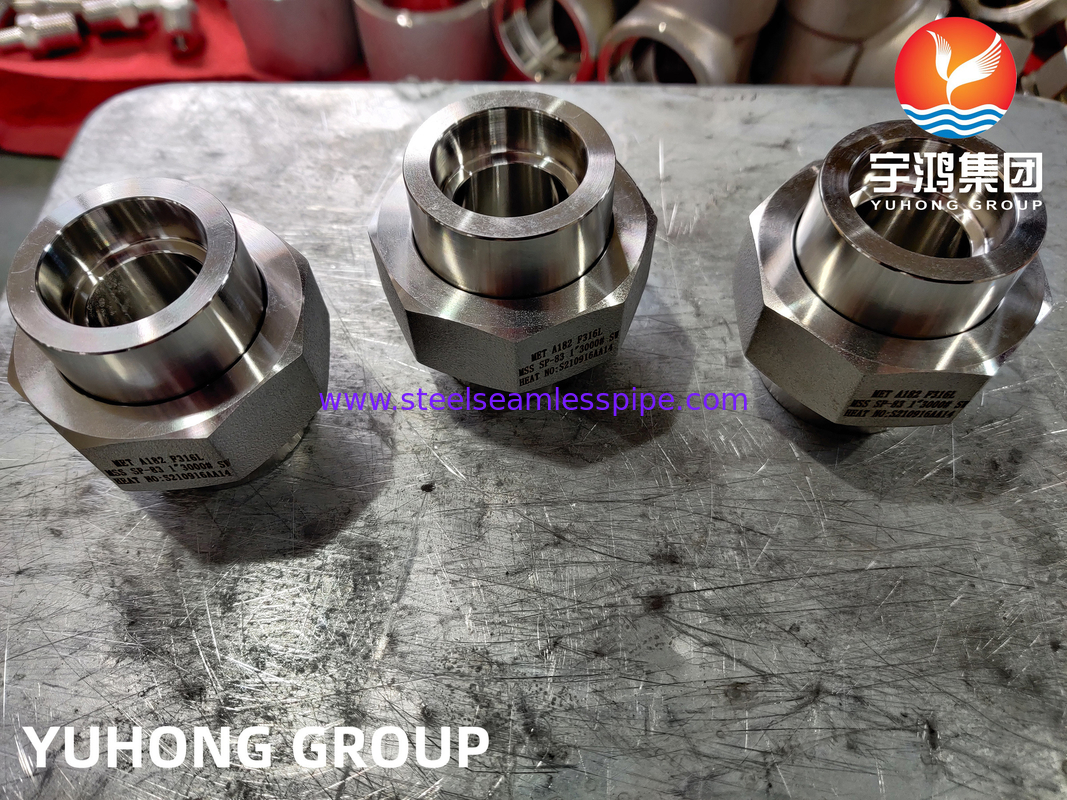

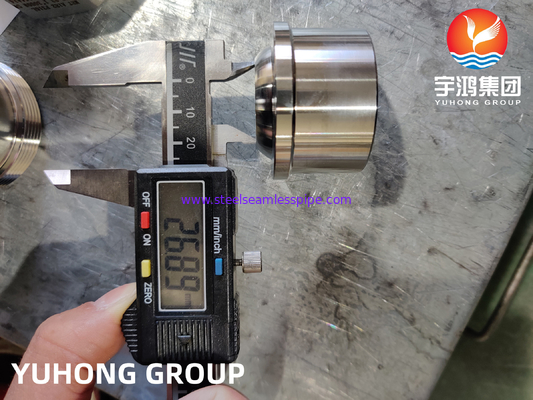

Product Pictures and Drawings |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Socket Weld Dimensional Data |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
1/8" to 4" class 3000 socket weld, 1/8" to 4" class 6000 socket weld, 1/2" to 2 " class 9000 socket weld |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
ASME/ANSI B16.11 - 2001 - Forged Steel Fittings, Socket-Welding and Threaded
This Standard covers ratings, dimensions, tolerances, marking and material requirements for forged fittings, both socket-welding and threaded.
ASME/ANSI B16.25 - 1997 - Buttwelding Ends
The Standard covers the preparation of butt welding ends of piping components to be joined into a piping system by welding. It includes requirements for welding bevels, for external and internal shaping of heavy-wall components, and for preparation of internal ends (including dimensions and tolerances). Coverage includes preparation for joints with the following.
(a) no backing rings;
(b) split or non continuous backing rings;
(c) solid or continuous backing rings;
(d) consumable insert rings;
(e) gas tungsten are welding (GTAW) of the root pass. Details of preparation for any backing ring must be specified in ordering the component.
ASME/ANSI B16.5 - 1996 - Pipe Flanges and Flanged Fittings
The ASME B16.5 - 1996 Pipe Flanges and Flange Fittings standard covers pressure-temperature ratings, materials, dimensions, tolerances, marking, testing, and methods of designating openings for pipe flanges and flanged fittings.
The standard includes flanges with rating class designations 150, 300, 400, 600, 900, 1500, and 2500 in sizes NPS 1/2 through NPS 24, with requirements given in both metric and U.S units. The Standard is limited to flanges and flanged fittings made from cast or forged materials, and blind flanges and certain reducing flanges made from cast, forged, or plate materials. Also included in this Standard are requirements and recommendations regarding flange bolting, flange gaskets, and flange joints.
ASME/ANSI B16.9 - 2001 - Factory-Made Wrought Steel Buttwelding Fittings
This Standard covers overall dimensions, tolerances, ratings, testing, and markings for wrought factory-made buttwelding fittings in sizes NPS 1/2 through 48 (DN 15 through 1200).
Applications
high pressures
Oil and Gas Industry
Pharmaceutical and Food Processing
Power Generation
Water and Wastewater Treatment
HVAC (Heating, Ventilation, and Air Conditioning)
