Yuhong Holding Group Co.,LTD
Place of Origin: | China |
Brand Name: | YUHONG |
Certification: | ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2015 |
Model Number: | ASME SA182 F304 |
Minimum Order Quantity: | 1PC |
---|---|
Price: | Negotiable |
Packaging Details: | Ply-wooden Case /Iron Case/ Bundle with plastic Cap/Woven Case |
Delivery Time: | Depends on quantity |
Payment Terms: | T/T, L/C |
Supply Ability: | 1000 tons per month |
Specification: | ASTM A182, ASME SA182 | Grade: | F304/L/H/N |
---|---|---|---|
Pressure: | Class 150 To Class 15000 | Flange Type: | WN, SO , BL , SW, SPECTACLE, LJP , ORINFICE |
Non Destructive Test: | Ultrsonic Test -ASTM E213, MT, PT | Size: | 1/4" NPS TO 48" NPS |
High Light: | Chemical Industry Stainless Steel Flange,SORF Stainless Steel Flange,SUS304 SORF Flange |

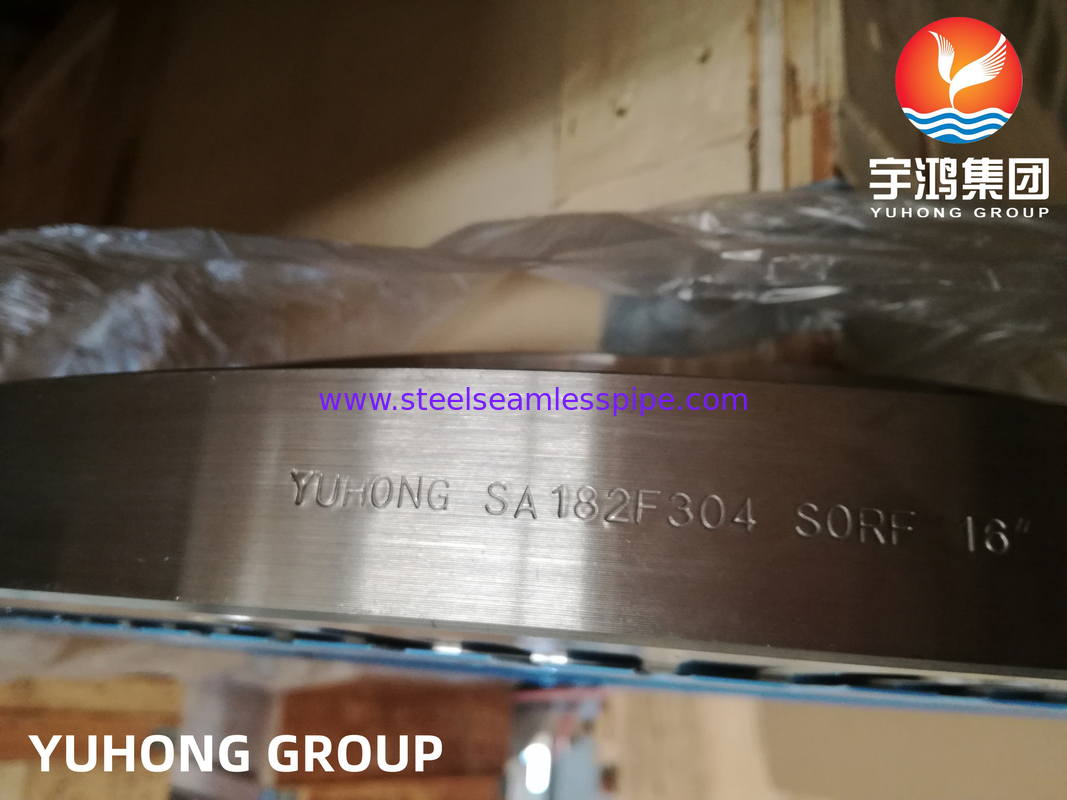

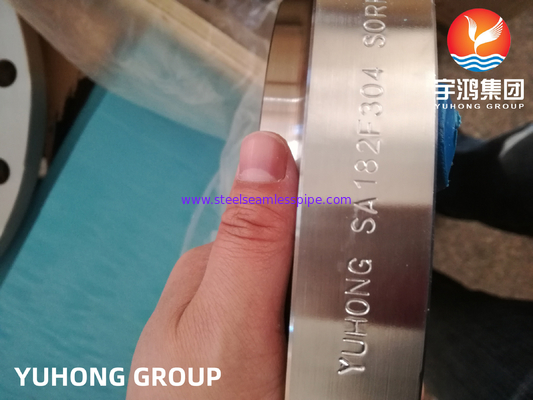

Stainless Steel Forged Flange ASME SA182 F304 1.4301 08Х18Н10 SORF
Regarded to be the most basic stainless steel, the Stainless Steel 304 Flanges are also known as 18-8 grade with a higher content of chromium and low carbon content. The presence of low carbon content in the alloy restricts the formation of carbide precipitates during welding along with minimizing the 304 Stainless Flanges from being susceptible to intergranular corrosion.
Flanges made from alloy 304 is also known to resists moderately aggressive organic acids like acetic acid. The nickel present in the alloy is what provides resistance to the ASTM A182 F304 Flange in moderately reducing solutions for e.g. in pure phosphoric acid, whatever the concentration, in cold solutions as well as up to 10% diluted hot solutions.
Slip-on flanges, also known as "hubbed flanges", have a hub with a very low profile. This type of flange is usually connected to a pipe by one or two fllet welds (one outside the flange and one inside the flange), it is however possible to use only a single weld. Slip-on flanges are produced in many sizes and favoured for lower pressure applications.
When using a slip-on flanges, the pipe will be inserted into the flange as a whole.
What are the Characteristics of A182 F304 flange?
A182 F304 socket weld flange constitutes chromium 15% to 20% content which makes them strong resistant against oxidation and harsh environmental conditions.
The low carbon content in the ASTM A182 F304 weld neck flange material makes them excellent resistant against intergranular corrosion.
These are strongly welded at the end of pipes using socket weld and connect two pieces of pipe together to provide leak-proof system.
Chemical Composition of F304:
Gr. | C | Mn | Si | P | S | Cr | Mo | Ni | N | |
---|---|---|---|---|---|---|---|---|---|---|
F304 | Minimum | – | – | – | – | – | 18.0 | – | 8.0 | – |
Maximum | 0.08 | 2.0 | 0.75 | 0.045 | 0.030 | 20.0 | 10.5 | 0.10 |
Mechanical Properties:
Gr. | Tensile Strength (MPa) minimum | Yield Strength 0.2% Proof (MPa) minimum | Elongation (% in 50mm) minimum | Hardness | |
---|---|---|---|---|---|
Rockwell B (HR B) max | Brinell (HB) max | ||||
Stainless Steel 304 | 515 | 205 | 40 | 92 | 201 |
A182 F304 SORF Flange Specification Chart
Specifications List | ASTM A182 / ASME SA182 |
---|---|
Class / Pressure Rating | 150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64 etc. |
Size Chart | 1/4″ to 48″ |
ASTM Standards | ANSI/ASME B16.5, B16.48, BS4504, B 16.47 Series A & B, BS 10, EN-1092, DIN, etc. |
Standards | ANSI, ASME, BS, DIN, EN etc. |
Stainles Steel 304 Flange Range
Stainless Steel 304 Flange Specification | ASTM A182 / ASME SA182 |
Stainless Steel 304 Flange Manufacturing Process | Hot Forging / Rolling / Machining |
Stainless Steel 304 Flange Other Grades | 202 / 304 / 304L / 304H / 309S / 310S / 316 / 316L / 316Ti / 317L / 321 / 321H / 347 / 347H / 904L etc. UNS No. - UNS S30400, UNS S30403, UNS S31008, UNS S31620, UNS S31603, UNS S31603, UNS S31635, UNS S31703, UNS S32100, UNS S34700, UNS S34709, UNS S8904 EN No. - 1.4301, 1.4307, 1.4845, 1.4401, 1.4404, 1.4571, 1.4438, 1.4541, 1.4550, 1.4551, 1.4539 |
Stainless Steel 304 Flange Outer Diameter | 1/2" NB TO 64" NB |
Stainless Steel 304 Flange Pressure Class | Class 150#, Class 300#, Class 400#, Class 600#, Class 900#, Class 1500#, Class 2500# or As Per Custom Requirement PN 6, PN 10, PN 16, PN 25 and PN 40 etc |
Stainless Steel 304 Flange Schedule | Sch 10s TO Sch XXS or As Per Custom Requirement |
Stainless Steel 304 Flange Facing | Flate Face (FF), Raised Face (RF), Ring Type Joint (RTJ) |
Stainless Steel 304 Flange Dimension | ASME B16.5, ASME B16.47 SERIES A, ASME B16.47 SERIES B, ASME B16.36, BS10, EN1092-1:2013, MSS SP44, ASA, API-605, ISO 7005, ISO 15590-3, DIN 2631--2638, DIN 2573-2576, DIN 2527, DIn 2641-2642, DIN 2565-2566, DIN2502, AWWA, AS2129 TABLE C, D, E, F, J etc.. |
Stainless Steel 304 Flange Types | Welding Neck Flange, Slip On Flange, Socket Weld Flange, Lap Joint Flange, Threaded Flange, Blind Flange, Orifice Flanges, Plate Flange, Long Welding Neck Flanges, Weldoflange, Nipoflange, Expander Flange, Reducing Flange, WNRF Flange, SORF Flange, SWRF Flange, Custom Flange as per Drawing etc. |
A182 Gr F304 SORF Physical Properties:
Gr. | Density (kg/m3) | Elastic Modulus (GPa) | Mean Coefficient of Thermal Expansion (m/m/0C) | Thermal Conductivity(W/m.K) | Specific Heat 0-1000C(J/kg.K) | Electrical Resistivity (n.m) | |||
---|---|---|---|---|---|---|---|---|---|
0-1000C | 0-3150C | 0-5380C | at 1000C | at 5000C | |||||
A182 304 | 8000 | 193 | 17.2 | 17.8 | 18.4 | 16.2 | 21.5 | 500 | 720 |
Equivalent Material of F304:
STANDARD | SA 182 F304 |
DIN | 1.4301 |
WERKSTOFF No. | 1.4301 |
AFNOR | Z7CN18‐09 |
BS | 304S31 |
EN | SUS 304 |
JIS | SUS 304 |
GOST | 08Х18Н10 |
UNS | S30400 |
Applications:
Slip-on flanges are suitable for low temperature and pressure application, such as:
-Chemical Industry
-Water Pipeline Industry
-Nuclear Power Plant
-Fabrication Industry
-Natural Gas Industry
-Oil And Gas Industry
