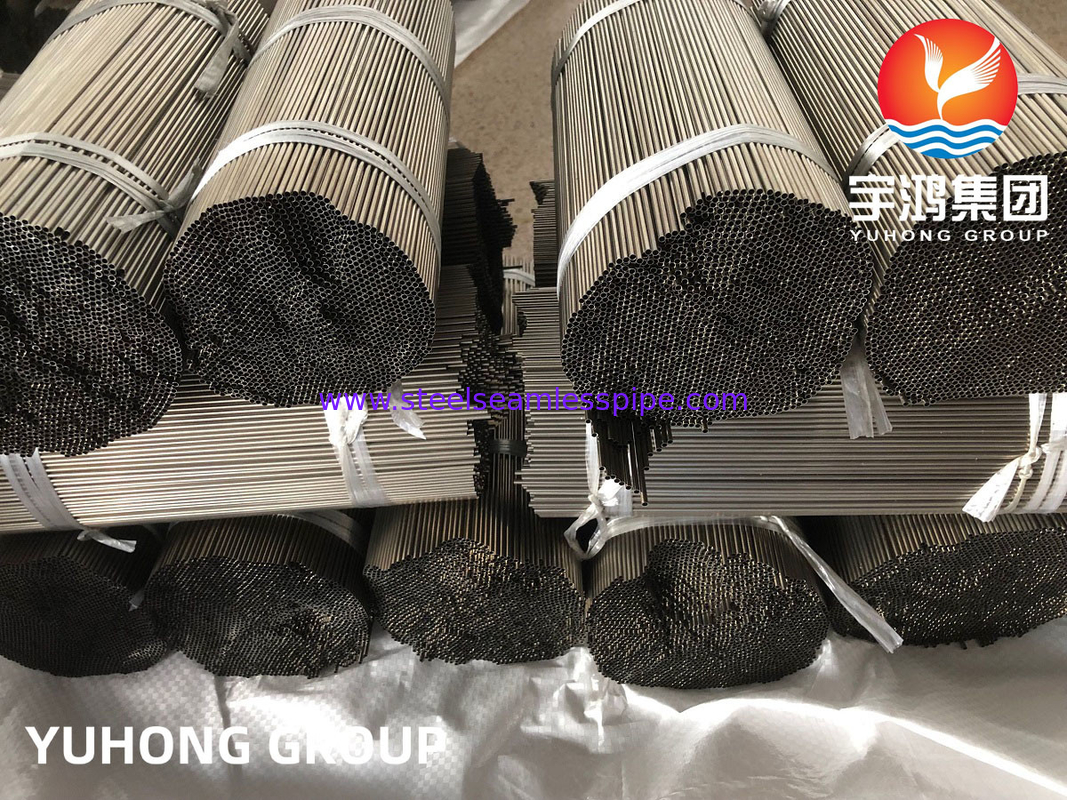

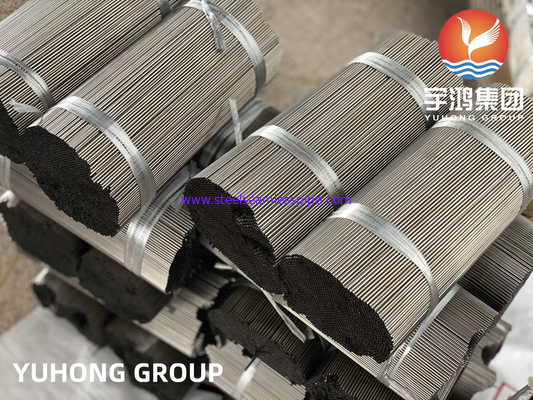

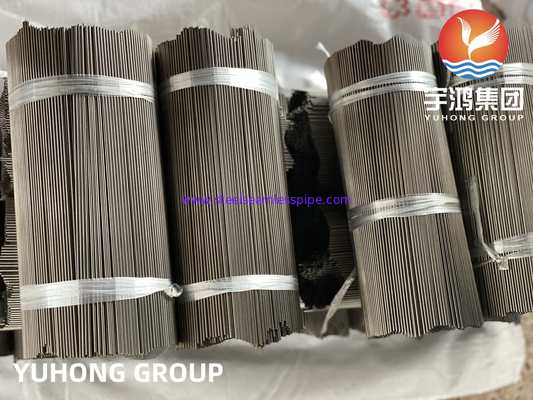

TP304 / TP316L Stainless Steel Capillary Tubes For Sclerotherapy Needle NDT Available

TP304 / TP316L Stainless Steel Capillary Tubes For Sclerotherapy Needle NDT Available

  • TP304 / TP316L Stainless Steel Capillary Tubes For Sclerotherapy Needle NDT Available
  • TP304 / TP316L Stainless Steel Capillary Tubes For Sclerotherapy Needle NDT Available
  • TP304 / TP316L Stainless Steel Capillary Tubes For Sclerotherapy Needle NDT Available
TP304 / TP316L Stainless Steel Capillary Tubes For Sclerotherapy Needle NDT Available
Product Details:
Place of Origin: China
Brand Name: Yuhong Group
Certification: ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008
Model Number: ASTM A269
Payment & Shipping Terms:
Minimum Order Quantity: 100 kgs
Price: Negotiable
Packaging Details: Ply-wooden Case /Iron Case/ Bundle
Delivery Time: 7 days
Payment Terms: L/C, T/T
Contact Now
Detailed Product Description
Material: TP304/TP316L NDT: PT/HT/UT
Packaging: Ply-wooden Case /Iron Case/ Bundle Application: Condeser
High Light:

TP316L Stainless Steel Capillary Tubes

,

Condenser Stainless Steel Capillary Pipe

,

NDT Stainless Steel Capillary Tubes

Capillary Tubes For Sclerotherapy Needle TP304 Stainless Steel Seamless Tube





Injector Needles- Sclero Therapy Needle Used for Endoscopic Injection into Esophageal Varices above O.G.Junction. Used for Endoscopic injection to introduce a sclerosing agent of vasoconstrictor into selected sites to control actual or potential bleeding lesions. The injection of saline to aid in Endoscopic Mucosal Resection (EMR), Polypectomy procedures and to control non-variceal haemorrhage.



The Benefits of Stainless Steel Capillary Tubing

High precision, seamless stainless steel capillary tubing is used in a wide range of instrumentation measurement applications. Based on heavy wall, small diameter construction (typically 1/8” or less), this tubing is used in critical applications from nuclear reactors to resistojets in aerospace.
Because high quality seamless capillary tube is made from a single homogeneous piece of steel with a continuous, uninterrupted grain structure, it is more suitable for applications which require consistent material throughout the tubing. Welds and mechanical fittings permit discontinuities that can encourage crevice corrosion and mechanical failure.
High quality stainless steel allows for the formation of a passive protective layer at the surface in the presence of oxygen. Poor heat treatment and welding can affect this layer by changing the critical chemical composition in the Heat Affected Area (HAZ) due to the different alloying elements having differing melting points.



Critical Uses

Technological advancements in the life sciences market have resulted in smaller assemblies working under increased operating pressures. Ultra-small diameter capillary tubing is crucial to the performance of High Performance and Ultra-Performance Liquid Chromatography (HPLC and UPLC) equipment. This capillary tubing, often with outside diameters less than 1/16th inch (1.59 mm) is used in many critical applications. In addition, seamless capillary tubing in crucial applications increases necessary sampling efficiencies.
HPLC is one of the most versatile analysis “tools” in the laboratory. Even so, there are common ‘hurdles’ many chromatographers face, such as; band broadening, poor resolution, and undesirable peak shapes. When selecting tubing for HPLC applications it is crucial to consider:

  • Best material
  • Best size
  • Proper tubing preparation (flat, burr-free end and thru-hole centered cut)

Many of these applications require smooth-bore capillaries to limit Newtonian flow through the sample loop to ensure in a better sample read.
Certain specialized manufacturing techniques allow for critical product cleanliness required in these applications. Impurities, such as oil, grease and other foreign material leftover from the manufacturing process of stainless steel capillary tubing can result in cross-contamination and inaccurate sample readings. Conventional tubing typically requires additional cleaning on-site, prior to installation. To minimize the risk of cross-contamination and save time, special processes have been developed, during which tubing is subjected to high pressure and temperature cleaning immediately following the manufacturing process to remove residual impurities. This ensures tubing with fewer impurities and allows for sample integrity, providing repeatably consistent results.

Stainless Steel Capillary Tube Chemical Composition

The below table shows the chemical composition of the used for Stainless Steel Capillary Tube:

STAINLESS STEEL CAPILLARY TUBE GRADES UNS C Mn P S Si Cr Ni Mo Ti Nb N
TP304 S30400 0.08 2 0.045 0.03 1 18.0-20.0 8.0-11.0
TP304L S30403 0.035 2 0.045 0.03 1 18.0-20.0 8.0-13.0
TP316 S3160 0.08 2 0.045 0.03 1 16.0-18.0 11.0-14.0 2.0-3.0
TP316L S31603 0.035 2 0.045 0.03 1 16.0-18.0 10.0-14.0 2.0-3.0


Stainless Steel Capillary Tube Mechanical Properties

Material Heat Temperure Tensile Strength Yield Strength Elongation %, Min
Treatment Min. Ksi (MPa), Min. Ksi (MPa), Min.
  º F(º C)
TP304 Solution 1900 (1040) 75(515) 30(205) 35
TP304L Solution 1900 (1040) 70(485) 25(170) 35
TP316 Solution 1900(1040) 75(515) 30(205) 35
TP316L Solution 1900(1040) 70(485) 25(170) 35


Stainless Steel Capillary Tube Equivalent Grades

GRADE UNS NO DIN/WERKSTOFF
Stainless Steel Capillary Tube 304 S30400 1.4301
Stainless Steel Capillary Tube 304L S30403 1.4306
Stainless Steel Capillary Tube 316 S31600 1.4436
Stainless Steel Capillary Tube 316L S31603 1.4404





Applications

High precision capillary tube is used in many Instrumentation systems which include the use of:

  • HPLC tubing
  • UPLC tubing
  • Coriolis tubing
  • Remote seal pressure transmitter tubing
  • Sheath tubing
  • Hydraulic tubing
  • Room air conditioners or through-wall air conditioners
  • Portable air conditioners
  • Portable dehumidifiers
  • Residential freezer
  • Residential refrigerators
  •
  • Refrigeration systems of various types in up to 6-tons of cooling capacity

Some applications require long lengths of stainless steel coil tubing where joints (welds or fittings) are not acceptable over long runs. However, there are many critical capillary applications which require short lengths of tubing.
