Yuhong Holding Group Co.,LTD
 |
| Place of Origin: | CHINA |
| Brand Name: | YUHONG |
| Certification: | ABS, ISO 9001-2008, GL, DNV, BV, NK, PED, AD 2000, GOST9941-81 |
| Model Number: | ASTM A268 / ASME SA268 TP430Ti Stainless Steel Seamless Tube |
| Minimum Order Quantity: | 500KGS |
|---|---|
| Packaging Details: | Plywood Case /Iron Case/ Bundle with plastic Cap/requirements |
| Delivery Time: | 7 DAYS |
| Payment Terms: | L/C, T/T |
| Product Name: | Stainless Steel Seamless Tube | Standard: | ASTM A268, ASME SA268 |
|---|---|---|---|
| Material: | TP410/TP405/TP420/TP430/TP430Ti/TP403/TP409/TP444/TP439/TP446,etc | Type: | Seamless, Welded |
| Surface: | Polished, Bright Annealed, Picked And Annealed | End: | Beveled End, Plain End |
| Technique: | Cold Drawn, Cold Rolled, Extrusion, Hot Rolled Tube | Application: | Heat Exchanger, Heater, Condenser, Machining, Bearing Machining, API Service |
| Package: | Plywood Case /Iron Case/ Bundle With Plastic Cap/requirements | Highlight: | ASTM A268 TP430Ti Stainless Steel Seamless Tube |
| High Light: | 1.4510 Stainless Steel Seamless Tube,TP430Ti Stainless Steel Seamless Tube,Condenser Stainless Steel Round Tube |
||

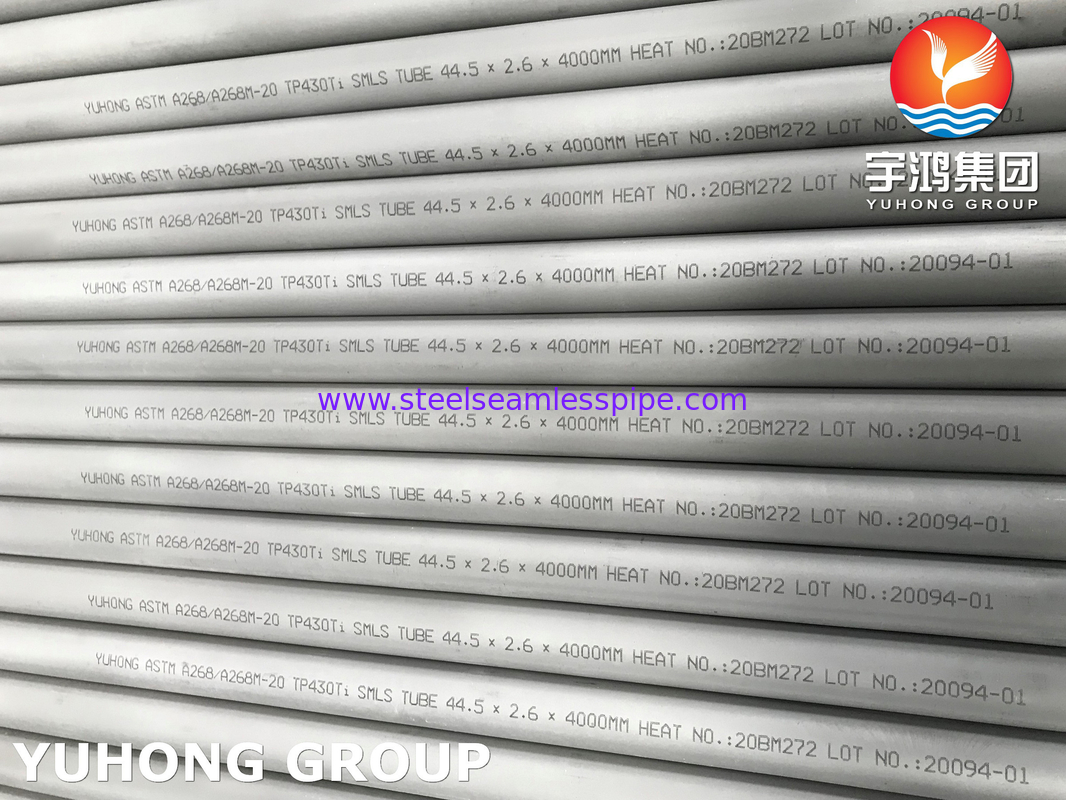

ASTM A268 TP430Ti / UNS S43036 / 1.4510 Stainless Steel Seamless Tube
400 Series Material Ferritic and Martensitic Stainless Steel Tubing, produced to applications where better mechanical properties, hardness, chloride induced pitting, crevice and stress corrosion cracking may be considered. And the high quality tube and pipe with such material can be also used for other specific applications as petro/gas industry, bearing machining ... SS 430Ti Pipes & Tubes are extremely Heat and Oxidation resistant, High temperature quality and Crawl protection.
ASTM A268 TP430Ti Stainless Steel Seamless Tube Specification
| Outside Diameter | 6-203mm |
| Wall Thickness | 0.5-25mm |
| Length | Up to 25m |
| Standard | ASTM A268, ASME SA268 |
| Grade | TP410/TP405/TP420/TP430/TP430Ti/TP403/TP409/TP444/TP439/TP446,etc. |
| Delivery Condition | Pickled, Polished, Bright Annealed |
| Technique | Seamless/Welded |
| Application | Heat Exchanger, Heater, Condenser, Machining, Bearing Machining, API Service… |
| Marking | Standard, Grade, Size, Heat Number, Lot Number ... |
| Package | Bundle with plastic Cap, Plywood case, or as per customer's requirement. |
| Quality Requirement | Mill Test Certificate (EN 10204/3.1); 3.2, Third Part Inspection is acceptable. |
ASTM A268 TP430Ti Stainless Steel Tube Equivalent Grades
| Euronorm | Nom. | AISI / ASTM / UNS |
|---|---|---|
| 1.4510 | X3CrTi17 | 430Ti |
ASTM A268 TP430Ti Stainless Steel Tube Chemical composition ( weight % )
| Grade | C | Si | Mn | P | S | Cr | Ti | Ni |
| TP430Ti, UNS S43036 | 0.10 max | 1.00 max | 1.00 max | 0.040 max | 0.030 max | 25.0~27.5 | 5XC min, 0.75 max. | 0.75 max |
ASTM A268 TP430Ti Stainless Steel Tube Mechanical properities
| Tensile strength Mpa, min | Yield strength Mpa, min | Elongation in 2'' %, min. |
| 415 | 240 | 20 |
Material Grades
|
American Standard |
Austenitic Steel: TP304,TP304L,TP304H, TP304N, TP310S,TP316,TP316L,TP316Ti,TP316H, TP317,TP317L, TP321, TP321H,TP347, TP347H,904L… Duplex Steel : S32101,S32205,S31803,S32304,S32750, S32760 Others:TP405,TP409, TP410, TP430, TP439,... |
|
Europen Standard |
1.4301,1.4307,1.4948,1.4541,1.4878,1.4550,1.4401,1.4404,1.4571,1.4438, 1.4841,1.4845,1.4539,1.4162, 1.4462, 1.4362, 1.4410, 1.4501 |
|
GOST Standard |
08Х17Т,08Х13,12Х13,12Х17,15Х25Т,04Х18Н10,08Х20Н14С2, 08Х18Н12Б,10Х17Н13М2Т,10Х23Н18,08Х18Н10,08Х18Н10Т, 08Х18Н12Т,08Х17Н15М3Т,12Х18Н10Т,12Х18Н12Т,12Х18Н9, 17Х18Н9, 08Х22Н6Т, 06ХН28МДТ |
Applications
1. Off-Shore Oil Drilling Companies
2. Power Generation
3. Petrochemicals
4. Gas Processing
5. Specialty Chemicals
6. Pharmaceutical Equipment
7. Sea Water Equipment
8. Heat Exchangers
9. Condensers
10. Pulp & Paper Industry
