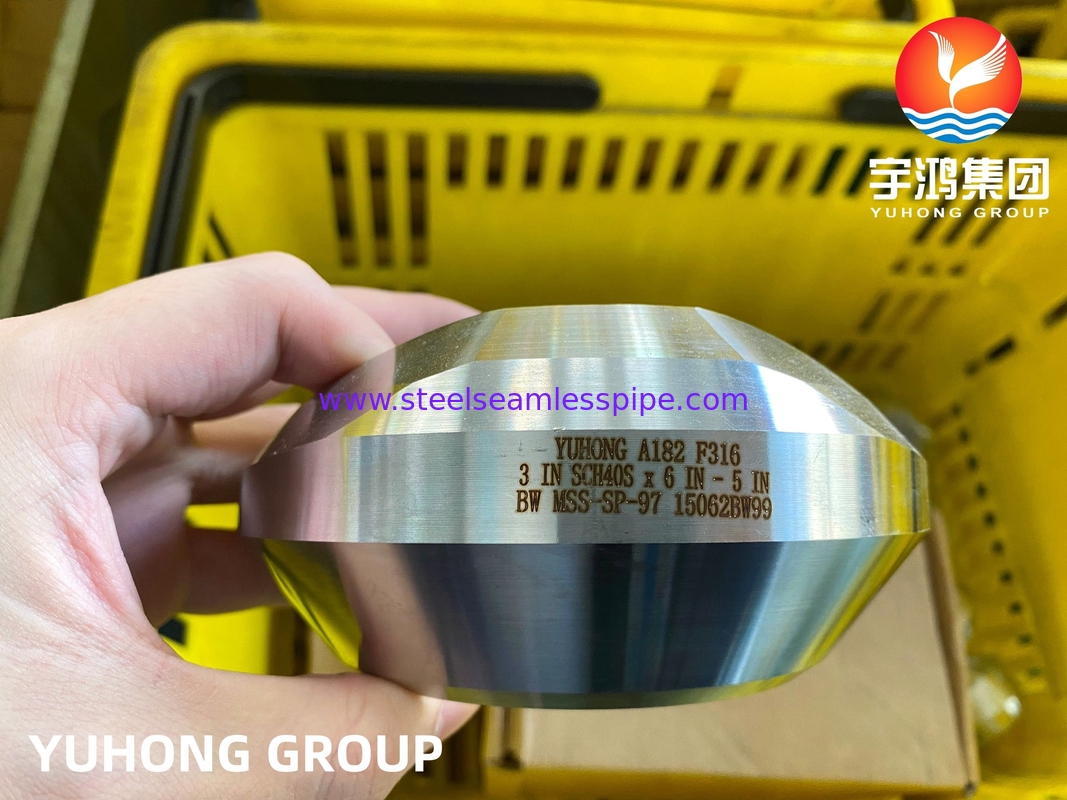

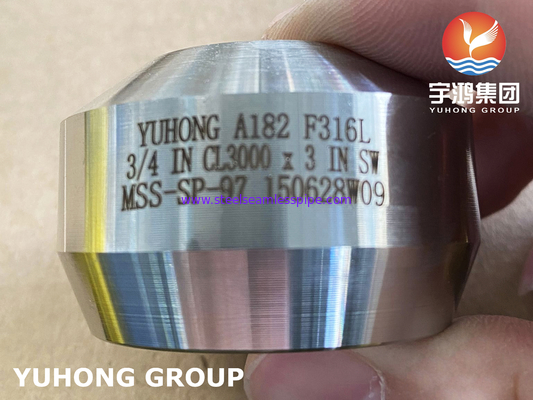

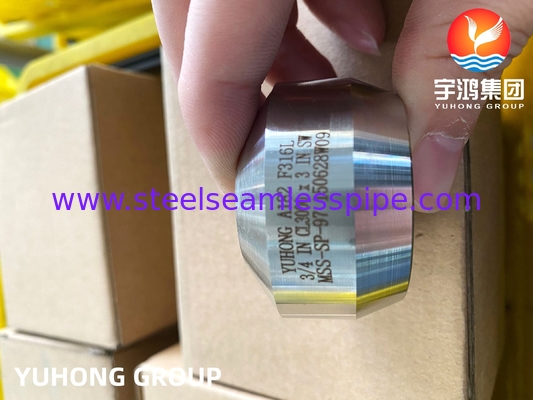

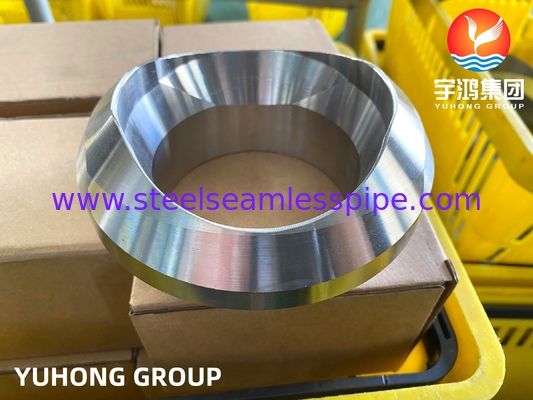

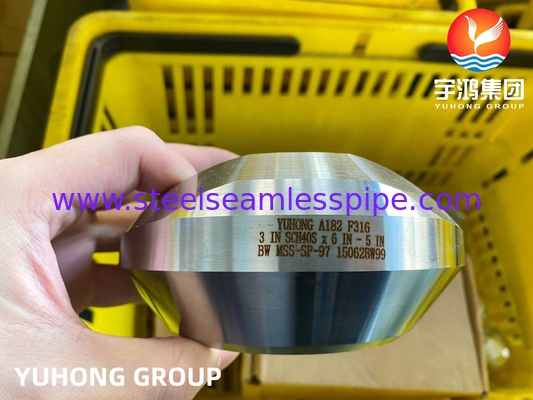

ASTM A182 F316L WELDOLET MSS SP 97 STAINLESS STEEL FORGED FITTING



What is Weldolet


Weldolet is the most common among all pipe olet. It is ideal for high pressure weight application, and is welded onto the outlet of the run pipe. The end are bevelled to facilitate this process, and therefore the weldolet is consider a butt weld fitting. Weldolet is a branch butt weld connection fitting that is adhered to outlet pipe to minimizes stress concentrations. And it provides overall reinforcement.Normally it has the same or a higher schedule than the run pipe schedule, and offers a variety of forged material grades, such as ASTM A105, A350, A182 etc.

Weldolet has been widely used in recent years. It replacing traditional branch pipe connection types such as reducing tees, reinforcing plates, and reinforced pipe sections. It has outstanding advantages such as safety and reliability, cost reduction, simple construction, improved medium flow channels, series standardization, and convenient design selection. Especially in high-pressure, high-temperature, large-diameter, and thick walled pipelines, replacing traditional branch pipe connection methods.

ASTM A182 F316/F316L Equivalent Grade
