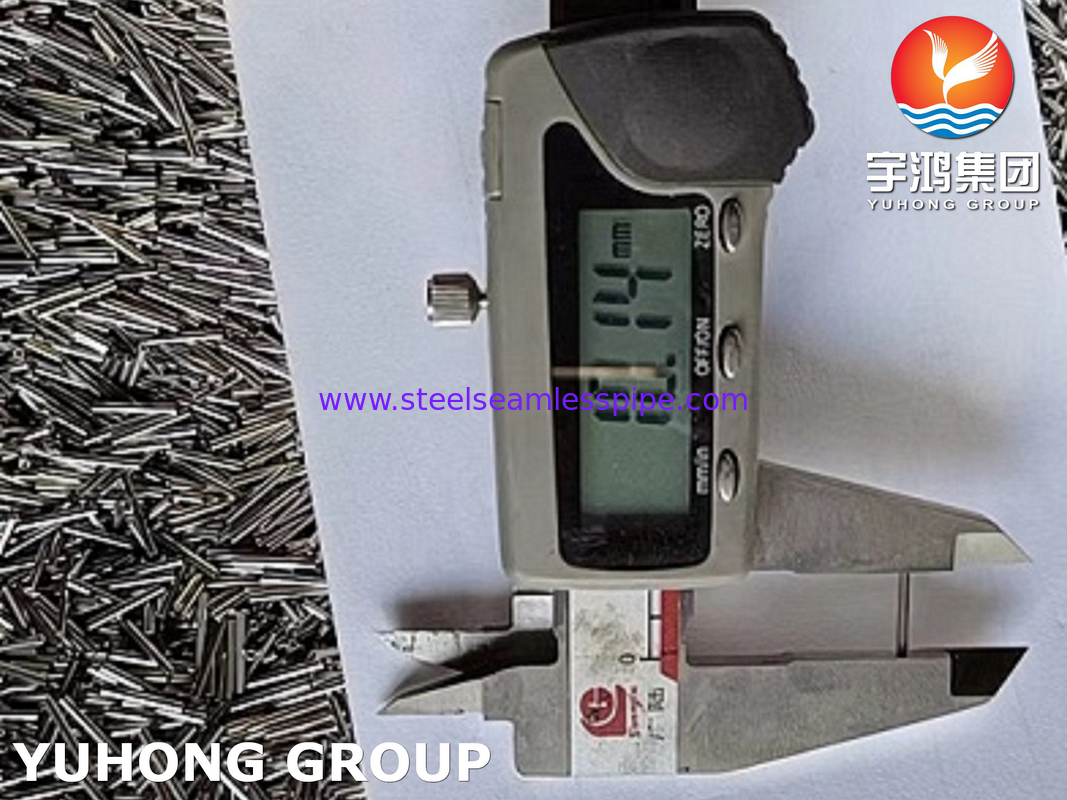

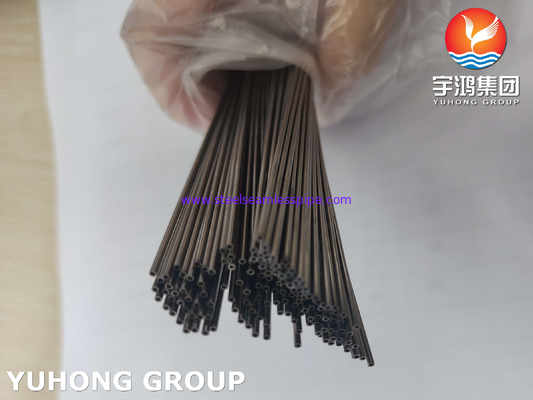

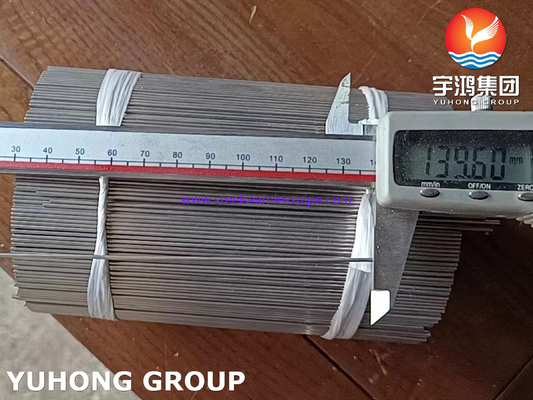

Stainless Steel Capillary Tube TP316L TP304L ASTM A213 A269 Needle Tube

Stainless Steel Capillary Tube TP316L TP304L ASTM A213 A269 Needle Tube

  • Stainless Steel Capillary Tube TP316L TP304L ASTM A213 A269 Needle Tube
  • Stainless Steel Capillary Tube TP316L TP304L ASTM A213 A269 Needle Tube
  • Stainless Steel Capillary Tube TP316L TP304L ASTM A213 A269 Needle Tube
Stainless Steel Capillary Tube TP316L TP304L ASTM A213 A269 Needle Tube
Product Details:
Place of Origin: CHINA
Brand Name: YUHONG
Certification: ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008
Model Number: TP316L , TP304,TP304L,SUS316L,SUS304
Payment & Shipping Terms:
Minimum Order Quantity: 1PC
Packaging Details: PALLET,PLYWOOD CASE
Delivery Time: 7DAYS
Payment Terms: L/C, T/T
Contact Now
Detailed Product Description
OD: 0.1MM TO 25MM TYPE: SEAMLESS,WELDED
Standard: A269 , EN10216-5,DIN 2462-1,ISO 1127 Application: Medical, Industry, Decoration, Construction, Ornament
High Light:

Stainless Steel Capillary Tube TP316L

,

Seamless Stainless Steel Needle Tube

,

ASTM A213 Stainless Steel Capillary Tube

Stainless Steel Capillary Tube TP316L , TP304L , ASTM A213, A269 Needle Tube



The main aim of the capillary tube isto reduce pressure. It is used in laboratories for collecting the different samples of liquid. It is used for checking concentrations, molarity, molality, etc. Capillary tubes can be used in refrigeration to control the flow of refrigerants.



Features
  • Tight tolerances
  • Free from oil & dust particles from inside
  • Rust resistant

Applications
  • Gas and liquid lines
  • Medical instruments (hypodermic needle)
  • Chromatography
  • Measurement in remote thermometer systems (with or without compensation)


Available Grades : 304, 304L, 316, 316L

Available Types : Seamless & Welded

Available Size : OD :Min. 0.5mm to 6mm

WT:0.02 to 2mm

Length Max.: 1000m /pc


** All Round Tubes are Quoted OD x Wall.
ID Listed in Center Area
Wall Thickness (mm)
O.D. (mm) 0.075 0.08 0.1 0.125 0.15 0.175 0.2 0.225 0.25 0.3 0.35 0.375 0.4 0.45 0.5 0.6 0.75 0.8 0.85 1 1.25 1.5 1.8 2 2.5
0.1
0.2   0.04
0.3 0.15 0.14 0.1
0.4     0.2
0.5     0.3   0.2
0.55
0.6     0.4
0.62         0.32
0.7       0.45 0.4
0.8         0.5 0.45     0.3   0.1
0.9             0.5
1     0.8   0.7   0.6   0.5 0.4 0.3
1.1             0.7
1.2             0.8             0.3
1.3               0.85 0.8
1.4             1
1.5         1.2   1.1   1   0.8   0.7   0.5
1.6             1.2     1         0.6   0.1
1.7             1.3
1.8                 1.3       1
1.9                 1.4
2     1.8       1.6   1.5 1.4         1
2.2                   1.6                 0.5
2.4                         1.6
2.5             2.1   2 1.9     1.7   1.5
2.6                   2
2.8                         2
3             2.6   2.5           2   1.5     1
3.2             2.8           2.4
3.25                                         0.75
3.5                       2.75     2.5 2.3
4                 3.5           3   2.5     2 1.5 1
4.5                 4           3.5
5         4.7   4.6   4.5           4   3.5     3   2 1.4
5.3                 4.8
5.5                                       3.5
6         5.7       5.5       5.2   5   4.5 4.4   4   3 2.4 2 1
