Yuhong Holding Group Co.,LTD
 |
| Place of Origin: | CHINA |
| Brand Name: | YUHONG |
| Certification: | TUV, API, PED, ISO, BV, SGS, GL, DNV |
| Model Number: | ASTM B564 Inconel 625 / 2.4856 / UNS N06625 WNRF Flange |
| Minimum Order Quantity: | 1PC |
|---|---|
| Packaging Details: | PLY-WOODEN CASE OR PALLET |
| Delivery Time: | 7 DAYS |
| Payment Terms: | L/C,T/T |
| Product Name: | Nickel Alloy Flange | Standard: | ASTM B564, ASME SB564 |
|---|---|---|---|
| Dimension: | ASME/ANSI B16.5, B16.47 | Material: | Inconel 625, DIN 2.4856, UNS N06625 |
| Flange Type: | WN, SO, BL, LWN, LJ | Flange Surface: | FF, RF, RTJ |
| Packing: | Plywood Case Or PALLET | Manufacturing Way: | Forging |
| Certificate: | TUV, API, PED, ISO, BV, SGS, GL, DNV | ||
| High Light: | Nickel Alloy WNRF Flange,2.4856 Nickel Alloy Flange,UNS N06625 Nickel Alloy Flange |
||

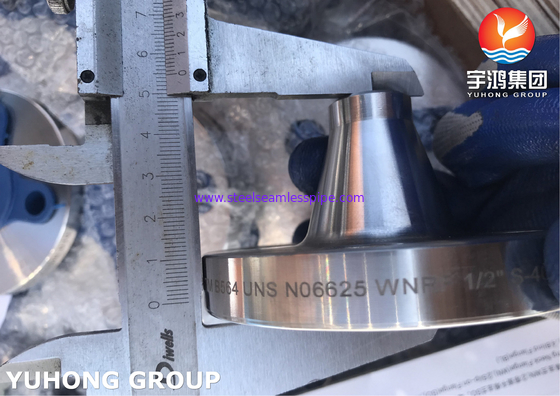

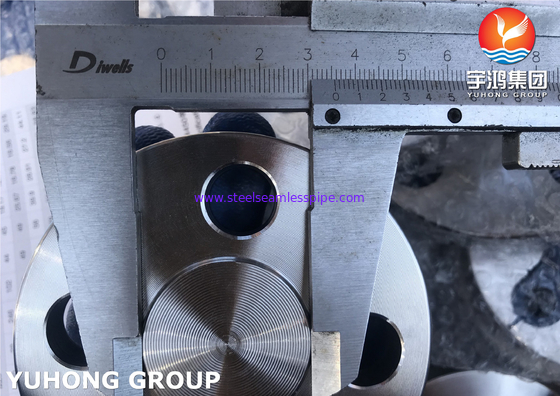

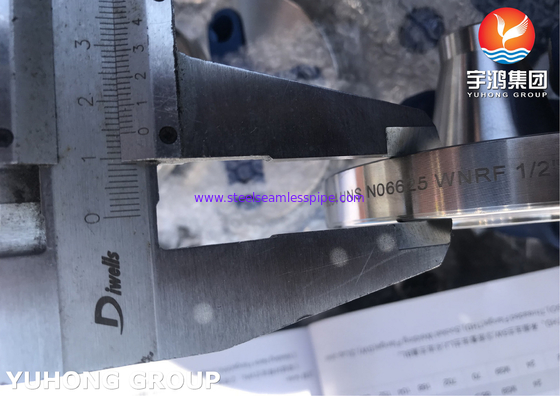

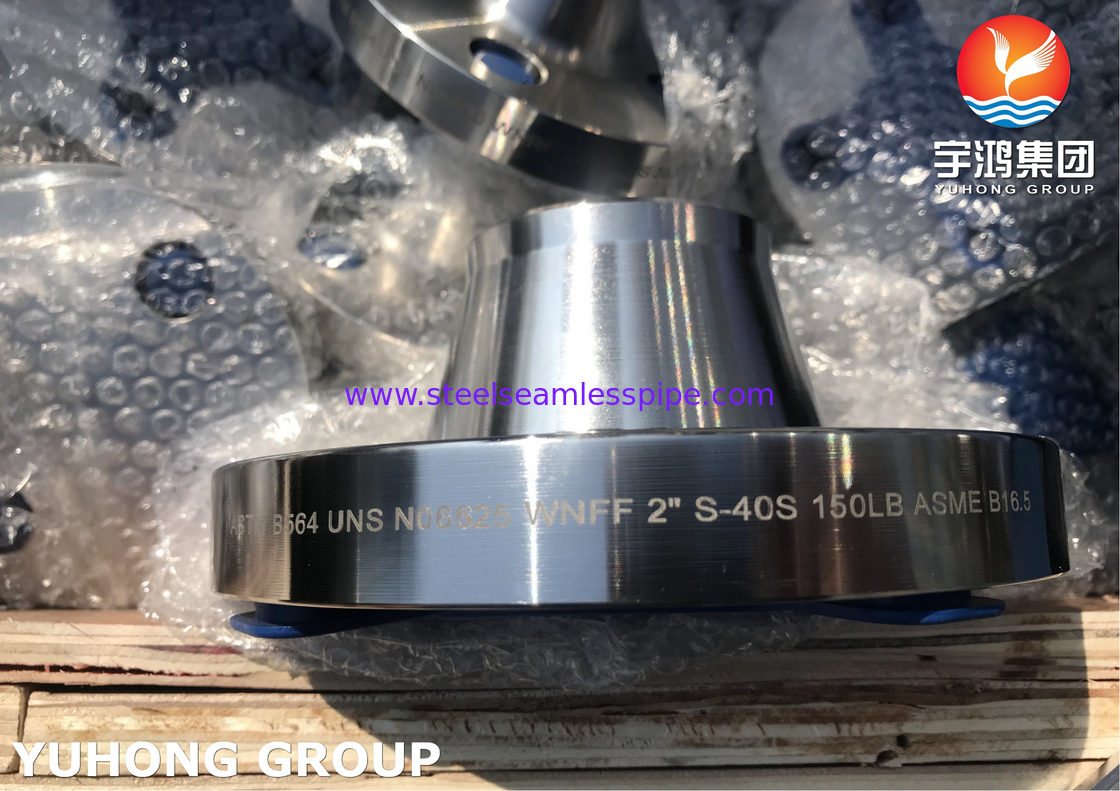

Nickel Alloy Flange , ASTM B564 Inconel 625 / 2.4856 / UNS N06625 WNRF Flange
YUHONG GROUP is one of the biggest projects pipeline products supplier in China. Our products contain steel pipe/tube,fittings, flanges. With decades of development, we have accumulated a great many clients all around the world and Yuhong products also won the great praise among the customers. The Inconel 625 Weld Neck flanges have high tensile strength and toughness that falls between a range that extends between cryogenic to 2000°F. This property if the alloy has been derived largely from the solid solution strengthening effects. The main applicants of Alloy 625 Forging Flanges include industries like marine and petroleum industries. Other advantages of using the Inconel 625 Flanges involves high fracture toughness as well as fabricability.
Equivalent of Inconel 625 Flanges
| STANDARD | WERKSTOFF NR. | BS | GOST | EN | UNS | JIS |
| Inconel 625 | 2.4856 | N06625 | NA 21 | ХН75МБТЮ | NiCr23Fe | NCF 625 |
Chemical Compositions of Inconel 625 Flanges
| Grade | C | Mn | Si | S | Cu | Fe | Ni | Cr |
| Inconel 625 | 0.10max | 0.50 max | 0.50 max | 0.015max | – | 5.0 max | 58.0 min | 20.0 – 23.0 |
Mechanical Properties of Inconel 625 Flanges
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Inconel 625 | 8.4 g/cm3 | 1350 °C (2460 °F) | Psi – 1,35,000 , MPa – 930 | Psi – 75,000 , MPa – 517 | 42.5 % |
More Grades And Standards
Applications
