Yuhong Holding Group Co.,LTD
 |
| Place of Origin: | China |
| Brand Name: | YUHONG |
| Certification: | API , ABS, DNV, GL , LR, NK |
| Model Number: | ASTM A403 WP347H-S |
| Minimum Order Quantity: | 10PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Ply-wooden Case /Iron Case/ Bundle with plastic Cap/Woven Case |
| Delivery Time: | Depends on quantity |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 1000 tons per month |
| Specification: | ASTM A403 | Grade: | WP347H-S |
|---|---|---|---|
| Surface Treatment: | Hot Dipped Galvanized And Cold Galvanized | Technics: | Buttweld |

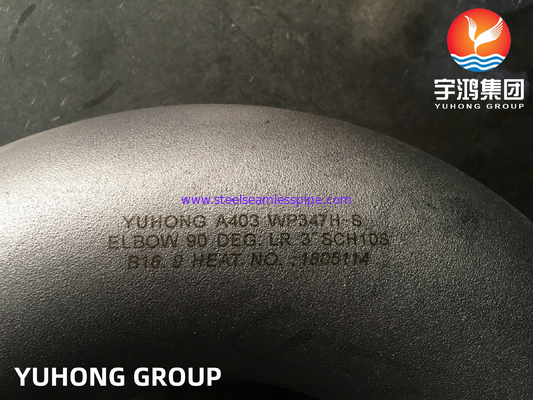

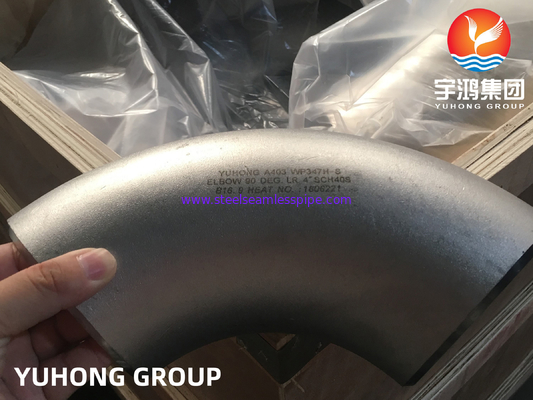

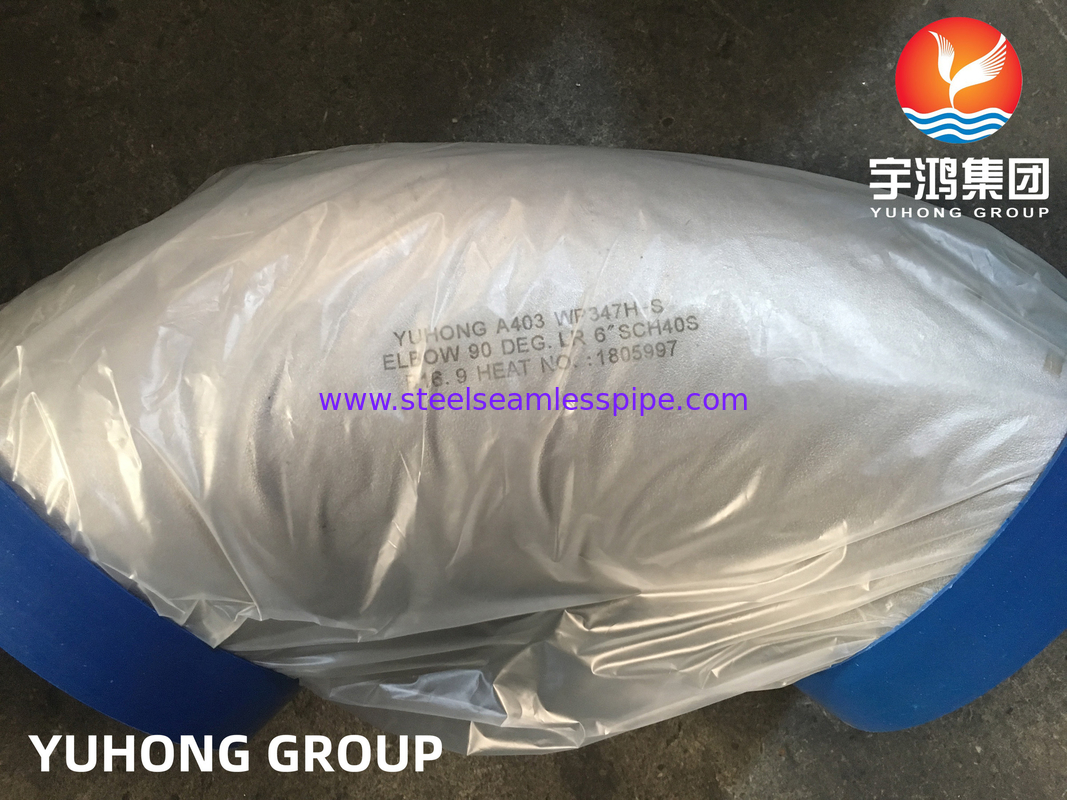

Pipe Fitting ASTM A403 WP347H Seamless S34709 1.4961 90DEG LR Elbow B16.9
YUHONG GROUP is recognized as a supplier of ASTM A403 WP347H Pipe Fittings, accessible in an assortment or evaluations, materials, and completions, in metric and inch sizes.
What is ASTM A403?
This specification covers the standard for wrought austenitic stainless steel fittings for pressure piping applications. The material for fittings shall consist of forgings, bars, plates, or seamless or welded tubular products.
Forging or shaping operations shall be performed by hammering, pressing, piercing, extruding, upsetting, rolling, bending, fusion welding, machining, or by a combination of two or more of these operations.
All fittings shall undergo heat-treatment. Chemical and product analyses shall be performed and shall conform to the required chemical composition in carbon, manganese, phosphorus, sulfur, silicon, chromium, molybdenum, and titanium.
Our WP347H Butt Weld Fittings are manufactured in a variety of designs, style, specifications, grades and sizes, with each fitting serving an industry's need.
ASTM A403 WP347H buttweld stainless steel pipe fittings that are weldable onto the pipes they need to fit on. There are different types, forms and shapes of fittings available. The functions include changing the direction of fluid flow, reducing the diameter of the pipeline, joining two fluid flow lines together and splitting a line into two.
The A403 WP347H Elbow functions to change the direction of fluid flow but is more abrupt than the bend. ASTM A403 WP347H fittings vary in shape and function such as the union, adapter, double-tapped bushing, coupling and valves.
ASTM A403 WP347H Chemical Composition
| Grade | C | Mn | Si | P | S | Cr | Cb | Ni | Fe |
| SS 347 | 0.08 max | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 17.00 – 20.00 | 10xC – 1.10 | 9.00 – 13.00 | 62.74 min |
| SS 347H | 0.04 – 0.10 | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 17.00 – 19.00 | 8xC – 1.10 | 9.0 -13.0 | 63.72 min |
ASTM A403 WP347H Pipe Fittings mechanical properties
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 7.93 g/cm³ | 1454 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
ASTM A403 WP347H Pipe Fittings Weight Chart
ASTM A403 347/347H Equivalent Grades
| STANDARD | WERKSTOFF NR. | UNS | JIS | GOST | EN |
| SS 347 | 1.4550 | S34700 | SUS 347 | 08Ch18N12B | X6CrNiNb18-10 |
| SS 347H | 1.4961 | S34709 | SUS 347H | – | X6CrNiNb18-12 |
Applications
Petroleum, chemical, power, gas, metallurgy, shipbuilding, construction, etc
