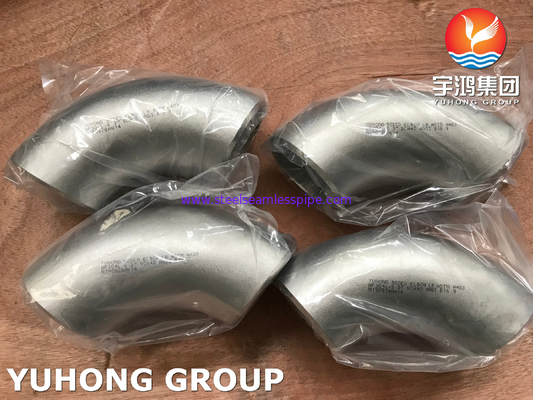

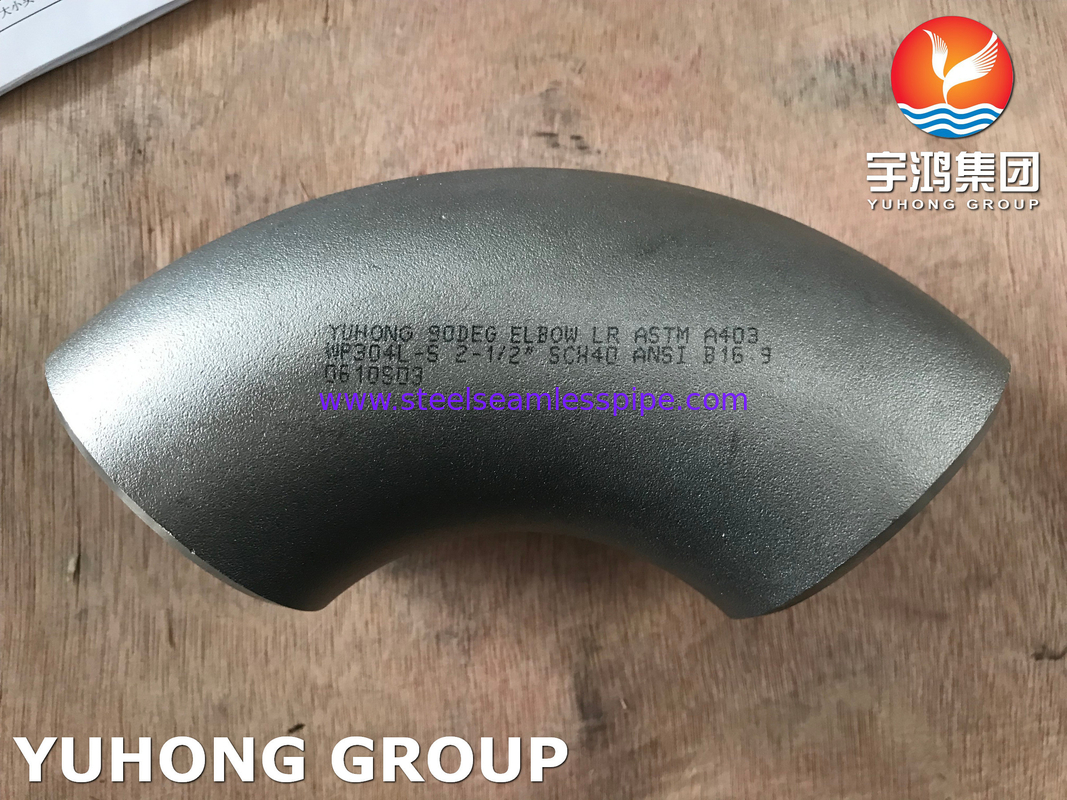

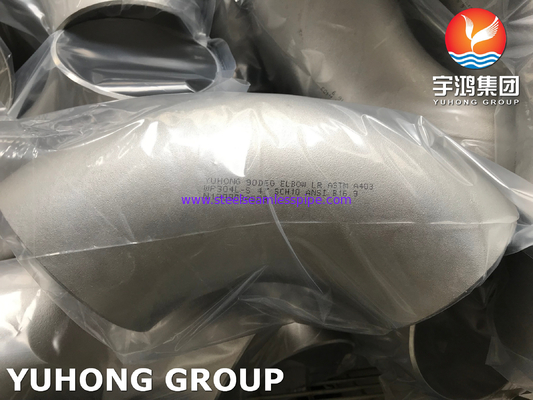

ASTM A403 WP304L SS Pipe Fitting 90 Deg LR Elbow B16.9 chemical aerospace Oil

Product Details:

Place of Origin:	CHINA
Brand Name:	YUHONG
Certification:	API , ABS, DNV, GL , LR, NK.
Model Number:	WP304L

Payment & Shipping Terms:

Minimum Order Quantity:	500KGS
Price:	Negotiable
Packaging Details:	Ply-wooden Case /Iron Case/ Bundle with plastic Cap
Delivery Time:	Depends on quantity
Payment Terms:	T/T, L/C AT SIGHT
Supply Ability:	100 tons per month

Contact Now

All Products

Stainless Steel Seamless Pipe (290)

Stainless Steel Seamless Tube (277)

Duplex Stainless Steel Pipe (127)

Duplex Stainless Steel Tube (29)

Needle Tube (107)

Fin Tube (631)

Heat Exchanger (17)

Heat Exchanger Tube (424)

Heat Exchanger Tube Bundle (37)

Heat Exchanger Tubesheet (116)

Heat Exchanger Baffle (36)

Air Cooler (8)

Pressure Vessel (4)

Stainless Steel Welded Pipe (57)

Stainless Steel Welded Tube (114)

Nickel Alloy Pipe (261)

Nickel Alloy Tube (79)

Copper Alloy Tube (227)

Alloy Steel Tube (184)

Titanium Tube (10)

Bright Annealed Tube (153)

Boiler Tube (145)

Steel Fitting (804)

Steel Flange (590)

Others (391)

Cladding Parts (7)

Detailed Product Description

Product Name:	Stainless Steel BW Elbow	Specification:	ASTM A403
Dimension Standard:	ANSI/ASME B16.9, B16.28, MSS-SP-43.	Material:	WP304L
O.D.:	1/8”NB To 48”NB	W.T.:	Schedule 10s - Schedule XXS
Highlight:	ASTM A403 WP304L stainless steel elbow , 304L stainless steel pipe fitting , B16.9 LR elbow for aerospace

ASTM A403 WP304L Stainless Steel Pipe Fitting Elbow B16.9 chemical aerospace Oil

Name: ASTM A403 WP304L SS Pipe Fitting 90 Deg LR Elbow B16.9 chemical aerospace Oil
Brand: Yuhong Group Co.,Ltd
SKU: WP304L
Price: 100000.00 USD
Availability: InStock

What is A403 WP304 Elbow?

A403 WP304 elbows can be easily joined, welded and installed to be gas tight. Stainless steel 304 fittings are one of the most commonly used types of fittings in the world. Due to the high impact strength of ASTM A403 Wp304 butt weld fittings, it can be used in systems that are susceptible to external pressures.

ASTM A403 WP304L Elbow Mechanical Properties

Grade	Tensile Strength (MPa) minimum	Yield Strength 0.2% Proof (MPa) minimum	Elongation (% in 50mm) minimum	Hardness
				Rockwell B (HR B) maximu	Brinell (HB) maximu
Stainless Steel 304 Pipe Fittings	515	205	40	92	201

ASTM A403 WP304L Elbow Chemical Composition

Grade		C	Mn	Si	P	S	Cr	Mo	Ni	N
Stainless Steel 304 Pipe Fittings	minimum & maximum	- 0.08	- 2.0	- 0.75	- 0.045	- 0.030	18.0 20.0	-	8.0 10.5	- 0.10

ASTM A403 WP304L Elbow Equivalent Grades

Stainless Steel	Tradename	UNS no.	Werkstoff No.	Density (g/cm3)
A403 WP304 Fitting	304	S30400	1.4301	8.0

ASTM A403 WP304L Elbow Physical Properties

Grade	Density (kilogram/m3)	Elastic Modulus (GPa)	Mean Coefficient of Thermal Expansion (m/m/0C)			Thermal Conductivity(W/m.K)		Specific Heat 0-1000C(J/kilogram.K)	Electrical Resistivity (n.m)
Grade	Density (kilogram/m3)	Elastic Modulus (GPa)	0-1000C	0-3150C	0-5380C	at 1000C	at 5000C	Specific Heat 0-1000C(J/kilogram.K)	Electrical Resistivity (n.m)
Stainless Steel 304 Pipe Fittings	8000	193	17.2	17.8	18.4	16.2	21.5	500	720
