Yuhong Holding Group Co.,LTD
 |
| Place of Origin: | China |
| Brand Name: | YUHONG |
| Certification: | ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008 |
| Model Number: | UNS N08811 |
| Minimum Order Quantity: | 500KGS |
|---|---|
| Price: | negotiable |
| Packaging Details: | Bundle /Ply-wooden Case |
| Delivery Time: | Depends on quantity |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 10000 tons per month |
| Material Grade: | ASTM B407 | Standard: | UNS N08811 |
|---|---|---|---|
| Size: | 1/2"-12" | W.T.: | 0.40 - 12.70 Mm |
| Length: | Double Random, Single Random, Standard And Cut Length | NDT: | ET HT UT PT |
| Packing: | Ply-wooden Case /Iron Case/ Bundle | Appllication: | Heat Exchangers/Condensers |
| High Light: | UNS N08811 Seamless Tube,Petrochemicals Gas Seamless Tube,Heat Exchangers Seamless Stainless Steel Tubing |
||

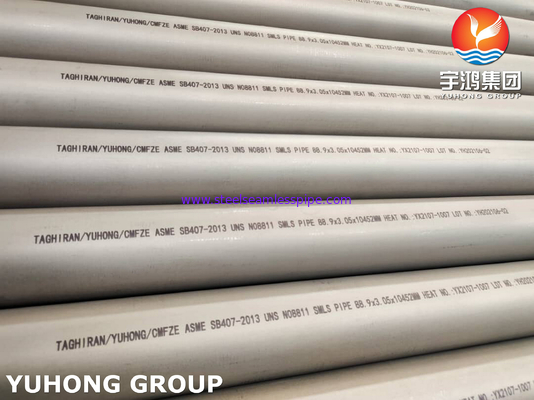

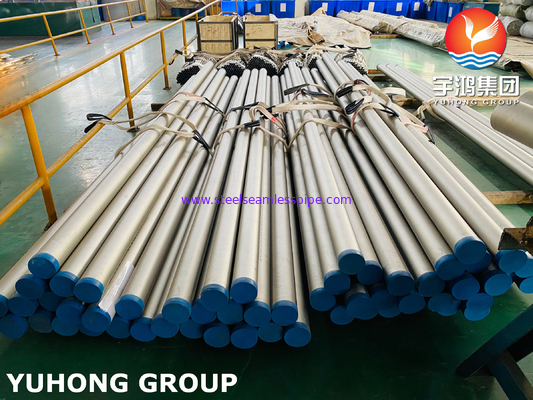

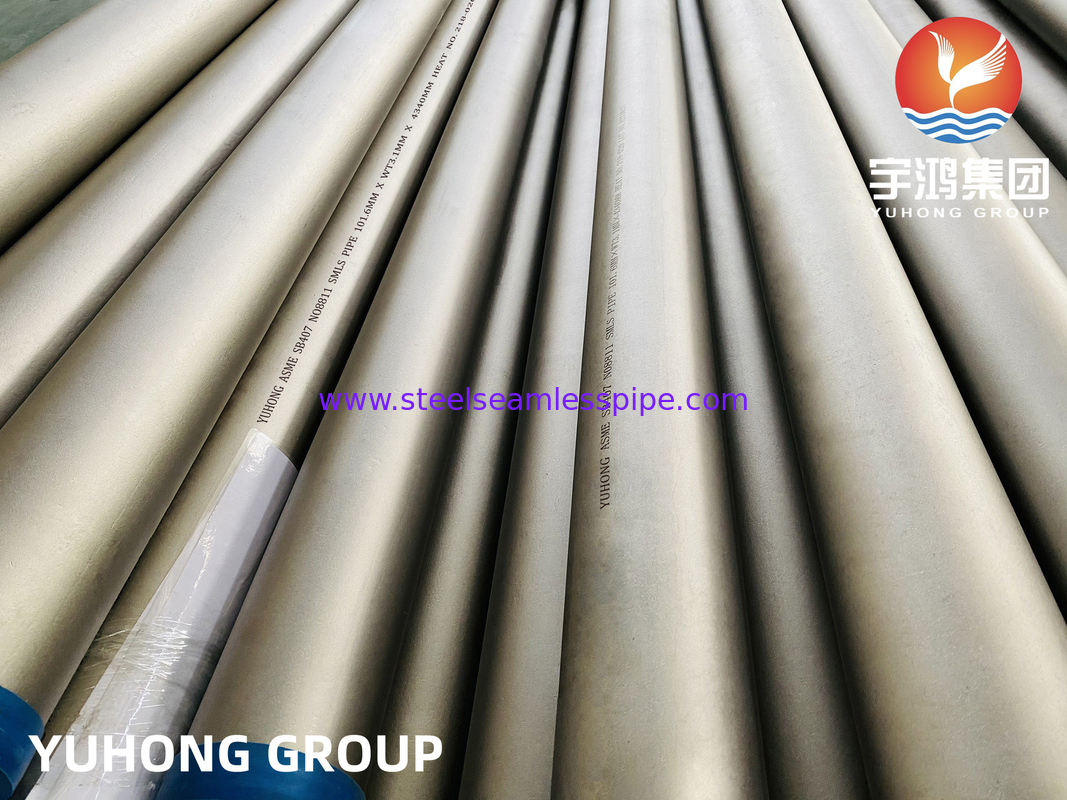

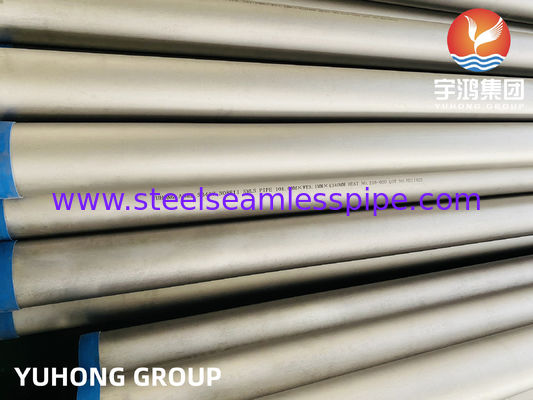

Nickel Alloy Steel Seamless Tube ASTM B407 UNS N08811 Heat Exchangers Gas Oil
What is ASTM B407?
ASTM B407 is the standard specification for seamless nickel-iron-chromium alloy steel tubing.ASTM B407 specification includes Incoloy 800 and Incoloy H/HT.ASTMB407 lncoloy 800 seamless tube and ASTM B407Incoloy 800 seamless tube are typically suitable for service temperatures above 1100 F or 593 C. ASTM B407 lncoloy 800 seamless tube and ASTM B407 Incoloy 80OH/HT seamless tube are typically suitable for service temperatures above 1100 F or 593 C. While ASTM B407lncoloy 800H/HT seamless tube and ASTM B407 Incoloy 80OH/HT seamless tube are typically suitable for service temperatures above 1100 F or 593 C where creep and fracture resistance is required. These Lncoloy alloys have a very high resistance to chloride ion stress corrosion cracking and also exhibit good resistance to polysulfate cracking. As a result, these pipes and tubes are very suitable in high temperature petrochemical environments.
Chemical composition of ASTM B407 UNS N08811
| Grade | C | Mn | Si | S | Cu | Fe | Ni | Cr | Al | Ti |
| Inconel Alloy 800 Tube | 0.10 max | 1.50 max | 1.00 max | 0.015 max | 0.75 max | 39.50 min | 30.00 – 35.00 | 19.00 – 23.00 | 0.15 – 0.60 | 0.15 – 0.60 |
| Inconel Alloy 800H Tube | 0.05 – 0.10 | 1.50 max | 1.00 max | 0.015 max | 0.75 max | 39.50 min | 30.00 – 35.00 | 19.00 – 23.00 | 0.15 – 0.60 | 0.15 – 0.60 |
| Inconel Alloy 800HT Tube | 0.06 – 0.10 | 1.50 max | 1.00 max | 0.015 max | 0.75 max | 39.50 min | 30.00 – 35.00 | 19.00 – 23.00 | 0.15 – 0.60ᴬ | 0.15 – 0.60ᴬ |
Physical properties of ASTM B407 UNS N08811
|
Properties
|
Metric
|
Imperial
|
|---|---|---|
|
Density
|
7.94 gm/cm3
|
0.287 lb/in3
|
Overview
astm b407 uns n08811 steel pipe is typically used in high temperature environments above 1100°F. In such high temperature environments, properties such as creep and fracture resistance are required, and sb 407 uns n08811 seamless tube can provide these properties. astm b407 n08811 erw tube has a balanced chemical composition in it that allows the nickel-based alloy to exhibit not only excellent resistance to carburization, but also to oxidation and nitrided atmospheres.
Application
Heat exchangers
