Yuhong Holding Group Co.,LTD
 |
| Place of Origin: | CHINA |
| Brand Name: | YUHONG |
| Certification: | API , ABS, DNV, GL , LR, NK. |
| Model Number: | WP317L |
| Minimum Order Quantity: | 500KGS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Ply-wooden Case /Iron Case/ Bundle with plastic Cap |
| Delivery Time: | Depends on quantity |
| Payment Terms: | T/T, L/C AT SIGHT |
| Supply Ability: | 100 tons per month |

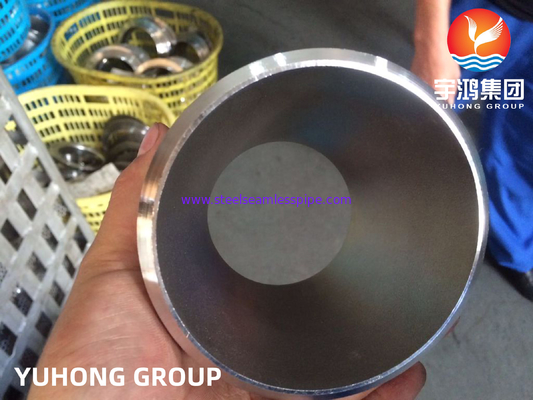

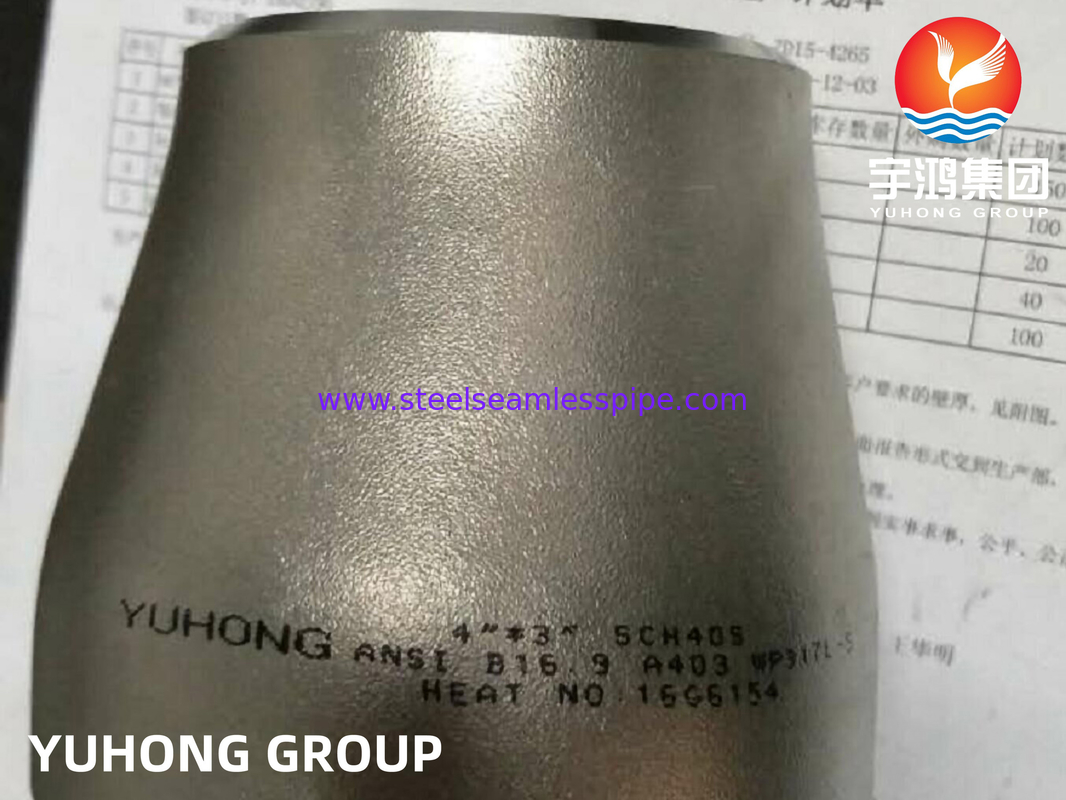

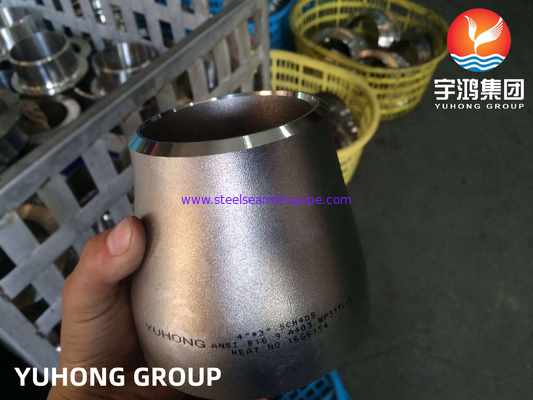

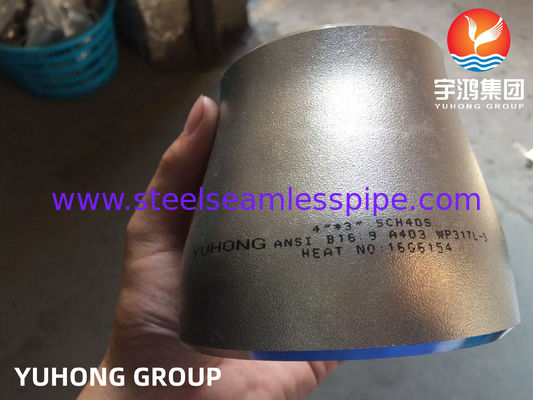

| Product Name: | Stainless Steel BW Reducer | Specification: | ASTM A403 |
|---|---|---|---|
| Dimension Standard: | ANSI/ASME B16.9 | Material: | WP317L |
| O.D.: | 4''×3'' | W.T.: | Schedule 10s - Schedule XXS |
Overwiew
Stainless steel reducer is a kind of common pipeline connection fittings, made of stainless steel material, which is characterized by corrosion resistance, high temperature resistance and strong pressure resistance. They are mainly used to connect pipes of different diameters so that they can transport liquids or gases smoothly. And widely used in petroleum, chemical, pharmaceutical, food processing, electric power and other industries. They are commonly used in turning, branching and connecting parts of piping systems, playing the role of connection and diversion. The corrosion resistance of the stainless steel material makes it suitable for processes that deal with corrosive media, such as the transportation and handling of chemicals. Stainless steel pipe fittings are also widely used in heat exchange equipment in high temperature environments, such as boilers, heat exchangers, etc.
Characteristic of ASTM A403 WP317L Reducer
ASTM A403 WP317L Reducer Mechanical Properties
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 7.9 g/cm3 | 1400 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
| 7.9 g/cm3 | 1400 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
ASTM A403 WP317L Reducer Chemical Composition
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | Fe |
| SS 317 | 0.08 max | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 18.00 – 20.00 | 3.00 – 4.00 | 11.00 – 15.00 | 57.845 min |
| SS 317L | 0.035 max | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 18.00 – 20.00 | 3.00 – 4.00 | 11.00 – 15.00 | 57.89 min |
ASTM A403 WP317L Reducer Equivalent Grades
| STANDARD | WERKSTOFF NR. | UNS | JIS | EN |
| SS 317 | 1.4449 | S31700 | SUS 317 | – |
| SS 317L | 1.4438 | S31703 | SUS 317L | X2CrNiMo18-15-4 |
ASTM A403 WP317L Reducer Application
