Yuhong Holding Group Co.,LTD
 |
| Place of Origin: | CHINA |
| Brand Name: | YUHONG |
| Certification: | ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008 |
| Model Number: | ASME SB163/ UNS NO4400 |
| Minimum Order Quantity: | 1 PC |
|---|---|
| Price: | 1-100000 USD |
| Packaging Details: | Bundle/Ply Wooden Case |
| Delivery Time: | 5-60 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 1000 tons/month |
| Product: | SMLS Tube / Tubo | Standard: | ASME SB163 |
|---|---|---|---|
| Grade: | UNS NO4400 | Material: | Nickel Alloy |
| Shape: | Round/Square/Rectangle | Length: | 6 Meters Or Customized |
| Testing: | ET, HT, Flattening Test; Expansion Test, Mercurous Nitrate Test; Ammonia Vapor Test; Chemical Analysis; Microscopical Examination; Tension Testing. | Package: | Standard Seaworthy Package |
| High Light: | ASME SB163 Seamless Nickel Alloy Pipe,Polished SMLS Tube,SMLS Nickel Alloy Tube |
||
ASME SB163 UNS N04400 Monel 400 Nickel Alloy Seamless Tube
Monel Alloy 400 Tube is made up of a material that can operate under sub - zero temperatures. The material has excellent mechanical qualities as well. It is a 67% nickel alloy that has copper, iron, manganese, carbon and silicon in the composition.
The Monel 400 Seamless Tube can be hot worked or cold worked to harden it. The material has high strength and high operating temperatures which allow the pipes and tubes to be used in aerospace industrial applications.
Specification
| Standards | ASTM B163/ ASME SB163, ASTM B730/ ASME SB730 UNS 4400 Tubing |
| Size | 3.35 mm OD To 101.6 mm OD |
| Inconel WERKSTOFF NR. 2.4360 Tube wall thickness | 0.020" –0.220", (special wall thicknesses available) |
| Length | Single Random, Double Random, Standard & Cut length Tube |
| Inconel WERKSTOFF NR. 2.4360 Tubing Finish | Polished, AP (Annealed & Pickled), BA (Bright & Annealed), MF |
| Form | ‘U’ bent, Hollow, Hydraulic, LSAW, Boiler, Straight Tube, Tube Coil, Round, Rectangular, Square Etc |
| Types of 400 Alloy Tubing | Seamless, ERW, EFW, Welded, Fabricated Tube / Tubing |
| 400 Alloy Tube End | Plain End, Beveled End, Treaded Tube |

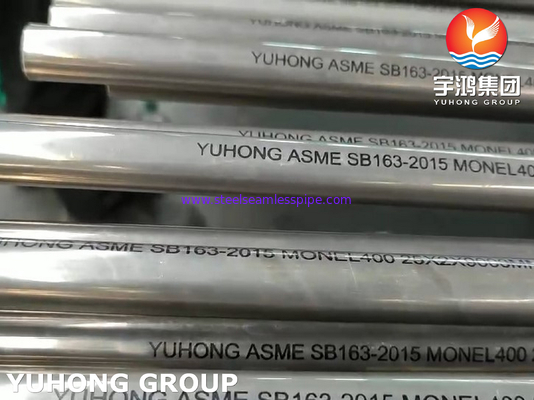

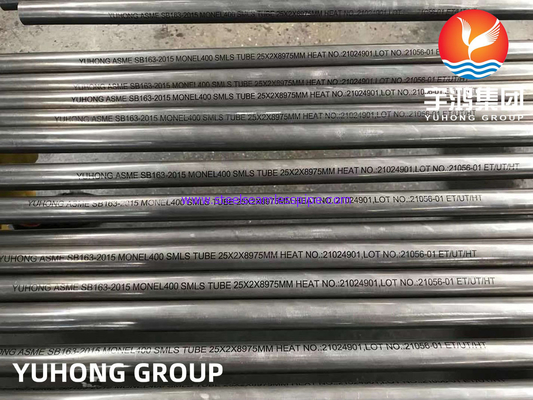

| Marking | All ASTM B163 Monel 400 Tubing are marked as follows: Standard, Grade, OD, Thickness, Length, Heat No. (Or according to the customer’s request.) |
| Application & uses of Monel 400 Tube | Oil Tube, Gas Tube, Fluid Tube, Boiler Tube, Heat exchanger Tube, |
| Value Added Service | Cutting,Beveling,Threading,Draw & Expansion as per required Size & Length, Polish (Electro & Commercial) Annealed & Pickled Bending, Machining Etc. |
| Specialize in | ASTM B163 Monel 400 Capillary Tube & Other Odd Size |
| Monel NCF 400 Heat Exchanger & Condenser Tube | |
| Test Certificate | Manufacturer Test Certificate |
| Laboratory Test Certificate from Govt. Approved Lab. | |
| Under Third Party Inspection | |
| We can also cut, thread, and groove Monel NCF 400 Tube to meet your specifications. Monel 400 Tube Dimension ANSI/ ASME B36.10, B36.19, B2.1 | |
Wall Thickness
| Types of Monel 400 Tube | Out diameter (OD) | Wall thickness | Length |
| NB Sizes (in stock) | 1/8” ~ 8” | SCH 5 / SCH 10 / SCH 40 / SCH 80 / SCH 160 | Upto 6 Meters |
| Monel 400 Seamless Tube (Custom Sizes) | 5.0mm ~ 203.2mm | As per requirement | Upto 6 Meters |
| Monel 400 Welded Tube (in Stock + Custom Sizes) | 5.0mm ~ 1219.2mm | 1.0 ~ 15.0 mm | Upto 6 Meters |
Chemical Composition
| Grade | C | Mn | Si | S | Cu | Fe | Ni |
| Monel 400 | 0.30 max | 2.00 max | 0.50 max | 0.24 max | 28.0-34.0 max | 2.50 max | 63.00 max |
Mechanical Properties
| Element | Density | Melting Range | Tensile Stress | Yield Stress (0.2%Offset) | Elongation |
| Monel 400 | 8.8 g/cm3 | 1350 °C (2460 °F) | Psi - 80,000 , MPa - 550 | Psi - 35,000 , MPa - 240 | 0.4 |
