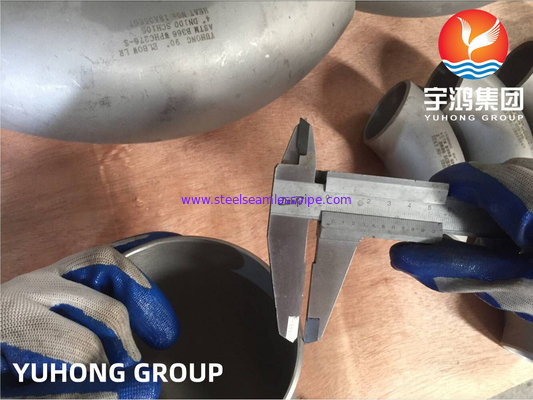

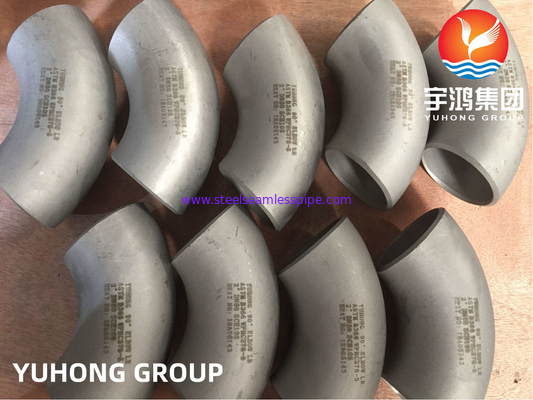

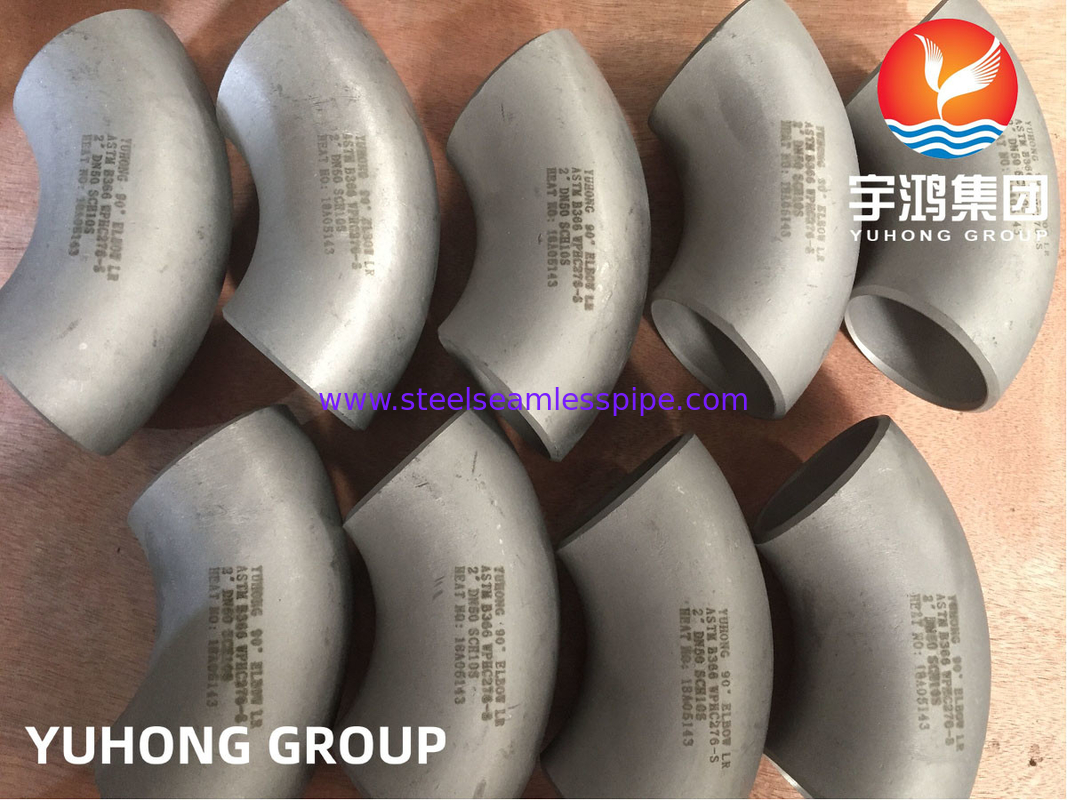

Hastelloy C276 Pipe Fittings ASTM B366 UNS N10276 / DIN 2.4819 90 DEG. Elbow

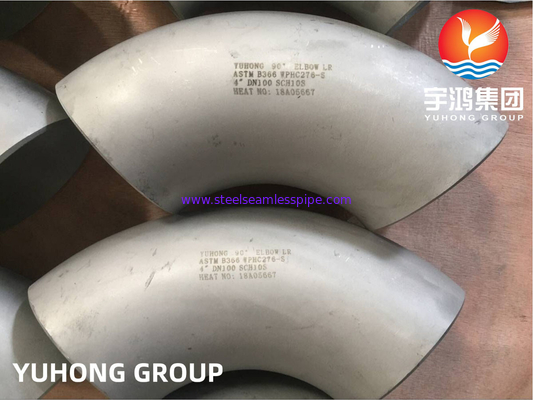

Hastelloy C276 Pipe Fittings ASTM B366 UNS N10276 / DIN 2.4819 90 DEG. LR Elbow

Being a high performance alloy, the nickel-chromium-molybdenum chemistry of the Hastelloy C276 Pipe Fittings gives these components universal corrosion resistance unparalleled by any other alloy. The use of ASTM B366 UNS N10276 elbow is noted in several industries because the alloy has outstanding resistance to a wide variety of chemical process environments. Hastelloy C276 Fittings could also be used in processes that utilize compounds containing halide or acid catalysts. Other areas where alloy c276 fittings are used include industrial applications such as pulp and paper industry, pharmaceutical and food processing equipment as well as scrubbers and ducting for flue gas desulfurization equipment.

Corrosion Resistant Hastelloy C276

Considered one of the most versatile corrosion resistant alloys available, Hastelloy C-276 exhibits

excellent resistance in a wide variety of chemical process environments including those with ferric and

cupric chlorides, hot contaminated organic and inorganic media, chlorine, formic and acetic acids, acetic

anhydride, seawater, brine and hypochlorite and chlorine dioxide solutions. In addition, alloy C-276 resists

formation of grain boundary precipitates in the weld heat affected zone making it useful for most chemical

processes in the as-welded condition. This alloy has excellent resistance to pitting and stress corrosion

cracking.

What are the characteristics of Hastelloy C276?

• Excellent corrosion resistance in reducing environments
• Exceptional resistance to strong solutions of oxidizing salts, such as ferric and cupric chlorides
• High nickel and molybdenum contents providing good corrosion resistance in reducing environments
• Low carbon content which minimizes grain-boundary carbide precipitation during welding to maintain resistance to corrosion in heat-affected
• zones of welded joints
• Resistance to localized corrosion such as pitting and stress-corrosion cracking
• One of few materials to withstand the corrosive effects of wet chlorine gas, hypochlorite and chlorine
• dioxide

Fabrication with Hastelloy C-276

Hastelloy C-276 alloy can be forged, hot-upset and impact extruded. Although the alloy tends to work-harden, you can have it successfully spun, deep-drawn, press formed or punched. All of the common methods of welding can be used, although the oxyacetylene and submerged arc processes are not recommended when the fabricated item is for use in corrosion service.

Hastelloy C-276 Welding Material

Alloy C276 welding products are used as matching composition filler material for welding C276 alloy wrought and cast products, for dissimilar welding applications including other nickel-chromium-molybdenum alloys and stainless steels, and for weld overlay or cladding of steels.

Applications

Pollution control stack liners, ducts, dampers, scrubbers, stack-gas reheaters, fans and fan housings

Flue gas desulfurization systems

Chemical processing components like heat exchangers, reaction vessels, evaporators, and transfer piping

Sour gas wells

Pulp and paper production

Waste treatment

Pharmaceutical and food processing equipment
