Yuhong Holding Group Co.,LTD
 |
| Place of Origin: | CHINA |
| Brand Name: | YUHONG |
| Certification: | ABS, BV, LR, DNV-GL, KR, CCS , TS, GOST, CCS, TUV, PED |
| Model Number: | ASTM B366 C276 |
| Minimum Order Quantity: | 5 PC |
|---|---|
| Price: | 1-100000 USD |
| Packaging Details: | Ply-wooden Case /Iron Case/ Bundle with plastic Cap |
| Delivery Time: | 5-50 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 1000 tons/month |
| Product: | Pipe Fittings- Elbows | Material: | Nickel Alloy Steel |
|---|---|---|---|
| Standard: | ASTM B366 | Grade: | C276 |
| Type: | Seamless / ERW / Welded / Fabricated /Forged | Packaging: | PLY-WOODEN CASE OR PALLET |
| High Light: | NO10276 Nickel Alloy Steel Pipe Fittings,Curvas Steel Pipe Fittings,Codos Steel Pipe Elbow |
||

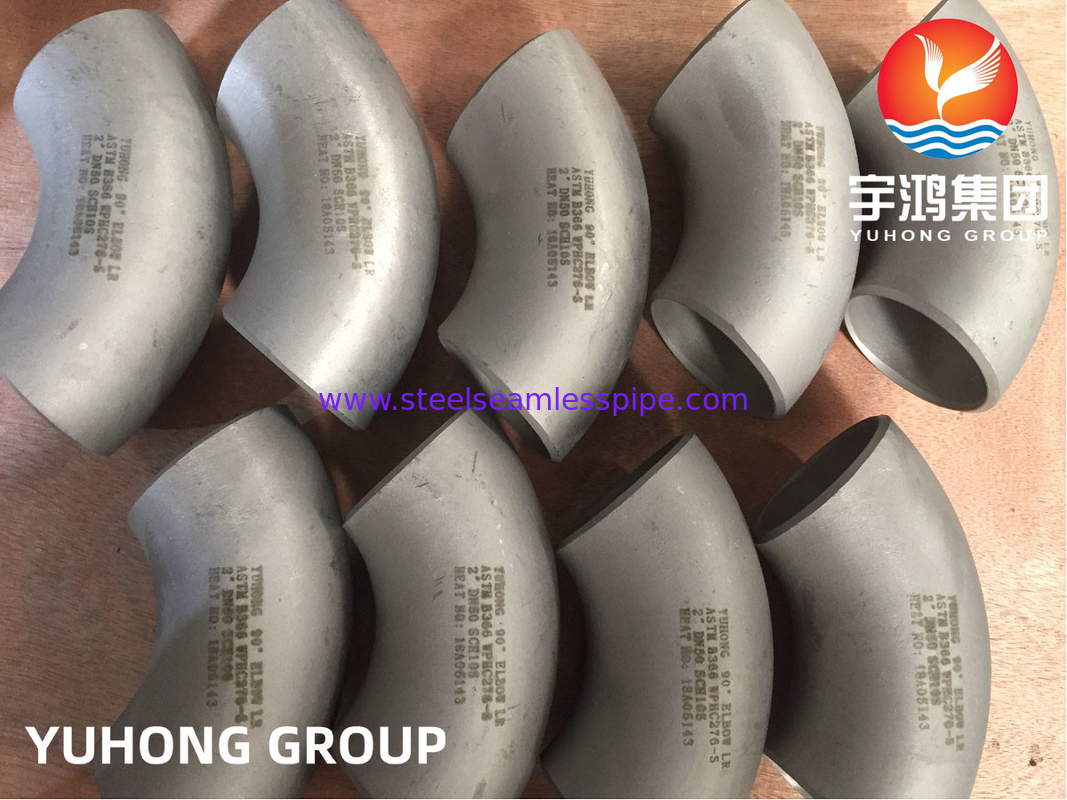

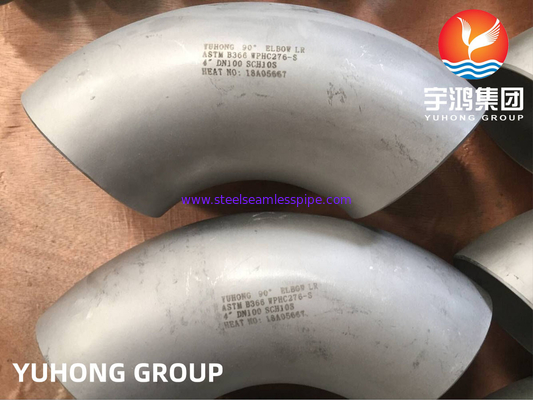

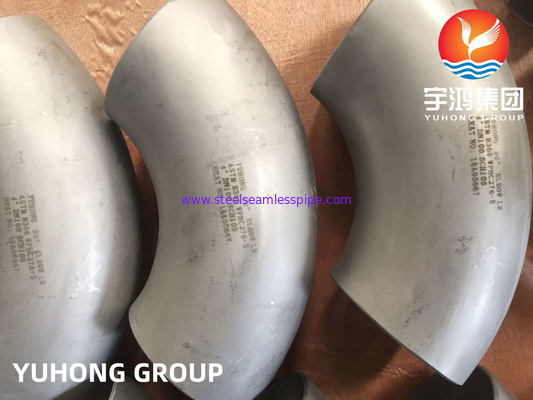

ASTM B366 C276 , NO10276 Nickel Alloy Steel Elbows Codos
YUHONG supplies ASTM B366 Hastelloy C276. Being a high performance alloy, the nickel-chromium-molybdenum chemistry of the Hastelloy C276 Pipe Fittings gives these components universal corrosion resistance unparalleled by any other alloy.
The alloy has outstanding resistance to a wide variety of chemical process environments. Often these process based industries contain including corrosive chemicals such as ferric and cupric chlorides, solvents, formic and acetic acids, acetic anhydride, seawater and brine solutions as well as hot contaminated mineral acids. In fact, the alloys ability to perform well in the presence of halogen containing compounds such as chlorine, dry chlorine, and hypochlorite and chlorine dioxide solutions.
Alloy C276 Butt Weld Pipe Fittings are used for several applications such as in Pollution control stack liners, ducts, dampers, scrubbers, stack-gas reheaters, fans and fan housings; Flue gas desulfurization systems; Chemical processing components like heat exchangers, reaction vessels, evaporators, and transfer piping; Sour gas wells; Pulp and paper production; and more.
Specification Of ASTM B366 Hastelloy C276 Elbow
| Schedule C276 | Schedule 5 TO Schedule XXS. |
| Size C276 | Normal Pipe Size (NPS) 1⁄₂ to Normal Pipe Size (NPS) 48” |
| Standard C276 | EN, ISO, DIN, JIS, NPT |
| Type C276 | Elbow, Stub End, Bend, Tee, Reducer, Cap, Adapter, Wye, Cross, |
| Connection Type C276 | Threaded/ Clamp End / End Bell / Weld/ Flange/ |
| Type C276 | Butt Weld (BW), Seamless (SMLS) Welded |
| Surface Treatment C276 | Sand Blasting, Sand Rolling, Sand Blasting |
| Thickness C276 | Sch 5S, 20S, S10, S20, S30, 10S, S80, S100, S120, STD, 40S, S40, S60, XS, 80S, S140, S160, XXS and etc. |
| Type Of Dimension C276 | BS1640, EN 10253 - 4, DIN 2605, JIS B2312, ANSI B16.9, MSS SP-75, ANSI B16.28, MSS-SP-43 Type A, MSS-SP-43 Type B, JIS B2313 |
| Surface Treatment C276 | Transparent oil, rust-proof black oil or hot galvanized |
Chemical Composition Of ASTM B366 Hastelloy C276
| Ni % | Cr % | Mo % | Fe % | W % | Co % | C % | Mn % | Si % | V % | P % | S % |
| Remainder | 14.5-16.5 | 15.0-17.0 | 4.0-7.0 | 3.0-4.5 | 2.5max | 0.01max | 1.0max | 0.08max | 0.35max | 0.04max | 0.03max |
Mechanical & Physical Property Of ASTM B366 Hastelloy C276
| Density | 8.89 g/cm3 |
| Melting Point | 1370 °C (2500 °F) |
| Tensile Strength | Psi – 1,15,000 , MPa – 790 |
| Yield Strength (0.2%Offset) | Psi – 52,000 , MPa – 355 |
| Elongation | 40% |
Application
Petroleum, Chemical, Power, Oil and Gas, Metallurgy, Ship building, Construction, etc.
