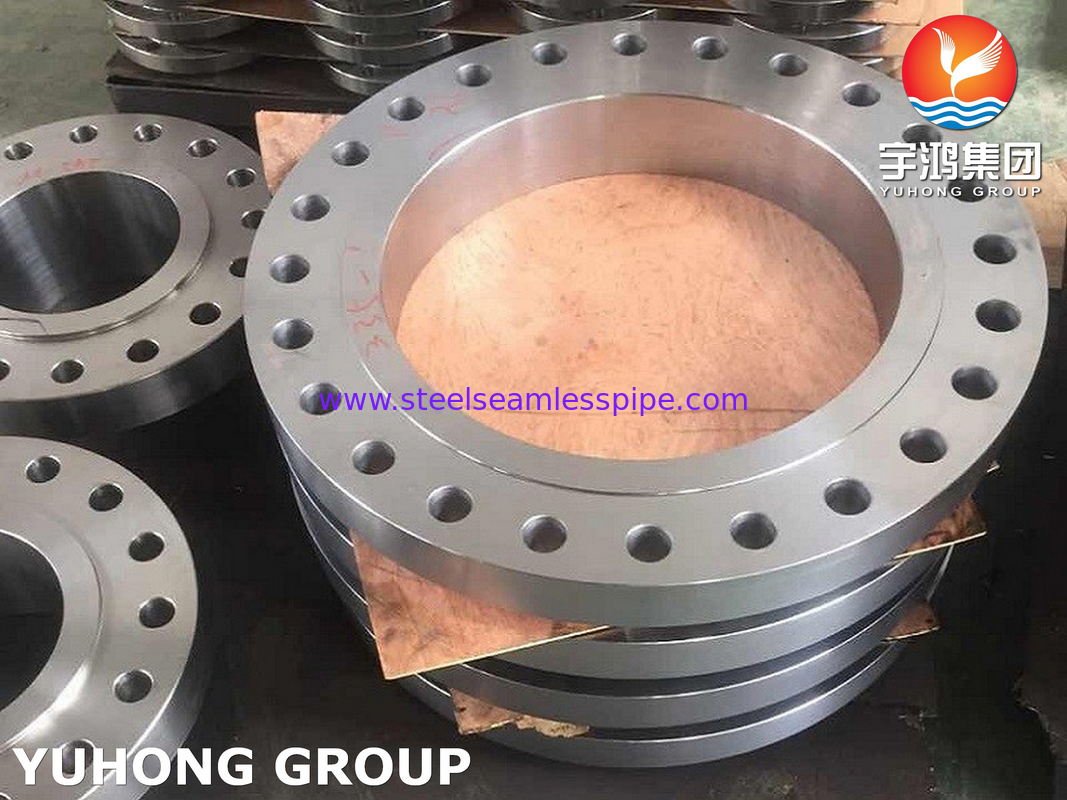

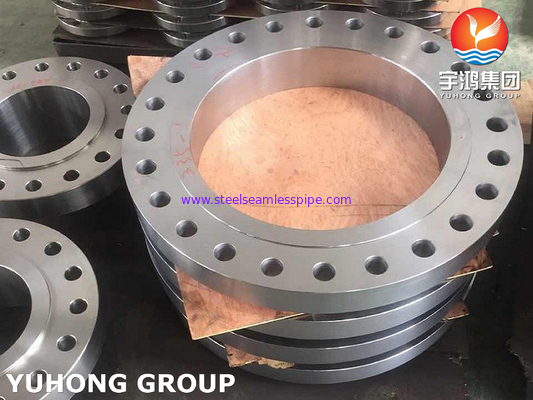

Alloy Steel Slip-On Flange ASTM A182 F1 B16.5 For Oil Refining Equipment

Product Details:

Place of Origin:	CHINA
Brand Name:	YUHONG
Certification:	ABS, GL, DNV, NK, PED, AD2000, ISO 9001-2015
Model Number:	A182 F1 Slip-On Flange

Payment & Shipping Terms:

Minimum Order Quantity:	1pc
Price:	Negotiable
Packaging Details:	PLYWOOD CASE, WOODEN PALLET
Delivery Time:	Depends on quantity
Payment Terms:	T/T, L/C at sight
Supply Ability:	5000 pcs/Month

Contact Now

All Products

Stainless Steel Seamless Pipe (277)

Stainless Steel Seamless Tube (269)

Duplex Stainless Steel Pipe (128)

Duplex Stainless Steel Tube (27)

Needle Tube (86)

Fin Tube (596)

Heat Exchanger (10)

Heat Exchanger Tube (419)

Heat Exchanger Tube Bundle (37)

Heat Exchanger Tubesheet (117)

Heat Exchanger Baffle (35)

Air Cooler (7)

Pressure Vessel (2)

Stainless Steel Welded Pipe (57)

Stainless Steel Welded Tube (113)

Nickel Alloy Pipe (258)

Nickel Alloy Tube (75)

Copper Alloy Tube (210)

Alloy Steel Tube (173)

Titanium Tube (9)

Bright Annealed Tube (153)

Boiler Tube (138)

Steel Fitting (784)

Steel Flange (574)

Others (384)

Detailed Product Description

Flange Type:

Slip-On

SIZE:

1/2" TO 36"

WT:

Sch10s To XXS

STANDARD:

ASTM A182

Highlight:

F1 Alloy Steel Flange

Power Generation Alloy Steel Flange

Oil Gas Petrochemical Wn Flange

Alloy Steel Slip-On Flange ASTM A182 F1 B16.5 For Oil Refining Equipment

Name: Alloy Steel Slip-On Flange ASTM A182 F1 B16.5 For Oil Refining Equipment
Brand: Yuhong Group Co.,Ltd
SKU: A182 F1 Slip-On Flange
Price: 150000.00 USD
Availability: InStock

Overview

SA182 Grade F1 slip-on flanges are a cost effective flange. These flanges are installed with the help of two fillet welds. One fillet weld is on the inside of the flange and one fillet weld is on the outside cavity of the flange. Alloy steel F1 blind flanges are used to stop the flow of liquid or gas in a piping system. If bolted, these flanges can be used to clean and maintain the piping system.Sa 182 F1 threaded flanges are widely known as threaded flanges. They contain an internal thread, similar to the threads on a pipe.

Alloy steel F1 weld neck flanges can be used for high pressure and high temperature applications. These flanges have a protruding hub, which allows them to support bends in the pipe.Sa 182 Gr. F1 expander flanges are a cost effective alternative to weld neck flanges.

Advantages of Alloy Steel F1 Slip-On Flanges

High-Temperature Resistance: These flanges can handle extreme temperature environments, making them ideal for steam, hot oil, and high-pressure systems.
Strong and Durable: F1 alloy steel provides excellent tensile strength, making these flanges suitable for heavy-duty applications.
Corrosion Resistance: The chromium and molybdenum in F1 alloy steel provide enhanced resistance to oxidation, which is crucial in environments exposed to chemicals, gases, or steam.
Cost-Effective: Slip-on flanges are relatively inexpensive to manufacture and install compared to other flange types, making them a cost-effective choice for many industrial applications.
Ease of Installation: These flanges are easier to align and weld than other types, which can save time and reduce installation complexity.
