Yuhong Holding Group Co.,LTD
 |
| Place of Origin: | CHINA |
| Brand Name: | YUHONG |
| Certification: | ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008 |
| Model Number: | ASTM B466 |
| Minimum Order Quantity: | 1 PC |
|---|---|
| Price: | 1-100000 USD |
| Packaging Details: | Ply-wooden Case /Iron Case/ Bundle With Plastic Cap |
| Delivery Time: | 10-70 days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 1000tons/month |
| Product: | Seamless Tube | Material: | Copper Nickel Alloy Steel |
|---|---|---|---|
| Standard: | ASTM B466 | Grade: | C70600 |
| Type: | Round | Packing Details: | Ply-wooden Case /Iron Case/ Bundle With Plastic Cap |
| Third Party Inspection: | BV,SGS,ASP | Length: | Up To 6 Meters |
| High Light: | ASTM B466 SMLS Tube,C70600 Copper Nickel Alloy Tube,Seamless Round Copper Nickel Alloy Tube |
||

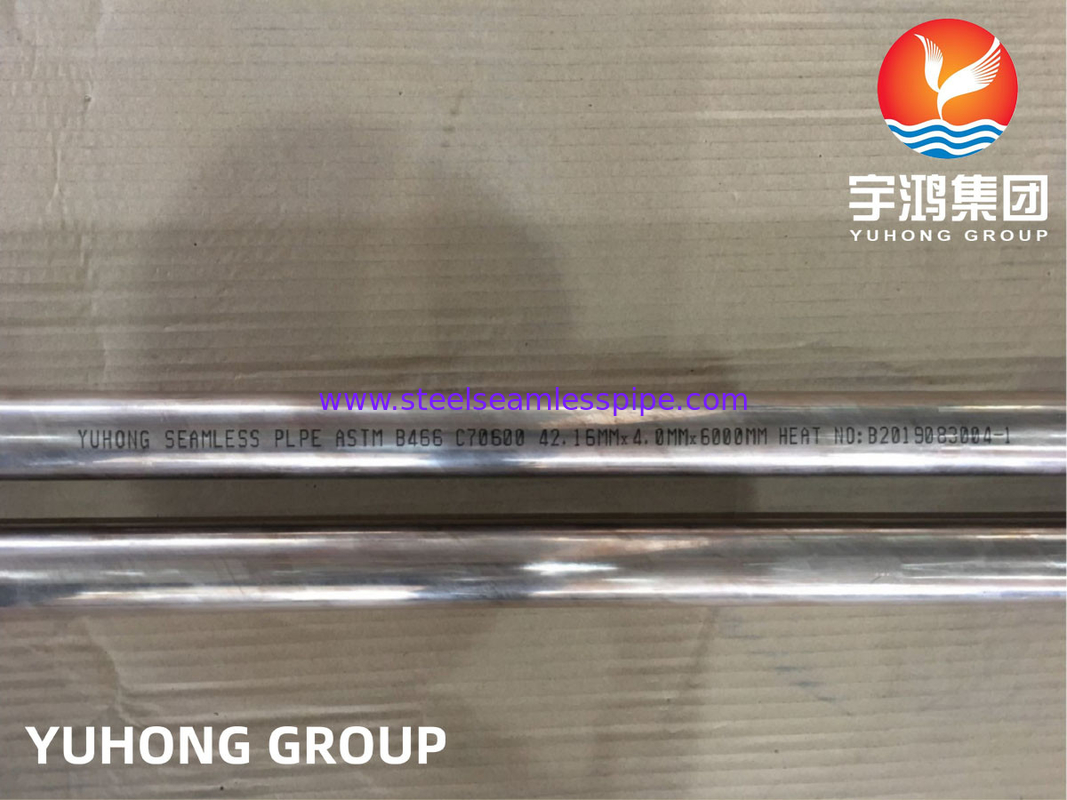

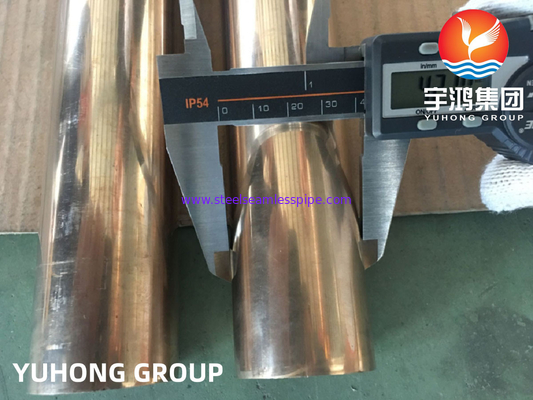

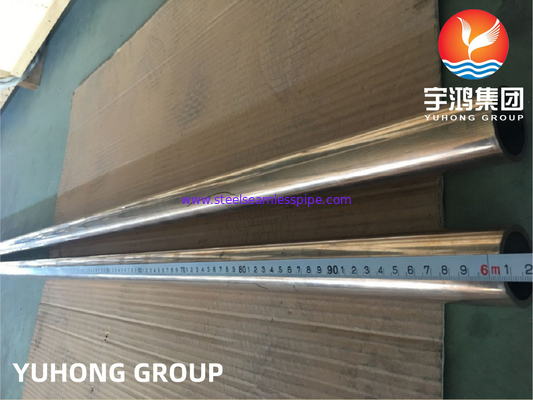

ASTM B466 C70600 90% Cu 10% Ni Seamless Copper Nickel Alloy Tube
YuHong Group supplies ASTM B466 C70600 Copper Nickel Alloy SMLS Tube, the UNS C70600 Tube possesses some good mechanical properties, which includes good resistance to stress corrosion cracking. They can also effectively resist erosion and biofouling in the seawater environment.
The Copper Nickel Tube 90/10 comes with excellent fabricability and they have good welding properties too. They have high resistance to hydrogen embrittlement. One of the best things about the MIL-T-16420K alloy 706 Round Tube is that they can retain their properties down to the cryogenic temperatures. The CuNi 90/10 Seamless Tube is more reliable and less prone to leakage compared to the welded pipes due to the absence of seams.
Specifications Of ASTM B466 C70600
| Dimensions | All Pipe is manufactured and inspected/tested to the relevant standards including ASTM, ASME, etc. | ||||
| Sizes | 1/2″ TO 20′ IN,DN15 TO DN500 | ||||
| OD Diameter | 15mm to 508mm | ||||
| Schedule | SCH 40, SCH 80, SCH 160, SCH XS, SCH XXS, All Schedules | ||||
| Testing |
Hardness Test/Chemical Analysis – Spectro Analysis/Flattening Test/Pitting Resistance Test/Flaring Test/IGCTest,etc. |
||||
| Length | Mainly 6meter or required Length | ||||
| Wall Thickness | SCH10, SCH20, SCH30, STD, SCH40, SCH60, XS, SCH80, SCH100, SCH120, SCH140, SCH160, XXS DIN, JIS standard thickness | ||||
Chemical Composition Of ASTM B466 C70600
| Chemical Composition % | Cu | Pb | Zn | Fe | Ni | Mn |
| Rem. | 0.05max | 1.0max | 1.0-1.8 | 9.0-11.0 | 1.0 |
Physical Property Of ASTM B466 C70600
| Properties | Metric | Imperial |
| Density | 8.94 g/cm3 | 0.323 lb/in3 |
Mechanical Property Of ASTM B466 C70600
| Properties | Metric | Imperial |
| Tensile strength, ultimate | 303-414 MPa | 43900-60000 psi |
| Tensile strength, yield (depending on temper) | 110-393 MPa | 16000-57000 psi |
| Elongation at break (in 254 mm) | 42% | 42% |
| Machinability (UNS C36000 (free-cutting brass) = 100%) | 20% | 20% |
| Shear modulus | 52.0 GPa | 7540 ksi |
| Poisson's ratio | 0.34 | 0.34 |
| Elastic modulus | 140 GPa | 20300 ksi |
Applications Industry
Marine
Chemical
Petrochemical
Offshore
Shipbuilding
All types of cooling plants and heat exchangers, boilers
Sea Water Equipment
Pulp and Paper
