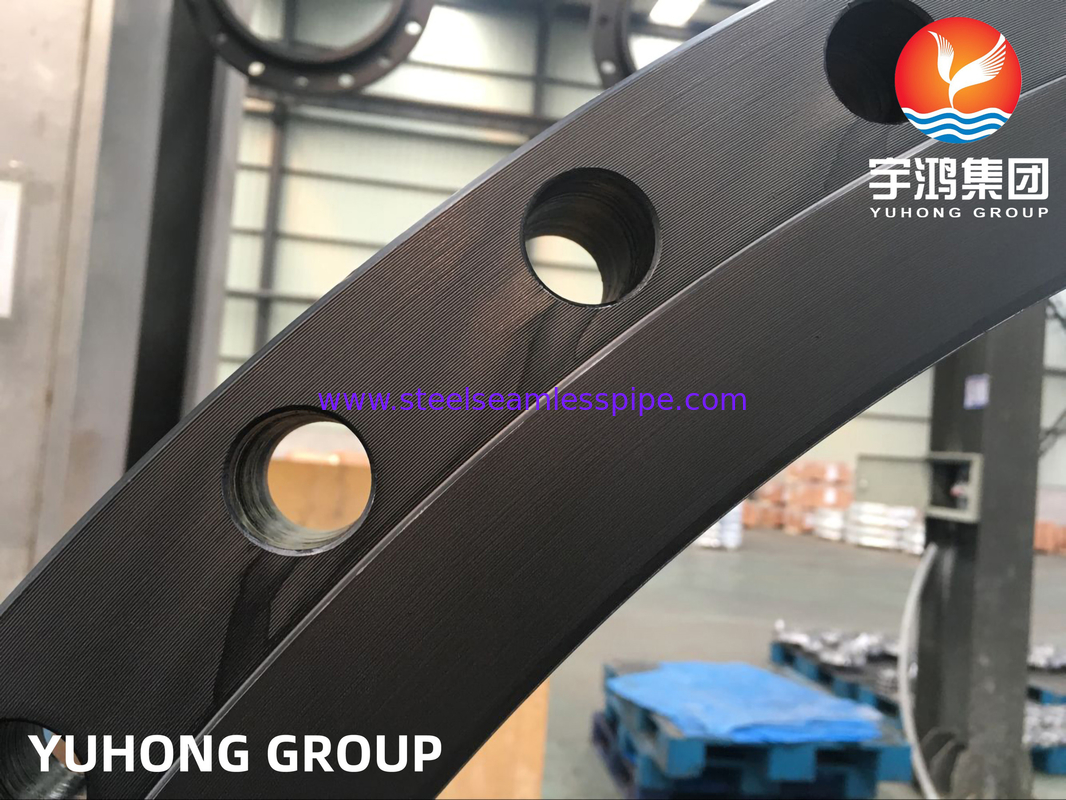

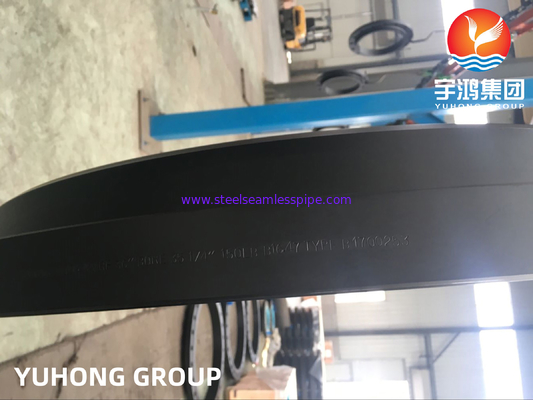

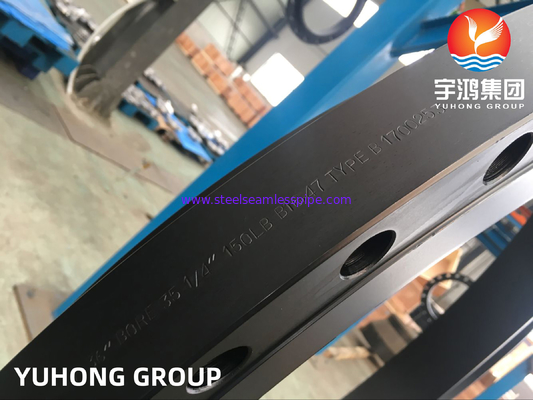

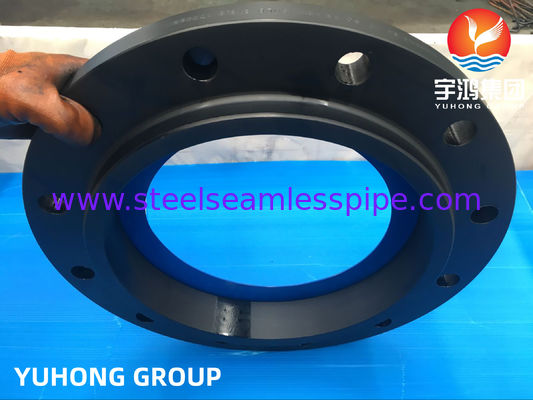

Carbon Steel Flange ASTM A105 Oil Gas Plumbing Heating Fabrication Chemical Food

Product Details:

Place of Origin:	CHINA
Brand Name:	YUHONG
Certification:	ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2015
Model Number:	A105

Payment & Shipping Terms:

Minimum Order Quantity:	500KGS
Price:	Negotiation
Packaging Details:	PLYWOOD CASE,PALLET
Delivery Time:	Depends on quantity
Payment Terms:	T/T, L/C at sight
Supply Ability:	10000Ton/Month

Contact Now

All Products

Stainless Steel Seamless Pipe (308)

Stainless Steel Seamless Tube (297)

Duplex Stainless Steel Pipe (132)

Duplex Stainless Steel Tube (33)

Needle Tube (134)

Fin Tube (672)

Heat Exchanger (20)

Heat Exchanger Tube (443)

Heat Exchanger Tube Bundle (40)

Heat Exchanger Tubesheet (117)

Heat Exchanger Baffle (37)

Air Cooler (9)

Pressure Vessel (4)

Stainless Steel Welded Pipe (58)

Stainless Steel Welded Tube (120)

Nickel Alloy Pipe (266)

Nickel Alloy Tube (92)

Copper Alloy Tube (240)

Alloy Steel Tube (204)

Titanium Tube (15)

Bright Annealed Tube (155)

Boiler Tube (151)

Steel Fitting (826)

Steel Flange (615)

Others (401)

Cladding Parts (7)

Detailed Product Description

TYPE:

SORF

SIZE:

1/2" TO 48"

WT:

Sch10s To XXS

STANDARD:

ASTM A105

Highlight:

Oil Gas Carbon Steel Flange

Plumbing Heating Fabrication Carbon Steel Flange

ASTM A105 Pipe Flange

Carbon Steel Flange ASTM A105 Oil Gas Plumping Heating Fabrication

Overview

ASTM A105 flanges are a standard for flanges. Flanges made of stainless steel can be specified in different grades.ASTM A105 carbon steel flanges are designed to withstand high temperatures. Steel flanges made from A105N material are referred to as ASTM A105N flanges. ASTM A105N steel has no grade in the ASTM A105 standard, and N refers to the heat treatment normalization of the steel. Carbon steel A105N flanges are manufactured from low carbon steel materials that may contain manganese, phosphorus or sulfur.A105 carbon steel flanges are characterized by high toughness and wear resistance. They are commonly used in oil and gas transmission pipelines. These flanges are available in a range of grades and sizes.

Chemical Composition of A105 Carbon Steel Flanges

ELEMENT	COMPOSITION, %
Carbon	0.35 max
Manganese	0.60-1.05
Phosphorus	0.035 max
Sulfur	0.040 max
Silicon	0.10-0.35
Copper	0.40 max (1)
Nickel	0.40 max (1)
Chromium	0.30 max (1-2)
Molybdenum	0.12 max (1-2)
Vanadium	0.08 max

Mechanical Properties of A105 Carbon Steel Flanges

Mechanical Properties	Requirements
Tensile strength,min,psi [MPa]	70000 [485]
Yield strength,min,psi [MPa]	36000 [250]
Elongation, min, %	30
Reductionofarea,min,%	30
Hardness,HB,max	187

What temperature is A105 normalized?

Typical heat treatments for A105 carbon steel forgings include annealing (A), normalizing (A), normalizing and tempering (NT), and quenching and tempering (QT). In particular, many customers often require normalizing at approximately 950°C for 2.5 hours to eliminate internal stresses that may be present in the forgings.

Application

Food Processing

Gas Processing
Chemical
Oil & Gas
