Yuhong Holding Group Co.,LTD
 |
| Place of Origin: | CHINA |
| Brand Name: | YUHONG |
| Certification: | API , ABS, DNV, GL , LR, NK. |
| Model Number: | S32750 |
| Minimum Order Quantity: | 1 PC |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Ply-wooden Case /Iron Case/ Bundle with plastic Cap |
| Delivery Time: | Depends on quantity |
| Payment Terms: | T/T, L/C AT SIGHT |
| Supply Ability: | 10000tons per month |

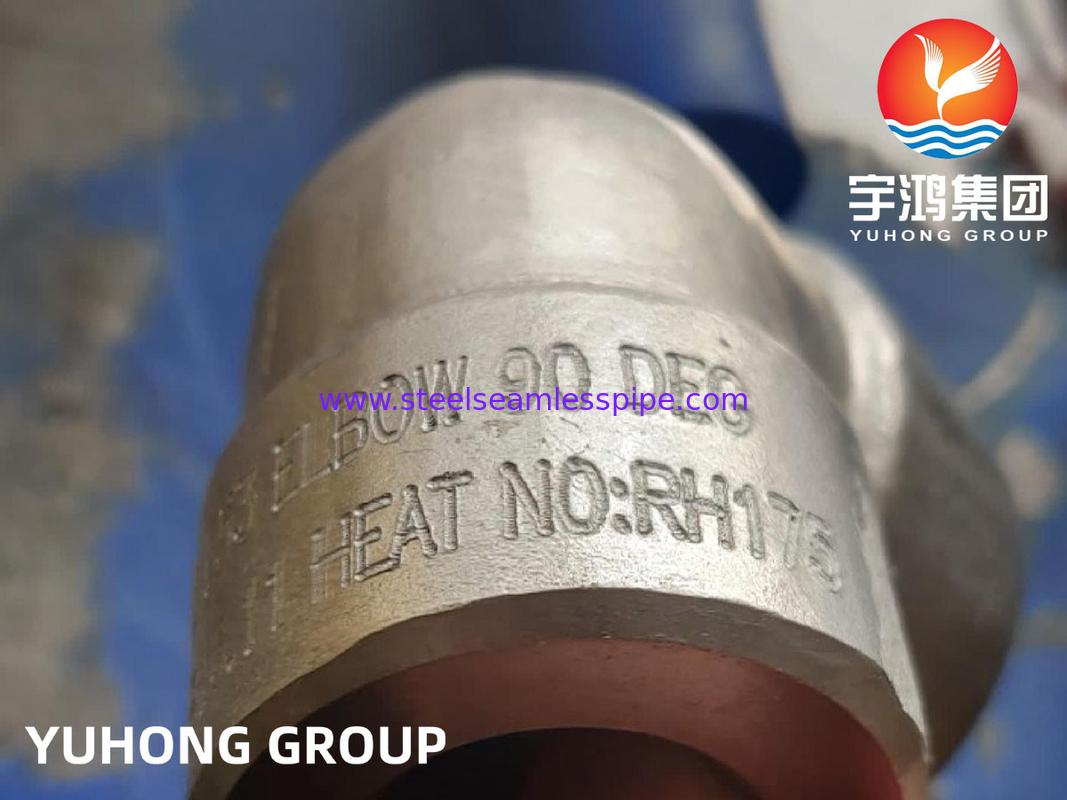

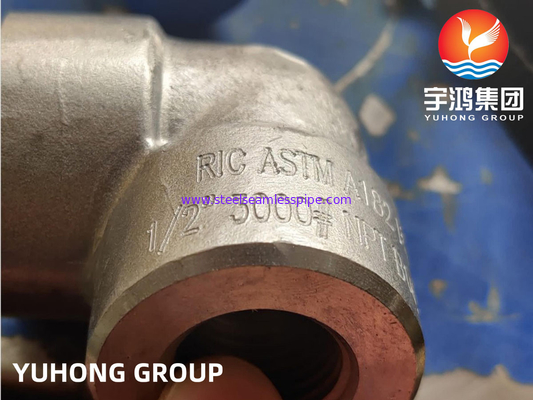

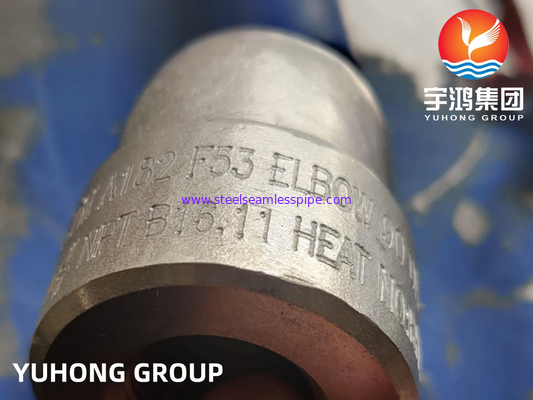

| Product Name: | Stainless Steel 90Deg Elbow | Specification: | ASTM A182 |
|---|---|---|---|
| Dimension Standard: | ASME/ANSI B16.11 | Material: | F53 |
| O.D.: | 2'' | W.T.: | Sch5-Sch160,XS,XXS,STD |
| High Light: | Super Duplex Steel Elbow,Gas Chemical Steel Elbow,Stainless Steel Pipe 90 Degree Elbow |
||
What is ASTM 182 F53
ASTM A182 F53 is a forging material specification for Grade 53 stainless steel for the manufacture of bare forgings or forged and machined products involving high temperature service applications.
ASTM 182 F53 Chemical Composition
|
GRADE
|
C≤
|
Mn≤
|
Si≤
|
S≤
|
P≤
|
Cr≤
|
Ni
|
Mo
|
Cu≤
|
N
|
|
S32750
(2507)
00Cr25Ni7Mo4N
|
0.03
|
1.20
|
0.8
|
0.020
|
0.035
|
24.0/26.0
|
6.0/8.0
|
3.0/5.0
|
0.50
|
0.24/0.32
|
ASTM 182 F53 specification
| Nominal Diameter | Outside Diameter at Bevel |
Center to End | Center to Center | Back to Face | ||||||
| 45°Elbow | 90°Elbow | 180°Elbow | ||||||||
| DN | NPS | Series A | Series B | Long Radius |
Long Radius |
Short Radius |
Long Radius |
Short Radius |
Long Radius |
Short Radius |
| 20 | 3/4 | 26.9 | 25 | 19 | 38 | - | 76 | - | 51 | - |
| 25 | 1 | 33.7 | 32 | 22 | 38 | 25 | 76 | 51 | 56 | 41 |
| 40 | 1.1/2 | 48.3 | 45 | 29 | 57 | 38 | 114 | 76 | 83 | 62 |
| 50 | 2 | 60.3 | 57 | 35 | 76 | 51 | 152 | 102 | 106 | 81 |
| 80 | 3 | 88.9 | 89 | 51 | 114 | 76 | 229 | 152 | 159 | 121 |
| 100 | 4 | 114.3 | 108 | 64 | 152 | 102 | 305 | 203 | 210 | 159 |
| 200 | 8 | 219.1 | 219 | 127 | 305 | 203 | 610 | 406 | 414 | 313 |
| 300 | 12 | 323.9 | 325 | 190 | 457 | 305 | 914 | 610 | 619 | 467 |
| 400 | 16 | 406.4 | 426 | 254 | 610 | 406 | 1219 | 813 | 813 | 610 |
| 500 | 20 | 508.0 | 529 | 318 | 762 | 508 | 1524 | 1016 | 1016 | 762 |
| 600 | 24 | 610 | 630 | 381 | 914 | 610 | 1829 | 1219 | 1219 | 914 |
ASTM 182 F53 Application:
